UPS Blacktec Office 2200VA / 1320W Line Interactive

UPS Blacktec Office 2200VA / 1320W Line Interactive

is an efficient technology uninterruptible power supply Line Interactive, designed to protect computers, servers, NAS, surveillance recorders, network devices, and other sensitive electronics. It stabilizes voltage, maintains power during power outages, and protects equipment against spikes, sags, and network disruptions.
The Blacktec Office 2200VA / 1320W UPS is ideal for:

• offices and small server rooms – protection of servers, NAS arrays, workstations and switches,


• monitoring systems – support for DVR/NVR recorders, PoE switches and routers,


• home and SOHO installations - protection of computers, TVs, routers and multimedia equipment,


• points of sale (POS), where power continuity is crucial for the operation of devices.

The most important advantages

• Automatic voltage stabilization Boost Buck AVR —
  The UPS continuously corrects too low or too high mains voltage without switching to the battery, which significantly extends the battery life and protects the connected equipment from damage.


• Built-in microprocessor control and LCD display — a clear screen shows real-time input/output voltage, battery charge level and operating mode, and an advanced microprocessor guarantees instant response to changes in the network.


• Auto Restart and Cold Start Features — when mains power is restored, the UPS automatically returns to normal operation, and the cold start function allows the UPS and connected equipment to run solely on batteries, even when there is no power at the outlet.

Line Interactive technology with AVR

The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the built-in stabilizer. Boost Buck AVR Battery operation is activated only in the event of a complete power outage, which reduces battery wear and extends their lifespan.

Boost Buck AVR for voltage stabilization

The device automatically increases the voltage that is too low (Boost) and decreases the voltage that is too high (Buck) in the typical range of 165-290 V, thanks to which the computer, router or recorder works on stable 230V without unnecessary switching to battery.

Key features of the system

• Technology: Line Interactive with Automatic Voltage Regulation (AVR)


• Power: 2200VA / 1320W

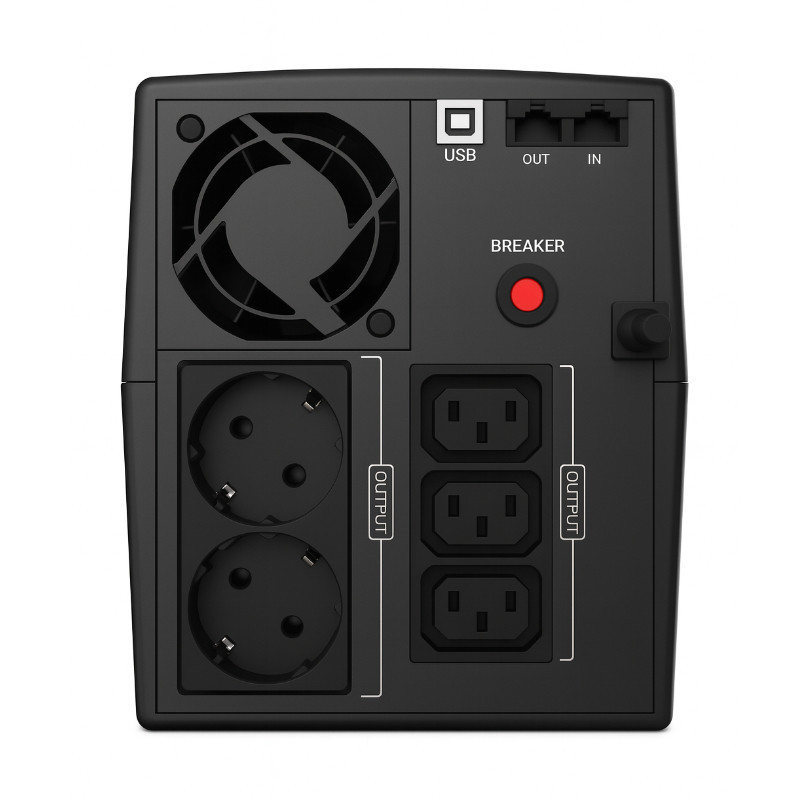

• Outputs: 2 × Schuko socket, 3 × IEC socket


• Voltage waveform (battery mode): simulated (approximated) sine wave


• Charging in off mode: the batteries are charged even when the UPS is turned off


• DSP technology: an advanced processor analyzes network parameters and controls UPS functions, ensuring short switching times and high reliability


• LCD display: shows input/output voltage, battery level, load and current operating mode


• Auto Restart: when power is restored, the UPS automatically returns to network mode


• Cold Start Function: the ability to run UPS and devices solely on batteries


• Telephone line protection: additional security for the modem, router or switchboard

Technical specifications

• Parameters / Model: Blacktec Office 2200 - 2200 VA / 1320 W

Entry

• Nominal voltage: 220 / 230 / 240 VAC


• Voltage range: 140 - 300 VAC


• Frequency: 50/60 Hz (auto detect)

Exit

• Voltage regulation (battery mode): ±10%


• Frequency adjustment (battery mode): 50 or 60 Hz ± 1 Hz


• Switching time: 2 - 6 ms


• Voltage waveform (battery mode): simulated sine wave

Battery

• Battery type/quantity: 12V / 9Ah × 2


• Backup time at 50% load: about 5 minutes


• Backup time at 100% load: approx. 1 min


• Standard charging time: 8 hours to 90% capacity

Dimensions and weight

• Dimensions (W x D x H): 397 × 146 × 205 mm


• Net weight: 12 kg


• Total number of UPS sockets: 4 × Schuko

Control panel

• Network operation (green LED): messages on the LCD display


• Battery operation (flashing green): messages on the LCD display


• Malfunction: messages on the LCD display

Alarm

• Battery mode: sound every 10 seconds


• Low battery: sound every second


• Overload: sound every 0.5 seconds


• Malfunction: continuous sound

Safeguard

• Full protection: protection against short circuit, overload, discharge and overcharge

Environment

• Relative humidity: 0-90% RH @ 0-40°C (non-condensing)


• Noise: <40 dB

Management

• Communication interface: Smart RS-232 / USB


• Supported systems: Windows® 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10 / 11 (32 64 bit), Linux, Mac OS

Standards

• EMC: EN 62040-1: 2008 + A1: 2013
