UPS Blacktec Office 1500VA / 900W Line Interactive

UPS Blacktec Office 1500VA / 900W Line Interactive

is an efficient technology uninterruptible power supply Line Interactive, designed to protect computers, workstations, surveillance recorders, network devices, and other sensitive electronics in the office and home. It stabilizes voltage, maintains power during power outages, and protects equipment from voltage spikes and sags.
The Blacktec Office 1500VA / 900W UPS is ideal for:

• offices and home workstations - protection of computers, monitors, routers,


• monitoring systems – support for DVR/NVR recorders, switches and network devices,


• small server rooms and IT cabinets,


• home installations where it is required to maintain the operation of devices during a power outage.

The most important advantages

• Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which significantly extends battery life and protects connected equipment from damage.


• Built-in microprocessor control and LCD display — a clear screen shows real-time input/output voltage, battery charge level and operating mode, and an advanced microprocessor guarantees instant response to changes in the network.


• Auto Restart and Cold Start Features — when mains power is restored, the UPS automatically returns to normal operation, and the cold start function allows the UPS and connected equipment to run solely on batteries, even when there is no power at the outlet.

Line Interactive technology with AVR

The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the built-in stabilizer. Boost Buck AVR It only switches to battery power in the event of a complete power outage, which reduces battery wear and extends its lifespan.

Boost Buck AVR for voltage stabilization

Automatically increases too low voltage (Boost) and reduces too high voltage (Buck) in the typical range of 165-290 V, thanks to which the computer, router or recorder works on stable 230V without unnecessary battery consumption.

Key features of the system

• Technology: Line Interactive with Automatic Voltage Regulation (AVR)


• Power: 1500VA / 900W

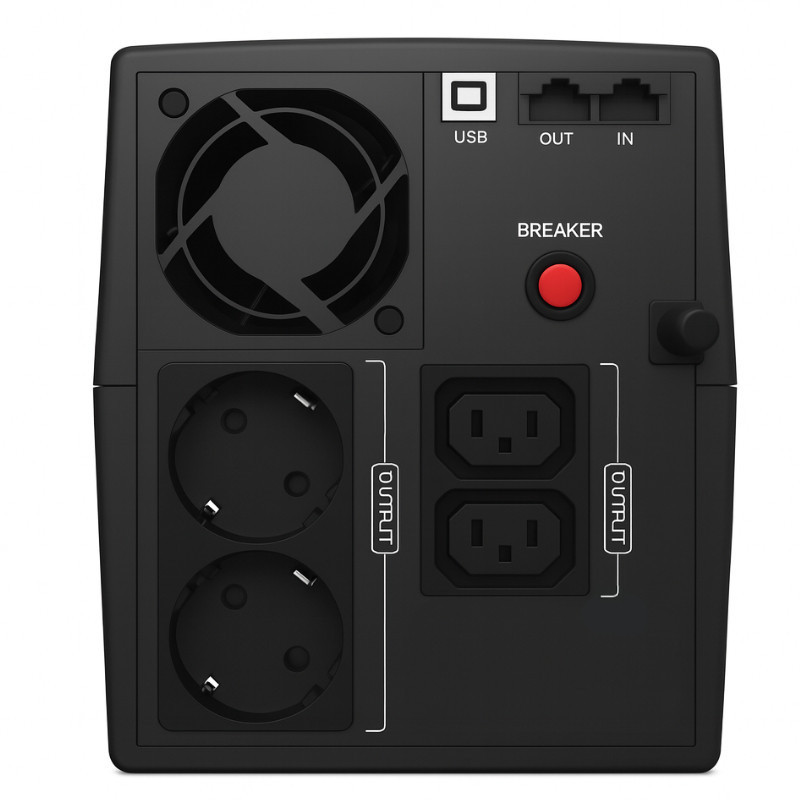

• Outputs: 2 × Schuko sockets, 2 × IEC sockets


• Voltage waveform (battery mode): simulated (approximated) sine wave


• Charging in off mode: the battery charges even when the UPS is turned off


• DSP technology: an advanced processor analyzes network parameters and controls all UPS functions, ensuring short switching times and high reliability


• LCD display: presents input and output voltage, battery level, current load and operating mode


• Auto Restart: when power is restored, the UPS automatically returns to network mode


• Cold Start Function: the ability to run the UPS and connected devices only from batteries


• Telephone line protection: protects your modem, router, or other communication devices

Technical specifications

• Parameters / Model: Blacktec Office 1500 - 1500 VA / 900 W

Entry

• Nominal voltage: 220 / 230 / 240 VAC


• Voltage range: 140 - 300 VAC


• Frequency: 50/60 Hz (auto detect)

Exit

• Voltage regulation (battery mode): ±10%


• Frequency adjustment (battery mode): 50 or 60 Hz ± 1 Hz


• Switching time: 2 - 6 ms


• Voltage waveform (battery mode): simulated sine wave

Battery

• Battery type/quantity: 12V / 9Ah × 2


• Backup time at 50% load: approx. 7 min


• Backup time at 100% load: about 2 minutes


• Standard charging time: 4-6 hours to 90% capacity

Dimensions and weight

• Dimensions (W x D x H): 397 × 146 × 205 mm


• Net weight: 11 kg


• Total number of UPS sockets: 2 × Schuko, 2 × IEC

Control panel

• Network operation (green LED): messages on the LCD display


• Battery operation (flashing green): messages on the LCD display


• Malfunction: messages on the LCD display

Alarm

• Battery mode: sound every 10 seconds


• Low battery: sound every second


• Overload: sound every 0.5 seconds


• Malfunction: continuous sound

Safeguard

• Full protection: protection against short circuit, overload, discharge and overcharge

Environment

• Relative humidity: 0-90% RH @ 0-40°C (non-condensing)


• Noise: <40 dB

Management

• Communication interface: Smart RS-232 / USB


• Supported systems: Windows® 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10 / 11 (32 64 bit), Linux, Mac OS

Standards

• EMC: EN 62040-1: 2008 + A1: 2013
