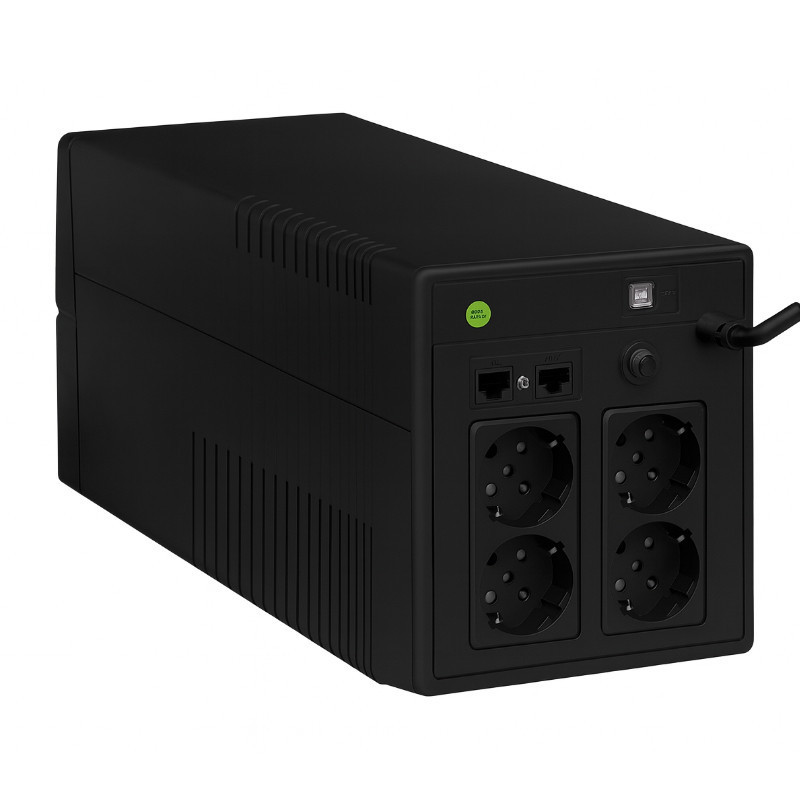

UPS Blacktec Office 1000VA / 600W Line Interactive

UPS Blacktec Office 1000VA / 600W Line Interactive

is an efficient technology uninterruptible power supply Line Interactive, designed to protect computers, routers, recorders, cash registers, and other office and home electronics. It stabilizes voltage, maintains power during power outages, and protects devices against voltage spikes and sags.
The Blacktec Office 1000VA / 600W UPS is ideal for:

• offices and home workstations - protection of computers, monitors, routers,


• monitoring systems - support for recorders, switches and cameras powered by power supplies,


• small server rooms and IT cabinets,


• home installations where longer operation of devices is required during a power outage.

The most important advantages

• Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which significantly extends battery life and protects equipment from damage.


• Built-in microprocessor control and LCD display — a clear screen shows the input/output voltage, battery charge level and operating mode, and an advanced microprocessor guarantees instant response to changes in the network.


• Auto Restart and Cold Start Features — when mains power is restored, the UPS automatically returns to normal operation, and the cold start function allows the UPS and connected equipment to run solely on battery power.

Line Interactive technology with AVR

The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the built-in stabilizer. Boost Buck AVR Switches to battery operation only in the event of a complete power outage, ensuring the battery is only used when absolutely necessary.

Boost Buck AVR for voltage stabilization

Automatically increases too low voltage (Boost) and reduces too high voltage (Buck) in a wide range, so that the computer, router or recorder works at stable levels 230V without unnecessary battery consumption.

Key features of the system

• Line Interactive Technology with automatic voltage regulation (AVR)


• Power: 1000VA / 600W


• Outputs: 4 × Schuko sockets


• Simulated sine wave in battery mode - compatible with computers, electronics, small central heating pumps, fans and controllers


• Charging in off mode — the battery charges even when the UPS is turned off


• DSP technology — advanced processor analyzes network parameters and controls UPS operation, ensuring short switching times and high reliability


• Touchscreen LCD display — shows input and output voltage, battery status, current load and operating mode


• Auto Restart — when power is restored, the UPS automatically returns to network mode


• Cold Start function — ability to run the UPS and connected devices only from batteries


• Telephone line protection — secures your modem, router, or other communication devices

Technical specifications

• Parameters / Model: Blacktec Office 1000 - 1000 VA / 600 W

Entry

• Nominal voltage: 220 / 230 / 240 VAC


• Voltage range: 140 - 300 VAC


• Frequency: 50/60 Hz (auto detect)

Exit

• Voltage regulation (battery mode): ±10%


• Frequency adjustment (battery mode): 50 or 60 Hz ± 1 Hz


• Switching time: 2 - 6 ms


• Voltage waveform (battery mode): simulated sine wave

Battery

• Battery type/quantity: 12V 7Ah × 2


• Backup time at 50% load: approx. 8 min


• Backup time at 100% load: approx. 0.5 min


• Standard charging time: 4-6 hours to 90% capacity

Dimensions and weight

• Dimensions (W x D x H): 350 × 146 × 160 mm


• Net weight: 8.0 kg


• Total number of UPS sockets: 4 × Schuko

Control panel

• Network operation (green LED): messages on the LCD display


• Battery operation (flashing green): messages on the LCD display


• Malfunction: messages on the LCD display

Alarm

• Battery mode: sound every 10 seconds


• Low battery: sound every second


• Overload: sound every 0.5 seconds


• Malfunction: continuous sound

Safeguard

• Full protection: protection against short circuit, overload, discharge and overcharge

Environment

• Relative humidity: 0-90% RH @ 0-40°C (non-condensing)


• Noise: <40 dB

Management

• Communication interface: Smart RS-232 / USB


• Supported systems: Windows® 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10 / 11 (32 64 bit), Linux, Mac OS

Standards

• EMC: EN 62040-1:2008 + A1:2013
