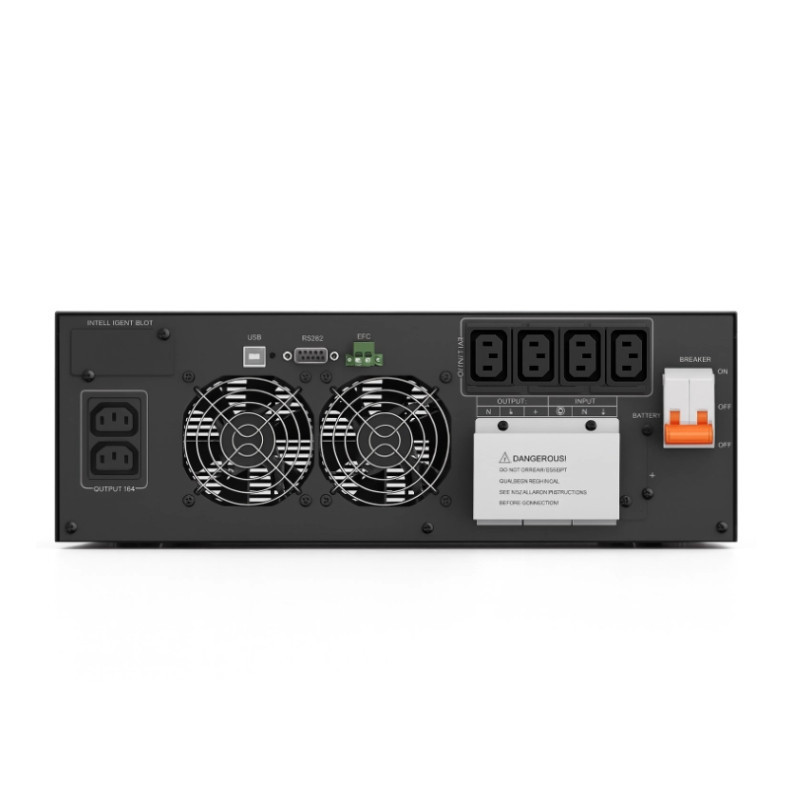

UPS Blacktec BT RT 11 6k-C 6000 VA / 6000 W 240V

UPS Blacktec BT RT 11 6k-C - 6000 VA / 6000 W

is a professional emergency power supply in technology On-Line VFI, designed to protect extensive IT systems and critical infrastructure. Provides full active power 6 kW, stable voltage and continuity of power supply even in very demanding operating conditions.
UPS Blacktec BT RT 11 6k-C is perfect for protecting:

• server rooms and small data centers,


• network and telecommunications infrastructure,


• monitoring, security and access control systems,


• industrial automation and control systems,


• sensitive IT and medical devices (in compliance with industry standards).

The most important advantages

• On-Line VFI Technology — double conversion ensures full isolation of the output from network interference, guaranteeing continuous and stable power supply to sensitive IT devices, servers, telecommunications systems and medical equipment.


• Wide input voltage range 80-300 V — The UPS operates reliably in installations with frequent voltage sags and swells. The wide input range reduces the need to switch to battery power, extending battery life.


• ECO mode + SILENT version — the economy mode reduces energy consumption and heat generation, and the quiet operation of the fans (SILENT version) makes the UPS ideal for offices, server rooms and residential installations.

Generator operation and wide input range

The UPS can be safely powered from power generator, which increases the system's independence and guarantees continuous operation during long-term network outages. Input voltage range 80-300V allows for stable operation even with extreme fluctuations in power supply parameters.

ECO mode and silent operation (SILENT)

Mode ECO increases the efficiency of the entire system, reducing energy consumption and thermal load. Version SILENT with optimized fan operation ensures low noise levels, which is crucial in places where the UPS operates in the immediate vicinity of people.

Key features of the system

• Technology: On-Line VFI (double conversion)


• Power: 6000 VA / 6000 W (power factor 1.0)


• Wide input range: 80-300V


• Outputs: 6 × IEC (possibility of grouping loads)


• ECO mode: higher efficiency and lower energy consumption


• SILENT version: quiet operation thanks to optimized ventilation


• Generator compatible: adapted to work with power generators


• HID USB communication: seen by the system as a standard UPS, enables monitoring and automatic system shutdown


• EPO (Emergency Power Off) port: emergency power off with one signal in accordance with safety and fire protection procedures


• Easy battery replacement: the design allows for quick removal and replacement of batteries without long downtime


• Optional N+X parallel redundancy: Possibility to connect several units in parallel (e.g. 2 × 6 kW, 3 × 6 kW, 4 × 6 kW) to increase power or obtain redundancy


• Output power factor 1.0: full 6000 VA available as 6000 W of active power without losses on reactive loads


• Wide input voltage range: stable operation without frequent switching to battery, even with extreme voltage fluctuations


• RT version with rotating LCD: display adapted for rack or tower mounting, always legible for the user

Technical specifications

• Parameters / Model: Blacktec BT 11 C-6KL - 6000 VA / 6000 W

Entry

• Nominal voltage: 208 / 220 / 230 / 240 VAC


• Voltage range: 80 - 300 VAC


• Frequency range: 45-55 Hz or 55-65 Hz


• Harmonics (THDi): < 4% (100% load)


• Power factor: > 0.99 (100% load)

Exit

• Output voltage: 208 / 220 / 230 / 240 VAC


• Voltage regulation (battery mode): ±1%


• Frequency range (synchronized): 46-54 Hz or 56-64 Hz


• Frequency adjustment (battery mode): 50 ±0.5 Hz / 60 ±0.5 Hz


• Crest Factor: 3:1


• Harmonic distortion: < 2% THD (linear), < 5% THD (non-linear)


• Switching time: 0 ms (AC → battery), 0 ms (inverter → bypass)

Efficiency

• Inverter mode: 92%


• ECO mode: 96%


• Battery mode: 96%

Battery

• Battery type: 12V / 9Ah


• Quantity: 20 pcs.


• Typical charging time: 4 hours to 90% capacity


• Backup time (50%): approx. 22 min


• Backup time (100%): approx. 9 min


• Charging current: 4 A


• Charging voltage: 13.65 V DC × number of batteries × 1

Dimensions and weight

• UPS dimensions: 438 × 490 × 131 mm (3U)


• Battery Pack Dimensions: 438 × 680 × 131 mm (3U)


• UPS weight: 13.8 kg


• Battery Pack Weight: 59.4 kg


• Number of sockets: TERMINAL (screw terminals)

Environment

• Humidity: 20-90% non-condensing


• Operating temperature: 0-40°C


• Noise: < 55 dB (1 m)


• Height above sea level: 0-1000 m (unlimited), above derating up to 3000 m

Management

• Ports and connectors: EPO, RS-232, USB, Intelligent Slot, battery connector


• Compatible systems: Windows Server 7/8/10/11; Windows Server 2003/2008/2012; Windows Hyper-V 2012/2022; VMware ESXi; Linux (RedHat/SUSE)

Standards

• EMC: EN/IEC 62040-2:2018


• Security: EN/IEC 61000-3-2:2019
