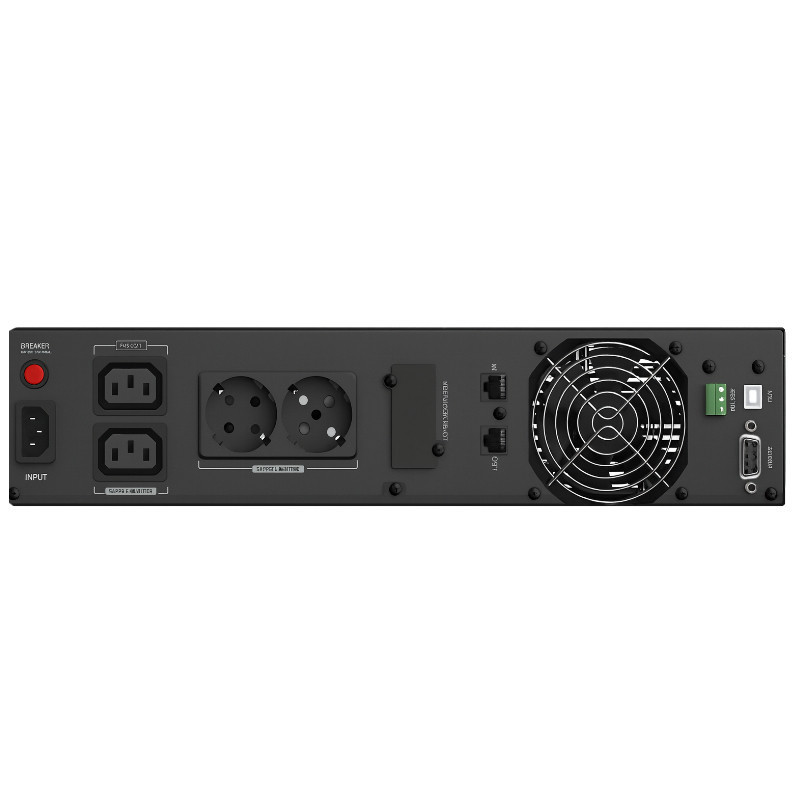

UPS Blacktec BT 2U 1200VA / 720W Line Interactive

UPS Blacktec PRO 2U 1200VA / 720W Line Interactive

is an emergency power supply type Line Interactive with automatic voltage stabilization AVR, designed to protect computers, servers, CCTV recorders, routers, and other sensitive office and industrial electronics. Ideal for 19" rack cabinets and installations where power reliability and compact dimensions are important.
The Blacktec PRO 2U 1200VA / 720W UPS is ideal as protection for:

• servers and rack devices in small and medium-sized server rooms,


• workstations and office computers,


• monitoring recorders, routers, switches and network devices,


• building automation, alarm systems and access control,


• telecommunications equipment and devices requiring stable power supply.

The most important advantages

• Automatic voltage stabilization AVR — The UPS continuously corrects low or high mains voltage without switching to battery power. This extends battery life and protects connected equipment from damage caused by power surges.


• Microprocessor control and LCD display — the built-in DSP controller responds instantly to changes in network parameters, and the clear LCD display shows the input and output voltage, battery charge level and the current operating mode.


• Auto Restart and Cold Start — when mains power is restored, the UPS automatically resumes normal operation, and the cold start function allows the device to run solely on battery power, even when there is no power at the outlet.

Line Interactive Technology

Thanks to technology Line Interactive with built-in voltage regulator AVR The UPS continuously monitors the mains and corrects voltage drops and surges. It only switches to battery power in the event of a complete power outage, which increases system efficiency and reduces battery wear.

Key features of the system

• Power: 1200VA / 720W – to protect several key devices simultaneously.


• Outputs: 2 × IEC + 2 × Schuko – easy connection of office and server equipment.


• Simulated sine wave — Compatible with computers, switching power supplies, routers, NVR/DVR, small pumps and fans.


• Charging in off mode — the battery charges even when the UPS is turned off using the power button.


• DSP technology — An advanced digital processor controls all functions, ensuring short switching times and high reliability.


• Built-in LCD display — presents real-time voltage, load, battery status and operating mode.


• Auto Restart — after the power failure ends, the UPS automatically returns to network mode.


• Cold Start function — ability to run the UPS and connected equipment solely on batteries.


• Optional SNMP card — after adding the SNMP module, it is possible to remotely monitor and manage the UPS over the network.

Technical specifications

• Parameters / Model: UPS 1200R - 1200 VA / 720 W

Entry

• Nominal voltage: 220-240V AC


• Voltage range: 165-290V AC


• Frequency range: 50/60 Hz (auto detect)

Exit

• Battery output voltage: Sinusoidal / 220-240 V AC


• Battery output frequency: 50/60 Hz ±1%


• Overload protection:
  On power supply: fuse; battery: internal current limiting


• Switching time: typically 4 ms

AVR function

• Boost function: YES


• Buck function: YES

Battery

• Battery type: 12V / 7Ah × 2


• Typical charging time: 4 hours to 90%


• Automatic charger: YES


• Automatic restart: YES


• Backup time (50% load, internal batteries): 5 min

Dimensions and weight

• Dimensions (W x D x H): 438mm × 430mm × 88mm (2U)


• Net weight: 14.2 kg


• Total number of UPS sockets: IEC C13 × 2, Schuko × 2

Environment

• Operating temperature: 0-40°C


• Operating relative humidity: 0-90% (non-condensing)

Management

• Ports and connectors: EPO, RS-232, smart slot, USB


• SNMP - compatible systems: Windows Server 7 / 8 / 10 / 11 (32 64 bit); Windows Hyper-V 2012 / 2022; Windows SBS 2011 (32 64 bit); Linux ESXi 4.X / 5.X / 6.X / 7.X / 8.X; Mac OS 10-11

Standards

• EMC: EN IEC 62040-2:2018 / EN IEC 61000-3-2:2019
