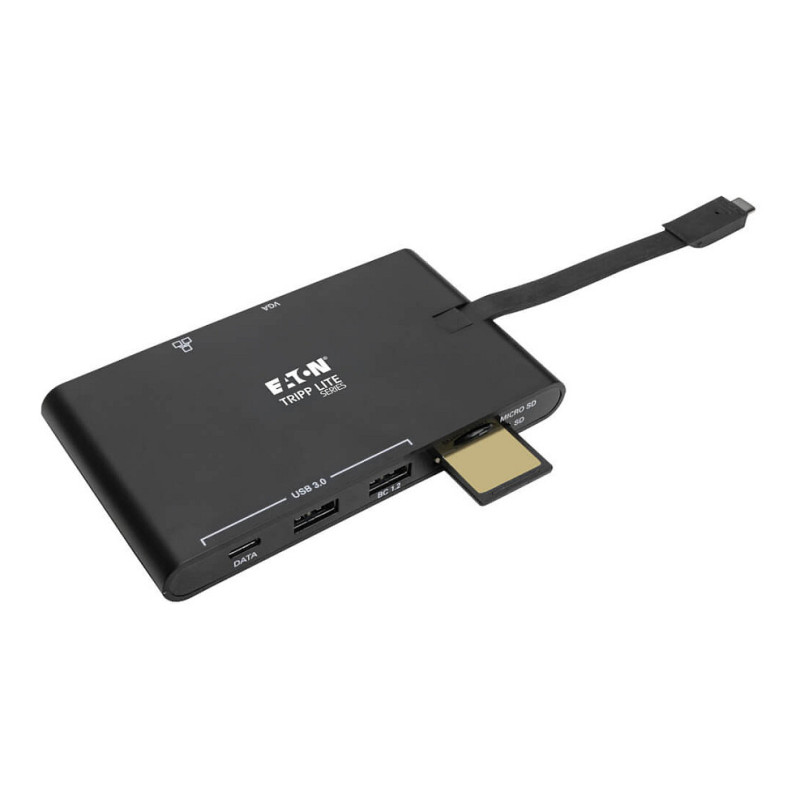

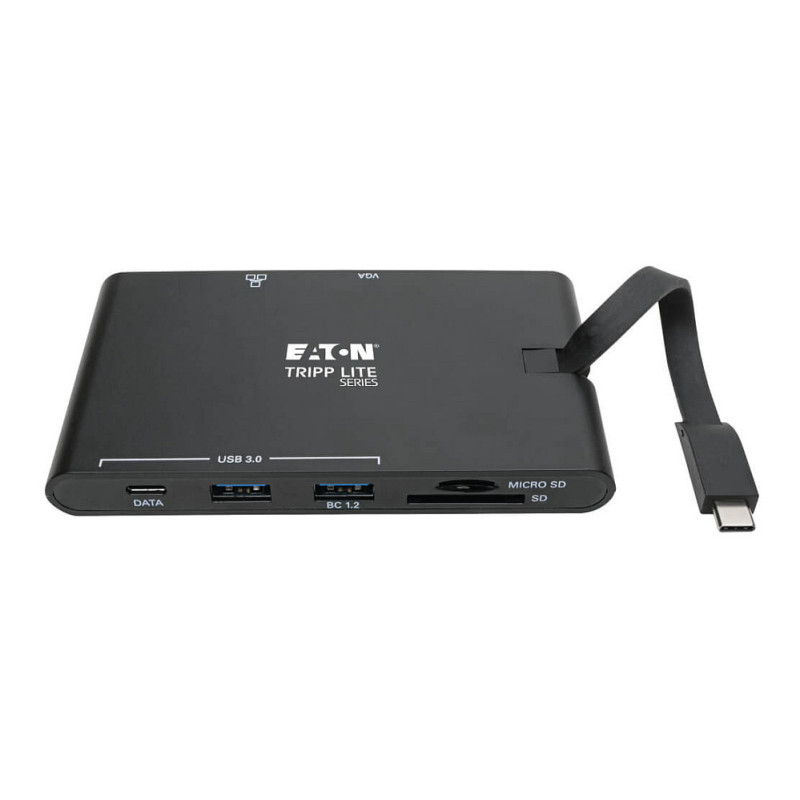

Tripp Lite U442-DOCK3-B laptop dock / port replicator

Tripp Lite U442-DOCK3-B USB-C Dock - 4K HDMI, VGA, USB 3.x (5Gbps), USB-A/C Hub, Gigabit Ethernet, Memory Card Slots, 100W PD Charging. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB connector type: USB Type-C. Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Power consumption (typical): 5 W. Depth: 210.8 mm, Weight: 90 g

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
This USB-C dock with PD Charging expands the potential of your Chromebook or Windows laptop's USB-C or Thunderbolt 3 port. It's ideal for transmitting 4K video and digital audio to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging 3.0-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more—all at the same time.
Please note: The U442-DOCK3-B is incompatible while using 2019 Apple MacBook OS Big Sur 11.X.X.

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.

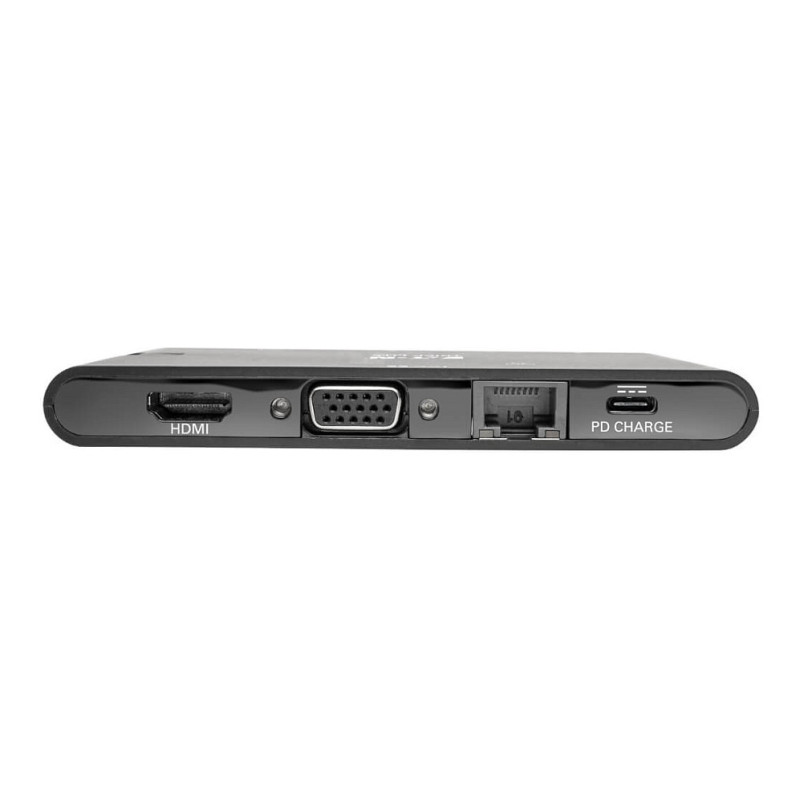

Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI Monitor
To send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the corresponding port to the display using an HDMI cable (sold separately). The HDMI port supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one monitor may be connected at a time. A DVI display may be connected to the HDMI port using an HDMI to DVI adapter (sold separately).

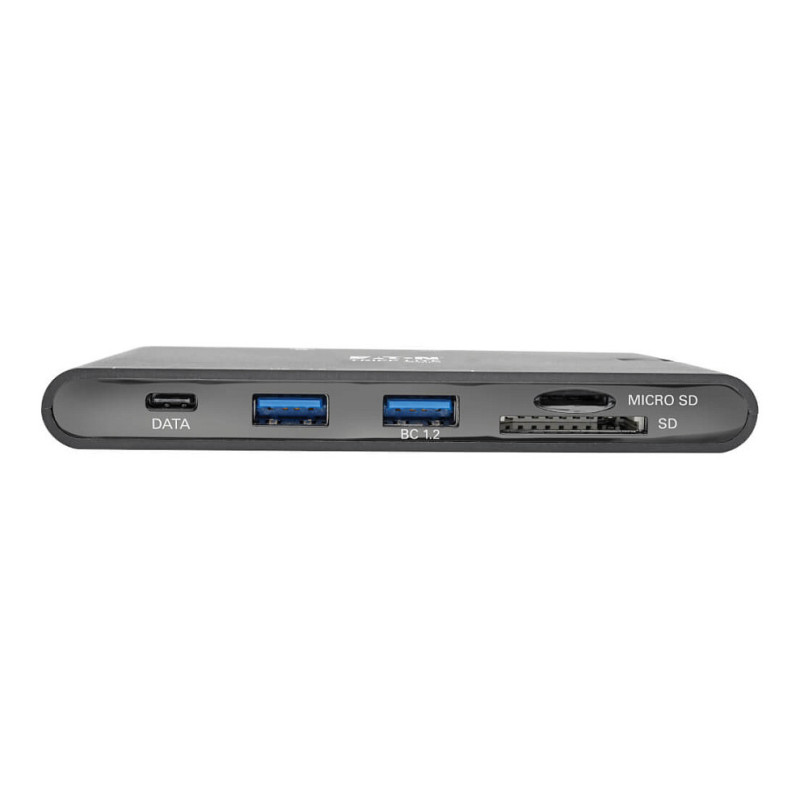

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
The two USB-A hub ports and single USB-C data port accept USB peripherals, such as flash drives, mice, keyboards and printers, and share a maximum 10W (5V 2A) of power. They support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One USB-A port also supports 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device. Note: Host must support USB OTG (On-the-Go).

PD Charging Port Charges the Connected Notebook, Tablet or Other Device
The USB-C port also supports Power Delivery (PD) 3.0 charging of connected PD Charging-compliant devices, such as Chromebooks, Kindles, iPads and Android smartphones. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). This port, as mentioned above, can also be used for transferring data up to 5 Gbps. Note: USB-C PD port does not support Quick Charge (QC).

Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Allows External Memory Access
The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Only one memory card slot can be used at a time.

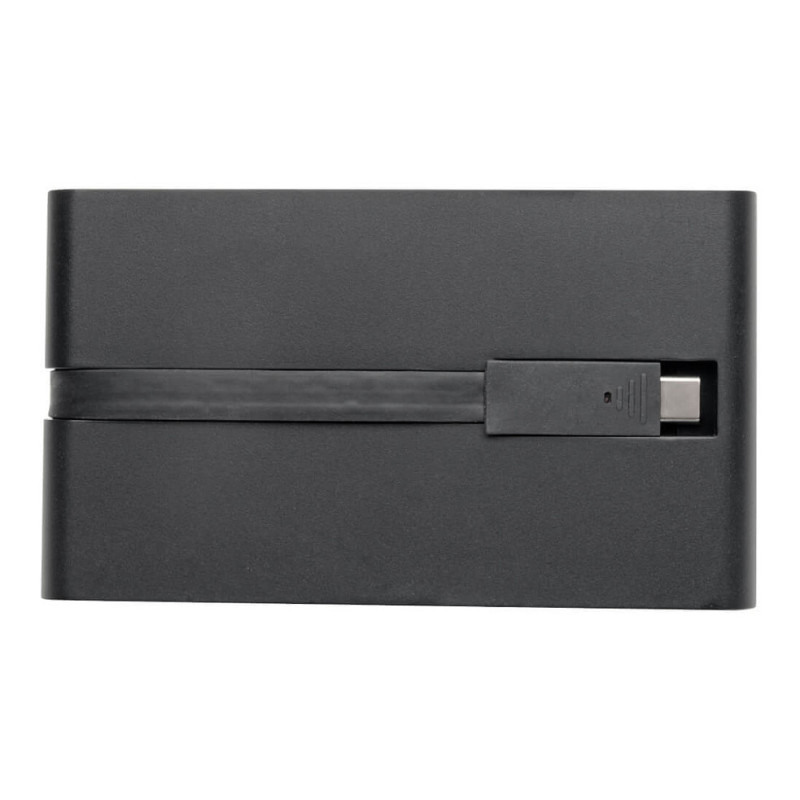

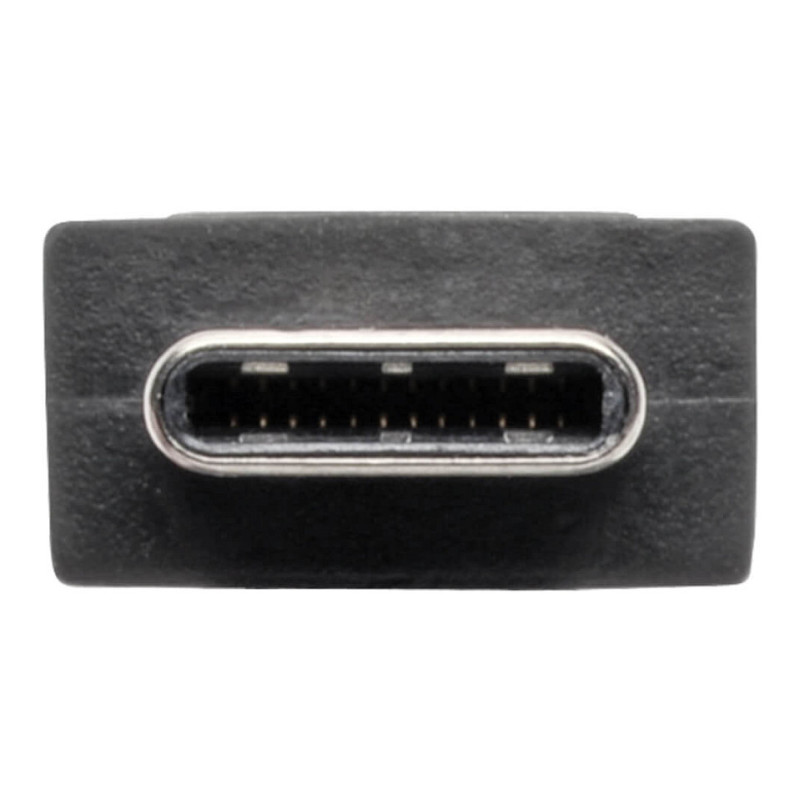

Built-In USB-C Cable Connects in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. The built-in cable tucks away beneath the compact unit for safe carrying in a pocket, briefcase or laptop bag.

Ready to Use Right Out of the Package
The plug-and-play USB-C dock for Windows laptops, Chromebooks and other devices requires no software or external power. Drivers will install automatically the first time the dock is connected (Note: the host computer must have administrative rights or the drivers may fail to install correctly). The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

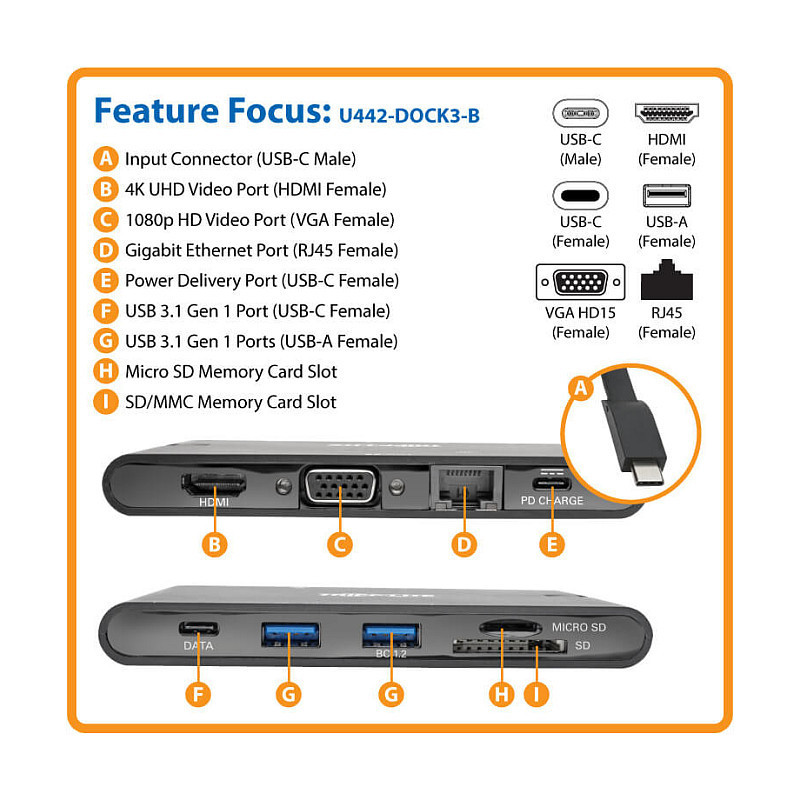

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
HDMI ports quantity: 1
HDMI version: 1.4
VGA (D-Sub) ports quantity: 1
USB connector type: USB Type-C

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Auto MDI/MDI-X

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Black
LED indicators: Activity, Power
Feature: Charging function
Housing material: Plastic
Country of origin: Vietnam
Certification: CE, FCC

Power

Power source type: USB
Power consumption (typical): 5 W

Software

Windows operating systems supported: Yes
Feature: Mac compatibility
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Depth: 210.8 mm
Weight: 90 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 140 mm
Package depth: 85.1 mm
Package height: 20.1 mm
Package weight: 120 g

Packaging content

Feature: Manual

Technical details

Master (outer) case GTIN (EAN/UPC): 10037332213492
Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 220 mm
Master (outer) case length: 154.9 mm
Master (outer) case height: 100.1 mm
Master (outer) case gross weight: 1.32 kg
Harmonized System (HS) code: 84733020
