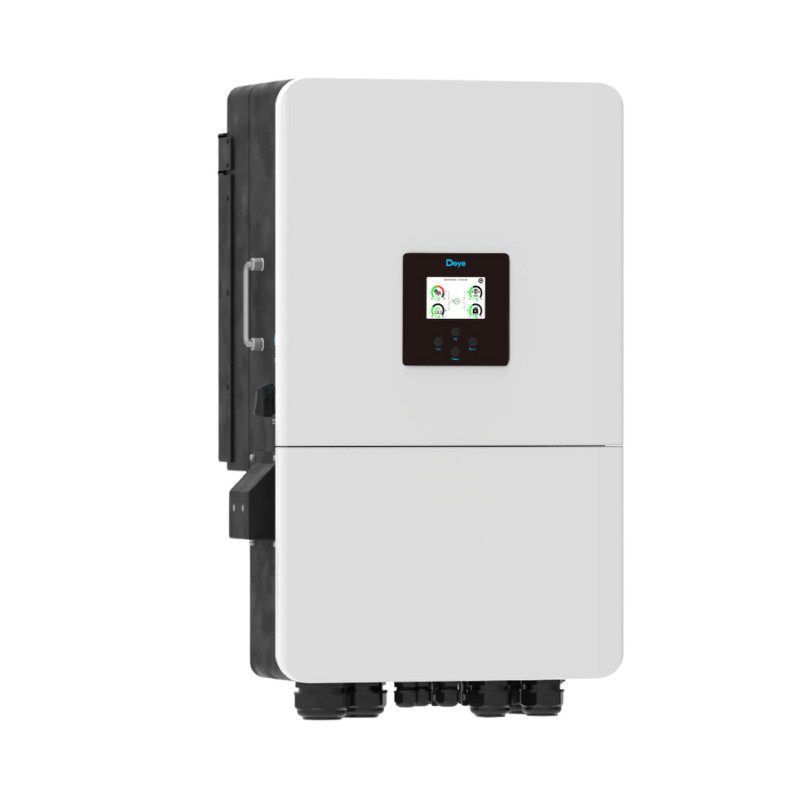

DEYE SUN-20K-SG05LP3-EU-SM2 20kW (White)
A three-phase hybrid inverter designed for both residential and commercial solar power solutions. It supports 48V low-voltage lithium or lead-acid batteries and can operate both on-grid and off-grid.

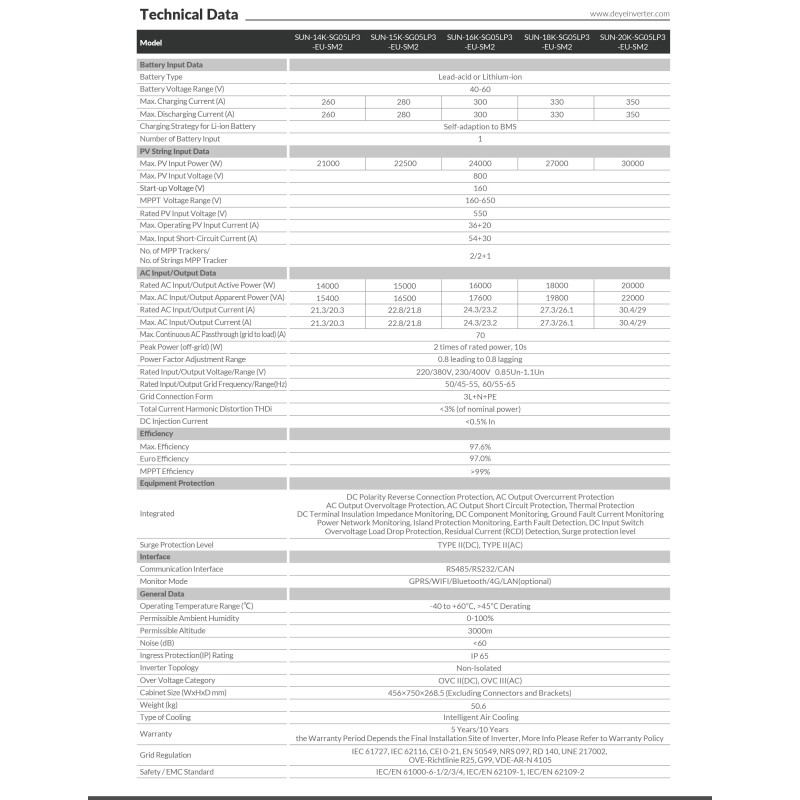

Technical specifications
Battery type: Lithium-ion or lead-acid
Voltage range: 40-60V
Max charge/discharge current: 350 A
BMS support: Automatic adaptation
Battery inputs: 1
Max. PV connection power: 40,000W
Max. DC input power: 32,000W
Max. DC voltage: 800V
MPPT voltage range: 160-650V
MPPT trackers/strings: 2 / 2+2
Max PV current: 36A + 36A
Max. short-circuit current: 54 A + 54 A
Rated active power: 20,000W
Max apparent power: 22,000 VA
Rated current: 30.4 A (input) / 29 A (output)
Max. current: 33.4A / 31.9A
Mains voltage: 220/380V or 230/400V
Network frequency: 50 Hz (45-55 Hz) or 60 Hz (55-65 Hz)
Network connection: 3L+N+PE
THDi: lt;3%
DC component: lt;0,5%
Maximum efficiency: 97.6%
European efficiency: 97.0%
MPPT efficiency: gt; 99%
Protection: DC polarity protection, AC output overload protection, thermal protection, AC output overvoltage protection, AC short-circuit protection, DC component monitoring, overload protection, ground current monitoring, islanding protection, DC terminal insulation resistance monitoring, residual current detection (RCD), surge protection
Surge protection level: Type II (DC), Type II (AC)
Compliance standards: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
EMC / safety standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Communication interfaces: RS485, RS232, CAN
Monitoring modes: Wi-Fi, GPRS, Bluetooth, 4G, LAN (optional)
Remote control: Through SOLARMAN Smart and SOLARMAN Business programs
Dimensions (W x H x D): 456 x 750 x 268.5 mm
Weight: 50.6 kg
Protection class: IP65
Operating temperature: -40°C to +60°C (above 45°C - power reduction)
Noise level: ≤60dB
Maximum installation height: 3000 m
- 100% phase imbalance support: allows each phase to operate independently up to 50% of rated power
AC connection: possibility of integration with existing solar energy systems
Parallel operation: up to 10 units both networked and standalone
Battery support: allows multiple batteries to be used in parallel
Energy storage from diesel generators: supported
6 time interval battery charge/discharge scheduling
Complete set
3 pairs of MC4 solar connectors
2.4 GHz Wi-Fi antenna module
Current transformer (CT)
| Height | 800mm |
| Length | 270mm |
| Weight | 61000 grams |
| Width | 500mm |
