Thermaltake Toughpower XT Snow power supply unit

Thermaltake Toughpower XT Snow. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: cTUVus, CE, UKCA, ICES, CB, Low Voltage Directive (LVD), Federal Communications Commission (FCC),...

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Power Good signal delay range: 100 - 250 ms
Power protection features: Over current, Over voltage, Under voltage, Over power, Short circuit, Overheating

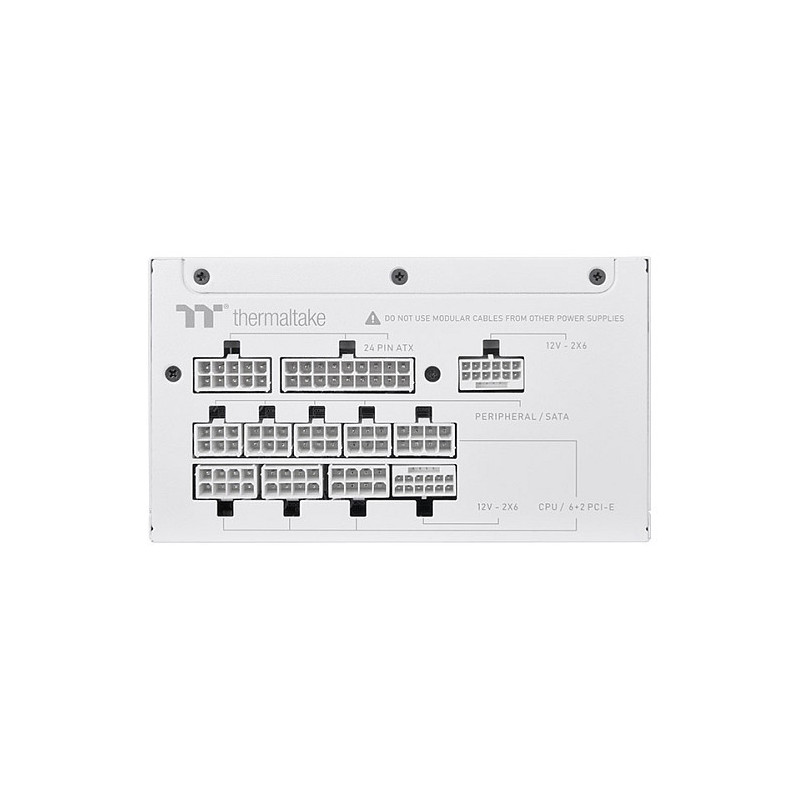

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 150,450 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,450 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 5
PCI Express power connectors (12+4 pin): 2
PCI Express power connectors (12+4 pin) cable length: 600 mm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Hydraulic
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Cooling type: Active

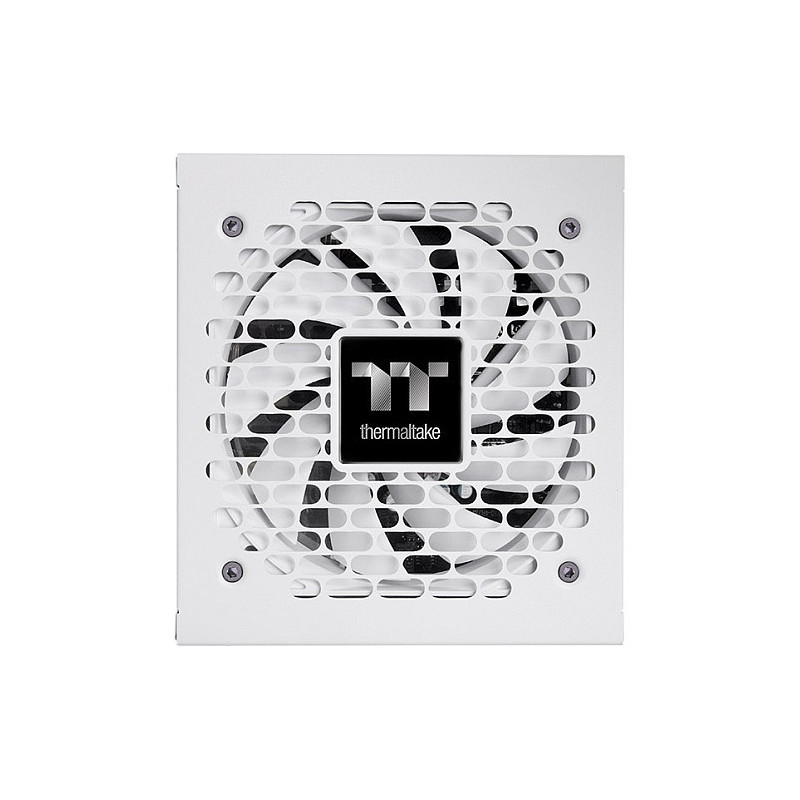

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 85%
Storage relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: cTUVus, CE, UKCA, ICES, CB, Low Voltage Directive (LVD), Federal Communications Commission (FCC), RCM, BIS, BSMI, CCC

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
