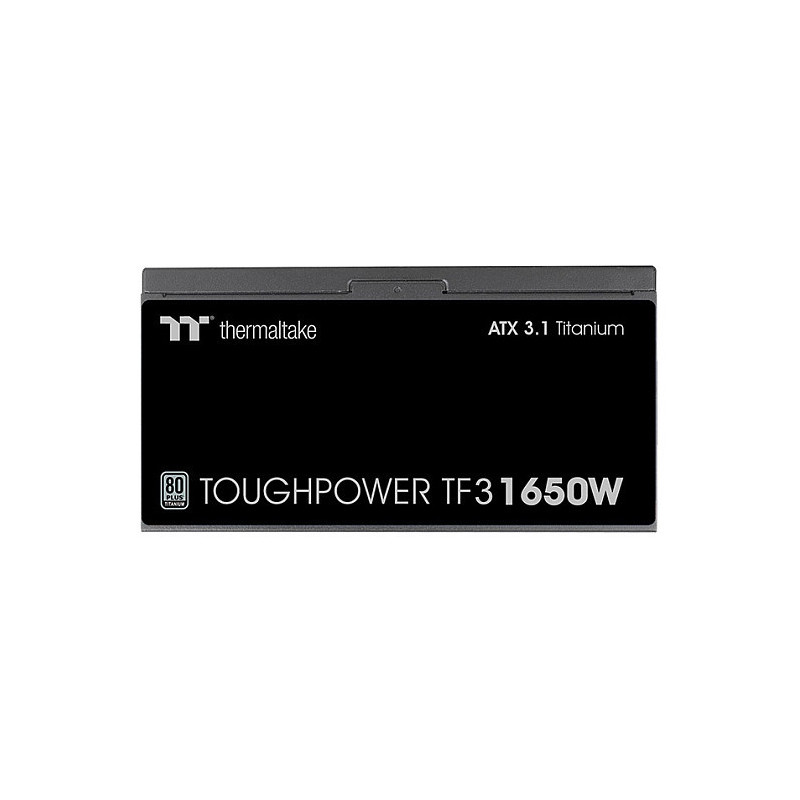

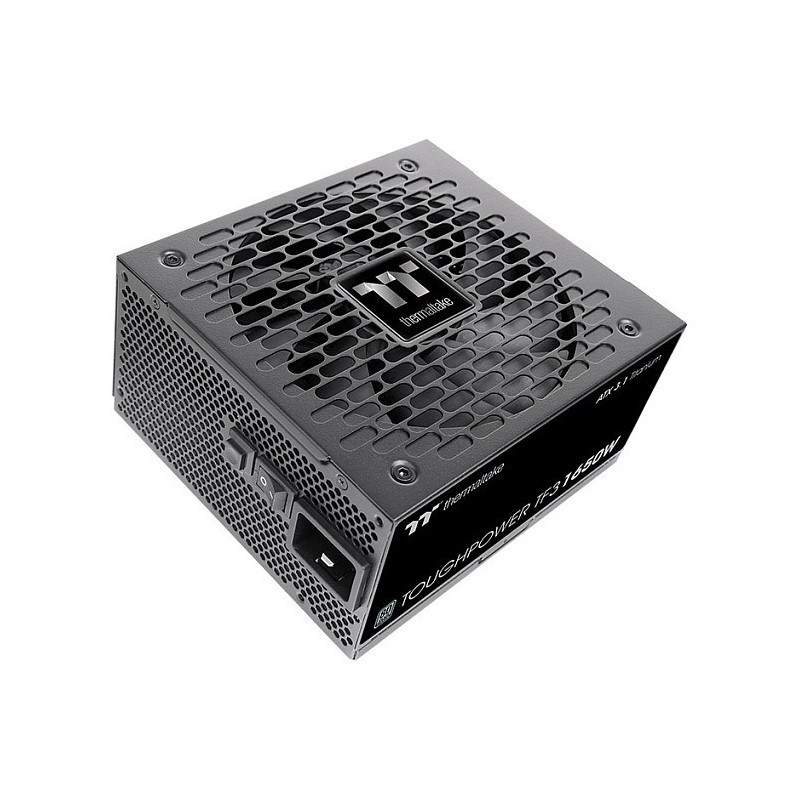

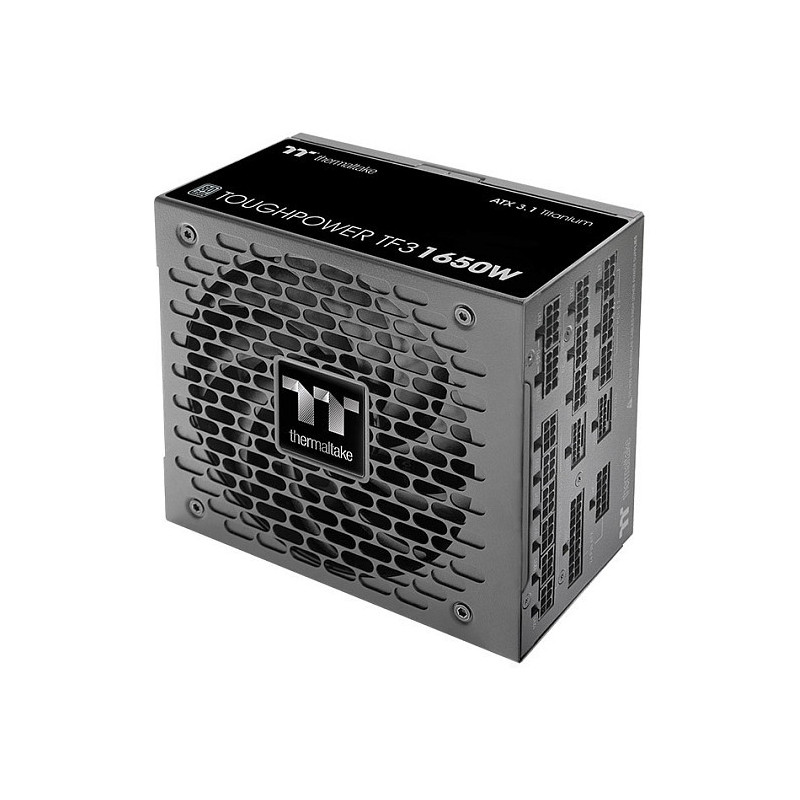

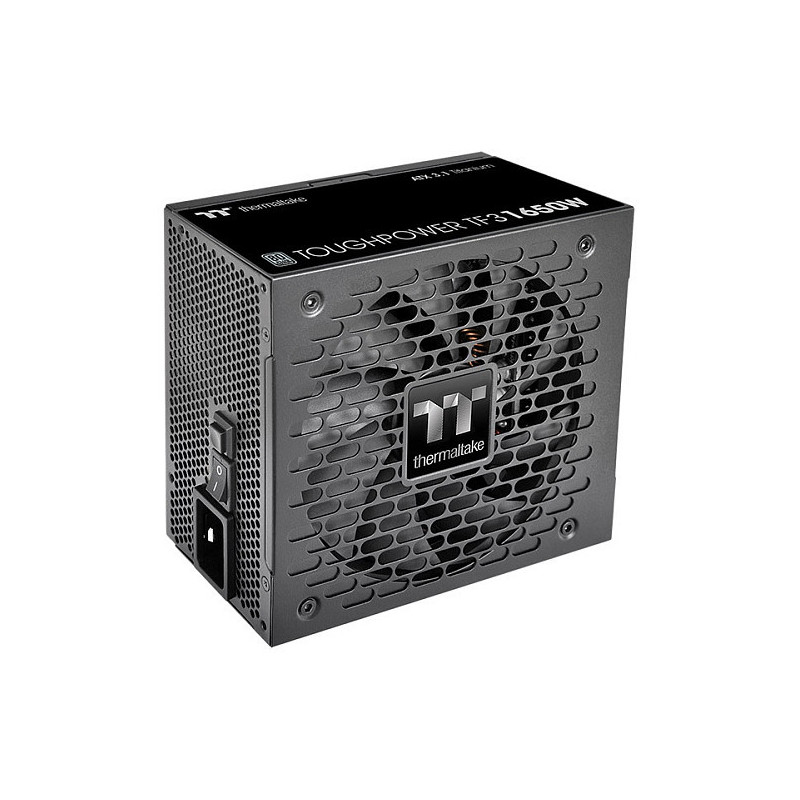

Thermaltake Toughpower TF3 power supply unit

Thermaltake Toughpower TF3. Total power: 1650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: CE, UKCA, ICES, RCM, Low Voltage Directive (LVD), CB, EAC, BIS, BSMI, CCC, cTUVus

Power

Total power: 1650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 20 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 50 A
Max output current (+12V1): 50 A
Max output current (+12V2): 50 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 17 ms
Efficiency: 94%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

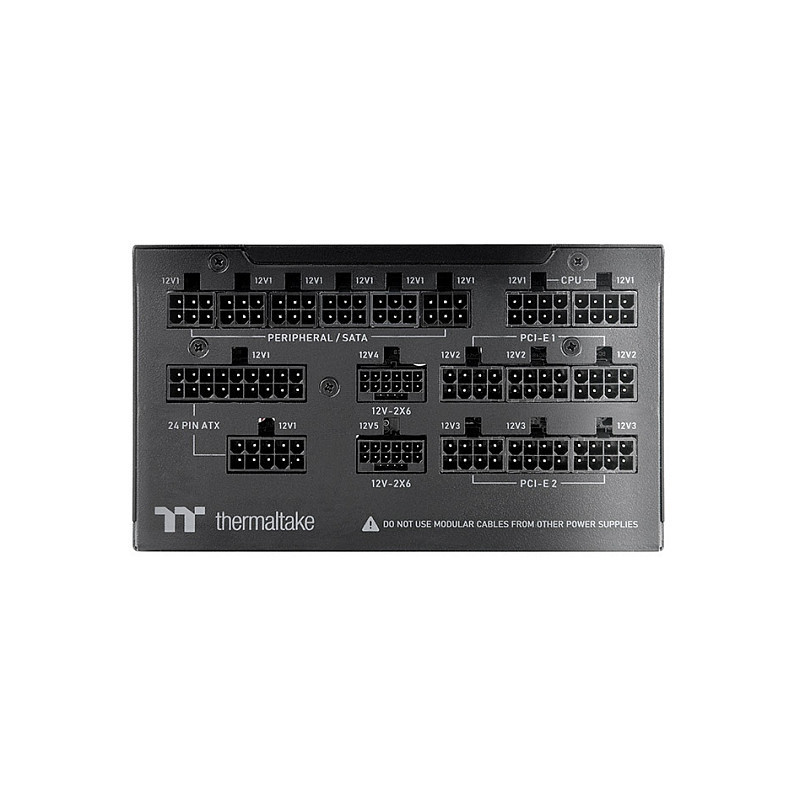

Ports interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 16
SATA power cable length: 150,600 mm
Number of SATA power cables: 4
Peripheral (Molex) power connectors (4-pin): 8
Peripheral (Molex) power cable length: 150,600 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 9
PCI Express power connectors (12+4 pin): 2
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Hydraulic
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, UKCA, ICES, RCM, Low Voltage Directive (LVD), CB, EAC, BIS, BSMI, CCC, cTUVus

Weight dimensions

Width: 150 mm
Depth: 165 mm
Height: 86 mm
