Thermaltake Toughpower PF1 power supply unit

Thermaltake Toughpower PF1. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 1020 W. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Platinum, Noise level: 22 dB. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 350 mm, Depth: 230 mm, Height: 160 mm

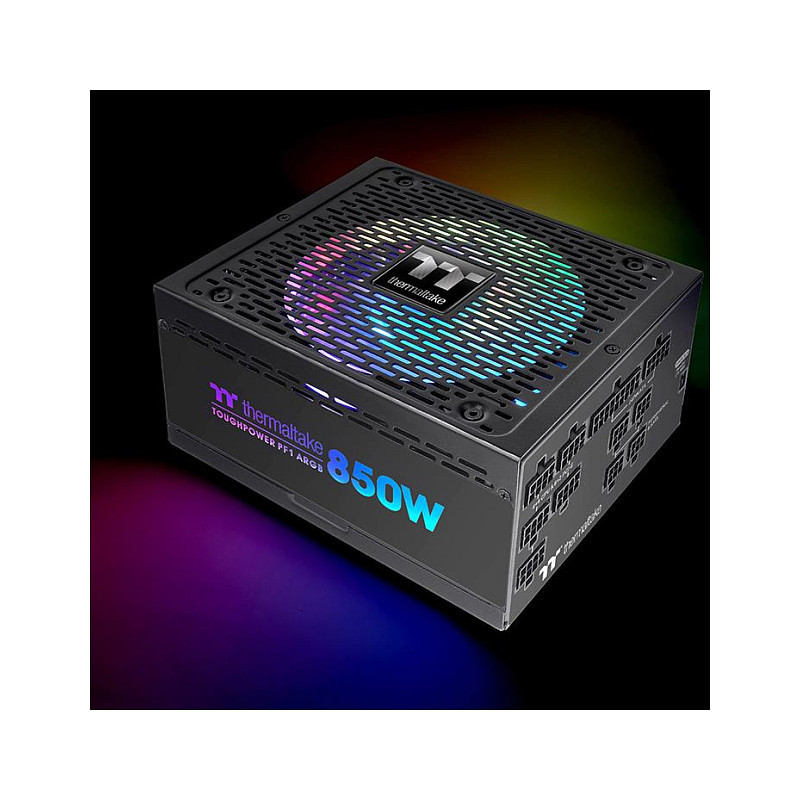

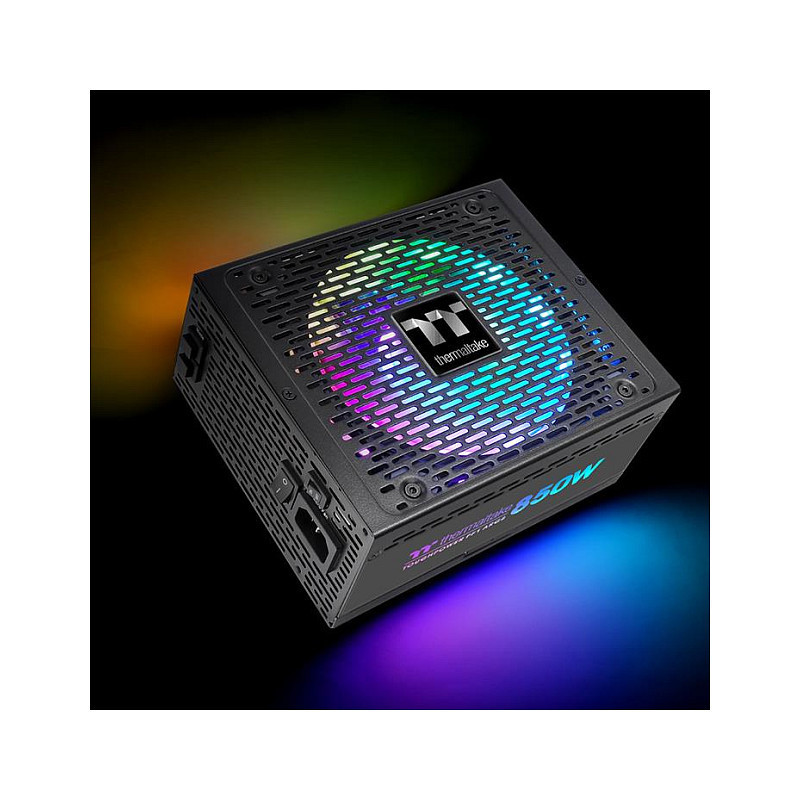

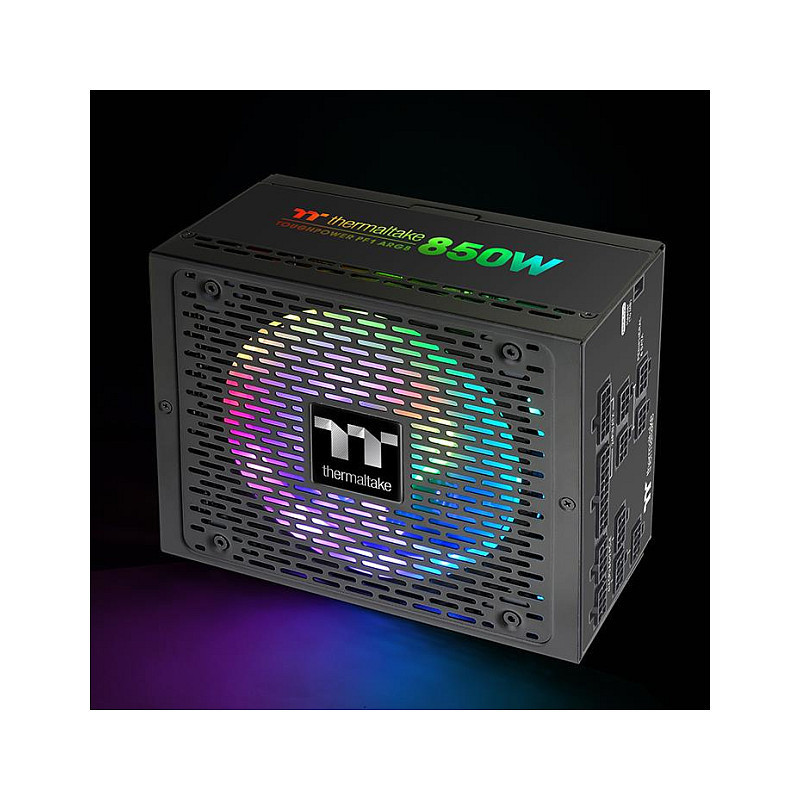

TOUGHPOWER PF1 ARGB 850W PLATINUM - TT PREMIUM EDITION
Toughpower PF1 ARGB Platinum Series (850W/1050W/1200W) is crafted using premium components and advanced technology to become the fusion of aesthetics and performance. The patented 16.8 million-color Riing Duo 14 RGB fan with 18 LEDs preinstalled helps deliver brighter and richer lighting. The meticulously designed ARGB side panels allow the light to glow through. The series supports synchronization with RGB motherboards from ASUS, GIGABYTE, msi, and ASRock for counteless illumination poossibilities. With near silent and reliable operation, the Toughpower PF1 ARGB Platinum meets and even exceeds the demanding specification of the overclocker or enthusiast PC user.

GLOW WITH THE FLOW

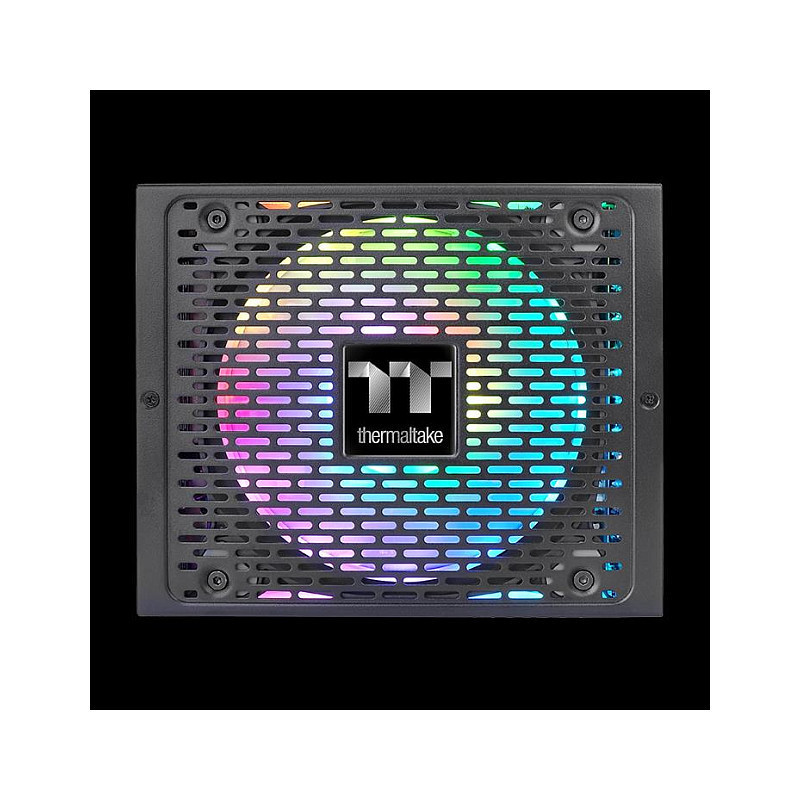

The built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.

BE SEEN FROM VARIOUS ANGLES
Show off the glamorous illumination through the unique ARGB Side Panel design and add the Wow factor to you build.

SYNC WITH MOTHERBOARD RGB SOFTWARE

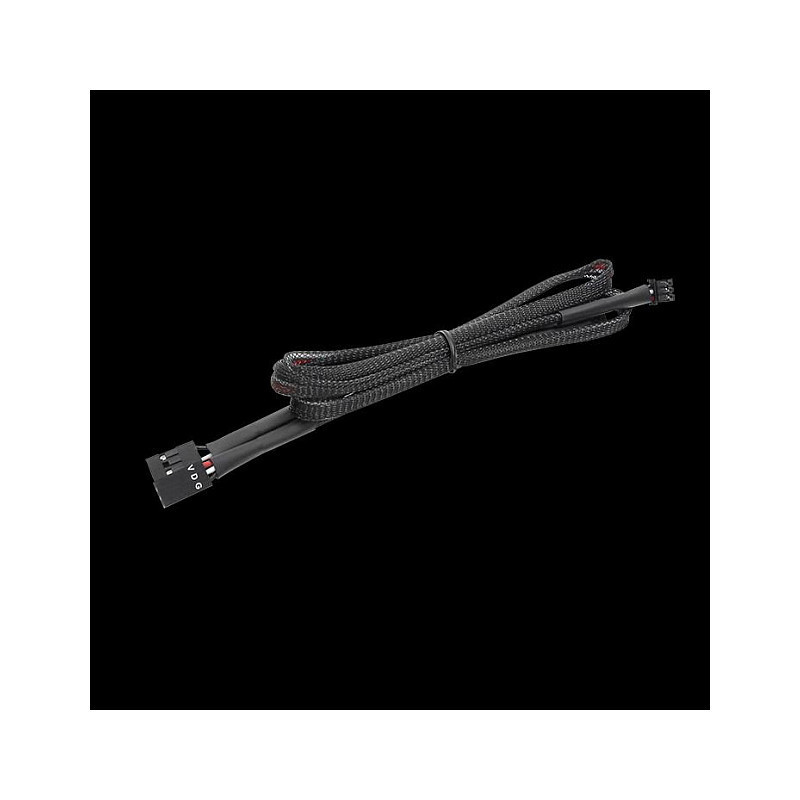

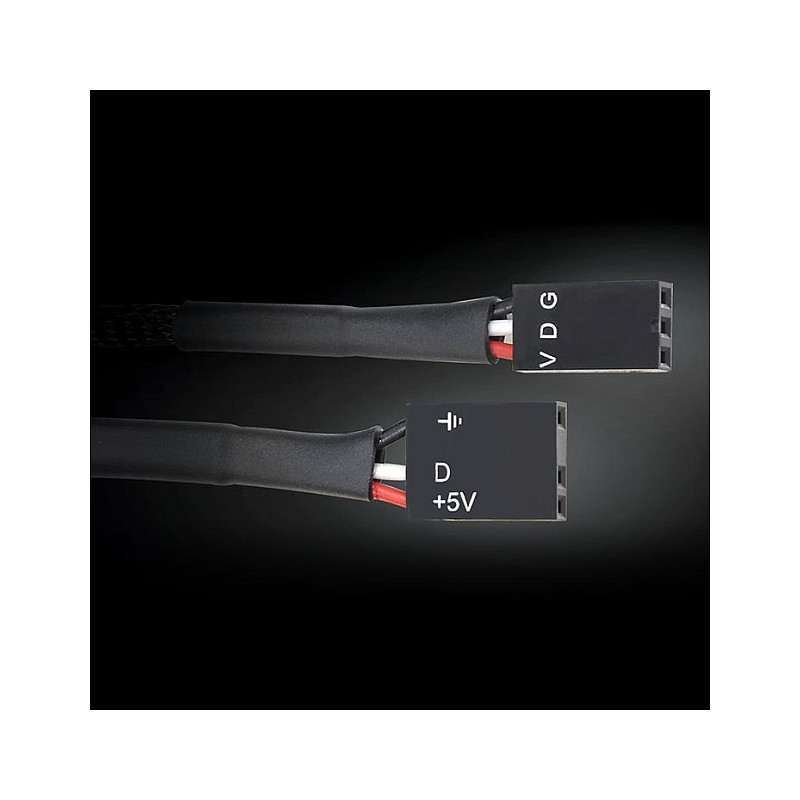

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and AsRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and AsRock official websites.

ZERO CABLE PLATFORM
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.

ULTRA QUIET SMART ZERO FAN

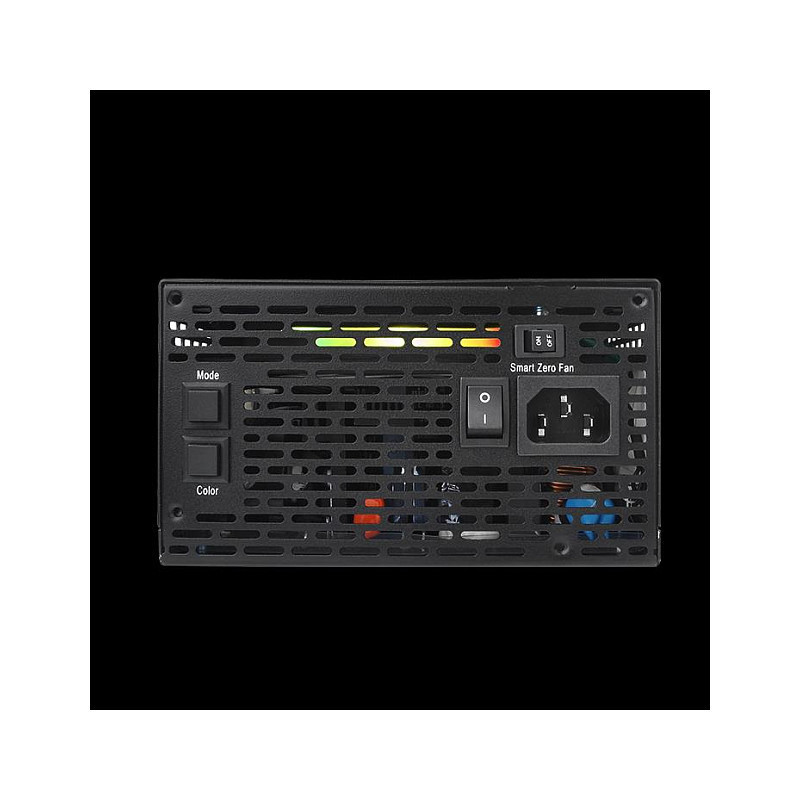

With Smart Zero Fan starting to operate when the power supply working load goes over 40%, the undesired noise will be minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.

EXTREMELY STRICT VOLTAGE REGULATION <±2%
The voltage regulation, more strict than Intel's standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

100% HIGH QUALITY JAPANESE 105°C/221°F CAPACITORS
Comes with high quality 105 °C (221 ° F) Japanese capacitors to help improve the durability and offer impressive stability.

FULLY MODULAR LOW-PROFILE FLAT BLACK CABLES
The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis.

HIGH AMPERAGE SINGLE +12V RAIL DESIGN
Powerful single +12V rail helps ensure a stable and reliable supply to other PC components.

80 PLUS PLATINUM CERTIFIED AND INTEL C6/C7 STATES READY
Saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

Power

Total power: 850 W
Peak power: 1020 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 12 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 850 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.83 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500,650,800,950 mm
PCI Express power connectors (6+2 pin): 6
PCI Express power cable length: 65 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: ATX Power connector (24-pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Floppy disk drive cable length: 15 cm
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Noise level: 22 dB
Bearing technology: HDB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Feature: Illumination
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 350 mm
Depth: 230 mm
Height: 160 mm
Weight: 3.85 kg

Logistics data

Harmonized System (HS) code: 84733020

Other features

Illumination colour: Multi
