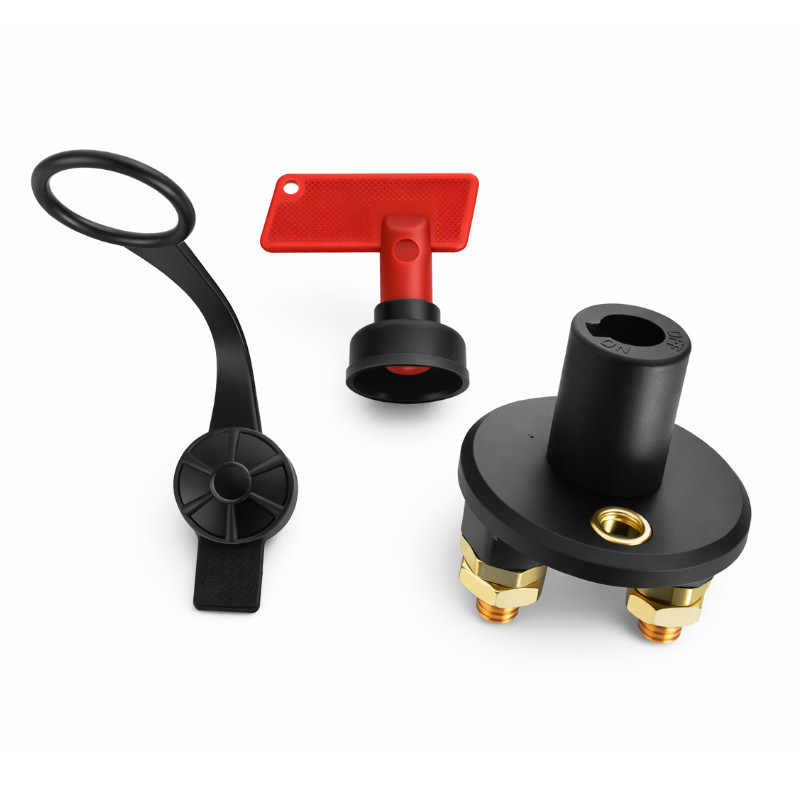

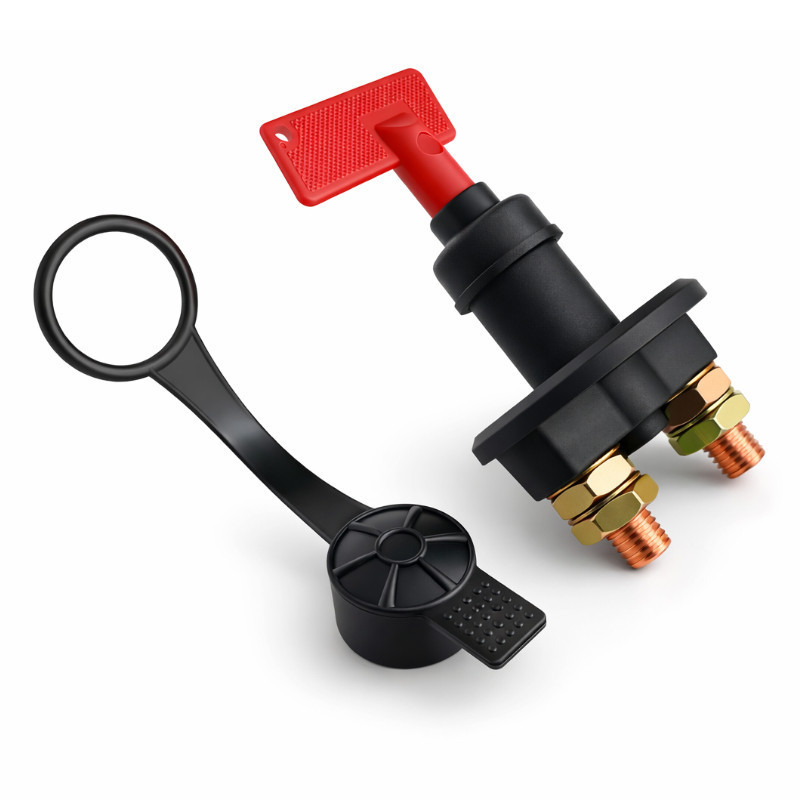

Solvian Battery Disconnect Switch 12/24V 100A M8

Solvian 12/24V 100A Battery Disconnect Switch - ON/OFF

Durable main switch for installation 12/24 V DC, suitable for continuous operation with current up to 100 A It provides quick and safe power disconnection in vehicles, boats, campers, and off-grid systems, increasing the safety of the entire installation. Designed for low-voltage power systems in automotive, marine, and standalone photovoltaic systems where reliable battery isolation is required. Its compact size facilitates installation in power cabinets, such as the FF01-6615-12BL V2 Cabinet with Thermostat, while its robust construction ensures durability and resistance to outdoor conditions. It can be used as a main service switch or a safety device in power boxes and cabinets (e.g., the FF01-6615-12BL V2 Cabinet with Thermostat), off-grid PV installations, campers, boats, and other systems requiring quick and reliable battery disconnection.

The most important advantages

• Continuous current up to 100 A — ideal for batteries in marine, vehicle and off-grid systems.


• Position lock mechanism — Rotary knob with spring lock prevents accidental switching.


• Easy assembly — Standard mounting holes and compact housing fit most panels and recesses.

Main features

• Voltage Support: 12/24 V DC


• Rated current (continuous): 100 A


• Operating mode: ON-OFF with position lock


• Easy, panel mounting in standard holes


• Compact, durable housing


• Resistance to outdoor conditions, for mobile and marine applications

Technical specifications

• Parameters / Model: 12/24V 100A ON-OFF


• Operating voltage range: 12-24V DC


• Continuous current: 100 A
