Solvian 6-circuit fuse block 32VDC 100A
Compact fuse block for 12-24 V DC installations, allowing connection of up to 6 independent circuits on ATO/ATC fuses. Ensures clear and safe power distribution in campers, boats, and small photovoltaic systems.
6 independent circuits
Solvian fuse block supports 6 separate circuits, protected by popular fuses ATO/ATC.
This allows:
- transparent distribution of power to lighting, sockets, refrigerator, pump, etc.,
- easy management of the installation and its expansion,
- quick identification and replacement of a damaged fuse.
Total current 100 A and 30 A per circuit
Maximum the total current of the block is 100 A, and current per single circuit - up to 30 A.
This allows you to easily power most of the receivers found in:
- campers and caravans,
- boats, yachts and vessels,
- small off-grid photovoltaic systems.
Operating voltage up to 32 V DC
The block has been designed to work with voltage up to 32 V DC, which makes it an ideal solution for battery installations:
- 12V - typical in campers, boats and vehicles,
- 24V - in trucks, industrial or PV installations.
This makes it safe to use in most low-voltage DC systems.

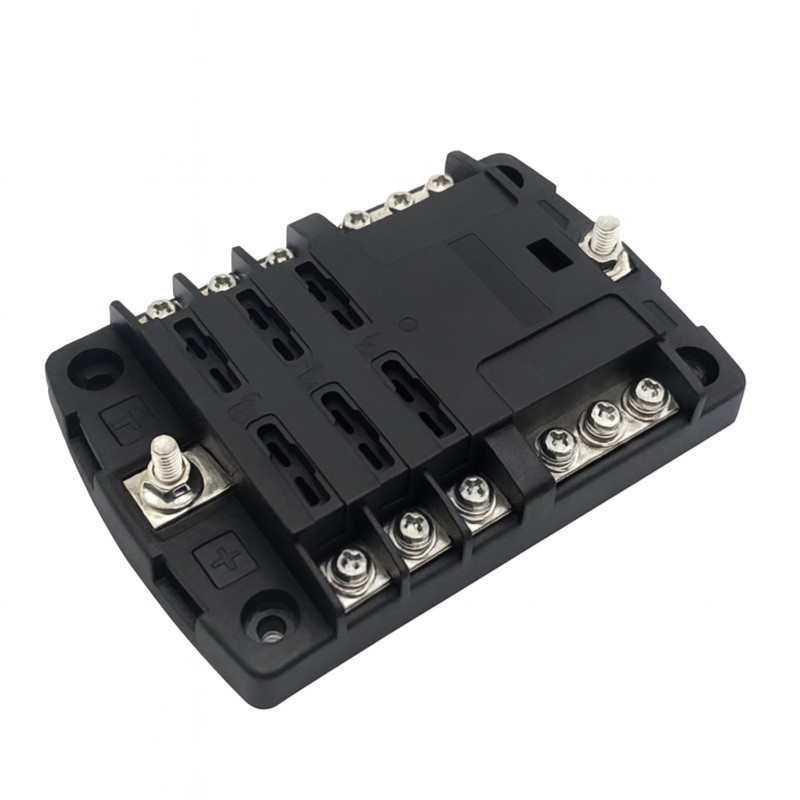

Integrated negative bus
The fuse block has integrated negative bus, which significantly simplifies wiring.
Thanks to this:
- the number of connections and potential fault points is reduced,
- the installation is clearer and easier to plan,
- assembly time and the risk of assembly errors are significantly lower.

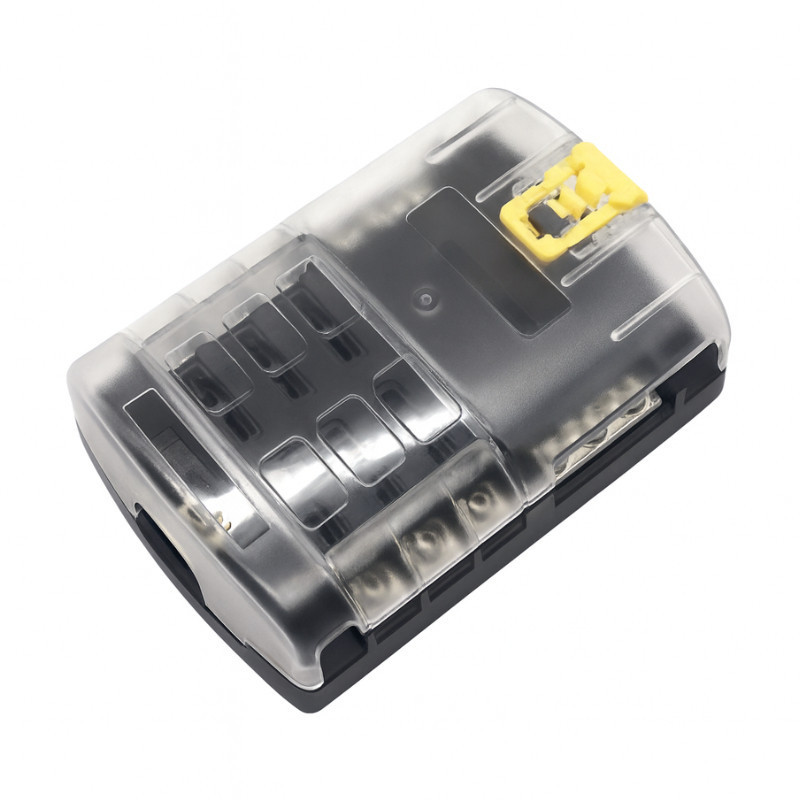

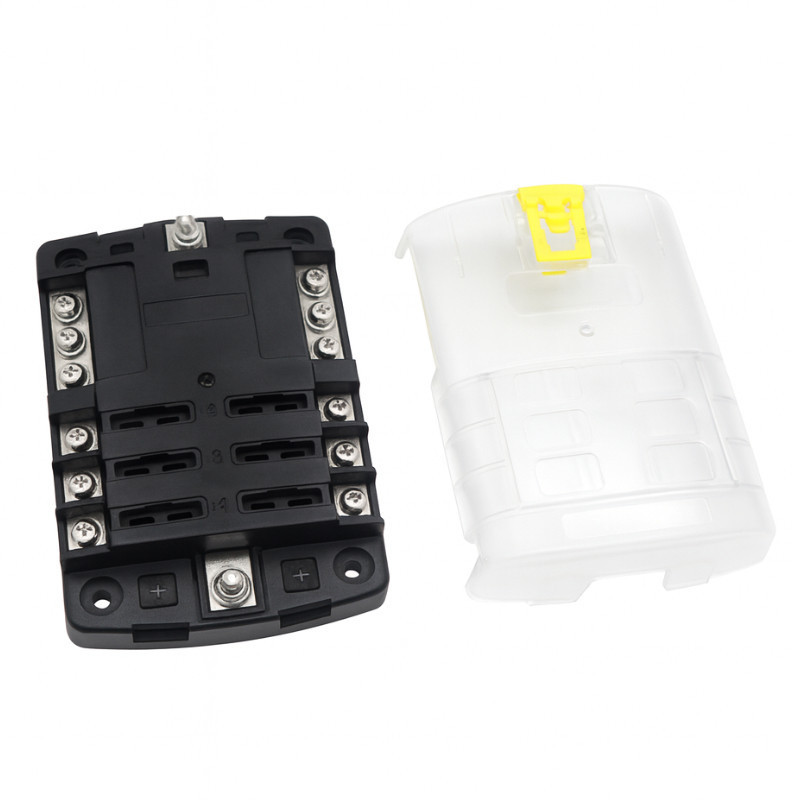

Transparent cover with markings
The block is equipped with transparent cover which allows you to check the condition of the fuses at a glance without having to dismantle the element.
Space for circuit descriptions makes it easier:
- signing of individual lines (e.g. lighting, refrigerator, sockets),
- quick orientation in the installation during service,
- reducing errors when working with the installation.
Main features
- Clear and orderly installation division - all circuits in one place.
- High corrosion resistance - durable materials and solid connectors.
- Suitable for 12-24V - compatible with typical battery systems.
- Safe load up to 100 A - suitable for multiple receivers simultaneously.
- Quick diagnosis thanks to the cover - transparent cover makes it easier to check the fuses.
- Solid connectors and secure mounting - minimal voltage drops and stable connections.
Technical specifications
- Model: Solvian 6-circuit fuse block 32VDC 100A
- Nominal voltage: DC 32V
- Total rated current: 100 A
- Maximum current per circuit: 30 A
- Number of circuits: 6 (6-way)
- Fuse type: Blade ATO / ATC
- Application: DC installations in photovoltaics, campers, boats and vehicles
