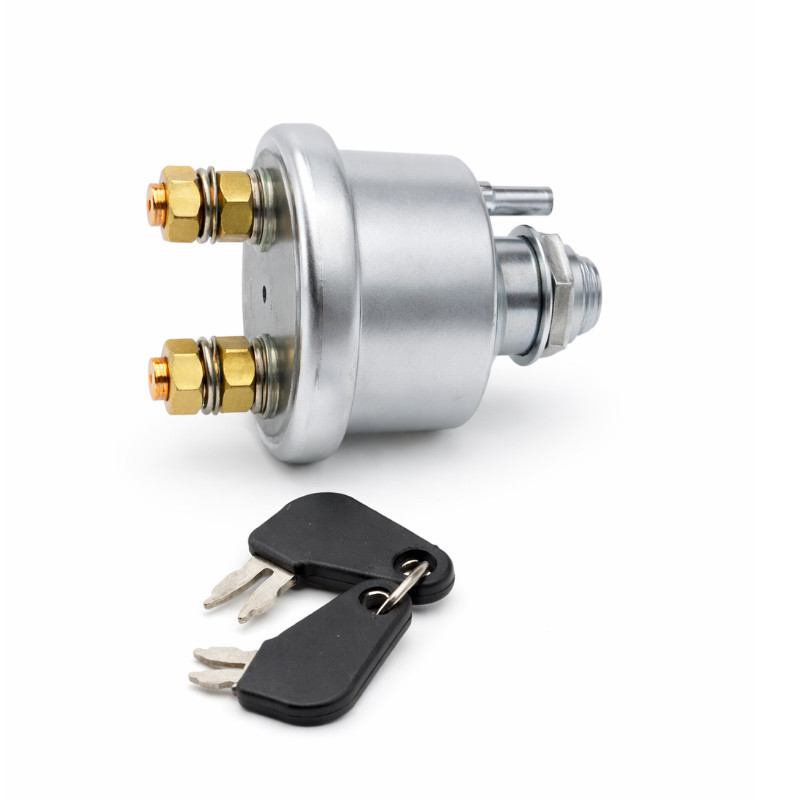

Solvian 6/36V 125A ON-OFF Battery Disconnect Switch

Solvian 6/36V 125A Battery Disconnect Switch - ON/OFF

Battery disconnect switch Solvian 6/36V 125A ON-OFF is a durable main switch for installation 6-36V DC, suitable for continuous operation with current up to 125 A It enables quick and safe power disconnection in vehicles, boats, campers, and off-grid systems, increasing the safety of the entire installation. Designed for low-voltage power systems in automotive, marine, and standalone photovoltaic systems where reliable battery isolation is required. Its compact size facilitates installation in power cabinets, such as the FF01-6615-12BL V2 Cabinet with Thermostat. The durable housing ensures resistance to outdoor conditions and long life in everyday use,
also in demanding mobile and marine environments.
The disconnect switch can function as a main service switch or a safety device in:

• cabinets and power supply boxes (e.g. FF01-6615-12BL V2 cabinet with thermostat),


• off-grid PV installations and low-voltage energy storage facilities,


• campers, tourist buses and special vehicles,


• boats and yachts where quick battery disconnection is required.

The most important advantages

• Continuous current up to 125 A — ideal for batteries in marine, vehicle and off-grid systems.


• Position lock mechanism — Rotary knob with spring lock prevents accidental switching.


• Easy assembly — Standard mounting holes and compact housing fit most panels and recesses.

Main features

• Voltage Support: 6/36 V DC


• Rated current (continuous): 125 A


• Function: ON-OFF with position lock


• Easy, panel mounting in standard holes


• Compact, durable housing


• Outdoor resistance - for mobile and marine applications

Technical specifications

• Parameters / Model: 6/36V 125A ON-OFF


• Operating voltage range: 6-36V DC


• Continuous current: 125 A
