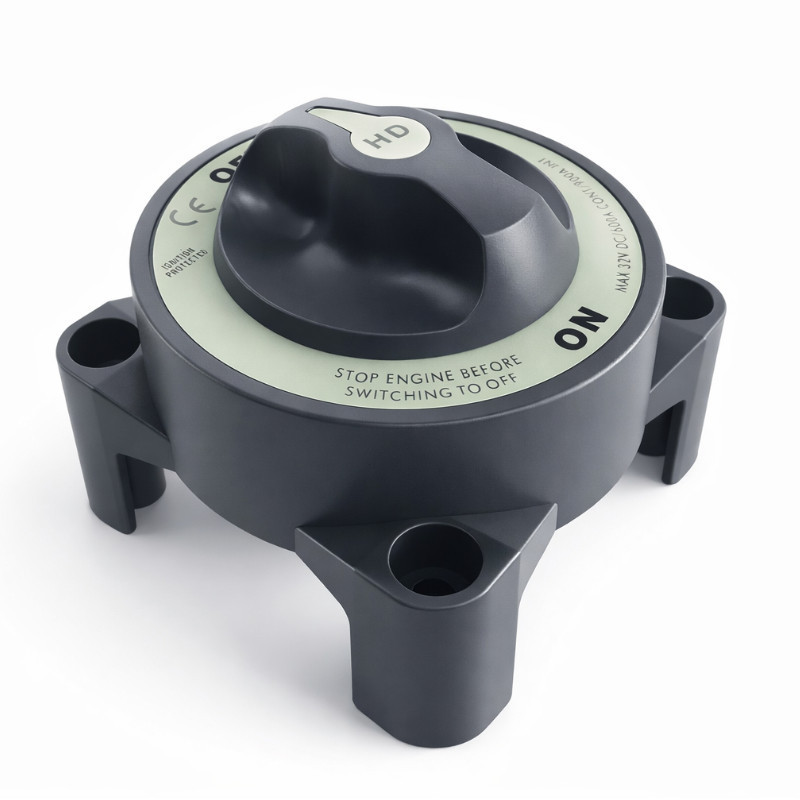

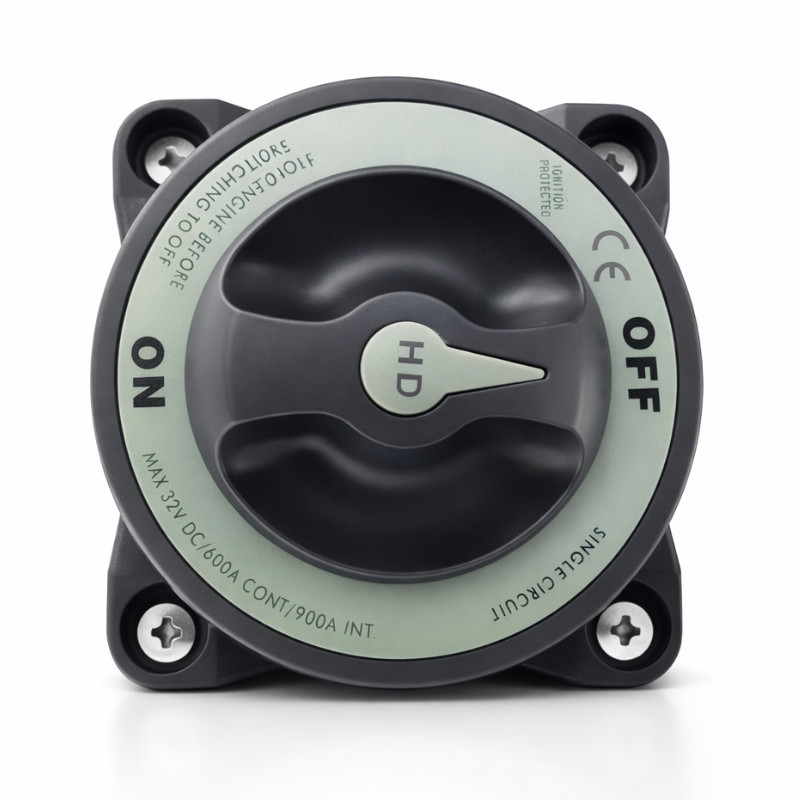

Solvian 3001 Battery Disconnector 12-32V 600A IP66
Product reference: 39-3001

The Solvian battery disconnect switch is a robust and waterproof device (IP66) designed for safe battery disconnection in vehicles, boats, and off-grid installations. It handles single batteries and groups of loads, offering continuous current up to 600 A. Equipped with tinned copper pins (1/2, 22 mm), it accepts wires up to 4/0 AWG (120 mm²) and allows for surface, front, or rear panel mounting.

Rozłącznik akumulatora Solvian 3001 12-32V 600A IP66
Rozłącznik akumulatora Solvian 3001 12-32V 600A IP66
Rozłącznik akumulatora Solvian 3001 12-32V 600A IP66

Solvian 3001 Battery Disconnector 12-32V 600A IP66

Product reference: 39-3001

The Solvian battery disconnect switch is a robust and waterproof device (IP66) designed for safe battery disconnection in vehicles, boats, and off-grid installations. It handles single batteries and groups of loads, offering continuous current up to 600 A. Equipped with tinned copper pins (1/2, 22 mm), it accepts wires up to 4/0 AWG (120 mm²) and allows for surface, front, or rear panel mounting.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
102,12 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

Solvian Blue Sea 3001 IP66 Battery Disconnect Switch


Continuous current up to 600 A
Handles up to 600A continuous current, ideal for batteries in marine, vehicle, and off-grid systems.
IP66 resistance
Waterproof housing with IP66 protection class, resistant to strong water jets and corrosion.
Tinned copper pins M12
Equipped with M12 (22mm) pins, tin-plated for improved conductivity and resistance - supports cables up to 4/0 AWG. Can be surface-mounted or panel-mounted (front or rear).
Compliance with AYBC E-11 standard
The disconnector meets the safety standards of the American Yacht and Boat Council - confirming its quality in marine and professional applications.
Tinned pins - guaranteed durability
Thanks to the use of tinned copper, the connectors ensure not only minimal energy loss, but also maximum durability in environments exposed to moisture and salinity.



Technical specifications:



  • Model: Blue Sea 3001 IP66 600A

  • Switch type: Single Circuit On/Off

  • Switch series: HD-Series

  • Housing color: Gray

  • Function: Switches a single battery to one group of receivers

  • Number of battery inputs: 1

  • Switch positions: 2

  • Battery connection function: Not applicable (N/A)

  • Make-before-break contact: Not applicable (N/A)

  • Disconnecting the alternator field: NO

  • Maximum operating voltage: 32V DC

  • Continuous current: 600 A

  • Pin size: 1/2" (M12)

  • Bolt tightening torque: 220 in-lb (24.86 Nm)

  • Cable cross-section for full parameters: 4/0 AWG (120 mm²)

  • Degree of protection: IP66 - resistant to strong water jets

  • Libra: 0.59 kg




Main features:



  • Switching a single battery to one group of receivers

  • Can be surface-mounted or mounted from the back of the panel

  • Supports battery cables up to 4/0 AWG (120 mm²)

  • Continuous current: 600 A - ideal for outboards and smaller petrol engines

  • IP66 waterproof - resistant to dust and strong water jets

  • Tinned copper pins provide high conductivity and corrosion resistance
