SOLVIAN 175W solar panel

Product reference: 39-5906471108625

This 175W monocrystalline solar panel for RVs, boats, and off-grid systems offers high efficiency (up to 25.5%) and durability. Its compact size simplifies installation, and compatibility with MPPT controllers ensures efficient operation in all conditions.

Photovoltaic panel M10-36-175 175W

This monocrystalline solar panel, designed for campers, boats, and small off-grid systems, offers high performance thanks to advanced cell technology with efficiency up to 25.5%. Its compact dimensions facilitate installation in confined spaces, while its robust construction ensures resistance to mechanical stress, dust, salt, and ammonia. The panel comes with pre-installed cables with MC4 connectors for quick and hassle-free connection to the system. It is compatible with MPPT controllers, ensuring high operating efficiency even in challenging weather conditions.

Key features:

Dedicated to work with MPPT regulators

High voltage for maximum efficiency - guarantees efficient energy conversion from just one panel in all types of MPPT controllers.

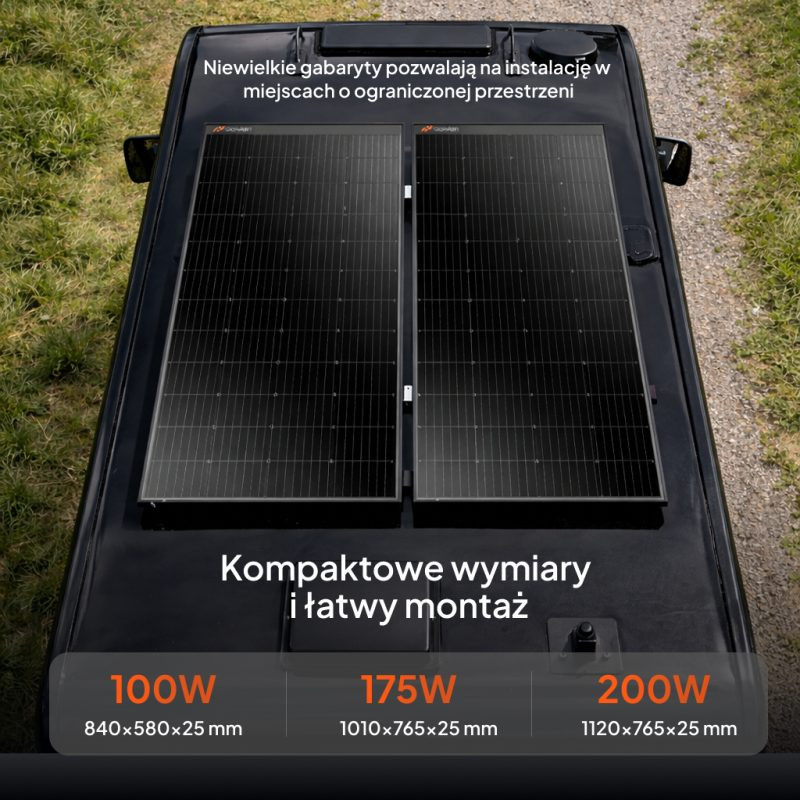

Compact dimensions and easy installation

Its small size allows for installation in confined spaces—an ideal choice for campers, boats, and small off-grid systems. The panel comes with pre-assembled cables with MC4 connectors for easy, quick connection.

Advanced cell technology

Monocrystalline cells ensure high efficiency and reliable operation even in low sunlight conditions.

High load resistance

The panel is highly resistant to mechanical loads, dust, dirt, salt, and ammonia. Anti-reflective, self-cleaning glass helps maintain the module's surface in good condition, and certification for wind (2400 Pa) and snow (5400 Pa) loads ensures safe operation in demanding environmental conditions.

Main features

High low-light performance

Resistance to strong mechanical loads

Full EL inspection to eliminate hidden defects

Resistance to salt and ammonia

Sorting cells for maximum efficiency

Positive power tolerance up to +5 W

Advanced production technology

Anti-reflective, self-cleaning glass

The perfect module for off-grid installations

Technical specifications

Model: M10-36-175 175W

Nominal output power (Pmax): 175 W

Operating temperature: -45 ~ +80

Junction box: IP65 / IP67

Cell efficiency: 25.5%

Voc (open circuit voltage): 27.7 V

Vmp (voltage at maximum power point): 22.7V

Isc (short circuit current): 8.18 A

Imp (current at maximum power point): 7.72 A

Maximum system voltage: 700V

Maximum series fuse: 25 A

Connector: no factory, MC4 compatible (MC4 connectors allowed)

Cable: no factory, custom made possible

Temperature coefficient Isc: +0.06% /

Temperature coefficient Voc: -0.32% /

Temperature coefficient Pmp: -0.45% /

Standard test conditions: Irradiance 1000 W/m², cell temperature 25, spectrum AM 1.5

Glass: hardened, thickness 3.2 mm

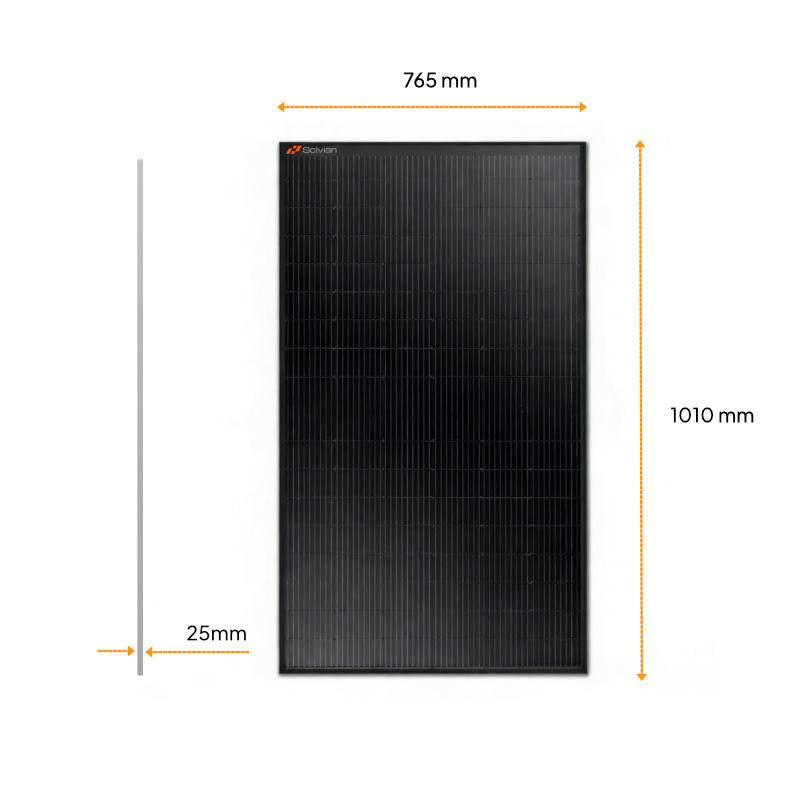

Dimensions: 1010 × 765 × 25 mm

Frame thickness: 25 mm

Libra: 8.5 kg
