SOLVIAN 100W solar panel

Photovoltaic panel M10-33-100 100W

Dedicated to work with MPPT regulators
High voltage for maximum efficiency - guarantees effective energy conversion from just one panel in all types of regulators.

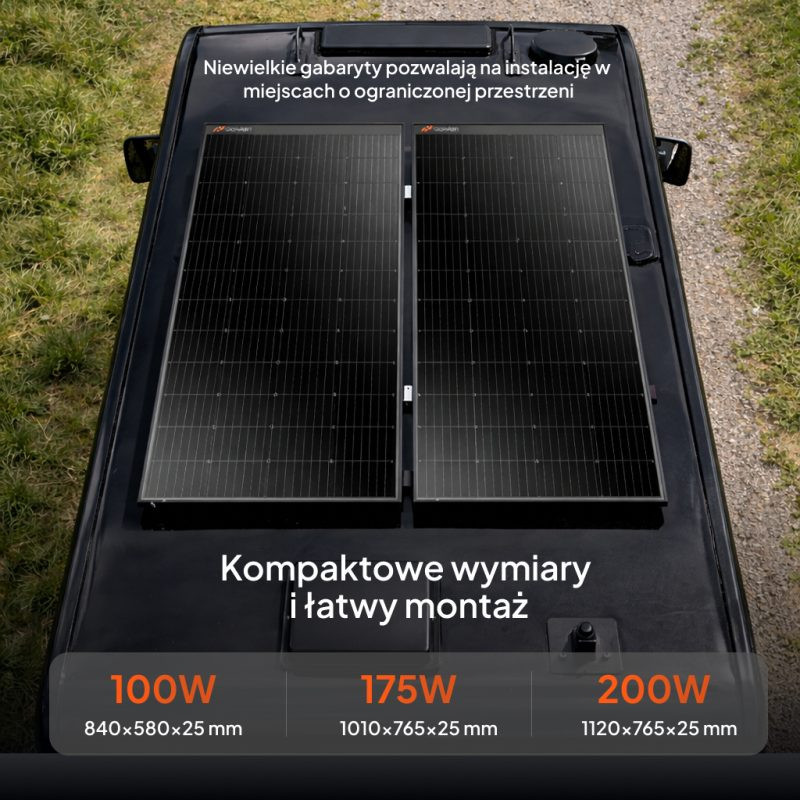

Compact dimensions and easy installation
Small dimensions allow for installation in confined spaces – ideal for campers, boats, and small off-grid systems. Equipped with pre-wired cables with MC4 connectors.

Advanced cell technology
Monocrystalline cells with an efficiency of up to 25.5% provide exceptional performance and reliability even in low sunlight.

Main features

• High low-light performance


• Resistance to strong mechanical loads


• Full EL inspection - no micro-cracks or defects


• Resistance to salt and ammonia


• Sorting cells by efficiency


• Positive power tolerance +5 W


• Anti-reflective, self-cleaning tempered glass


• A module ideally suited for off-grid systems

Guarantee

• 25 years at 80% of the minimum output power efficiency


• 5 years product warranty

The most important parameters

• Model: M10-33-100


• Nominal power (Pmax): 100 W


• Cell efficiency: 25.5%


• Voltage at maximum power point (Vmp): 21.0V


• Current at maximum power point (Imp): 4.77 A


• Open Circuit Voltage (Voc): 25.7V


• Short circuit current (Isc): 5.05 A


• Maximum system voltage: 700V


• Maximum series fuse: 25 A


• Operating temperature: -45°C ~ +80°C


• Junction box: IP65 / IP67


• Glass: tempered 3.2 mm, anti-reflective, self-cleaning

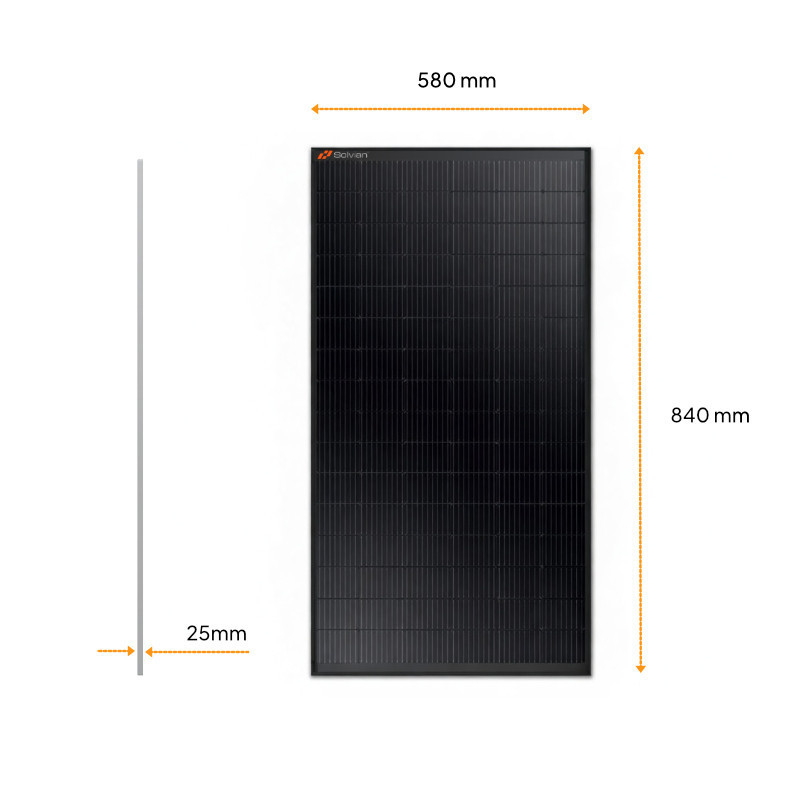

• Dimensions: 840 × 580 × 25 mm


• Libra: 5.4 kg

Mechanical resistance

• Wind load: 2400 Pa


• Snow load: 5400 Pa
