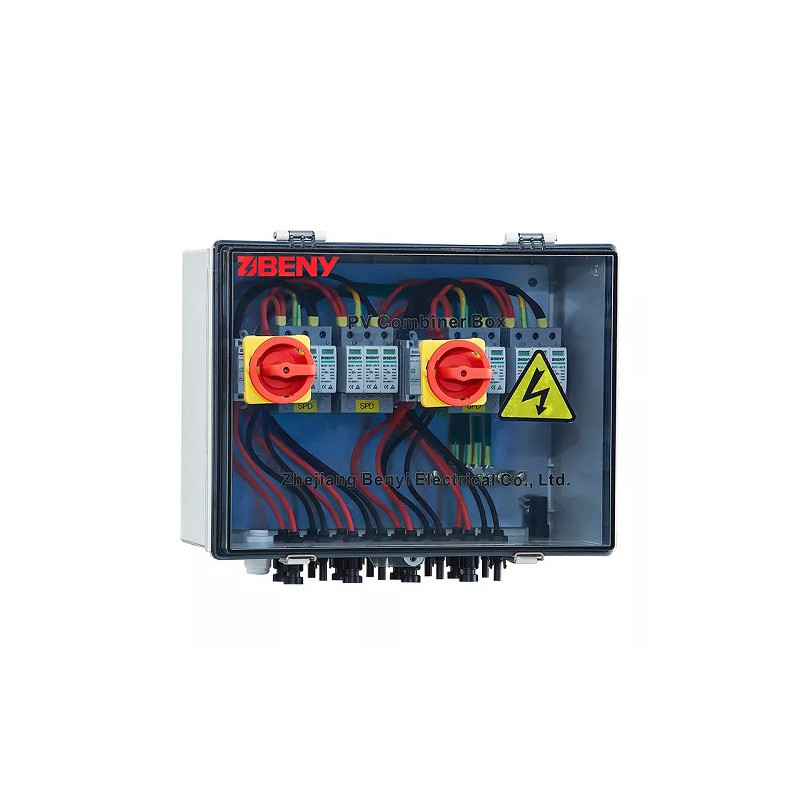

Solar Junction Box - 4in-4out 1000V DC 50A IP66 V0 - Waterproof Housing
Product reference:
14-9990000820153
The PV junction box has 4 input and 4 output connectors, the maximum voltage is 1000V DC, and the maximum current output is 50A. The box has an IP66 protection rating, is fireproof (V0) and is designed to operate at temperatures from -25°C to +60°C.
Solar Junction Box - 4in-4out 1000V DC 50A IP66 V0 - Waterproof Housing
Product reference:
14-9990000820153
The PV junction box has 4 input and 4 output connectors, the maximum voltage is 1000V DC, and the maximum current output is 50A. The box has an IP66 protection rating, is fireproof (V0) and is designed to operate at temperatures from -25°C to +60°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
PV Junction Box, DC 4In-4Out, IP66
The PV junction box has 4 input and 4 output connectors, the maximum voltage is 1000V DC, and the maximum current output is 50A. It has a IP66 waterproof housing, a fire resistance class of V0, and is designed for an operating temperature of -25°C to +60°C.
- 4 input and 4 output configuration for efficient solar system integration.
- IP66 water resistance and IK10 shockproof housing ensure durability in harsh conditions.
- The patented DC arc extinguishing chamber is included, ensuring greater safety during operation.
- A comprehensive surge protection solution with a high-capacity DC SPD, ensuring reliable operation.
Features | |
|---|---|
| Product Type | PV Junction Box |
| Model | DC 4in-4out |
Specifications | |
| Input Configuration | 4 chains |
| Output Configuration | 4 chains |
| Maximum Voltage | 1000V DC |
| Input Short Circuit Current (Isc) | 15A-30A (changeable) |
| Maximum Current Output | 50A |
| Housing Material | Polycarbonate |
| Security Class | IP66, IK10, V0 |
| Measurements | 300 x 400 x 180 mm (W x H x D) |
| Input Cable Connectors | PG09, 2.5-16mm |
| Output Cable Connectors | PG21, 2.5-16mm |
| Operating Temperature | -25°C to +60°C |
Technical Data | |
| DC Switch | 4P, 1000V, 50A (2 pcs.) |
| DC SPD | 3P, 1000V, 40kA (4 pcs.) |
| Reaction Time | < 25ns |
Compliance | |
| UI508i Approval | Yes |
| IEC60947-3 Pv2 | Yes |
| IEC 61643 | Yes |
| UI1449 | Yes |
| Height | 400mm |
| Length | 150mm |
| Weight | 3000g |
| Width | 200mm |
