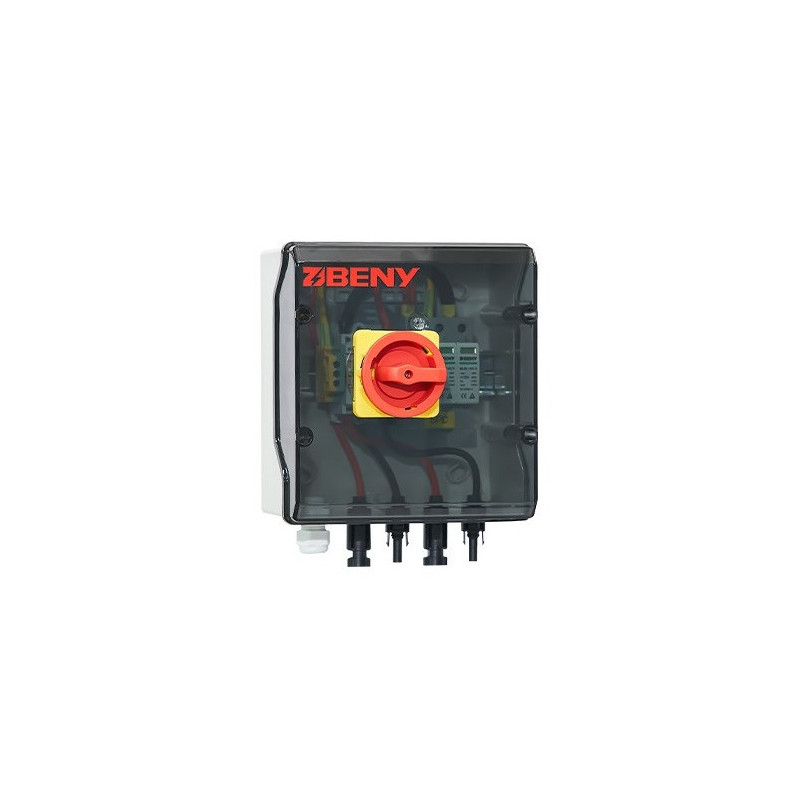

Solar Junction Box - 1in-1out 1000V DC 25A IP66 Fireproof
Product reference:
14-9990000820122
One input and one output, maximum voltage 1000V DC and current output 25A. The box has an IP66 protection class, is fireproof and designed for temperatures from -25°C to +60°C.
Solar Junction Box - 1in-1out 1000V DC 25A IP66 Fireproof
Product reference:
14-9990000820122
One input and one output, maximum voltage 1000V DC and current output 25A. The box has an IP66 protection class, is fireproof and designed for temperatures from -25°C to +60°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
PV Junction Box, DC 1In-1Out, IP66
1 input and 1 output with maximum voltage 1000V DC and current output 25A. The box has a IP66 class, is fireproof and is designed for temperatures from -25°C to +60°C.
- 1 input and 1 output 1000V DC for solar systems, designed to effectively protect against current surges.
- Durable IP66 waterproof box with fire resistance classification V0 and impact resistance IK10.
- The patented DC arch extinguishing chamber is included, ensuring greater safety and rapid extinguishing.
- Quality is confirmed with UI508i and IEC60947-3 Pv2 certificates, ensuring reliable operation.
Features | |
|---|---|
| Product Type | PV Junction Box |
| Entrance | 1 circuit |
| Exit | 1 circuit |
| Maximum Voltage | 1000V DC |
| Maximum Current Output | 25A |
| Box Material | Polycarbonate |
| Security Class | IP66, IK10, V0 |
| Dimensions | 200 × 185 × 200 mm (W × H × D) |
| Input Cable Glands | PG09, 2.5-16mm |
| Output Cable Inlets | PG21, 2.5-16mm |
| Operating Temperature | -25°C to +60°C |
Technical Data | |
| DC Switch | 2P, 1000V, 25A |
| DC SPD | 3P, 1000V, 40kA |
| Reaction Time | < 25ns |
Certificates | |
| UI508i Approval | Yes |
| IEC60947-3 Pv2 Approval | Yes |
| IEC 61643 Certificate | Yes |
| UI1449 Certificate | Yes |
| Height | 200mm |
| Length | 100mm |
| Weight | 450 g |
| Width | 150mm |
