Solar Inverter - MUST PV18-5248PRO 5kW 48V 80A MPPT 450V DC
Product reference:
14-9990000820702
Multifunctional inverter/charger with 5 kW nominal power, 48V battery voltage and integrated 80A MPPT solar charge controller. It features a maximum reverse voltage level of solar modules - 450V DC, as well as an LCD display showing operating parameters.
Solar Inverter - MUST PV18-5248PRO 5kW 48V 80A MPPT 450V DC
Product reference:
14-9990000820702
Multifunctional inverter/charger with 5 kW nominal power, 48V battery voltage and integrated 80A MPPT solar charge controller. It features a maximum reverse voltage level of solar modules - 450V DC, as well as an LCD display showing operating parameters.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Inverter Must Pv18-5248Pro

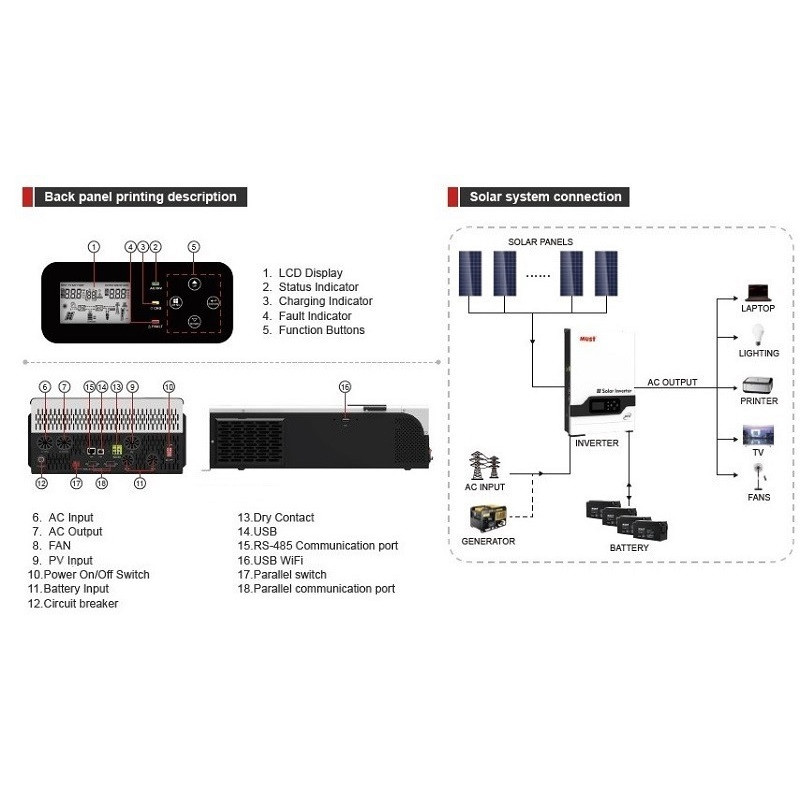

Multifunctional inverter/charger with 5kW rated power, 48V battery voltage and integrated 80A MPPT solar charge controller. Features include maximum PV reverse voltage 450V DC and LCD display for monitoring operating parameters.
- Multifunctional inverter/charger with 5kW rated power and integrated 80A MPPT solar charge controller.
- No battery required, providing uninterrupted power supply in a compact design.
- LCD display for easy parameter setting and charging priorities.
- Compatible with solar systems, AC grid and generator for continuous power supply.
Features | |
|---|---|
| Product type | Solar inverter |
| Model | MUST PV18-5248PRO |
Specifications | |
| Rated power | 5200W |
| Starting power | 10400VA |
| Wave | Pure sine wave |
| Switching time | 10ms/20ms |
| Frequency | 50/60Hz |
| Battery voltage | 48V DC |
| Maximum PV reverse voltage | 450V DC |
| MPPT voltage range | 150~430V DC |
| Maximum solar charging current | 80A |
| Operating temperature | 0°C to +50°C |
| Dimensions | 295 × 528 × 121mm |
| Weight | 14 kg |
| Humidity range | 5% - 95% (non-condensing) |
| Storage temperature | -15°C to 60°C |
| Height | 350mm |
| Length | 600mm |
| Weight | 12500 grams |
| Width | 450mm |
