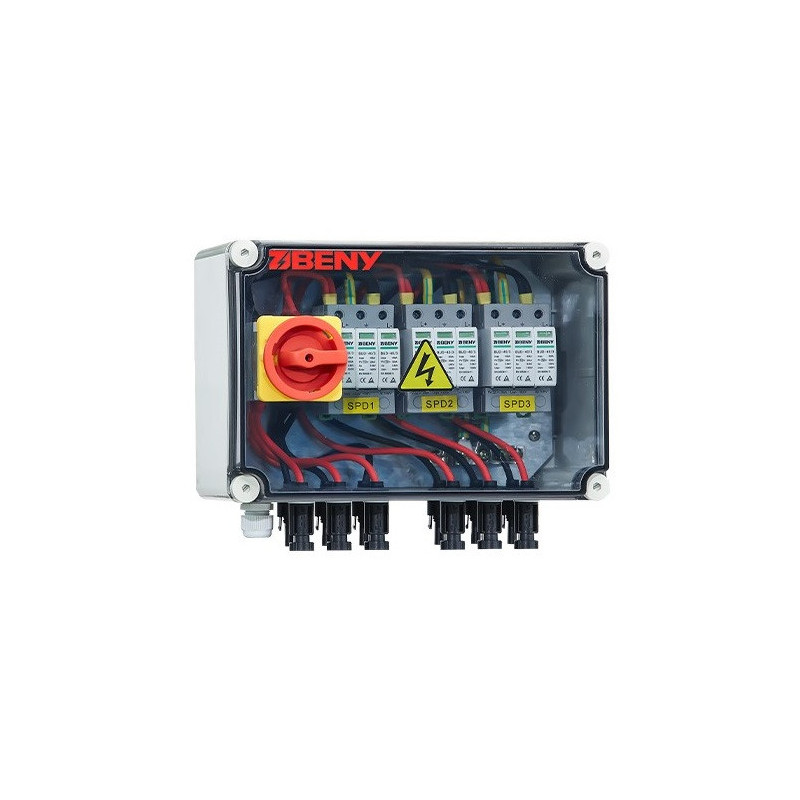

Solar Equipment - PV Junction Box DC 3in-3out 1000V 50A IP66
Product reference:
14-9990000820146
Three input and three output connectors, maximum voltage level - 1000V DC, and maximum output current - 50A. The housing is IP66 class, made of polycarbonate and designed to operate at temperatures from -25°C to +60°C.
Solar Equipment - PV Junction Box DC 3in-3out 1000V 50A IP66
Product reference:
14-9990000820146
Three input and three output connectors, maximum voltage level - 1000V DC, and maximum output current - 50A. The housing is IP66 class, made of polycarbonate and designed to operate at temperatures from -25°C to +60°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
PV Junction Box, DC 3In-3Out, IP66
3 input and 3 output connectors with a maximum voltage of 1000V DC and a maximum output current of 50A. The box is of IP66 class, made of polycarbonate, designed to operate at temperatures from -25°C to +60°C.
- Designed for 3-row PV systems with 1000V DC input/output.
- IP66 waterproof box with fireproof rating V0 and shockproof rating IK10.
- Includes patented DC arc extinguishing chamber for increased safety.
- With MC4 connectors and a lockable handle for convenient use.
Features | |
|---|---|
| Product Type | PV Junction Box |
| Model | DC 3in-3out |
Specifications | |
| Input Connectors | 3 lines |
| Output Connectors | 3 lines |
| Maximum Voltage | 1000V DC |
| Input Short Circuit Current (Isc) | 15A-30A (changing) |
| Maximum Output Current | 50A |
| Box Material | Polycarbonate |
| Security Class | IP66, IK10, V0 |
| Dimensions | 200 × 300 × 150 mm (W × H × D) |
| Input Cable Entries | PG09, 2.5-16mm |
| Output Cable Entries | PG21, 2.5-16mm |
| Operating Temperature | -25°C to +60°C |
Technical Data | |
| DC Switch | 6P, 1000V, 50A |
| DC SPD | 3P, 1000V, 40kA |
| Reaction Time | < 25ns |
| Certificates | UI508i, IEC60947-3 Pv2, IEC 61643, UI1449 |
| Height | 300mm |
| Length | 100mm |
| Weight | 1500g |
| Width | 200mm |
