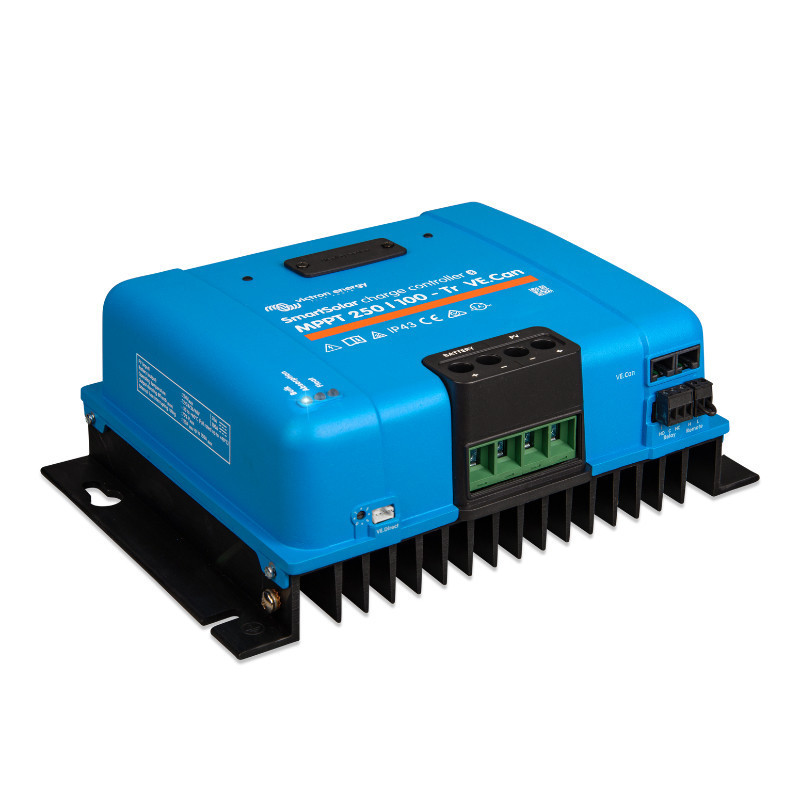

SmartSolar MPPT 250 / 100-Tr VE.Can

is becoming standard, and one of the best tools for this purpose is the charge controller SmartSolar MPPT 250/100-Tr VE.Can From Victron Energy This product features advanced MPPT technology, high flexibility, and efficiency, perfectly meeting the needs of modern solar installations.

High Input Voltage - Increased system flexibility

Thanks to the ability to handle input voltage up to 250V, the SmartSolar regulator offers extraordinary flexibility in configuring solar systems This enables efficient use of higher-voltage photovoltaic panels, ensuring the system operates more optimally even in changing weather conditions. Victron Energy made sure your system can benefit from every ray of sunshine, no matter the circumstances.

Charging current up to 100A - Fast and safe charging

guarantees that your battery will be charged quickly, but above all, safely. This makes SmartSolar an ideal solution for medium and large photovoltaic installations where safety is a priority. stability and operational security The charging process is monitored by advanced algorithms that ensure optimal operating conditions for the device and batteries.

MPPT - Maximum efficiency in variable conditions

SmartSolar MPPT 250/100-Tr uses Maximum Power Point Tracking (MPPT) technology, which allows for optimization of energy efficiency This means that even on cloudy days or in situations where the panels are partially shaded, the system will still generate the maximum possible amount of energy This technology makes the MPPT controller much more efficient than traditional solutions, which translates into up to 30% more energy production.

Intelligent battery management - Battery Life Algorithm

To maximize battery life, SmartSolar MPPT 250/100-Tr uses an innovative algorithm Battery Life, which constantly monitors the battery charge level. Thanks to this, the regulator intelligently manages the charging process, adjusting the thresholds for switching on and off the receivers depending on the battery charge status. This solution effectively protects batteries against excessive discharge, which in the long run has a positive impact on their condition and durability.

Three-step charging process

SmartSolar MPPT 250/100-Tr offers three-stage battery charging process:

1. Bulk Mode - the battery is charged at maximum power until it reaches the appropriate charge level.


2. Absorption Mode - when the battery is almost full, the regulator limits the current, allowing it to be gently recharged to avoid damage.


3. Float mode - when the battery is fully charged, the controller keeps it in a ready state, ensuring longer life and system stability.

Integrated temperature sensor - Protection in extreme conditions

Each SmartSolar MPPT 250/100-Tr is equipped with temperature sensor, which automatically adjusts the charging voltage to external conditions. In a cold climate the regulator increases the voltage to effectively charge the battery, while at high temperatures lowers them, protecting the battery from overheating. This will keep your system running reliably and safely for a long time, regardless of the prevailing weather conditions.

Safety at the highest level

The SmartSolar regulator has been designed with maximum safety Built-in safeguards protect against overcharging, deep discharge batteries and other undesirable events that may lead to system damage. As a result, your solar system will work stably and reliably and the battery life will be extended.

Modern communication and management - VE.Can and Bluetooth

Thanks to the advanced interface VE.Can and the built-in function Bluetooth, users have full control over their system. Managing the loading process, monitoring system parameters and adjusting settings is possible using smartphone and applications VictronConnect This intuitive solution makes using SmartSolar not only simple but also comfortable and hassle-free.

Optional accessories - System expansion

You can purchase a number of accessories for the SmartSolar controller. accessories:

• Smart Battery Sense - wireless battery voltage and temperature sensor.


• MPPT Control - external display for monitoring operating parameters.


• BMW 700 - advanced battery monitor measuring all currents and voltages.

Each of these accessories allows you to even greater control and optimization of the solar system, which translates into extending its lifespan and increasing its efficiency.

Technical specifications

• Battery voltage: 12/24/48V Auto Select (36V: Manual)


• Nominal charging current: 100 A


• Nominal PV power for 12V: 1450 W


• Nominal PV power for 24V: 2900 W


• Nominal PV power for 36V: 4350 W


• Nominal PV power for 48V: 5800 W


• Max. PV short circuit current: 70 A (max. 30 A per MC4 connector)


• Maximum PV Open Circuit Voltage: 250V (absolute maximum in coldest conditions), 245V (maximum starting and running)


• Maximum performance: 99%


• Own consumption: Less than 35 mA at 12 V / 20 mA at 48 V


• Absorption charging voltage: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable via rotary switch, display, VE.Direct or Bluetooth)


• Float charging voltage: 13.8 / 27.6 / 41.4 / 55.2 V (regulation: rotary switch, display, VE.Direct or Bluetooth)


• Charging voltage equalization: 16.2V / 32.4V / 48.6V / 64.8V (adjustable)


• Loading algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined algorithm


• Temperature compensation: -16 mV / -32 mV / -64 mV / °C


• Security: PV reverse polarity, output short circuit, over temperature


• Operating temperature: -30 to +60 °C (full rated power up to 40 °C)


• Humidity: 95%, non-condensing


• Maximum height: 5000 m (full rated power up to 2000 m)


• State of the environment: Inside, no air conditioning


• Degree of pollution: PD3


• Data communication port: VE.Direct or Bluetooth


• Remote on/off: Yes (2-pole connector)


• Programmable relay: DPST (AC: 240 VAC / 4 A, DC: 4 A to 35 VDC, 1 A to 60 VDC)


• Parallel work: Yes, simultaneous synchronization with VE.Can (max. 25 devices) or Bluetooth (max. 10 devices)


• Color: Blue (RAL 5012)


• PV terminals: 35 mm² / AWG2


• Battery terminals: 35 mm² / AWG2


• Protection category: IP43 (electronic components), IP22 (connection area)


• Libra: 4.5 kg


• Dimensions (hxwxd): 216 x 295 x 103 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

Thanks to these parameters, SmartSolar MPPT 250/100-Tr VE.Can perfect solution for demanding users who expect reliability, high efficiency and full control over their photovoltaic system.
