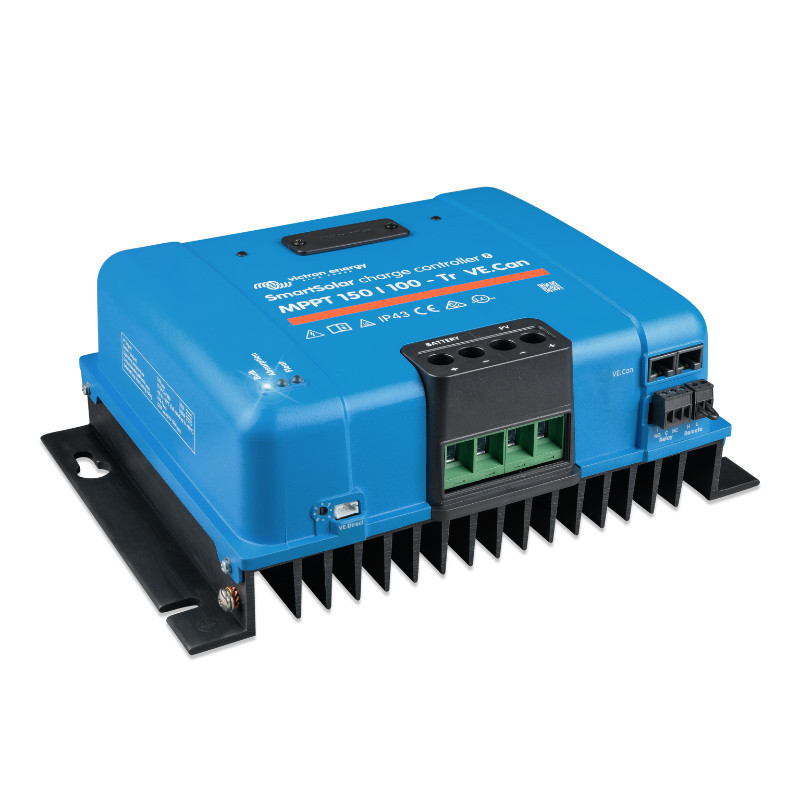

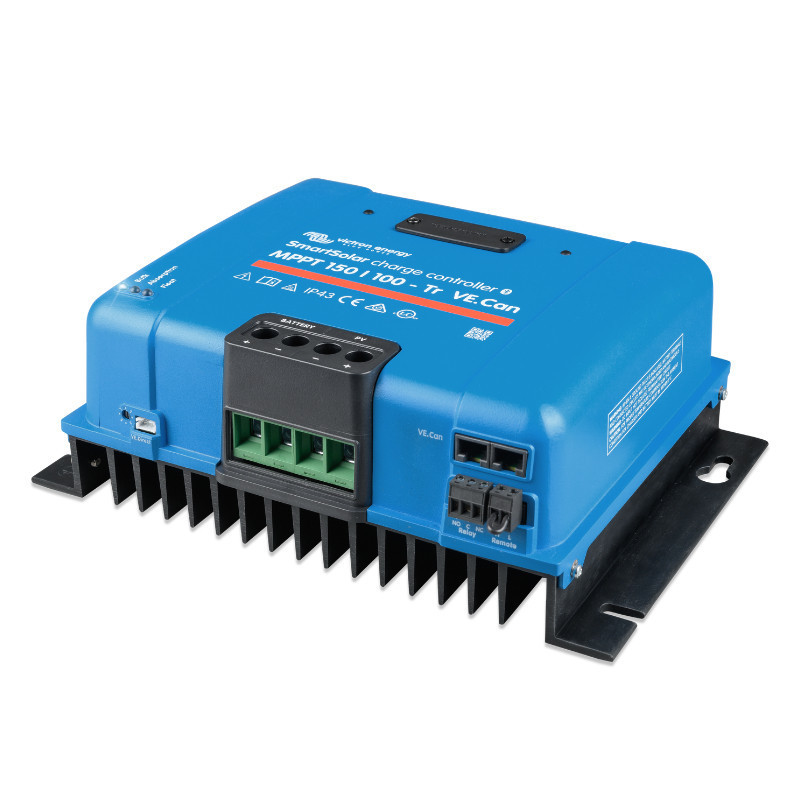

SmartSolar MPPT 150 / 100-Tr VE.Can

Charge controller SmartSolar MPPT 150/100-Tr VE.Can brands Victron Energy This top-of-the-line device is designed to maximize the efficiency of photovoltaic systems. Thanks to advanced MPPT (Maximum Power Point Tracking) technology and broad compatibility with various battery systems, this controller ensures reliable and efficient operation even in challenging lighting conditions.

High Input Voltage - Greater Flexibility and Efficiency

Regulator SmartSolar 150/100-Tr VE.Can supports maximum input voltage up to 150V, which allows for the connection of higher-voltage panels and increases flexibility in PV system design. This allows for the construction of more complex installations that effectively utilize available solar energy resources. This is particularly beneficial for systems that must operate in a wide range of weather conditions, ensuring high efficiency in various environments.

Maximum Charging Current - Ideal for Medium and Large Solar Systems

With a maximum charging current of 100A This controller is ideal for larger photovoltaic systems that require fast and efficient battery charging. This solution charges batteries faster and more safely, resulting in longer system life and improved energy efficiency. It's an ideal solution for those looking for reliable equipment for large solar installations, both residential and commercial.

Advanced Charging Algorithms - Optimal Energy Management

MPPT technology in the regulator SmartSolar 150/100 allows for maximum utilization of the energy generated by photovoltaic panels, even in partial shade or low sunlight conditions. Advanced charging algorithms, such as Bulk, Absorbtion and Float, optimize the charging process, minimizing losses and maximizing efficiency. Additionally, the regulator is equipped with Battery Life algorithm, which monitors the battery charge status and automatically adjusts operating modes, which significantly extends their life.

Integrated Bluetooth Interface - Full Control and Monitoring

Thanks to the built-in interface Bluetooth, users can easily monitor and program the device using the mobile app VictronConnect This feature allows for real-time monitoring of key system parameters, such as voltage, charging current, and energy yield. The ability to remotely monitor and manage the installation makes the controller not only efficient but also incredibly easy to use.

High Conversion Efficiency - Minimized Energy Losses

Regulator SmartSolar 150/100 offers maximum conversion efficiency of 98%, which minimizes energy losses during power conversion from solar panels. This allows almost all of the energy generated by the PV system to be transferred to the batteries, increasing the system's efficiency and allowing for full utilization of solar power. This efficiency is particularly important in large installations, where any energy loss can impact the overall system performance.

Advanced Protection Features - Reliability and Security

Regulator SmartSolar MPPT was designed with maximum system security in mind. The device offers protection against PV reverse polarity, output short circuit and overtemperature, which protects both the regulator and the connected batteries from damage. A built-in temperature sensor automatically adjusts the charging voltage depending on the ambient temperature, which additionally protects the batteries from overheating or overcooling.

Optional Accessories - Expand Your System For Greater Control

The controller can be equipped with various accessories, such as Smart Battery Sense, a wireless sensor that monitors battery voltage and temperature. This allows for more precise control of the charging process, which helps extend battery life. MPPT Control is an external display that allows you to display the most important operating parameters of the regulator, such as the power of solar panels, daily yield and battery voltage.

Technical Specifications

• Model: MPPT Smart Solar 150 | 100 VE.Can


• Battery voltage: 12/24/48V (auto select) / 36V (manual select)


• Nominal charging current: 100 A


• Nominal PV power:



  • 12V: 1450W


  • 24V: 2900W


  • 36V: 4350W


  • 48V: 5800W






• Maximum PV short circuit current: 70 A (max. 30 A per MC4 connector)


• Maximum PV Open Circuit Voltage: 150V (absolute maximum in coldest conditions)


• Maximum performance: 98%


• Own consumption:



  • Less than 35 mA (at 12 V)


  • Less than 20 mA (at 48 V)






• Absorption charging voltage:



  • Default: 14.4V / 28.8V / 43.2V / 57.6V (adjustable via rotary switch, display, VE.Direct or Bluetooth)






• Float charging voltage:



  • Default: 13.8V/27.6V/41.4V/55.2V (adjustable via rotary switch, display, VE.Direct or Bluetooth)






• Charging voltage equalization:



  • Default: 16.2V/32.4V/48.6V/64.8V (adjustable)






• Loading algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined algorithm


• Temperature compensation: -16 mV / -32 mV / -64 mV / °C


• Security: PV Reverse Polarity / Output Short Circuit / Over Temperature


• Operating temperature: -30°C to +60°C (full rated power up to 40°C)


• Humidity: 95% (non-condensing)


• Maximum working height: 5000 m (full rated power up to 2000 m)


• State of the environment: Inside, no air conditioning


• Degree of pollution: PD3


• Data communication port: VE.Direct or Bluetooth


• Remote on/off: Yes (2-pole connector)


• Programmable relay: DPST



  • AC parameters: 240 VAC / 4 A


  • DC parameters: 4 A to 35 VDC, 1 A to 60 VDC






• Parallel work: Yes, simultaneous synchronization with VE.Can (max. 25 devices) or Bluetooth (max. 10 devices)

Installation and dimensions:

• Color: Blue (RAL 5012)


• PV terminals: 35 mm² / AWG2


• Battery terminals: 35 mm² / AWG2


• Protection category: IP43 (electronic components), IP22 (connection area)


• Libra: 4.5 kg


• Dimensions (H x W x D): 216 mm x 295 mm x 103 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

is the ideal solution for advanced photovoltaic systems, offering maximum efficiency, safety and full control over solar energy management.
