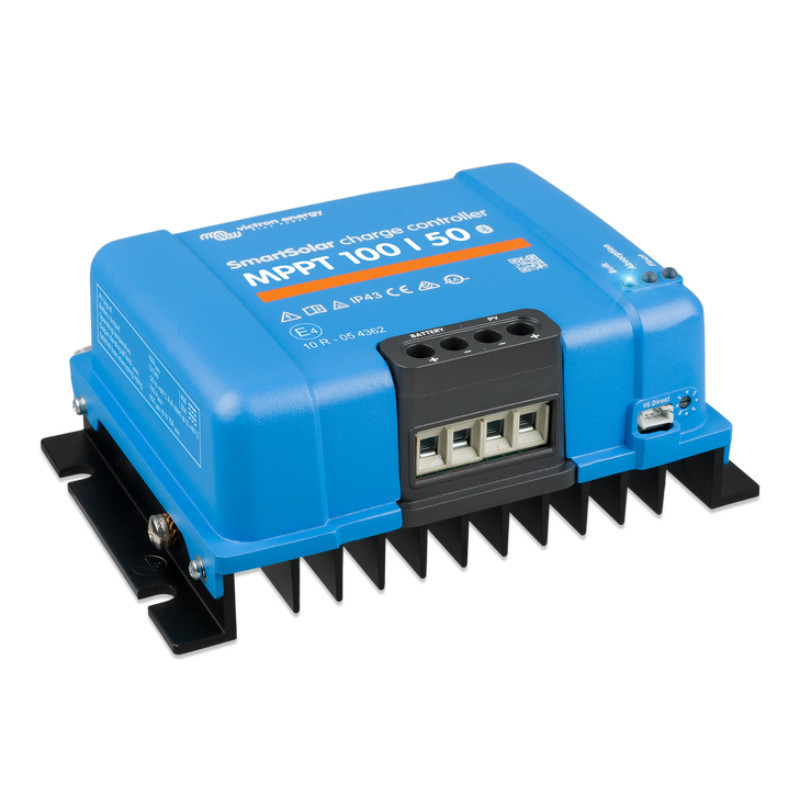

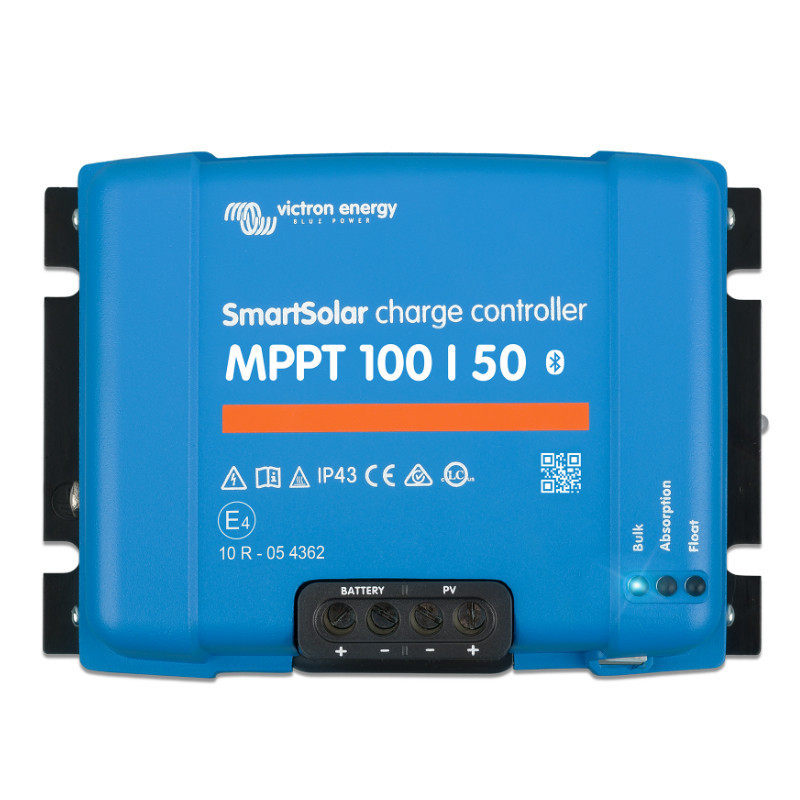

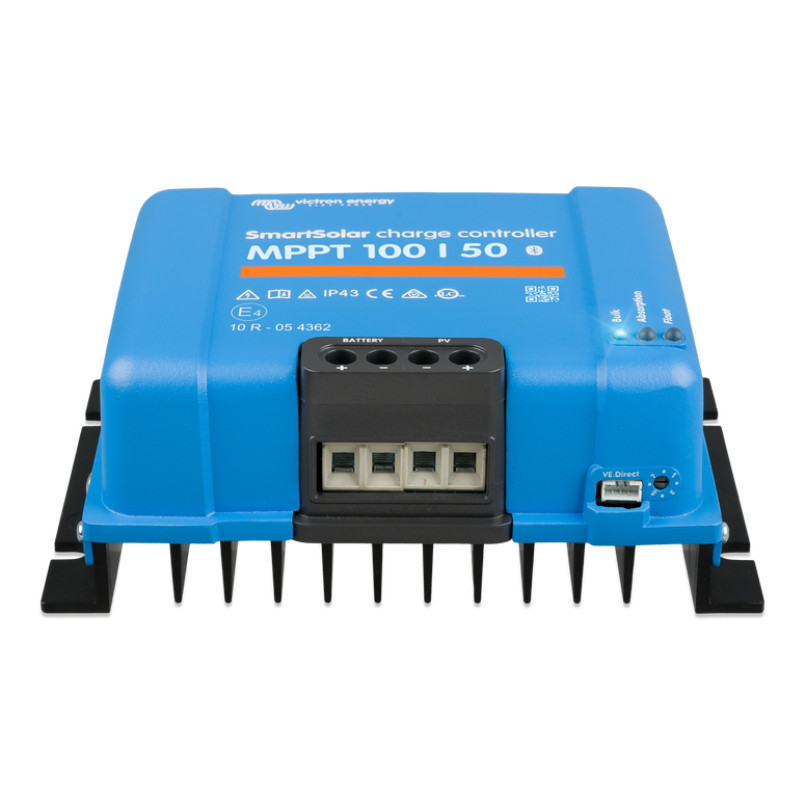

SmartSolar MPPT 100 / 50

is an advanced charging regulator designed by a renowned brand Victron Energy, which guarantees maximum efficiency for medium-sized solar systems. Thanks to the use of technology MPPT (Maximum Power Point Tracking), the device automatically adapts to lighting conditions, ensuring optimization of energy acquisition and effective battery charging.

High Input Voltage - Flexible System Configuration

This regulator supports input voltage up to 100V, allowing the use of a wide range of solar panels, including those with higher voltages. This flexibility allows for easier configuration of solar systems that can operate in different lighting conditions and with changing energy requirements. By using more panels connected in series, you can optimize your installation and increase its efficiency.

Maximum Charging Current 50A - Ideal for Medium Solar Systems

With a maximum charging current of 50A, SmartSolar MPPT 100/50 is an excellent choice for medium-sized photovoltaic installations. The device provides fast, yet safe battery charging, adapting to their current condition. This ensures system stability while maintaining battery longevity.

Advanced Charging Algorithms - Efficient Energy Management

Thanks to advanced technology MPPT, the controller is able to dynamically track the most efficient operating point of the solar panels, which increases the overall charging efficiency by up to 30% compared to standard PWM controllers. These algorithms are particularly effective in difficult lighting conditions, such as cloudy days or partial shade, which translates into more stable energy yield.

Battery Life Algorithm - Extended Battery Life

One of the key solutions used in SmartSolar MPPT 100/50 there is an algorithm Battery Life, which ensures that the batteries are regularly fully charged, preventing premature wear. This algorithm monitors the battery's condition and dynamically adjusts load shedding thresholds, ensuring longer battery life and improved energy efficiency.

Three-Stage Charging Process - Maximum Efficiency

optimizes charging in three steps:

1. Bulk Mode: the battery is charged at maximum power to reach a full charge as quickly as possible.


2. Absorption Mode: a voltage stabilization process that continues until the battery draws the minimum current.


3. Float mode: maintains charging at a low level to prevent overcharging and extend battery life.

Monitoring and Control via Bluetooth

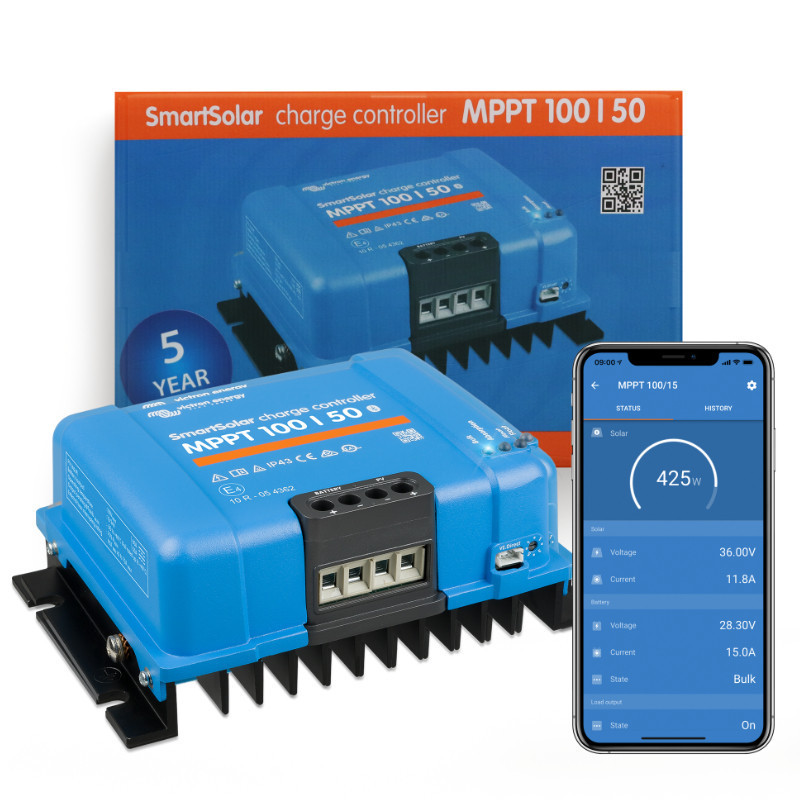

The controller is equipped with an interface Bluetooth, which enables full management and monitoring via a smartphone with an application VictronConnect This allows users to remotely control all key system parameters, such as battery voltage, solar panel power, and energy yield. This makes managing a photovoltaic installation simpler and more efficient.

Safety and Reliability - Highest Level Security

Provides comprehensive system protection with advanced safety features, including reverse polarity, short circuit, and overheating protection. Designed to withstand harsh environmental conditions, its robust construction ensures long-term reliability.

Technical Specifications

• Battery voltage: 12/24V (automatic selection)


• Nominal charging current: 50 A


• Nominal PV power:



  • 12V: 700W


  • 24V: 1400W






• Maximum PV Open Circuit Voltage: 100V


• Maximum PV short circuit current: 60 A


• Maximum performance: 98%


• Own consumption:



  • 12V: 30mA


  • 24V: 20mA






• Absorption charging voltage: 14.4V / 28.8V (regulated)


• Float charging voltage: 13.8V / 27.6V (regulated)


• Loading algorithm: Multi-stage adaptive


• Security:



  • Reverse PV polarity


  • Output short circuit


  • Excessive temperature






• Operating temperature: from -30 to +60 °C (full rated power up to 40 °C)


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Humidity: 95%, non-condensing

Other

• Color: Blue (RAL 5012)


• Power terminals: 16 mm² / AWG6


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 1.3 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm

Security

• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Designed to maximize the performance of solar systems, it ensures optimal efficiency and reliability in all conditions. With advanced technology, full Bluetooth control, and robust protection features, it's the perfect solution for mid-sized photovoltaic systems that require stable and efficient energy management.
