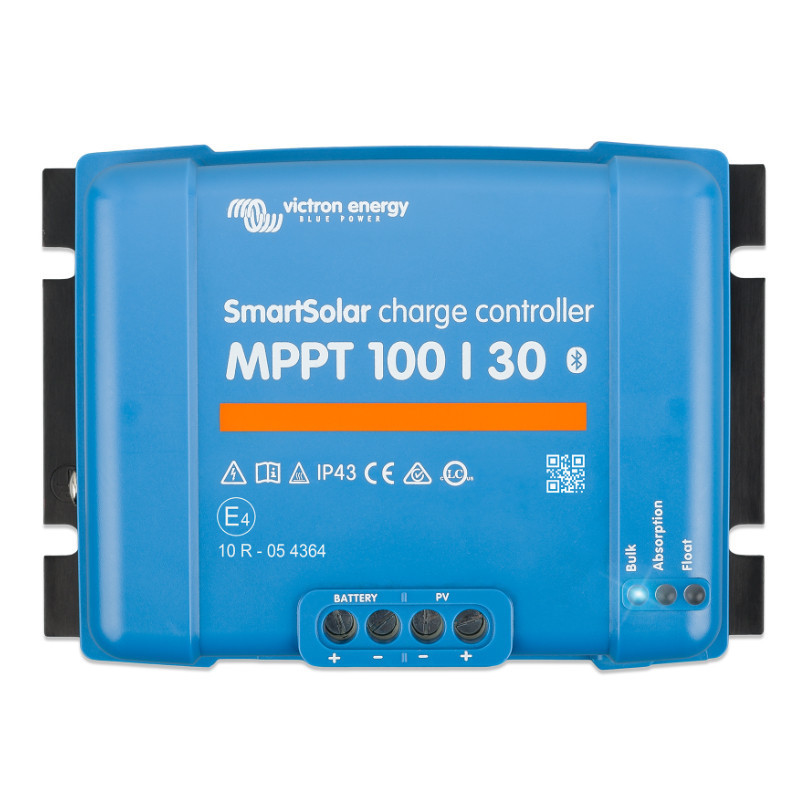

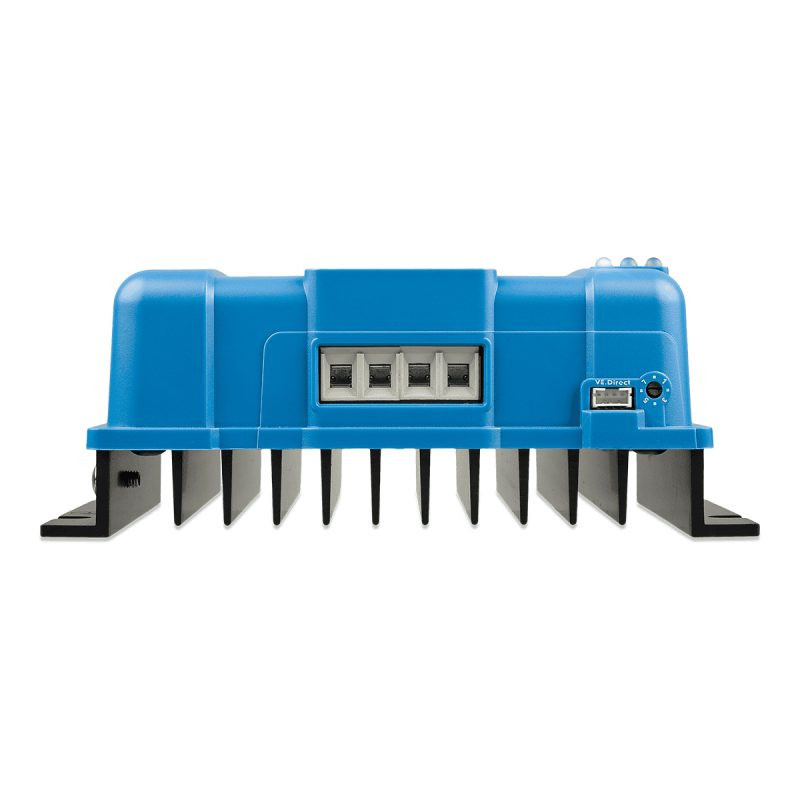

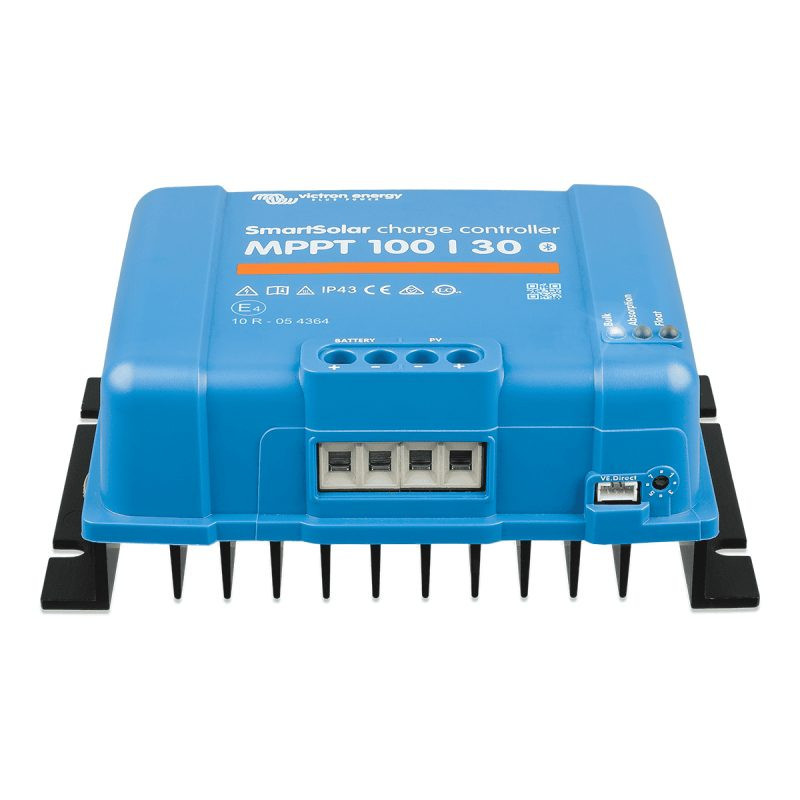

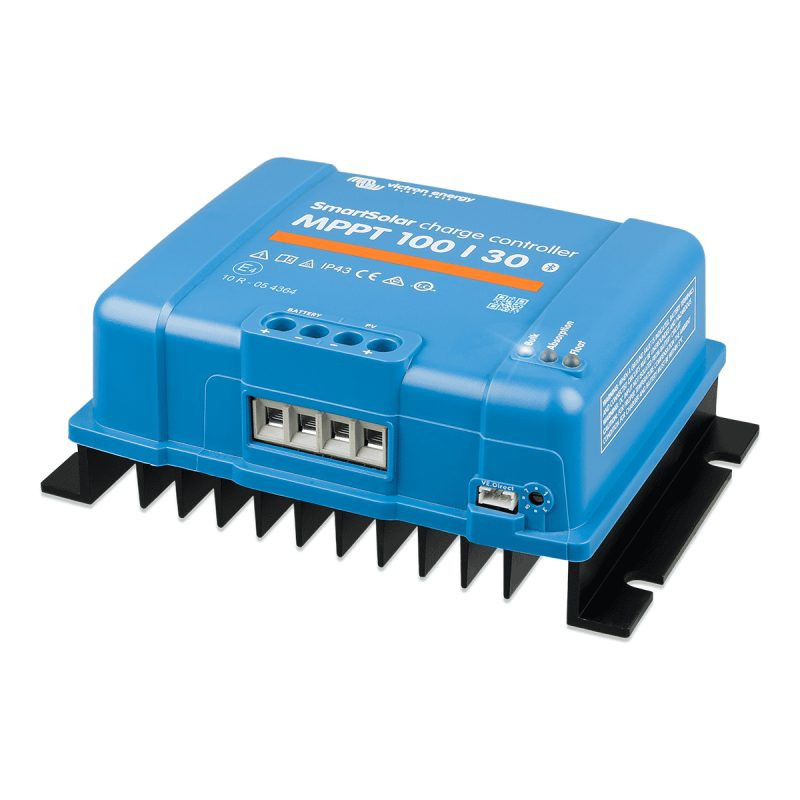

SmartSolar MPPT 100 / 30

from a renowned brand Victron Energy is a versatile charge controller that utilizes the latest technology to ensure maximum efficiency in solar systems. Its advanced functionality allows automatic voltage selection between 12V and 24V, as well as support for high input voltages up to 100V, significantly increasing the flexibility of solar system configurations. With a built-in interface, Bluetooth, the user can conveniently monitor and program the device using a smartphone, which makes this controller exceptionally easy to use and manage.

High Input Voltage - More Configuration Options

One of the key features SmartSolar MPPT 100/30 is the input voltage support for 100V, which allows for easier use of higher-voltage solar panels. This allows the controller to work with a wider range of panels, giving users greater freedom in designing and installing a photovoltaic system. This flexibility allows for more efficient use of available space and power.

Fast and Safe Charging with a Maximum Current of 30A

The controller offers a maximum charging current of 30A, which is an ideal solution for medium-sized solar installations. This makes the battery charging process faster and safer, and the device is able to deliver the appropriate amount of energy even in difficult weather conditions. SmartSolar 100/30 ensures that the batteries are charged optimally and without the risk of overloading.

Advanced Charging Algorithms - Maximize Performance

Thanks to the use of technology MPPT (Maximum Power Point Tracking), regulator SmartSolar 100/30 automatically adjusts to changing lighting conditions, maximizing energy yield from the solar panels. This advanced solution provides 10-30% higher efficiency than traditional PWM charge controllers, which is especially important on days with lower sunlight or in partially shaded areas.

Battery Life Algorithm - Protecting and Extending Battery Life

The regulator is equipped with an intelligent Battery Life algorithm, which monitors the battery's health and automatically adjusts the charging process to prevent undercharging. This algorithm adjusts load disconnect thresholds, ensuring the battery is regularly charged to its full capacity. This protects the batteries from excessive discharge, significantly extending their lifespan and improving the efficiency of the solar system.

Three-Stage Charging Process - Optimizing Every Cycle

uses a three-stage charging process that ensures maximum battery charging in a safe and efficient manner:

1. Bulk Mode - fast charging with maximum current to charge the battery as quickly as possible.


2. Absorption Mode - stabilisation of the DC charging until the battery draws less current.


3. Float mode - maintaining the voltage at rest level to prevent overcharging the battery.

Monitoring and Programming - Full Control Thanks to Bluetooth

Thanks to the built-in module Bluetooth, the user can conveniently monitor and program SmartSolar MPPT 100/30 without the need for physical access to the device. Application VictronConnect Available on smartphones, it allows you to monitor battery voltage, solar panel performance, and other key parameters, giving you full control over your solar system from anywhere.

Reliability and Security - Protecting Your System

Regulator SmartSolar 100/30 was designed with maximum safety in mind. Built-in safeguards protect the system against reverse polarity, short circuits, and overheating, making the device reliable even in the most demanding conditions. Thanks to its protection class IP43 for electronic components and IP22 for the connection area, the regulator can operate in harsh environmental conditions, ensuring long-term protection and reliability.

Technical Specifications

• Battery voltage: 12/24V (automatic selection)


• Nominal charging current: 30 A


• Nominal PV power:



  • 12V: 440W


  • 24V: 880 W






• Maximum PV Open Circuit Voltage: 100V


• Maximum PV short circuit current: 35 A


• Maximum performance: 98%


• Own consumption:



  • 12V: 30mA


  • 24V: 20mA






• Absorption charging voltage: 14.4V / 28.8V (regulated)


• Float charging voltage: 13.8V / 27.6V (regulated)


• Loading algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Security:



  • Reverse PV polarity


  • Output short circuit


  • Excessive temperature






• Operating temperature: from -30 to +60 °C (full rated power up to 40 °C)


• Humidity: 95%, non-condensing

Other

• Color: Blue (RAL 5012)


• Power terminals: 16 mm² / AWG6


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 1.3 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm

Security

• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

is the ideal solution for those looking for an efficient and reliable charge controller for mid-sized photovoltaic systems. Thanks to advanced technology, high efficiency, and numerous protection features, this controller ensures optimal performance and long battery life, making it an excellent choice for both new installations and retrofits to existing solar systems.
