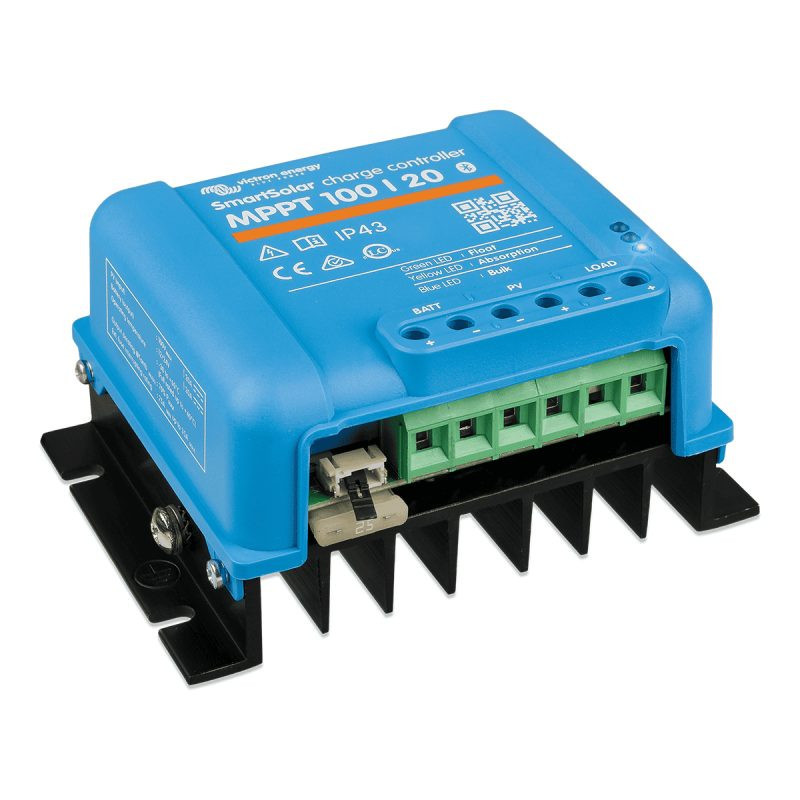

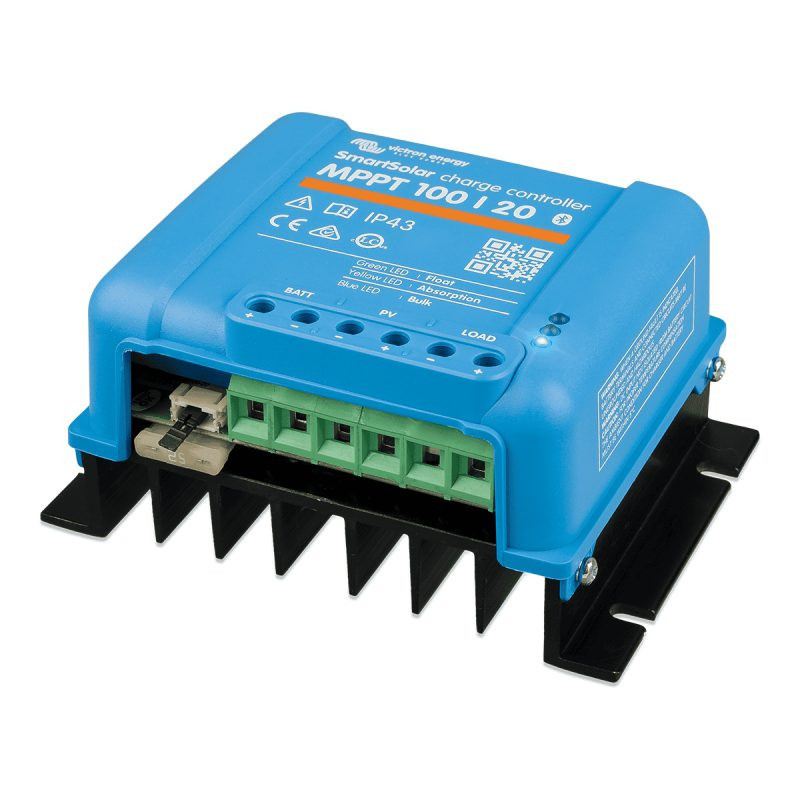

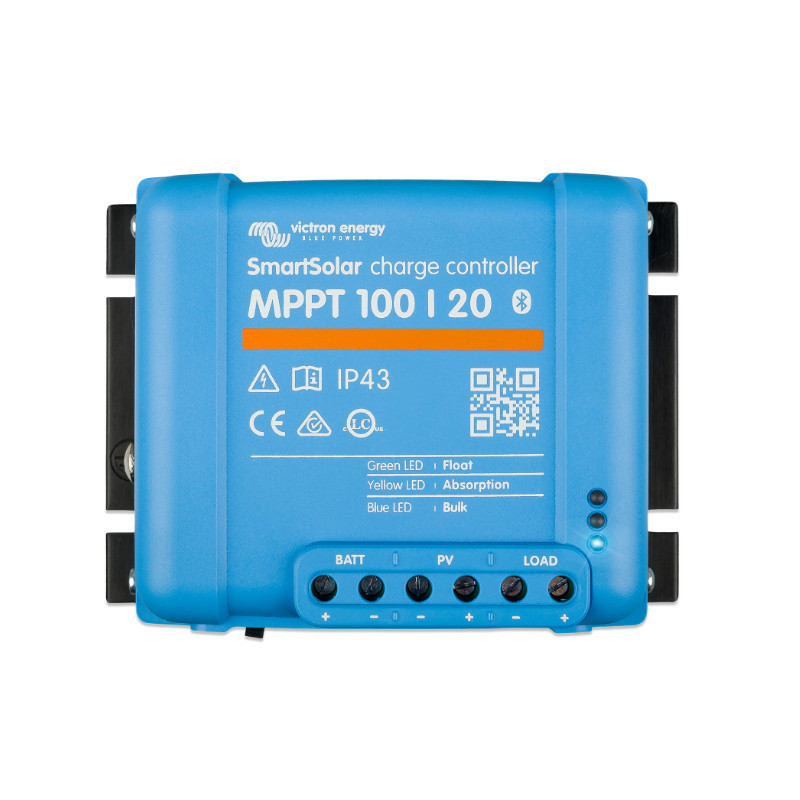

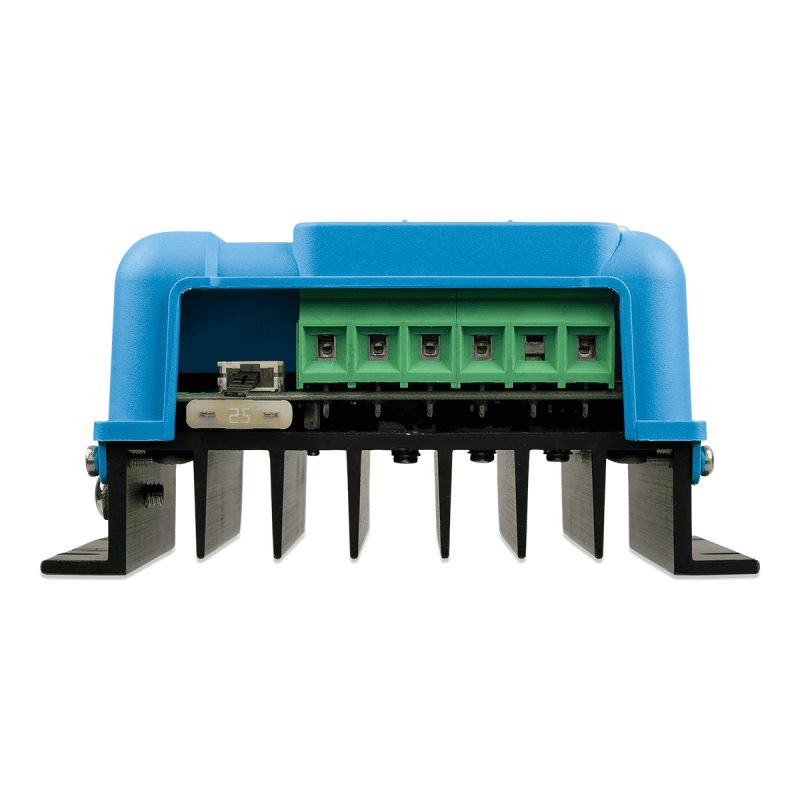

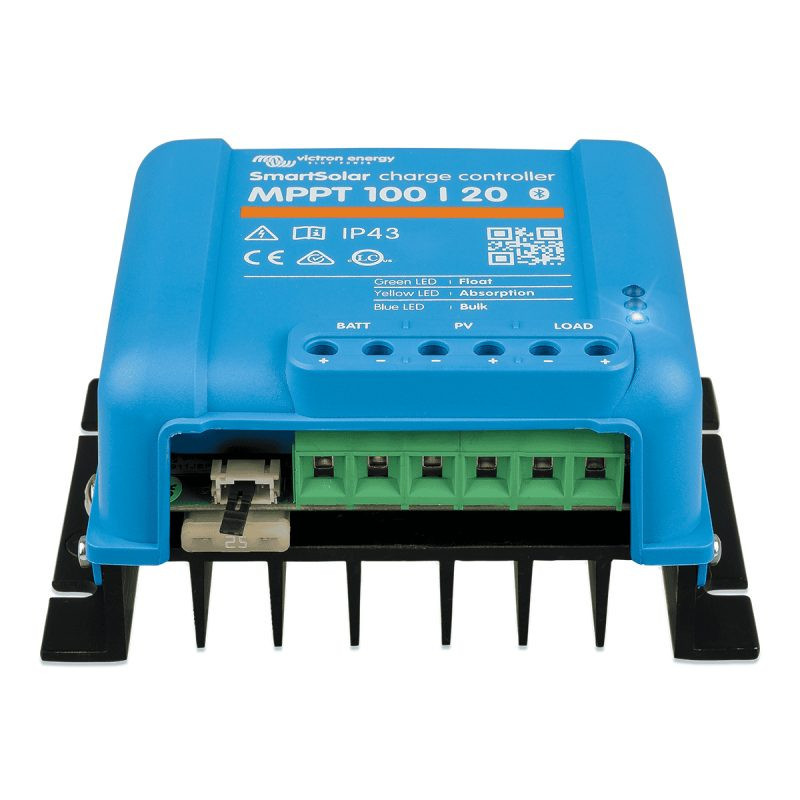

SmartSolar MPPT 100 / 20 (up to 48V)

Charge controller Victron Energy SmartSolar MPPT 100/20 is a technologically advanced device that enables effective management of energy from solar panels. Thanks to the function MPPT (Maximum Power Point Tracking) SmartSolar optimizes battery charging performance, increasing efficiency by up to 30% compared to traditional PWM controllers.

High Input Voltage - Maximum Flexibility

Regulator SmartSolar MPPT 100/20 It supports input voltages up to 100V, allowing for flexible configuration of the photovoltaic system with higher-voltage panels. This solution increases system flexibility, enabling more efficient energy management. Maximum open circuit voltage of 100V provides the ability to connect a wide range of solar panels, making this controller an ideal choice for medium-sized solar systems.

Maximum Charging Current - Fast and Safe Charging

The device offers maximum charging current of 20A, which allows for quick charging of batteries while ensuring their safety. This makes the controller suitable for solar installations in homes, campers, and even commercial applications. Optimized charging algorithms, such as Bulk, Absorption and Float modes, ensure intelligent and precise energy management, which translates into long battery life.

Smart MPPT Technology - Maximum Energy Utilization

MPPT technology enables precise tracking of the maximum power point, which allows for the optimization of energy obtained from solar panels even in difficult conditions, such as partial shade or cloudy days. SmartSolar controller can extract the maximum possible power from PV modules, which increases system efficiency by up to 30% compared to conventional PWM regulators. Efficiency of 98% is a guarantee that every drop of solar energy is used appropriately.

Bluetooth Management - Full Control in Your Hands

One of the most innovative features of the SmartSolar controller is integrated Bluetooth interface, which allows you to easily monitor and program the device using a smartphone or tablet. Thanks to the application VictronConnect, users can monitor system operating parameters in real time, such as battery voltage, solar panel power, energy yield, and more. This allows for quick adjustments to current needs, making the system easy to manage even for less experienced users.

Advanced Charging Algorithms - Protection and Long Battery Life

The SmartSolar MPPT 100/20 uses advanced charging algorithms that ensure the batteries are charged optimally. Battery Life mode, the controller ensures that the batteries are regularly fully charged, significantly extending their lifespan and preventing over-use. This function automatically adjusts the load disconnection and connection thresholds to ensure that the batteries are not excessively discharged.

Security - System Protection at the Highest Level

The Victron Energy SmartSolar controller has built-in safeguards that protect the batteries and the entire system against overcharging, deep discharge, overload, and short circuits. This allows users to be confident that their system is safe and operating reliably. Built-in temperature sensor automatically adjusts the charging voltage depending on the ambient temperature, which additionally protects the batteries against damage in extreme weather conditions.

Optional Accessories - Additional Features For Full Control

The SmartSolar controller can be additionally expanded with Smart Battery Sense, a wireless sensor that monitors the battery temperature and voltage. The data is transmitted wirelessly to the controller, which then compensates the charging voltage, which has a direct impact on extending battery life. Additionally, thanks MPPT Control you can access even more detailed information about the system's operation and precisely adjust the charging parameters.

Technical Specifications

• Model: SmartSolar MPPT 100/20


• Battery voltage: 12/24/48 V (automatic)


• Nominal charging current: 20 A


• Nominal PV power (12V): 290 W


• Nominal PV power (24V): 580 W


• Nominal PV power (48V): 1160 W


• Max. PV short circuit current: 20 A


• Automatic load disconnection: Yes


• Max PV Open Circuit Voltage: 100V


• Peak performance: 98%


• Self-consumption of energy - load:



  • 12V: 26mA


  • 24V: 20mA


  • 48V: 19mA






• Independent consumption - relief:



  • 12V: 10mA


  • 24V: 8mA


  • 48V: 7mA






• Absorption charging voltage: 14.4V / 28.8V / 57.6V (adjustable)


• Float charging voltage: 13.8V / 27.6V / 55.2V (adjustable)


• Loading algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Max continuous load current:



  • 20 A (for 12V and 24V)


  • 1 A (for 48V)






• Low voltage load disconnection:



  • 11.1V / 22.2V / 44.4V


  • 11.8V / 23.6V / 47.2V


  • Battery life algorithm






• Reconnecting the low voltage load:



  • 13.1V / 26.2V / 52.4V


  • 14V / 28V / 56V


  • Battery life algorithm






• Security: Output short circuit / over temperature


• Operating temperature: -30°C to +60°C (full rated power up to 40°C)


• Humidity: 95%, non-condensing


• Data communication port: VE.Direct


• Color: Blue (RAL 5012)


• Power terminals: 6 mm² / AWG10


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 0.65 kg


• Dimensions (H x W x D): 100 x 113 x 60 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

Regulator Victron Energy SmartSolar MPPT 100/20 is the perfect solution for anyone who values efficiency, safety and flexibility in managing solar energy.
