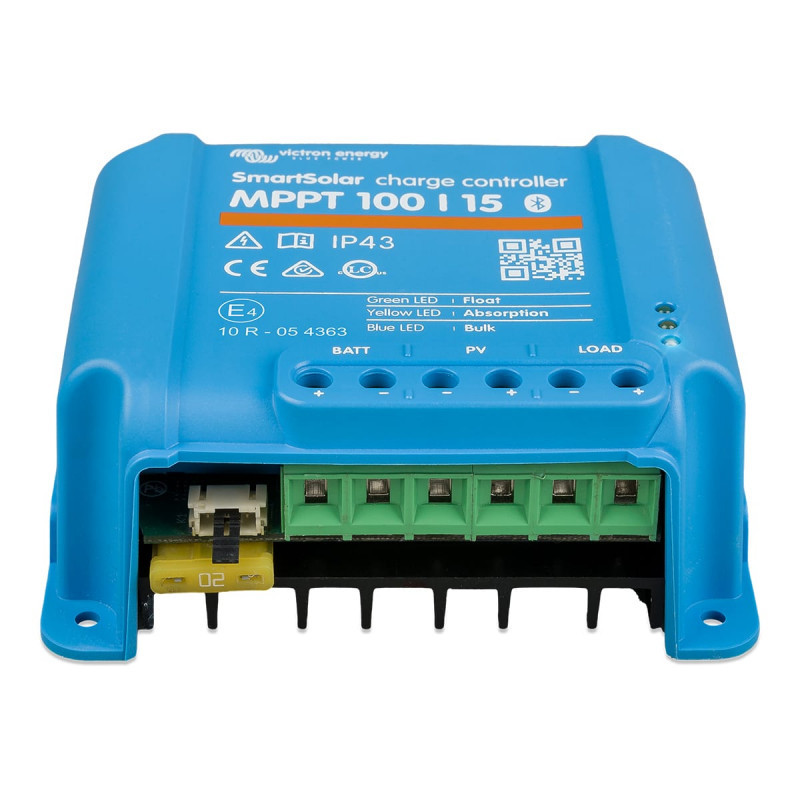

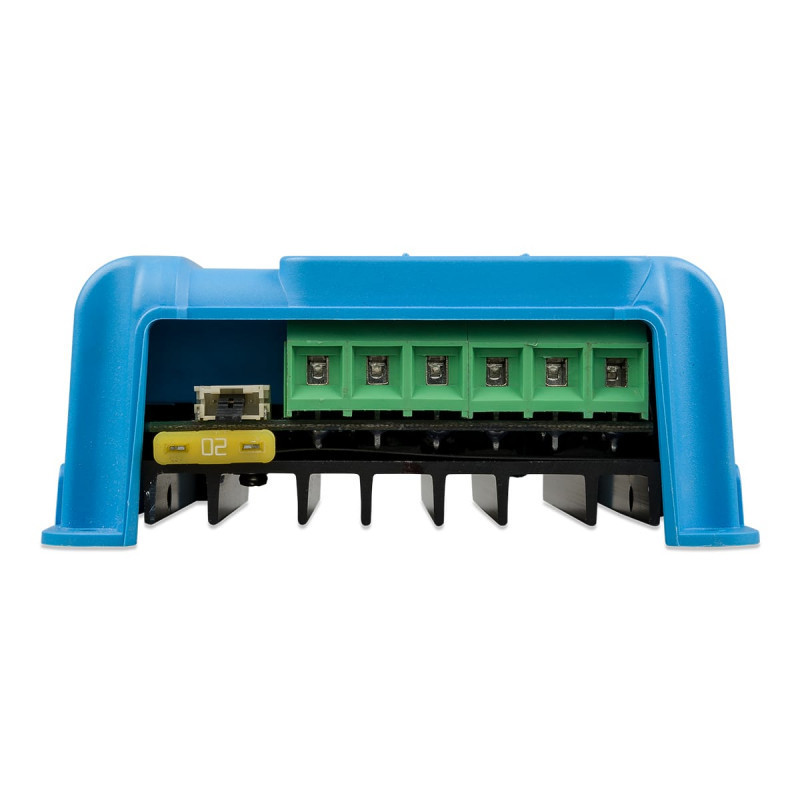

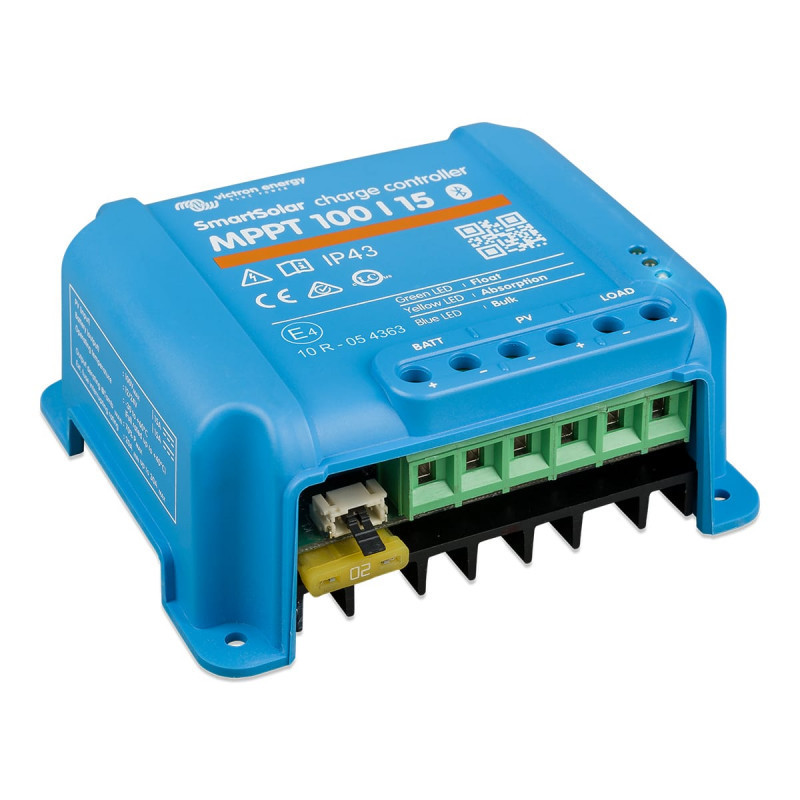

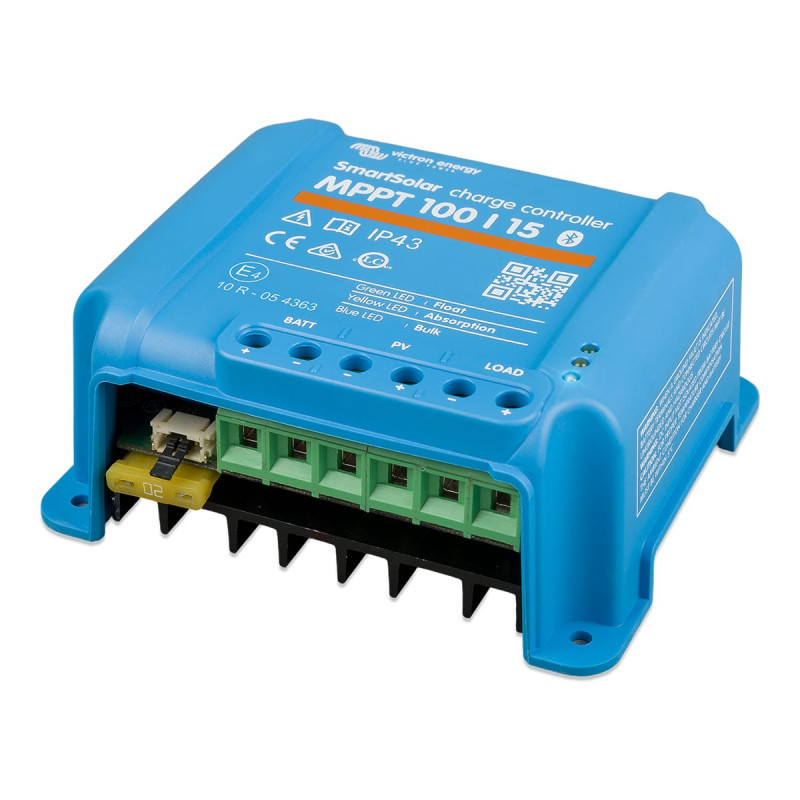

SmartSolar MPPT 100 / 15

Charge controller SmartSolar MPPT 100/15 is an innovative solution that offers maximum efficiency for small and medium-sized solar systems. Equipped with advanced technology MPPT (Maximum Power Point Tracking) This model optimizes battery charging, even in challenging lighting conditions. This ensures your solar panels operate at peak efficiency and energy is used efficiently.

Advanced high input voltage support

supports input voltage up to 100V, making it a versatile solution for use with a variety of solar panels, including higher voltage panels. Flexibility in system configuration It enables efficient use of available solar energy resources, which is crucial for increasing the efficiency of the entire photovoltaic system. Higher voltage also allows for lower energy transmission losses, which translates into better system performance.

Maximum charging current 15A - fast and safe charging

With a charging current of 15A, this controller is the ideal choice for smaller solar systems, such as home installations or smaller commercial renewable energy systems. Thanks to this charging efficiency, your batteries will be charged at an optimal rate, which will ensure long life and safe use.

Intelligent MPPT charging algorithms - maximum efficiency in all conditions

Thanks to the use of MPPT algorithm The SmartSolar 100/15 controller tracks and optimizes the solar panels' maximum power point. This key technology allows for increased charging efficiency even in variable weather conditions, such as partial shade or cloudy days. Thanks to MPPT, your photovoltaic system can generate up to 30% more energy compared to traditional PWM regulators, which is invaluable for systems operating in more difficult conditions.

Automatic battery voltage selection - full versatility

Regulator SmartSolar MPPT 100/15 automatically adjusts to the battery voltage (12V or 24V), making it an extremely versatile and easy-to-setup device. Automatic voltage selection eliminates the need to manually set parameters, which speeds up the installation process and minimizes the risk of errors.

Battery Life - Advanced battery protection

Regulator SmartSolar 100/15 is equipped with an intelligent Battery Life algorithm, which automatically adjusts load disconnection and connection thresholds based on the battery charge state. This protects the batteries from excessive discharge, which significantly extends their lifespan This algorithm monitors the battery's cycles and, as necessary, gradually increases the disconnect thresholds to ensure a full charge, which is crucial for maintaining long-term system performance.

Charging Modes - Full control over the charging cycle

The controller supports three advanced charging modes that ensure optimal energy utilization:

1. Bulk - fast charging phase, during which the battery is charged with full current.


2. Absorption - charging the battery with constant current until fully charged.


3. Float - maintain mode in which the battery is kept fully charged at minimum voltage.

This multi-stage charging strategy allows for maximizing battery life, while ensuring their full readiness for work.

Built-in temperature sensor - additional battery protection

The regulator is equipped with temperature sensor, which automatically adjusts the charging voltage depending on the ambient temperature. At lower temperatures the voltage is increased and in higher ones - lowered, which allows you to keep the batteries in optimal condition and additionally extends their life.

System security and protection

Victron Energy always places great emphasis on the safety of using its products, SmartSolar MPPT 100/15 is no exception. The device is equipped with a number of security features that protect the system against:

• Overcharging the batteries


• Deep discharge


• Short circuit at the output


• Exceeding the permissible operating temperature

, which minimizes the risk of failure and increases the reliability of the entire installation.

Optional Accessories - More Control Over Your System

For even greater functionality, the SmartSolar MPPT 100/15 can be expanded with optional accessories such as:

• Smart Battery Sense - wireless battery voltage and temperature sensor that automatically adjusts the charging process.


• MPPT Control - external display enabling monitoring and control of system parameters, including voltage, power and energy yield.


• BMW 700 - advanced battery monitor that provides detailed information on charge status, currents and voltages.

Technical specifications

• Battery voltage: 12/24/48 V (auto)


• Nominal charging current: 15 A


• Nominal PV power:



  • 12V: 220W


  • 24V: 440W


  • 48V: not applicable






• Max. PV short circuit current: 15 A


• Automatic load disconnection: Yes


• Max PV open circuit voltage: 100V


• Peak performance: 98%


• Standalone energy consumption (load):



  • 12V: 19mA


  • 24V: 16mA






• Independent consumption (relief):



  • 12V: 10mA


  • 24V: 8mA






• Absorption charging voltage: 14.4V / 28.8V (regulated)


• Float charging voltage: 13.8V / 27.6V (regulated)


• Loading algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Maximum continuous load current: 15 A


• Low voltage load disconnection:



  • 11.1V / 22.2V / 44.4V


  • 11.8V / 23.6V / 47.2V


  • Battery life algorithm






• Reconnecting the low voltage load:



  • 13.1V / 26.2V / 52.4V


  • 14V / 28V / 56V


  • Battery life algorithm






• Security: Output short circuit / over temperature


• Operating temperature: -30 to +60°C (full rated power up to 40°C)


• Humidity: 95%, non-condensing


• Data communication port: VE.Direct


• Color: Blue (RAL 5012)


• Power terminals: 6 mm² / AWG10


• Protection category: IP43 (electronic components), IP22 (connection area)


• Libra: 0.6 kg


• Dimensions: 100 x 113 x 50 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

is an advanced, safe, and efficient solution for those seeking to optimize their photovoltaic systems. Thanks to modern MPPT technology and intelligent energy management algorithms, Your solar panels will operate at maximum efficiency, ensuring efficient use of solar energy at all times.
