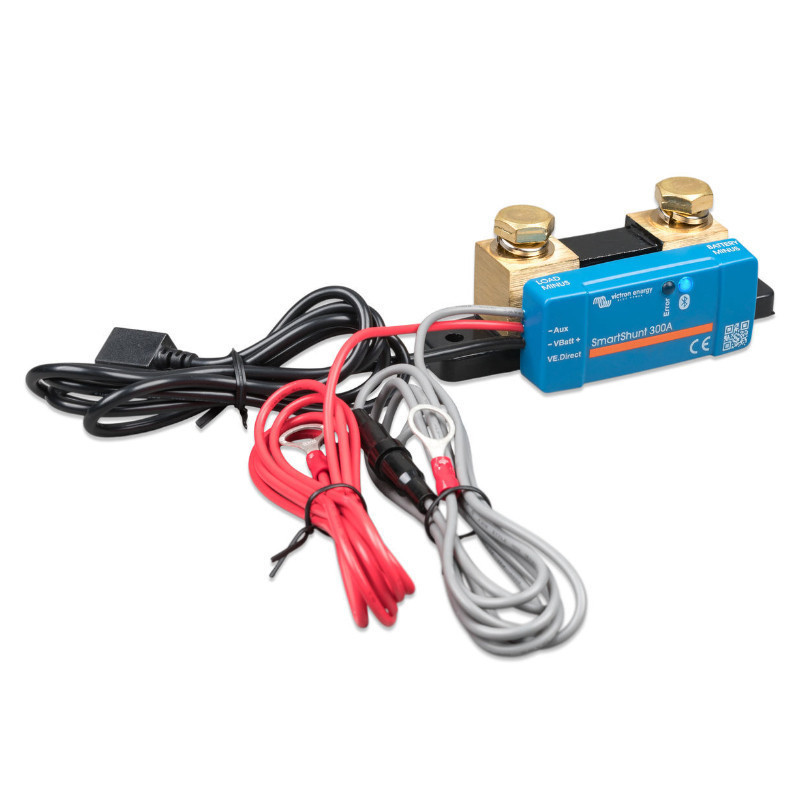

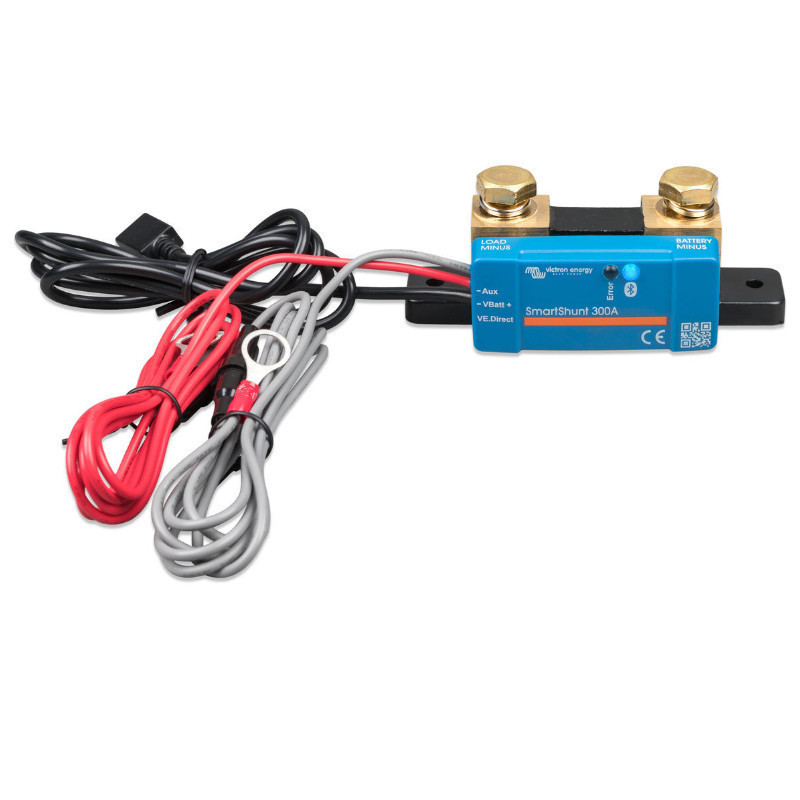

Smartshunt 300A / 50mV IP65

is an advanced device of the brand Victron Energy, which is used to precisely monitor gel, AGM, and traditional batteries. Integrated with the application Victron Connect, SmartShunt sends all the necessary data about the battery performance directly to your phone thanks to the built-in module Bluetooth It's worth noting that the device doesn't have its own display, making it a minimalist yet incredibly functional solution. This allows users to conveniently monitor parameters in real time without the need for additional screens.
SmartShunt offers complete battery performance analysis, allowing you to monitor parameters such as voltage, current, power, and ampere-hour consumption. Additionally, the device allows you to monitor the number of battery cycles, charge level, and remaining charge time. This key data helps with proper battery management and extending battery life, which is crucial in various applications, from campers to solar installations.

Durability and flexibility in difficult conditions

One of the most important advantages SmartShunt 300A IP65 is its high resistance to environmental conditions. Thanks to the protection class IP65, the device is completely protected against dust and water, making it ideal for places with difficult operating conditions, such as off-grid systems, recreational vehicles, or boats. Possibility of connection via the port VE.Direct to the display Color Control GX or Venus GX It allows for additional options for displaying data on the screen or transmitting it online.
SmartShunt is a versatile tool that provides precise data not only for home users but also for professionals managing advanced energy systems. Its intuitive operation and compact dimensions (44 x 120 x 38 mm) make it easy to install in a variety of environments without compromising monitoring efficiency and precision. Additional options, such as temperature measurement and monitoring the voltage of a second battery, provide full control over the energy system.

Technical specifications

• Model: SmartShunt 300A IP65


• Supply voltage range: 6.5 - 70 VDC


• Power consumption: < 1 mA


• Input voltage range, auxiliary battery: 6.5 - 70 VDC


• Battery capacity (Ah): 1 - 9999 Ah


• Operating temperature range: -40 to +50 °C


• Ability to measure secondary battery voltage, temperature, or midpoint: Yes


• Temperature measurement range: -20 to +50 °C


• VE.Direct communication port: Yes


• Current resolution and accuracy: ±0.01A


• Voltage resolution and accuracy: ±0.01V


• Resolution and accuracy of ampere-hour measurement: ± 0.1 Ah


• Charge status (0 - 100%): ±0.1%


• Start time: ± 1 min


• Temperature measurement accuracy: ± 1°C (0 - 50°C)


• Current measurement accuracy: ±0.4%


• Shift: Less than 20 / 40 / 80 mA


• Voltage measurement accuracy: ± 0.3%


• Dimensions (H x W x D): 44 x 120 x 38 mm


• Shunt connection screws: M10


• Protection category: IP65


• Safety certificates: EN 60335-1


• Emission / Resistance: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3


• Standard Automotive: EN 50498

is an advanced battery monitor that combines high precision with resistance to harsh environmental conditions. Its functionality and ease of use via the app Victron Connect make it an indispensable tool in energy system management. Its compact design and flexible connection options make it an excellent choice for both professionals and individual users.
