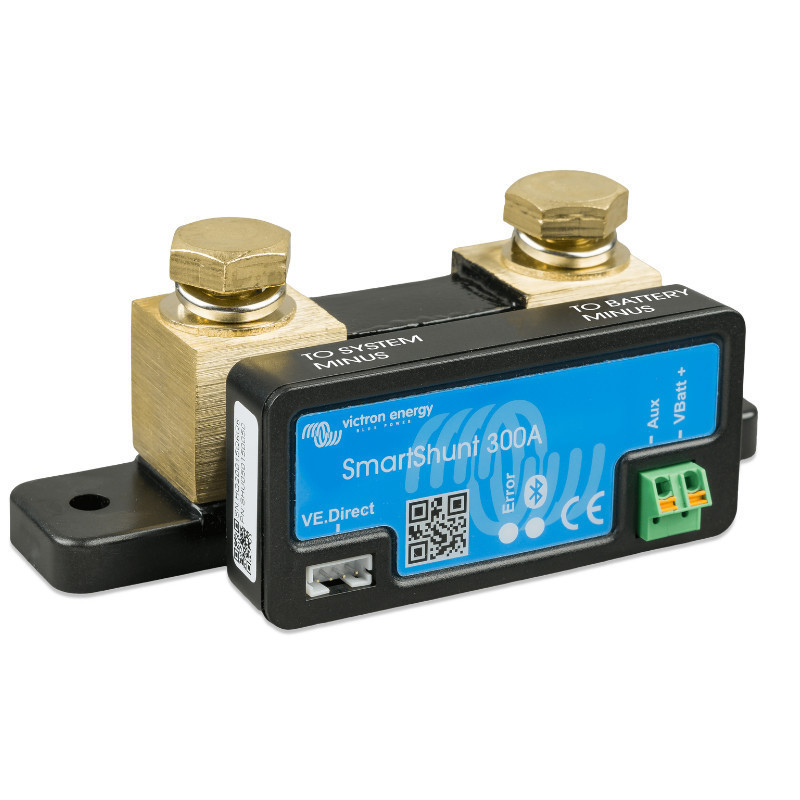

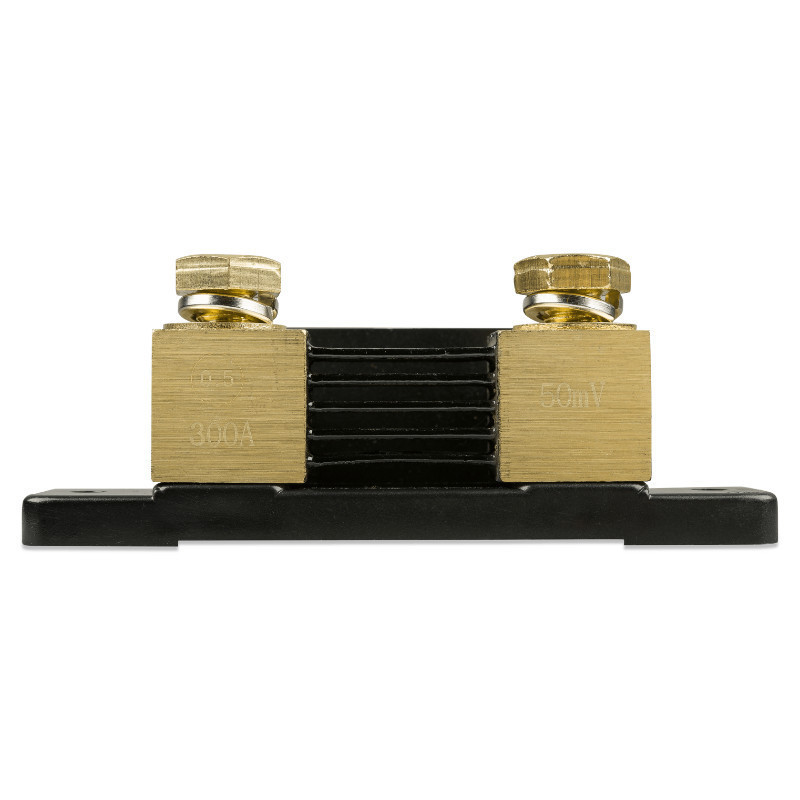

Smartshunt 300A / 50mV

companies Victron Energy is an advanced battery monitor, designed with the most demanding users in mind. Monitors key parameters gel, AGM and traditional batteries, providing detailed information on voltage, current, power, charging cycles and many other data. No display on the device is compensated by the possibility of wireless connection to the application Victron Connect via Bluetooth, allowing you to easily monitor your battery status directly from your phone. This app gives you access to all data in real time, without the need for additional display hardware.
This device not only monitors basic data, but also provides detailed insights into power consumption, time to discharge, and battery charge level. SmartShunt 300A It also allows you to track parameters such as depth of discharge, number of full charge cycles, and minimum and maximum battery voltage. These features enable precise management and optimization of the entire energy system. Additionally, SmartShunt can be easily connected to devices such as Color Control GX or Venus GX via port VE.Direct, which allows integration with more advanced monitoring systems.

Wireless integration and precise measurements

One of the greatest advantages SmartShunt 300A is its versatility and the ability to wirelessly integrate with various devices. Thanks to Bluetooth, data from the battery monitor is sent to the user's phone without the need for cables. In addition, the device measures parameters from incredible accuracy, which is crucial for managing complex energy systems. The range of measurements includes voltage, current, wattage, ampere-hour (Ah) consumption, and time to battery empty, allowing the user to optimize performance and save energy.
SmartShunt also supports temperature measurement when an optional sensor is connected, and can measure the voltage of a second battery, which increases its functionality. Measurement precision, reaching up to ±0.01 A for current and voltage, it provides exceptionally accurate results, which can be crucial in applications where reliability and accuracy are a priority. Thanks to its compact design (46x120x54 mm) and wide temperature range, SmartShunt is the ideal solution for professional installations, both in automotive systems and complex photovoltaic systems.

Technical specifications

• Model: SmartShunt 300A 12/24/48V


• Supply voltage range: 6.5 - 70 VDC


• Power consumption: < 1mA


• Input voltage range (auxiliary battery): 6.5 - 70 VDC


• Battery capacity (Ah): 1 - 9999 Ah


• Operating temperature range: -40 +50 °C


• Secondary battery voltage, temperature, or midpoint measurement: Yes


• Temperature measurement range: -20 +50°C


• VE.Direct Communication Port: Yes


• Resolution and accuracy:



  • Current: ±0.01A


  • Tension: ±0.01V


  • Ampere-hours: ± 0.1 Ah


  • Charge status: 0 - 100% ± 0.1%


  • Time to run out: ± 1 min


  • Temperature (with optional sensor): ± 1°C


  • Current measurement accuracy: ±0.4%


  • Shift: Less than 10mA


  • Voltage measurement accuracy: ±0.3%






• Dimensions (H x W x D): 46 x 120 x 54 mm


• Shunt connection screws: M10


• Protection category: IP21


• Security: EN 60335-1


• Emission/immunity:



  • EN-IEC 61000-6-1


  • EN-IEC 61000-6-2


  • EN-IEC 61000-6-3






• Automotive: EN 50498


• External dimensions (H x W x D): 44 x 120 x 44 mm


• Operating temperature range: -20 to +50°C


• EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3

is a highly functional battery monitoring tool that offers precise measurements and easy wireless integration. It is an ideal solution for systems that require detailed energy data analysis. Compact, robust, and equipped with extensive monitoring capabilities, SmartShunt It works perfectly in both home systems and professional installations.
