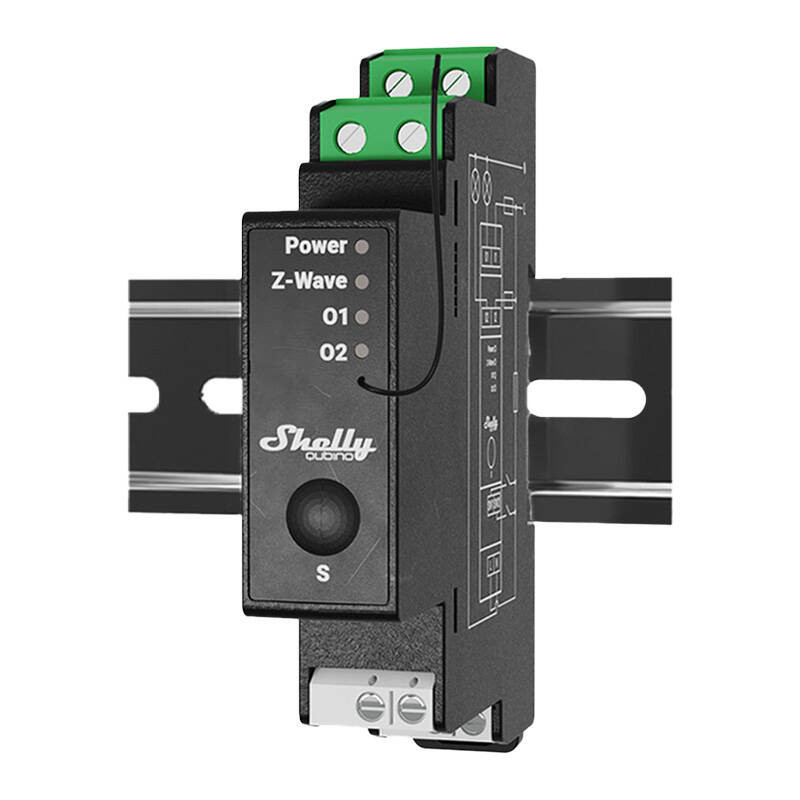

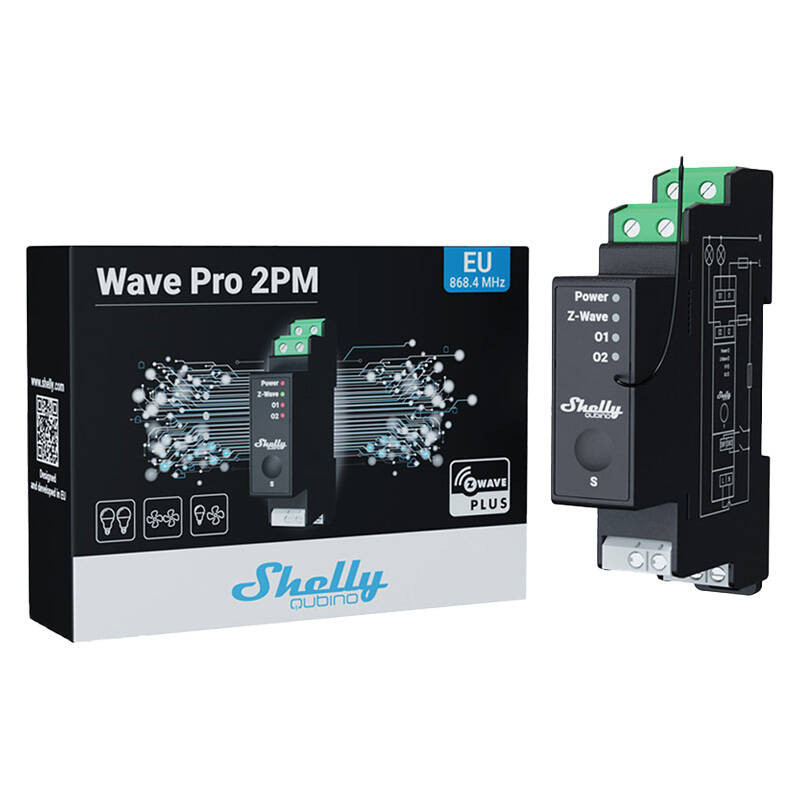

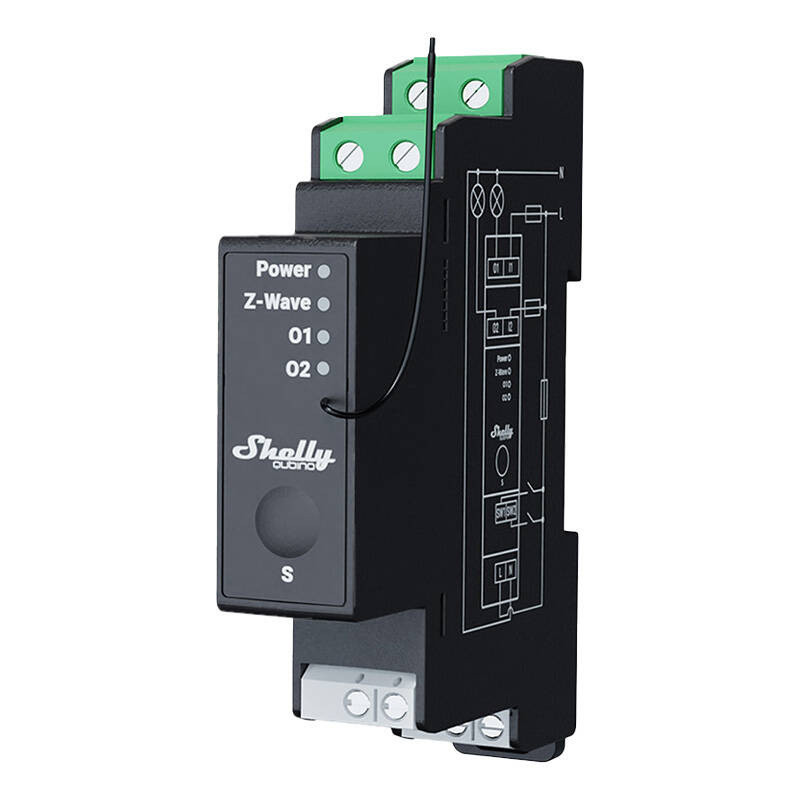

Smart Relay - Shelly Qubino Wave Pro 2PM Electrical Relay, Black
Product reference:
14-3800235269121
Integrated energy meter and remote control are key features. The relay supports two channels, operates in a temperature range of -20 to 40 °C and has a maximum current of 25 A.
Smart Relay - Shelly Qubino Wave Pro 2PM Electrical Relay, Black
Product reference:
14-3800235269121
Integrated energy meter and remote control are key features. The relay supports two channels, operates in a temperature range of -20 to 40 °C and has a maximum current of 25 A.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Shelly Qubino Wave Pro 2PM Smart Relay, Black
Integrated energy meter and remote control are key features. The relay supports two channels, operates in a temperature range of -20 to 40 °C and has a maximum current of 25 A.
- Smart relay with integrated energy meter for efficient energy management.
- Remote control with a maximum indoor range of up to 40 meters.
- There is protection against overheating and overload, ensuring greater safety.
- Compact design with DIN rail mounting and LED indicators for easy installation and monitoring.
Features | |
|---|---|
| Integrated energy meter | Yes |
| Number of channels | 2 |
| Weekly schedule | Yes |
| Transmission power | 25mW |
| Housing material | Plastic |
| Frequency band | 868.4 MHz |
| Cable cross-section | 0.5 - 2.5 mm² |
| Operating relative humidity | 30 - 70% |
Power | |
| Maximum current | 25 A |
| AC input frequency | 50/60Hz |
| AC input voltage | 110 - 240V |
| Typical energy consumption | 0.3W |
Operating conditions | |
| Operating temperature | -20 - 40 °C |
Weight and dimensions | |
| Weight | 75 g |
| Dimensions (WxDxH) | 19 x 69 x 94 mm |
| Height | 120mm |
| Length | 200mm |
| Weight | 100g |
| Width | 100mm |
