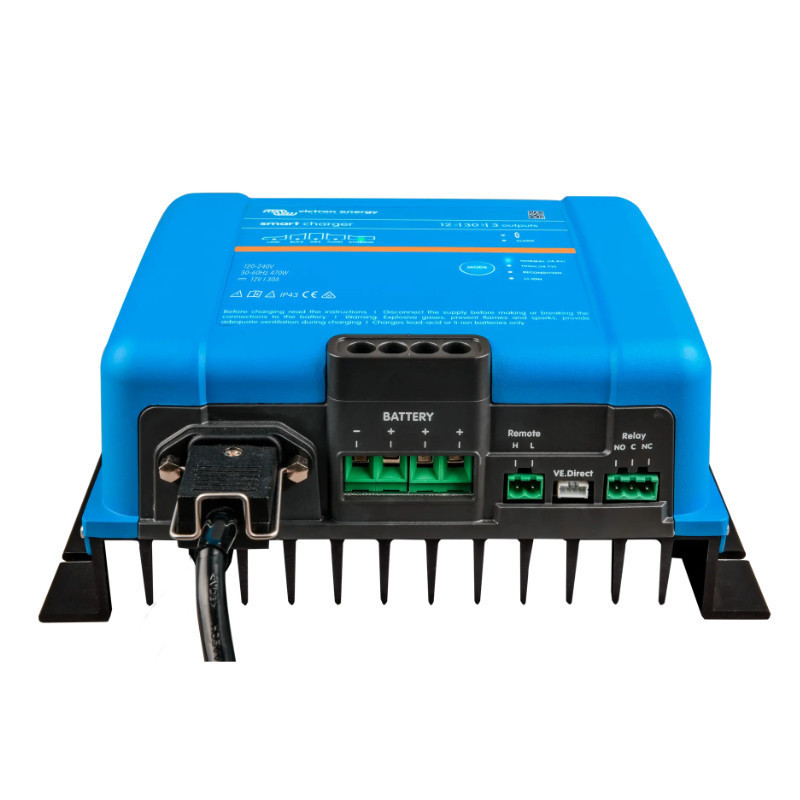

Smart IP43 Charger 12 / 30 (3) 120 / 240V
Product reference: 39-8719076053491

The Smart IP43 Charger 12/30 (3) 120/240V is a 12V, 30A intelligent charger with three independent outputs, allowing for simultaneous charging of three battery banks. Thanks to its adaptive, multi-stage charging algorithm, it adapts to the battery's condition, ensuring fast, safe, and efficient charging. The built-in Bluetooth module allows for easy configuration and monitoring of operating parameters via the VictronConnect app.

Smart IP43 Charger 12 / 30 (3) 120 / 240V
Smart IP43 Charger 12 / 30 (3) 120 / 240V
Smart IP43 Charger 12 / 30 (3) 120 / 240V

Smart IP43 Charger 12 / 30 (3) 120 / 240V

Product reference: 39-8719076053491

The Smart IP43 Charger 12/30 (3) 120/240V is a 12V, 30A intelligent charger with three independent outputs, allowing for simultaneous charging of three battery banks. Thanks to its adaptive, multi-stage charging algorithm, it adapts to the battery's condition, ensuring fast, safe, and efficient charging. The built-in Bluetooth module allows for easy configuration and monitoring of operating parameters via the VictronConnect app.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
345,90 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

Victron Energy Smart IP43 Charger 12V 30A (3)




Bluetooth Smart function


Any smartphone, tablet or other Bluetooth-enabled device can be used as a monitor, allowing you to change settings and update the charger as soon as new software features are available.


Charging 3 batteries


Three full-current outputs to charge three battery banks. Each can provide the full rated current, but the total cannot exceed 30A.


Automatic voltage equalization


The charger compensates for voltage drops in DC systems by slightly increasing the output voltage as the current increases.


Main features:



  • 3 outputs of 30 A each - charging three sets of batteries simultaneously.

  • Recondition and Storage functions - battery regeneration and long-term storage mode.

  • Bluetooth Smart - configuration and monitoring with the VictronConnect application.

  • Adaptive 5-step algorithm: Bulk → Absorption → Recondition → Float → Storage.

  • LiFePO compatibility - dedicated charging mode for lithium batteries.

  • Wide input voltage range: 120-240V AC (50/60Hz).

  • Temperature compensation - automatic adjustment of charging voltage.

  • IP43 protection class - resistant to dust and water splashes.

  • VE.Smart Networking - wireless connectivity with other Victron devices.

  • Adapted to difficult conditions - The charger's housing meets the IP43 standard, ensuring resistance to dust and water falling at an angle of up to 60°. Ideal for use in campers, workshops, garages, and utility rooms.




Technical specifications:



  • Parameters / Model: IP43 120-240V 12/30 (3)

  • Input voltage: 85-250 VAC (full power from 100 VAC, start from 90 VAC)

  • DC input voltage range: 90-375 VDC

  • Frequency: 45-65 Hz

  • Power factor: 1

  • Backdrain: < 1 mA

  • No-load power consumption: 1 In

  • Efficiency: 95%

  • Charging Voltage - Absorption / Preservation / Storage:

    • Normal: 14.4V / 13.8V / 13.2V

    • High: 14.7V / 13.8V / 13.2V

    • Lithium-ion: 14.2V / N/A / 13.5V



  • Fully programmable: Yes, with Bluetooth and/or VE.Direct

  • Setting the maximum input current: 3-10A

  • Number of battery connections: 3

  • On-board battery charging current: 30 A

  • Low current mode: 15 A

  • Temperature compensation - default value: -32 mV/°C

  • Charging algorithm: 6-stage adaptive (3-stage for Li-ion)

  • Security: reverse polarity (fuse), output short circuit, overheating

  • Can be used as a power source: Yes - Voltage setting via Bluetooth / VE.Direct

  • Operating temperature range: -20 to 60 °C (full power up to 40 °C, limiting at 60 °C)

  • Humidity (non-condensing): max 95%

  • Remote on/off: Yes (2-pole connector)

  • Programmable relay: 5A to 28VDC

  • Bluetooth: power -4 dBm, range 2402-2480 MHz

  • Material and color: Aluminum, RAL 5012 (blue)

  • Battery connection: Screw terminals mm² (AWG6)

  • AC connection: IEC 320 C14 inlet (cable ordered separately)

  • Degree of protection: IP43 (electronics), IP22 (connection zone)

  • Libra: 2.7 kg

  • Dimensions (H x W x D): 180 × 249 × 116 mm
