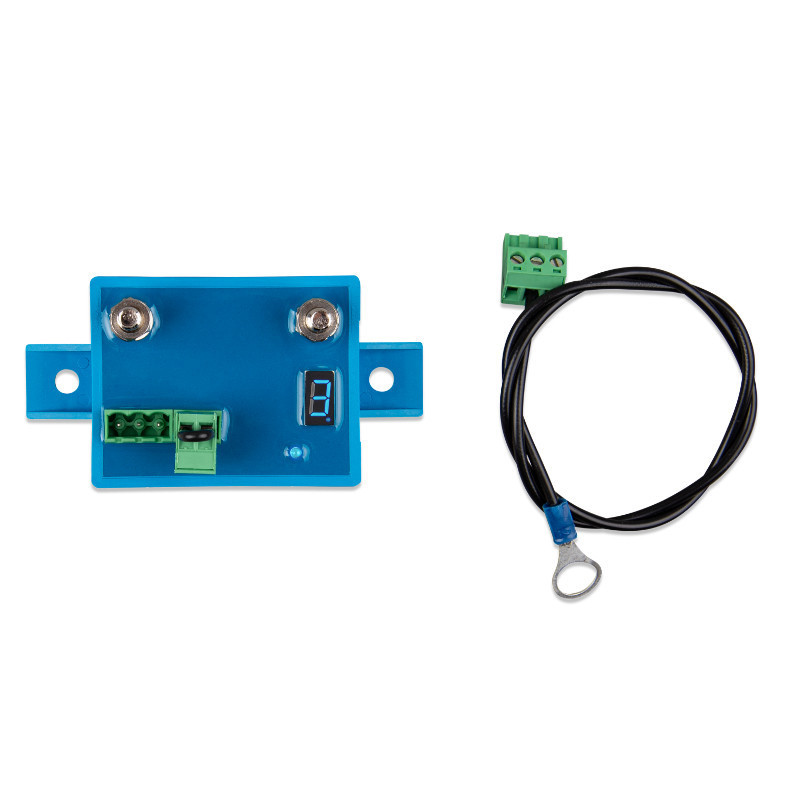

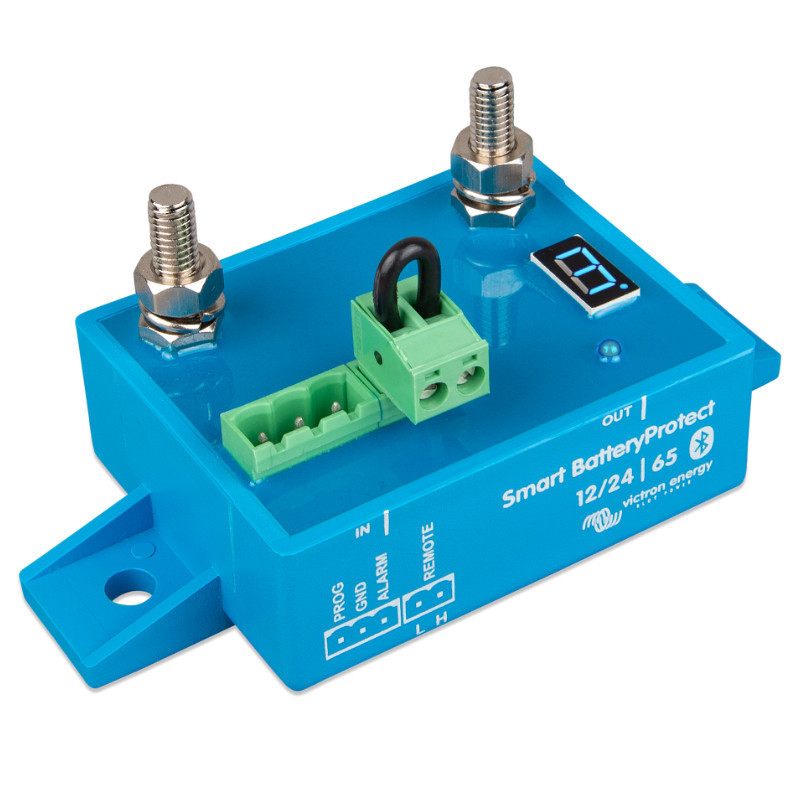

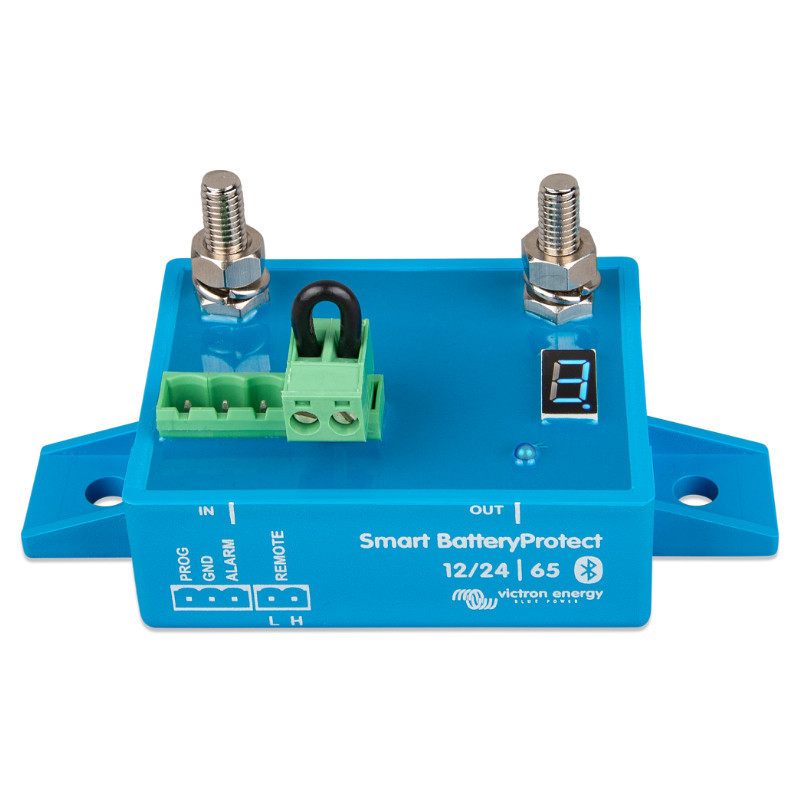

Smart BatteryProtect 12/24V 65A

brands Victron Energy is an intelligent device that protects batteries from over-discharge by automatically disconnecting non-essential loads before the battery reaches a level that could damage it. By automatically adjusting to the voltage 12V or 24V, Smart BatteryProtect is the ideal solution for protecting batteries in both vehicles and power systems.
The device can be configured via the app VictronConnect by Bluetooth, allowing you to easily set battery cut-off and cut-off thresholds and monitor its condition in real time. Alternatively, settings can be changed manually, offering flexibility depending on the installation needs. Smart BatteryProtect also features exceptionally low current consumption, which minimizes the energy consumption of the system itself.
Thanks to technology MOSFET The disconnect switch does not generate sparks, further enhancing its safety and reliability. Alarm functions can be supported via an alarm output that provides information about the device's status, allowing the connection of an LED or audible signal. Additionally, Smart BatteryProtect features a load reconnection delay function, allowing for gradual restoration of power once the battery has resumed operation.
Technical specifications:

• Maximum continuous load current: 65A


• Peak current (30 seconds): 250A


• Operating voltage range: 6-35V


• Power consumption with BLE enabled: 1.4 mA


• Load disconnect delay: 90 seconds


• Reconnect delay: 30 seconds


• Default thresholds: Disconnect: 10.5V / 21V, Enable: 12V / 24V


• Operating temperature range: -40°C to +40°C


• Dimensions: 48 x 55 x 106 mm


• Libra: 0.2 kg

Device Smart BatteryProtect 12/24V 65A is an indispensable element in power systems that effectively protects batteries, ensuring their longer life and performance.
