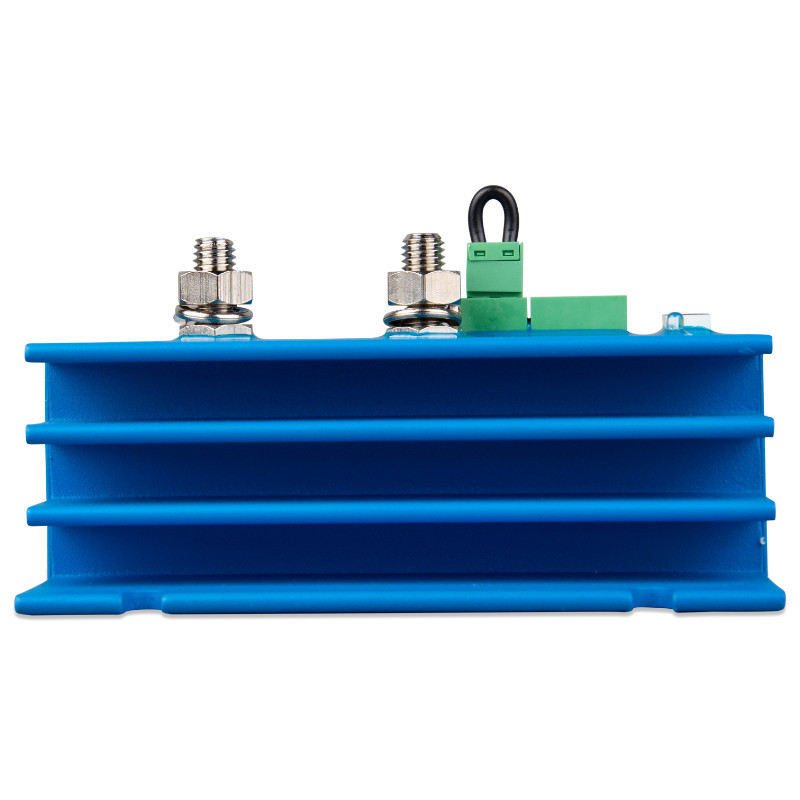

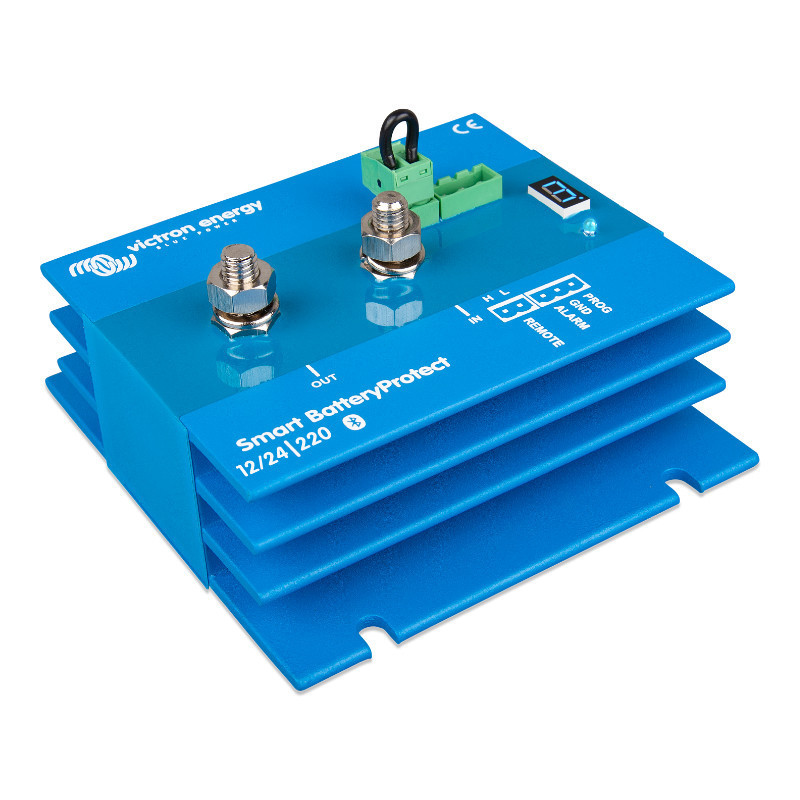

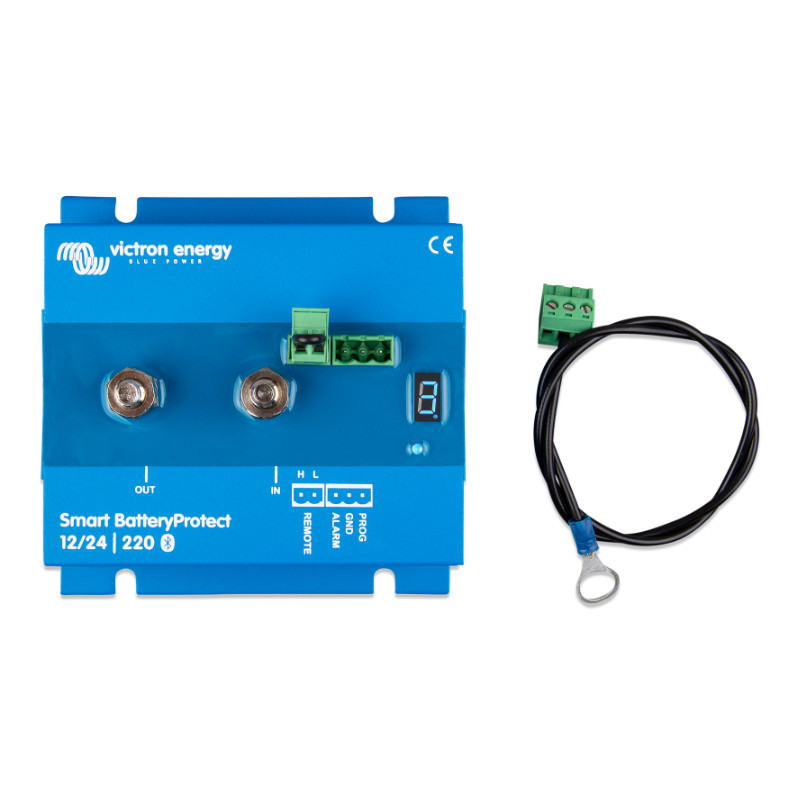

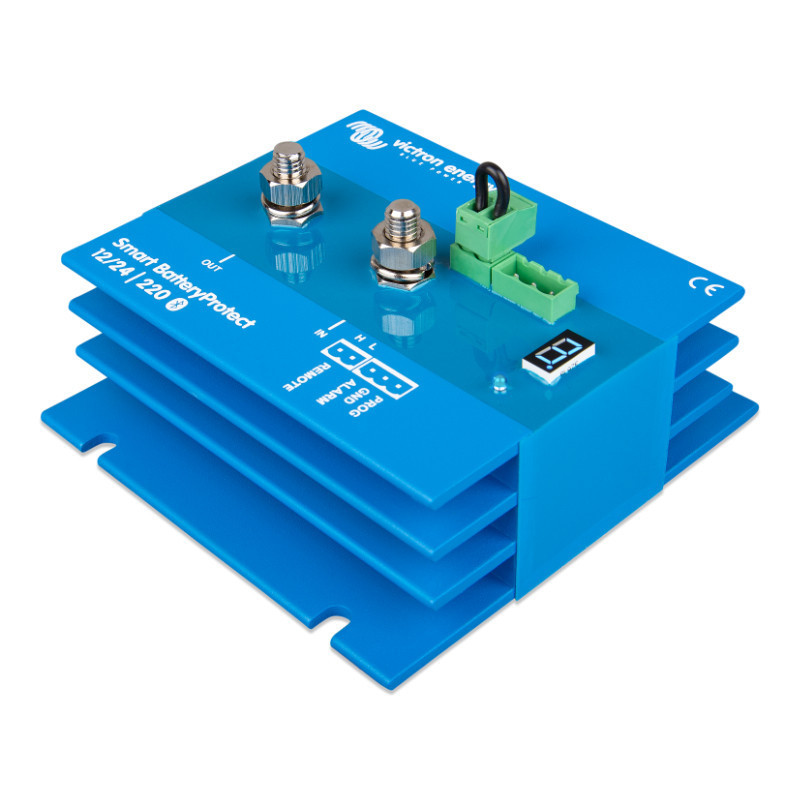

Smart BatteryProtect 12/24V-220A

brands Victron Energy is an advanced device that protects the battery from excessive discharge by automatically disconnecting loads before the voltage drops to a level that threatens its lifespan. 12V and 24V, this disconnector works perfectly in various power supply systems, automatically adjusting to the system voltage.
The device is equipped with a function Bluetooth, which enables remote configuration and monitoring of parameters via the application VictronConnect Users can easily set disconnect and enable thresholds, eliminating the need for manual adjustments. Furthermore, Smart Battery Protect is characterized by very low power consumption, which makes it an ideal solution for lithium systems and other applications where energy saving is crucial.
Thanks to technology MOSFET, the device does not generate sparks when disconnected, which increases installation safety. An alarm output indicates the device's operating status, allowing the connection of an audible alarm or LED. The device also has a delay in disconnecting and reconnecting the load, allowing for smooth operation and avoiding sudden power changes.
Technical specifications:

• Maximum continuous load current: 220A


• Peak current (30 seconds): 600A


• Operating voltage range: 6 - 35V


• BLE On Power Consumption: 1.4 mA


• BLE Off Power Consumption: 1.2 mA


• Load disconnect delay: 90 seconds


• Reconnect delay: 30 seconds


• Default thresholds: Disconnect: 10.5V / 21V, Enable: 12V / 24V


• Operating temperature range: -40°C to +40°C


• Degree of protection: IP67 (electronics)

is a reliable solution for systems requiring battery protection against deep discharge, ensuring efficient operation and safety in every installation.
