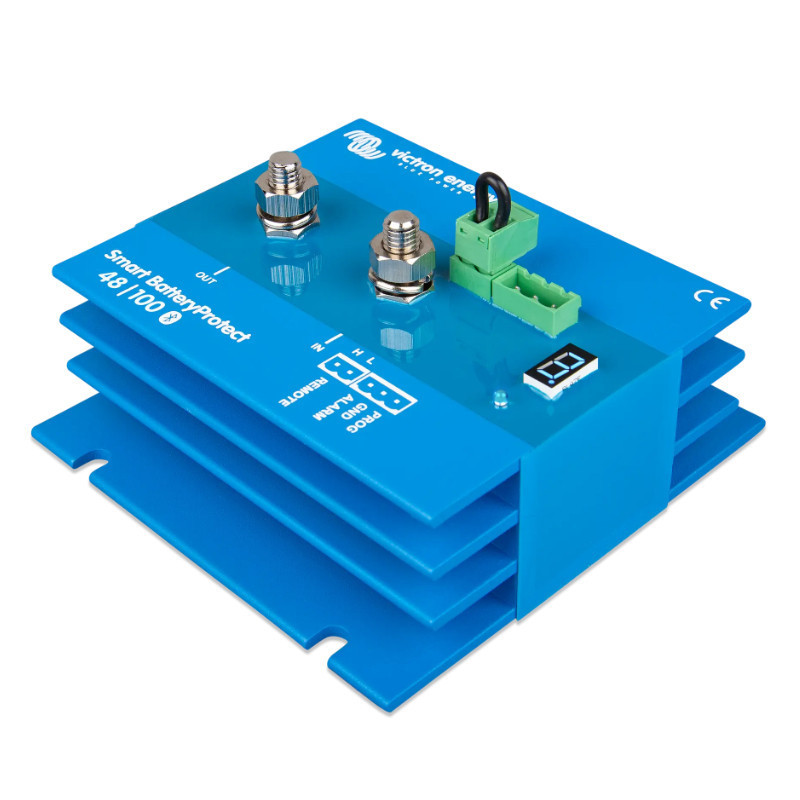

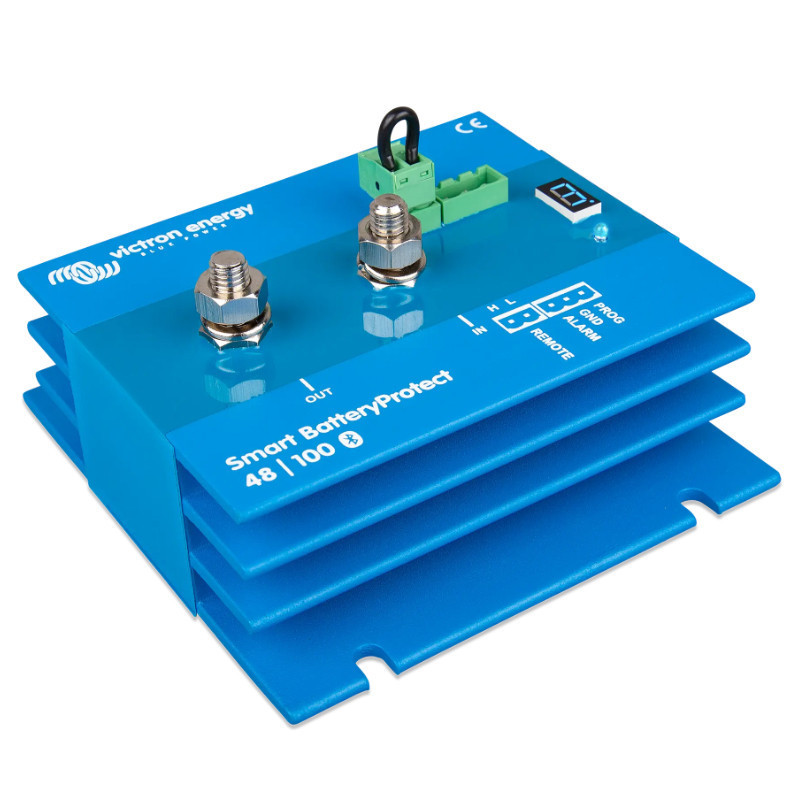

Smart Battery Protect 48V-100A

Smart BatteryProtect 48V-100A battery disconnect switch

is an advanced device that protects the battery against excessive discharge and damage. Thanks to intelligent control and integration with the app, VictronConnect, the disconnector offers a modern approach to energy management in 48V systems.
The device automatically disconnects the battery from non-essential loads before its voltage drops to a level that could threaten its durability or prevent the engine from starting. Thanks to this Smart Battery Protect It effectively extends battery life and prevents failures in off-grid installations, vehicles, and energy storage systems.
Device configuration is performed wirelessly via Bluetooth – the user can adjust the connection and disconnection thresholds using the VictronConnect app, without the need for physical intervention. A seven-segment display indicates the current settings, making operation easier.
The device has very low current consumption and uses MOSFET technology, which prevents sparking during switching. An alarm output allows for the connection of a light or sound indicator to inform about the current operating status.
The disconnector is designed with versatility in mind – it offers lithium battery operating modes and overvoltage protection. A 30-second connection and disconnection delay function additionally protects the system against unnecessary switching due to momentary voltage fluctuations.

Features:

• Automatic battery disconnection at low voltage


• Programmable Bluetooth disconnection and connection thresholds


• Low power consumption and spark-free technology (MOSFET)


• Supports lithium and traditional (48V) systems


• Alarm output LED/buzzer


• Easy integration with the VictronConnect application


• 30-second switching delay

Technical specifications:

SBP 48/100

• Maximum continuous receiver current*: 100 A


• Peak current (over 30 seconds): 250 A


• Operating voltage range: 24 - 70 V


• BLE power consumption enabled: When on: 1.9 mA, When off or low voltage shutdown: 1.7 mA


• BLE power consumption off: When on: 1.7 mA, When off or low voltage shutdown: 1.6 mA


• Alarm output delay: 12 seconds


• Maximum load on alarm output: 50 mA (short-circuit proof)


• Receiver disconnection delay: 90 seconds (immediately if triggered by VE.Bus BMS)


• Operating temperature range: Full load: from -40°C to +40°C, Max. 60% of nominal load at 50°C


• IP class: Electronics: IP67 (sealed), Connections: IP00


• Connector: 9 Nm


• Mass: 0.8 kg (1.8 lbs)


• Dimensions (H x W x D): 62 × 123 × 120 mm 2.5" × 4.9" × 4.8"

is a reliable and modern solution to protect your battery - ideal for mobile, stationary and off-grid installations.
