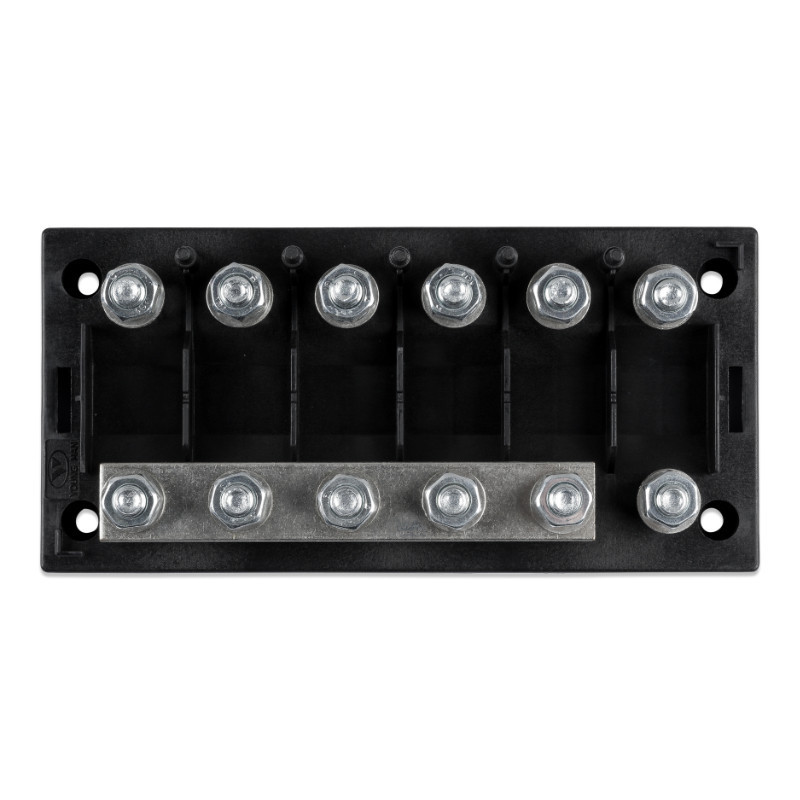

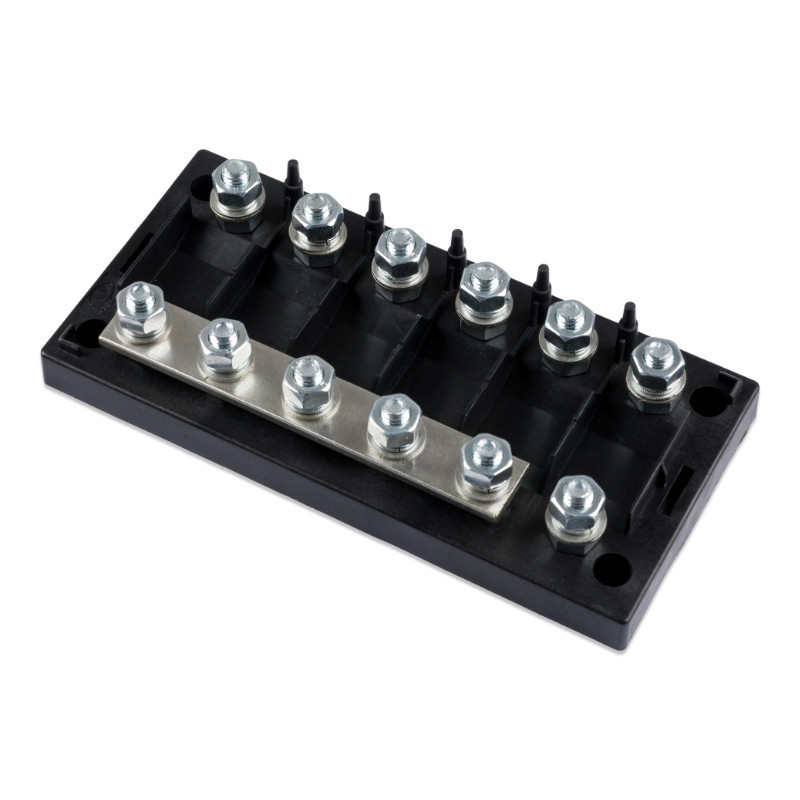

Six-way fuse holder for Mega-fuse with busbar (250A)

Fuse box Six-way fuse holder for Mega-fuse with busbar (250A) brands Victron Energy is a robust solution for managing electrical load distribution in 12V, 24V, and 48V systems. Fuse-compatible Mega Fuse With a maximum power of 500A, this box offers reliability and safety, ideal for advanced electrical installations in RVs, trailers, and photovoltaic systems.

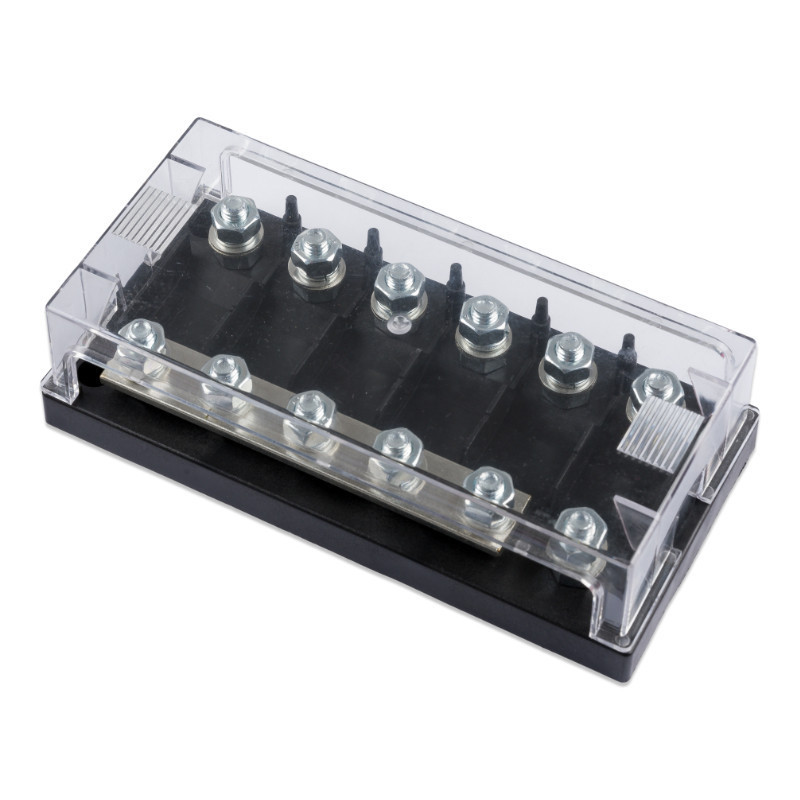

Thanks to its durable construction and lockable plastic cover, the device protects against dust, moisture, and other external factors, ensuring safe operation in various conditions. It allows for easy connection of both the positive and negative poles, which increases installation flexibility in systems with high current loads. Additionally, the compact size and well-thought-out layout allow for convenient wiring organization.
The device is designed for quick and hassle-free installation, making integration with existing installations easier. It supports a wide range of fuses from 100A to 500A, making it a versatile tool for overload protection in systems with varying current demands.
Technical specifications:

• Fuse type: Mega Fuse


• Maximum power: 500A


• Voltage range: 12V / 24V / 48V


• Cover: Plastic, lockable


• Application: Photovoltaic systems, campers, trailers


• Connection: Positive and negative pole

Fuse box Six-way fuse holder ensures complete safety and efficiency in managing electrical loads, offering a durable solution for modern energy installations.
