Single-phase energy storage 3kVA / 10kWh

The single-phase 3kVA/10kWh energy storage system is a technologically advanced energy management solution designed for versatile applications in homes and small and medium-sized businesses. The device is ideally suited to work with renewable energy sources such as photovoltaic installations, while also enabling easy integration with electric vehicle charging systems.

Key features:

• Professional energy management: The system allows for optimal use of energy by combining power from batteries, the grid or generators, ensuring continuous power supply.


• Comprehensive circuit management: Automatic control of circuits and devices based on battery charge level.


• High compatibility: The device works with electric car charging stations, making it an ideal complement to modern energy solutions.

Reliability and flexibility:

This energy storage system offers both fully off-grid and hybrid operation for maximum flexibility. In emergency situations, the system operates in UPS mode, ensuring reliable backup power. It also maximizes energy consumption from the photovoltaic panels, eliminating issues with grid voltage fluctuations.

The set includes:

• MultiPlus-II 48/3000/35-32 GX | 1 pc.


• ZYC Energy SIMPO 5000 LiFePO4 5kWh 51.2V | 2 pcs.


• ZYC DC connector | 1 pc.


• MEGA-fuse 125A/80V for 48V products | 1 pc.


• Fuse Holder for MEGA-fuse Victron | 1 pc.


• VE.Can to CAN-bus BMS type A Cable 1.8 m | 1 pc.

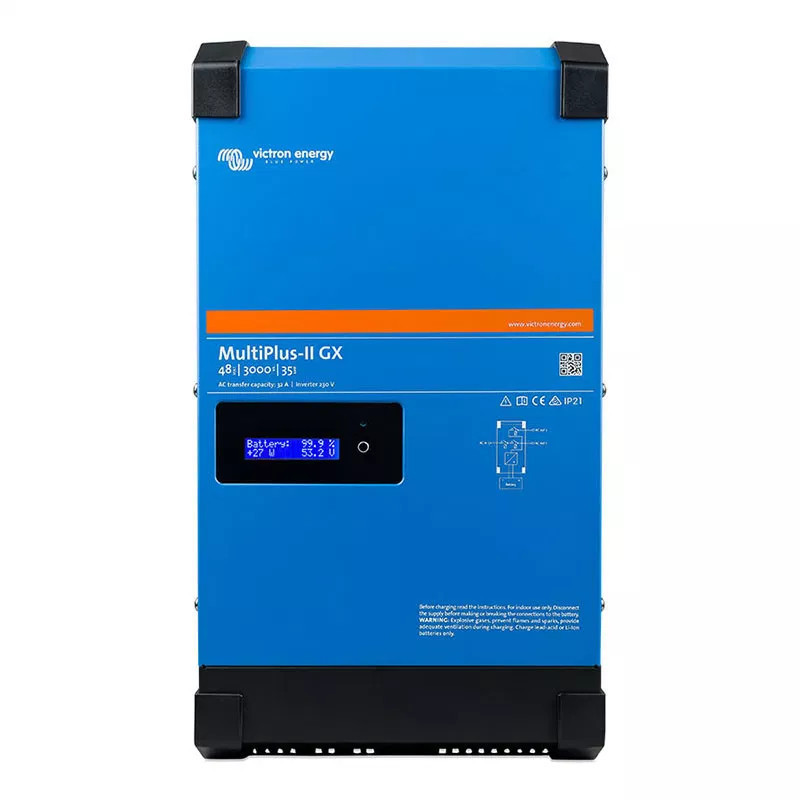

: Advanced inverter, combining the functions of a sinusoidal inverter and an intelligent battery charger, with the ability to quickly switch to backup power mode.

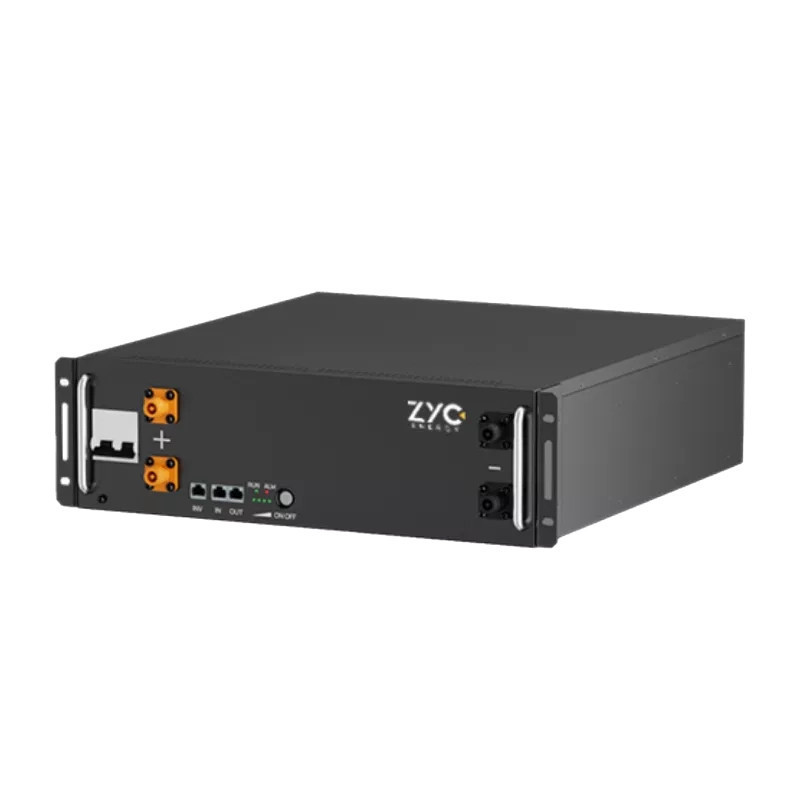

ZYC Energy SIMPO 5000 LiFePO4 5kWh Batteries: Two 51.2V batteries, providing a scalable and modular design that allows the system to expand as energy needs grow.
Mounting accessories: ZYC DC connector, MEGA-fuse 125A/80V and VE.Can cable for communication with the battery management system.

Intelligent energy management:

The system is equipped with modern monitoring and management technologies, enabling remote configuration and real-time optimization of device operation. These features ensure maximum efficiency while reducing energy costs.

Modularity and scalability:

Thanks to its modular design, this system can be expanded depending on the user's needs, making it a perfect solution for both small home installations and larger commercial projects.

Additional products:

• GX Touch 50: 5-inch touch panel enabling intuitive management and monitoring of system operation in real time.


• Battery Switch 275A: Ergonomically designed switch for battery installations up to 48V, ensuring quick and easy disconnection of batteries.


• Energy Meter VM: An energy meter that monitors consumption throughout the installation, helping to minimize energy losses and optimize energy flow.
