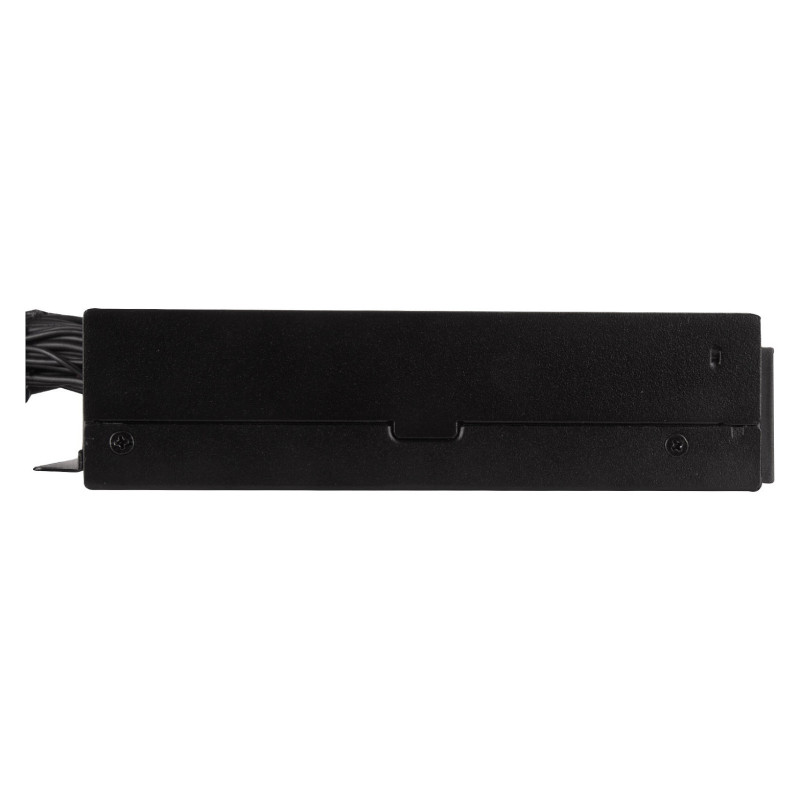

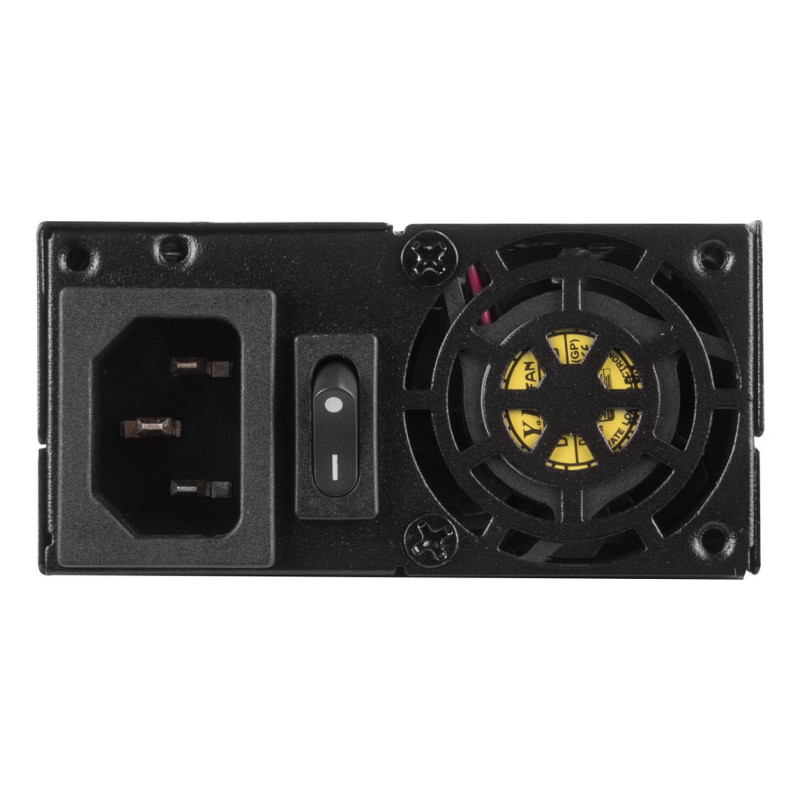

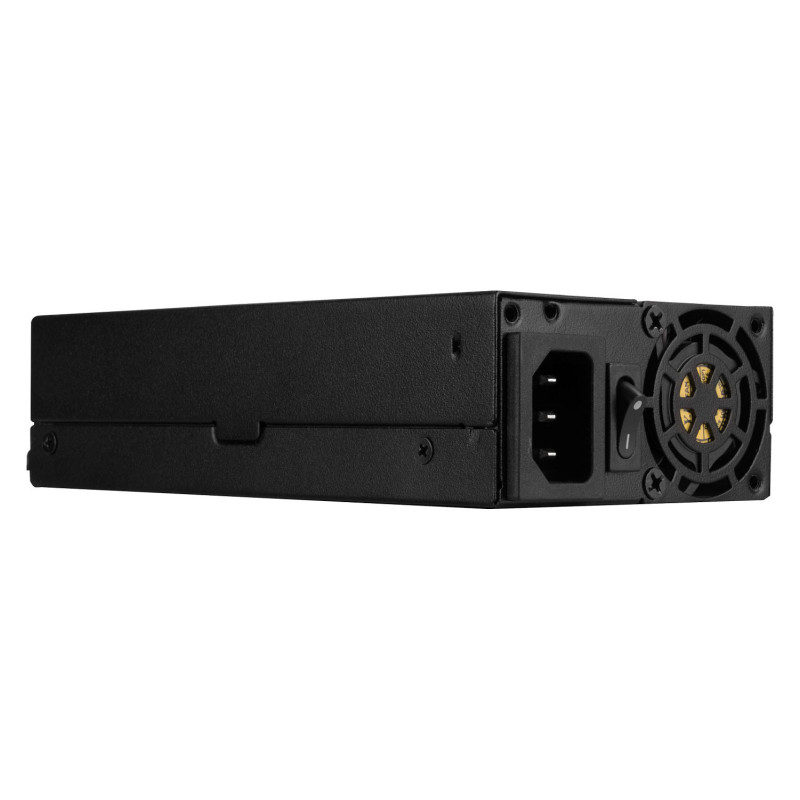

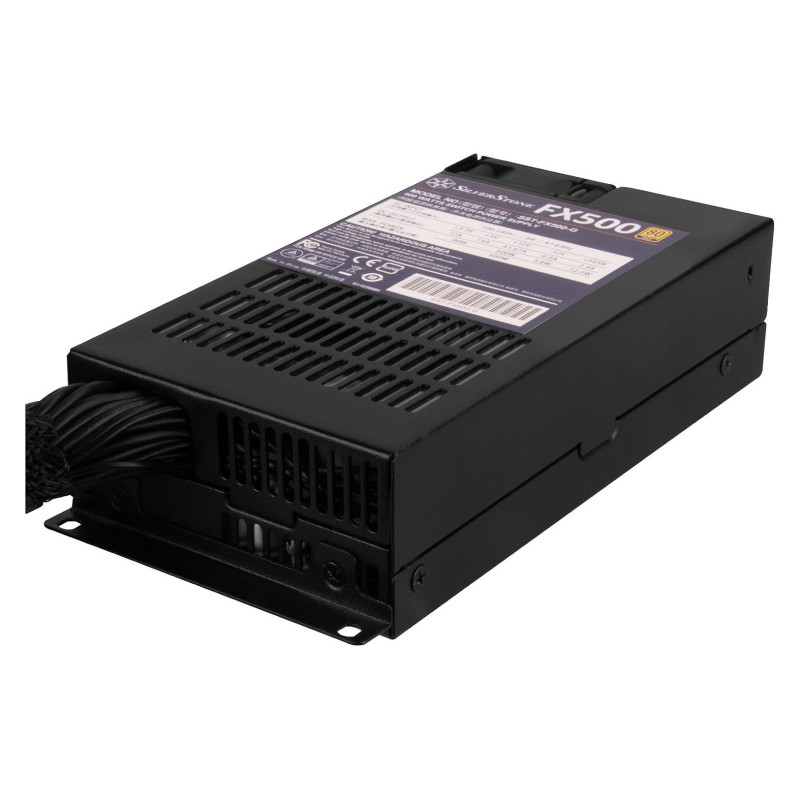

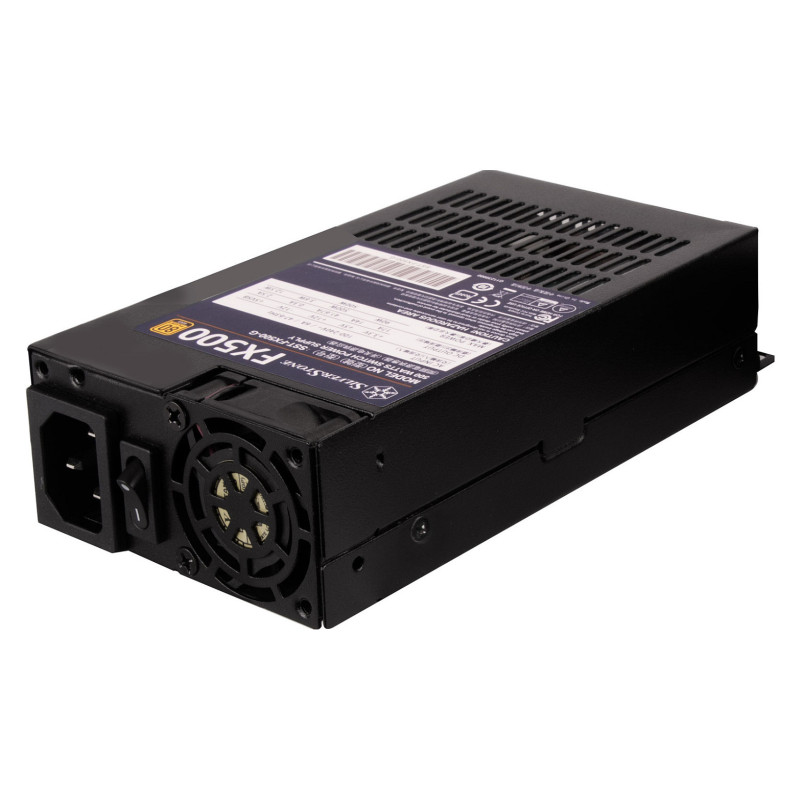

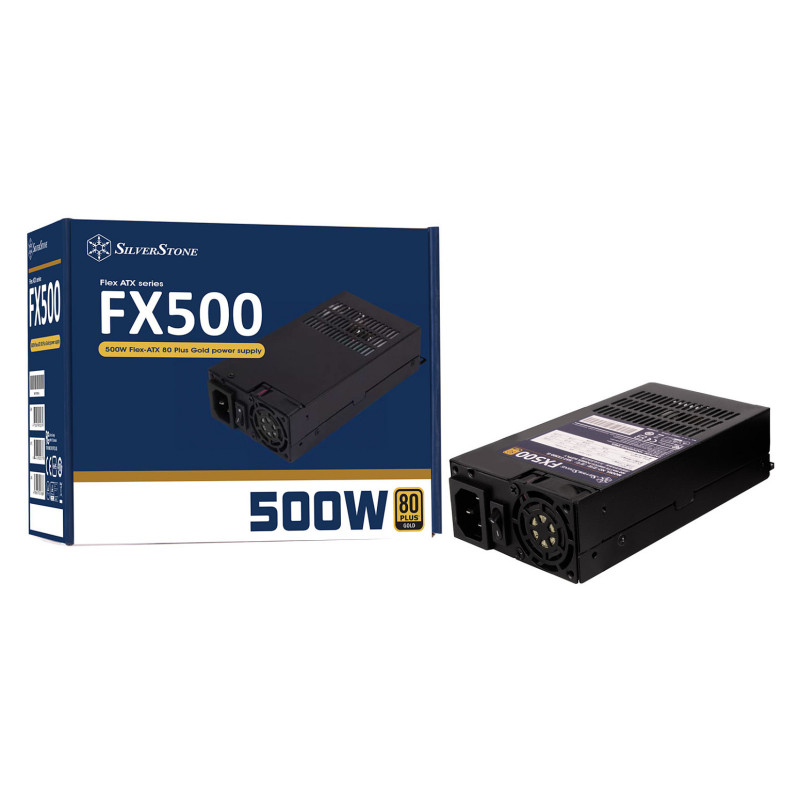

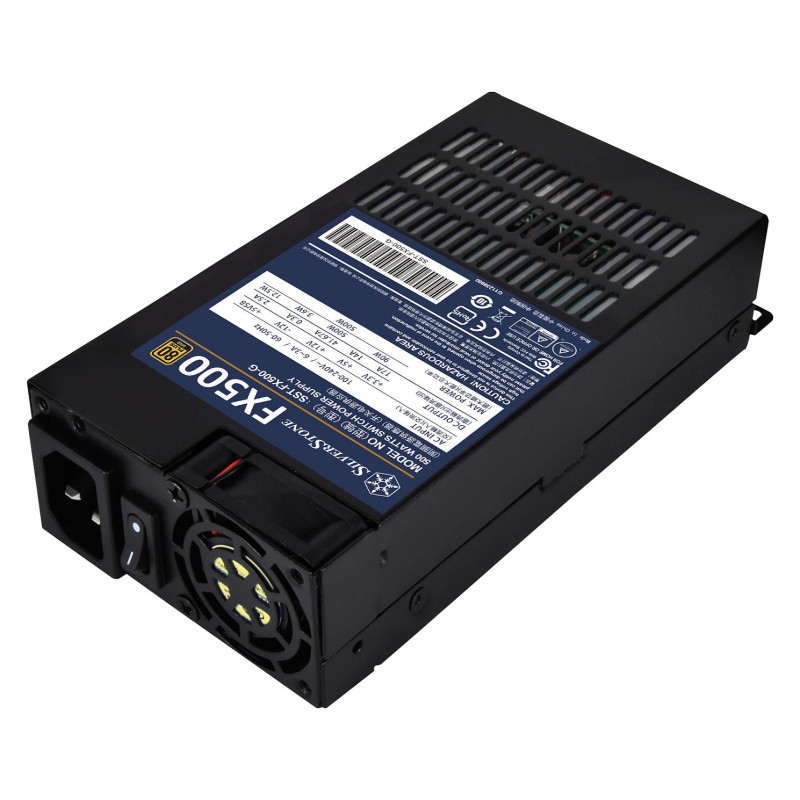

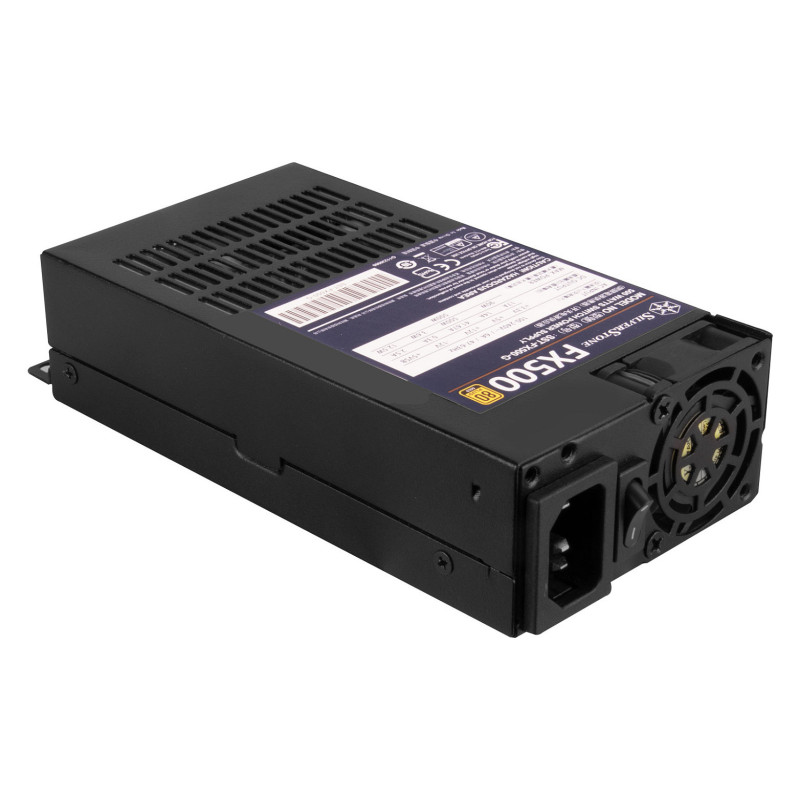

Silverstone FX500 power supply unit

Silverstone FX500. Total power: 500 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: Server, Power supply unit (PSU) form factor: Flex ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 4 cm. Width: 81.5 mm, Depth: 150 mm, Height: 40.5 mm

Power

Total power: 500 W
AC input voltage: 90 - 264 V
AC input frequency: 47 - 63 Hz
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 90 W
Combined power (+12V): 500 W
Combined power (+5V): 90 W
Max output current (+3.3V): 14 A
Max output current (+12V): 41.67 A
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over power, Over voltage, Overheating, Short circuit

Ports interfaces

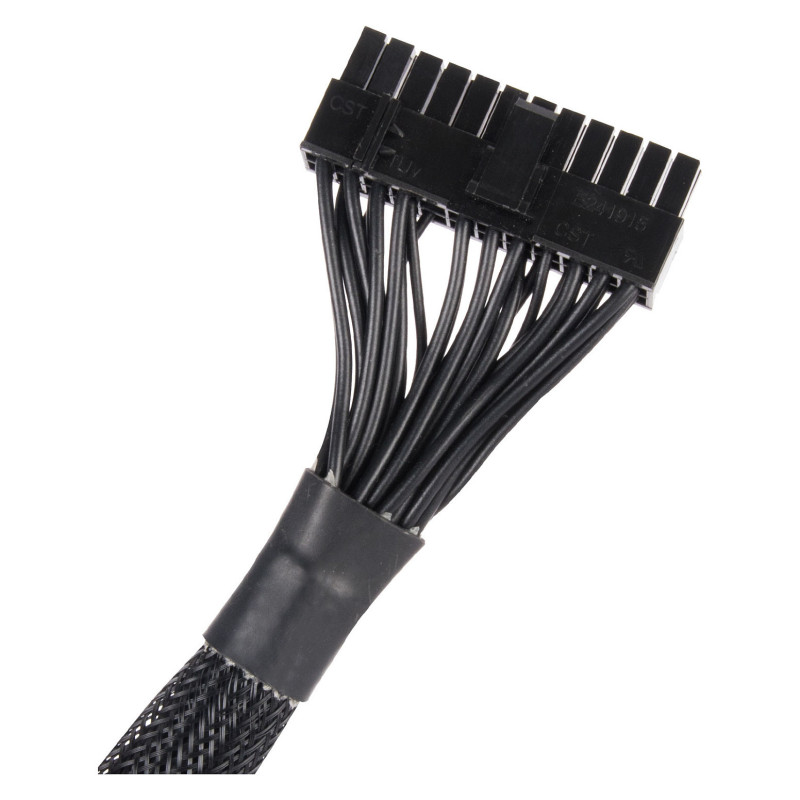

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm

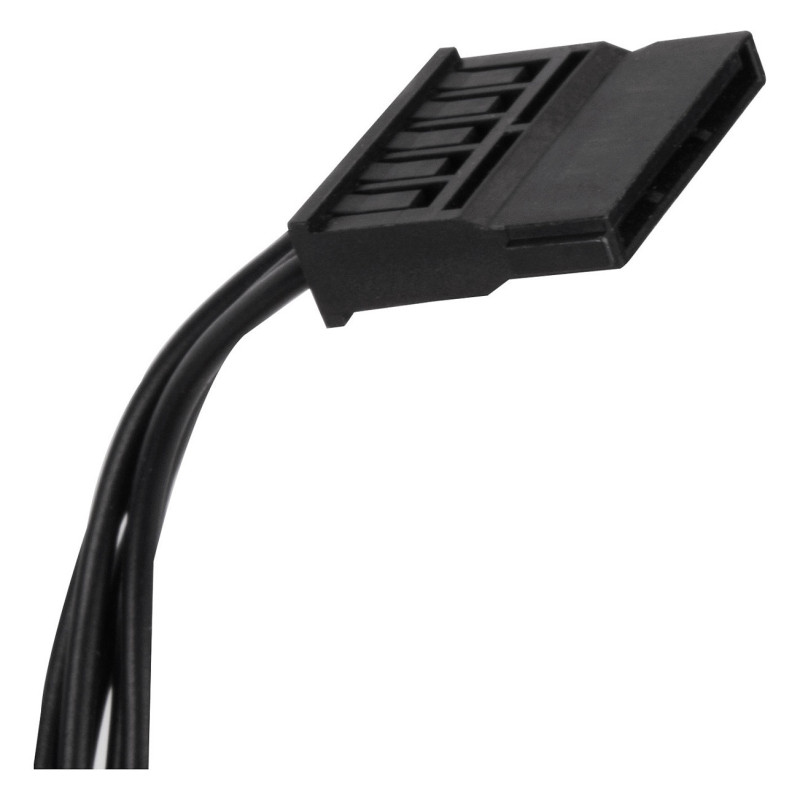

Number of SATA power connectors: 4
SATA power cable length: 150,350 mm

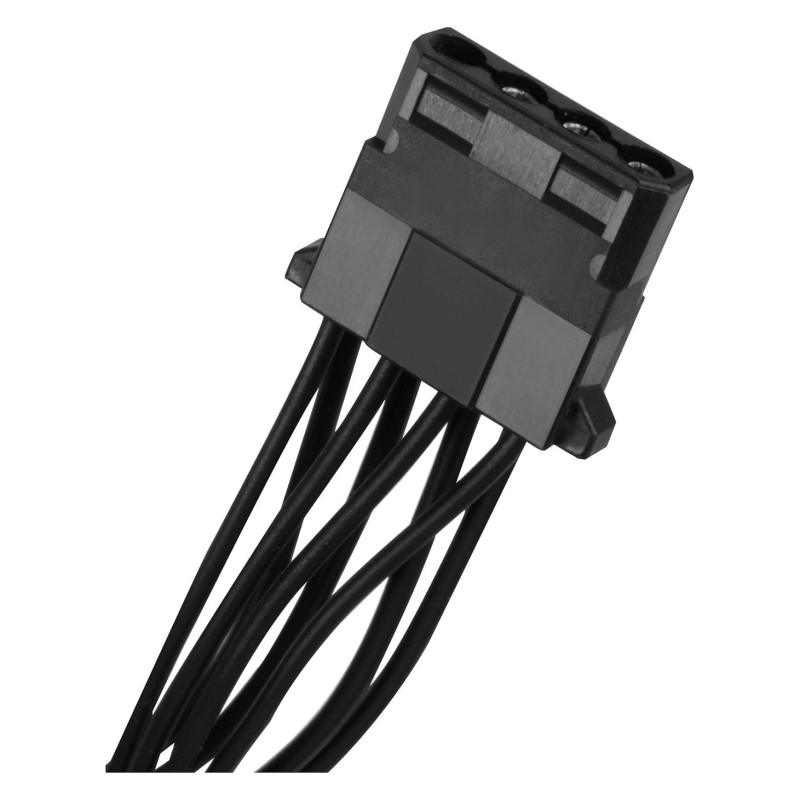

Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,350 mm

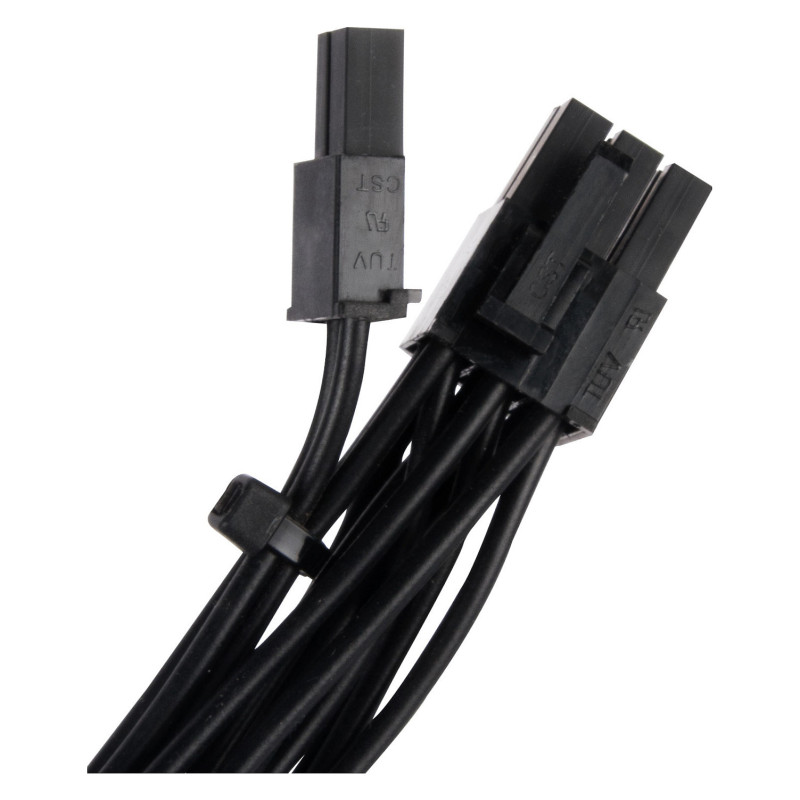

PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 35 cm
CPU P4 connector (4-pin): 5

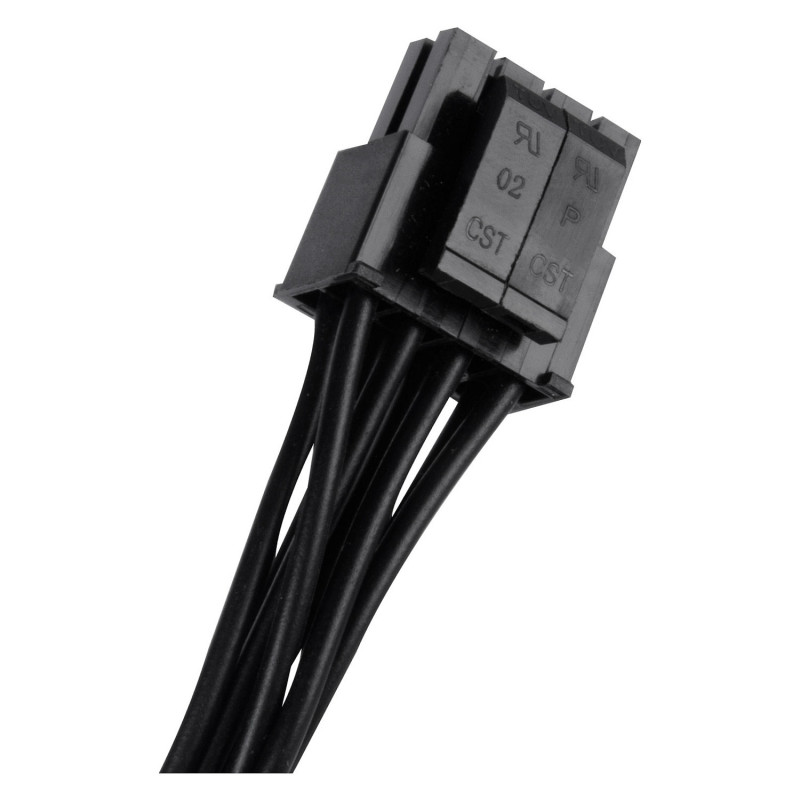

CPU power connector (4+4 pin): Yes
CPU power cable length: 45 cm
ATX power connector (20+4 pin): Yes

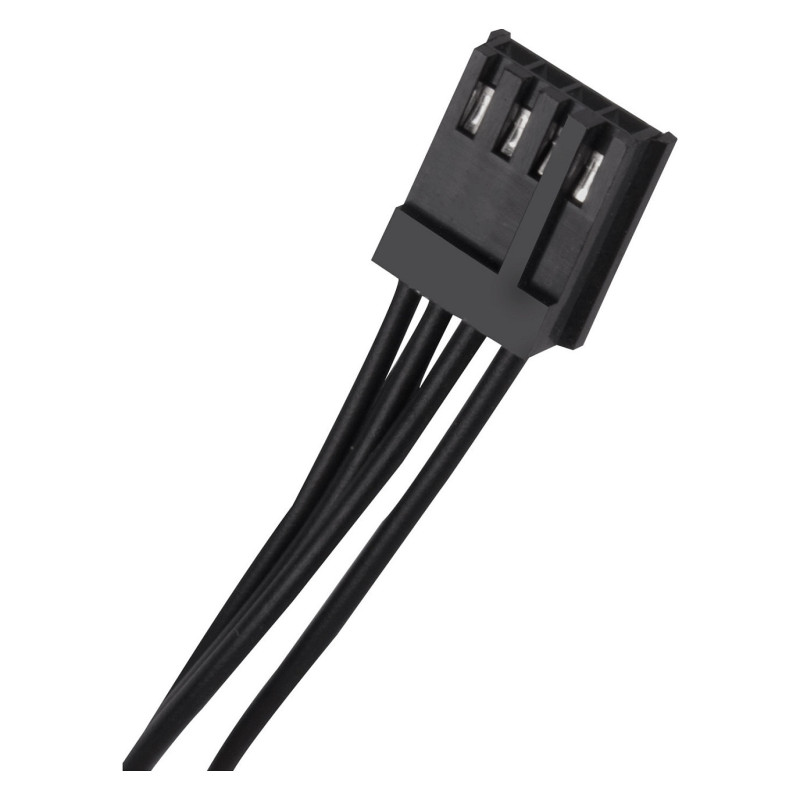

Floppy drive power connector: 1
Floppy disk drive connector: Yes
Floppy disk drive cable length: 15 cm
PCI Express connector: Yes

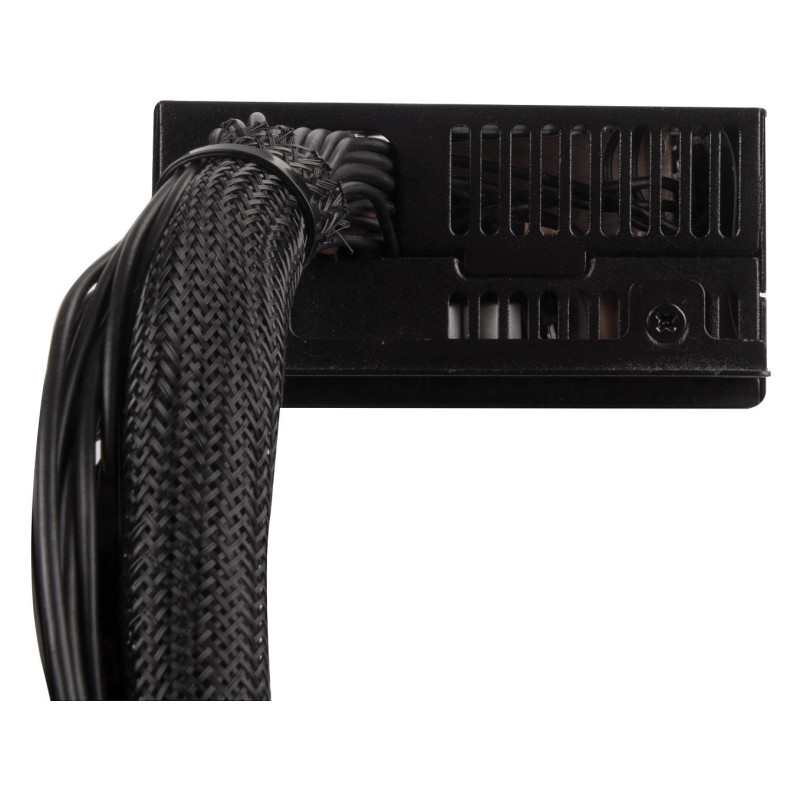

Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: Server
Power supply unit (PSU) form factor: Flex ATX
ATX version: 2.4
Noise level: 20 dB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 4 cm
Number of fans: 1 fan(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight dimensions

Width: 81.5 mm
Depth: 150 mm
Height: 40.5 mm
Weight: 960 g
