Siemens 6EP3436-8SB00-0AY0 power adapter / inverter

Siemens SITOP PSU8200/3AC/24VDC/20A. Power supply type: Indoor. Product colour: Multicolour. Compliance certificates: CE, RoHS, REACH. Width: 70 mm, Height: 125 mm, Weight: 1.2 kg. Package width: 1300 mm, Package depth: 740 mm, Package height: 1330 mm

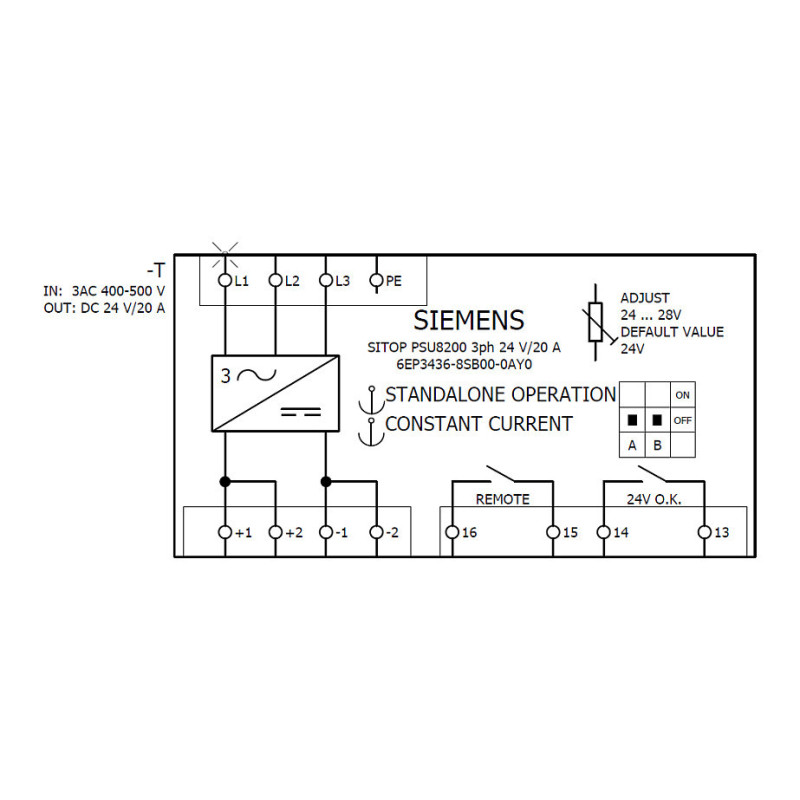

SITOP PSU8200 24 V/20 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A The 3-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The input range allows connection to almost any electrical power system worldwide and ensures a high degree of safety, even if there are large voltage fluctuations. The Power Boost delivers up to three times the rated current for a short time. In case of overload, you can choose between constant current or latching shutdown. The high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP modular power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Features

Power supply type: Indoor

Design

Product colour: Multicolour

Certificates

Compliance certificates: CE, RoHS, REACH

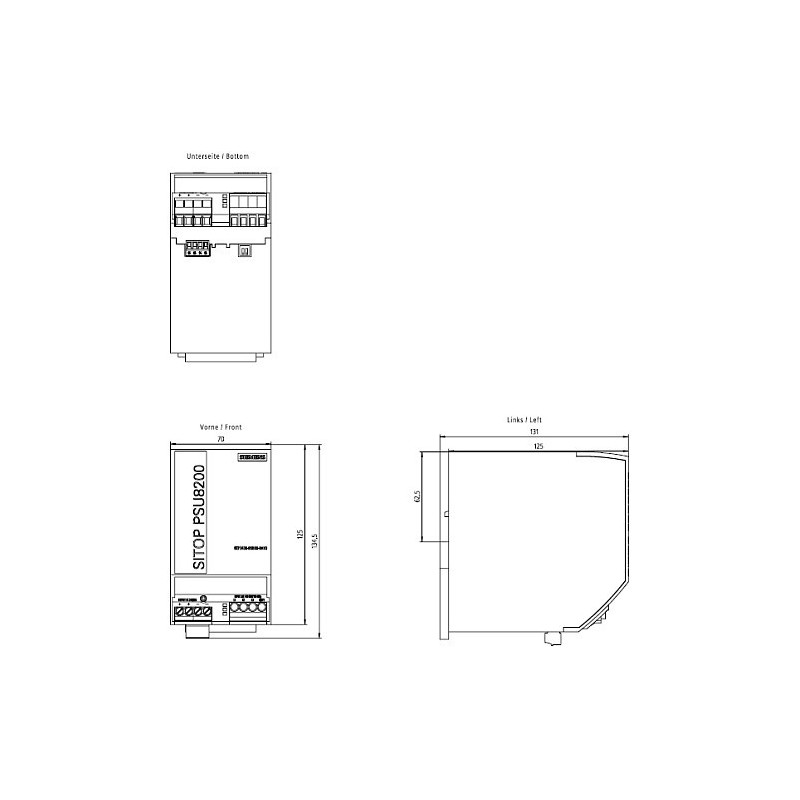

Weight & dimensions

Width: 70 mm
Height: 125 mm
Weight: 1.2 kg

Packaging data

Package width: 1300 mm
Package depth: 740 mm
Package height: 1330 mm

Packaging content

Feature: Quick installation guide

Technical details

Power: 480 W
Feature: Stabilized

Logistics data

Country of origin: Austria

Other features

Feature: Short circuit protection
