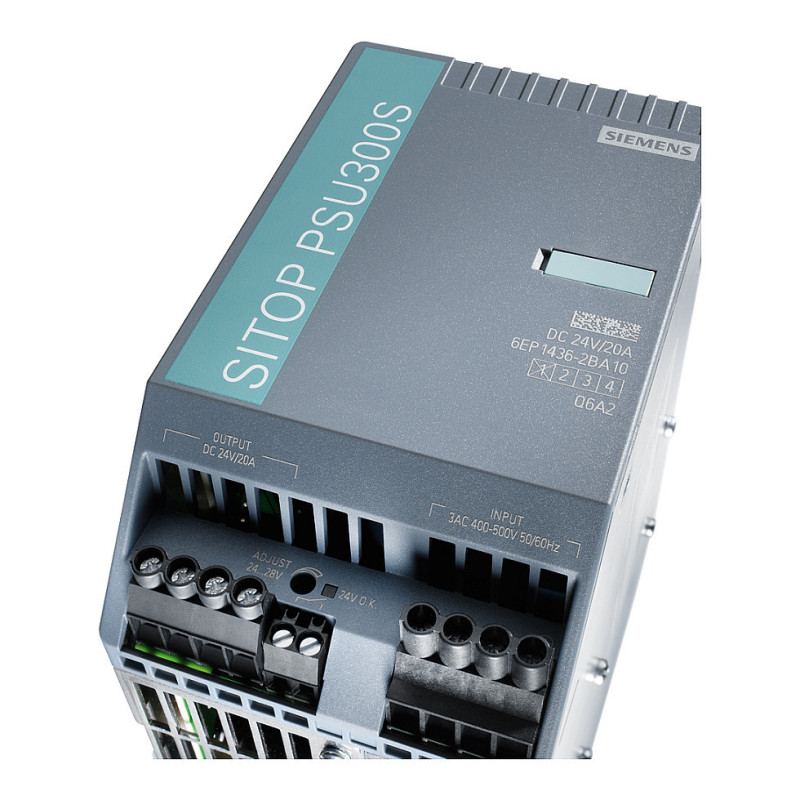

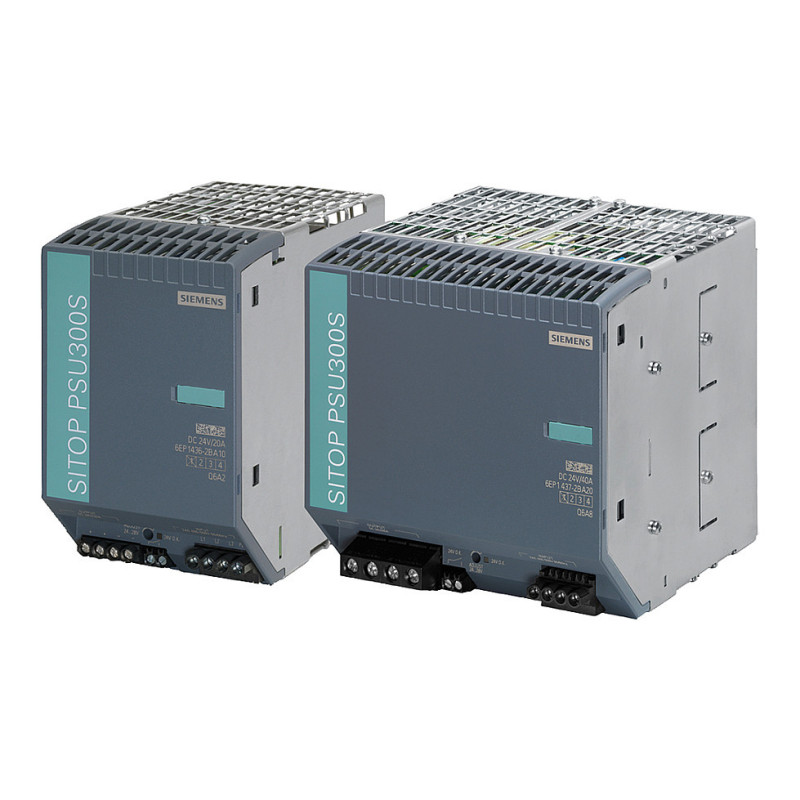

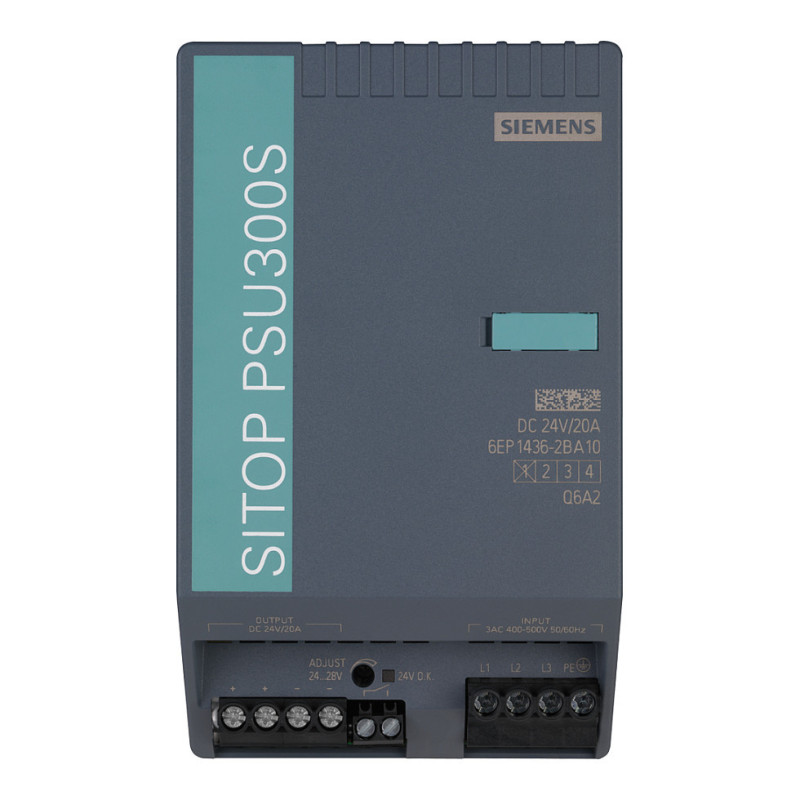

Siemens 6EP1436-2BA10 power adapter / inverter

Siemens SITOP PSU300S/3AC/24VDC/20A. Power supply type: Indoor. Product colour: Multicolour. Compliance certificates: CE, RoHS, REACH. Width: 90 mm, Height: 145 mm, Weight: 1.6 kg. Package width: 170 mm, Package depth: 105 mm, Package height: 202 mm

SITOP PSU300S 20 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A The 3-phase SITOP smart power supplies are the universal and high-performance standard power supplies for mechanical and plant engineering. Despite their compact type of construction, they offer excellent overload behavior: Thanks to a power boost of 150%, loads with high power consumption can be connected without any problems and the permanent overload capability of 120% offers power reserves in case of expansions. The high efficiency ensures low energy consumption and low heat buildup in the control cabinet. To further increase the 24 V availability, the SITOP smart power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Features

Power supply type: Indoor

Design

Product colour: Multicolour

Certificates

Compliance certificates: CE, RoHS, REACH

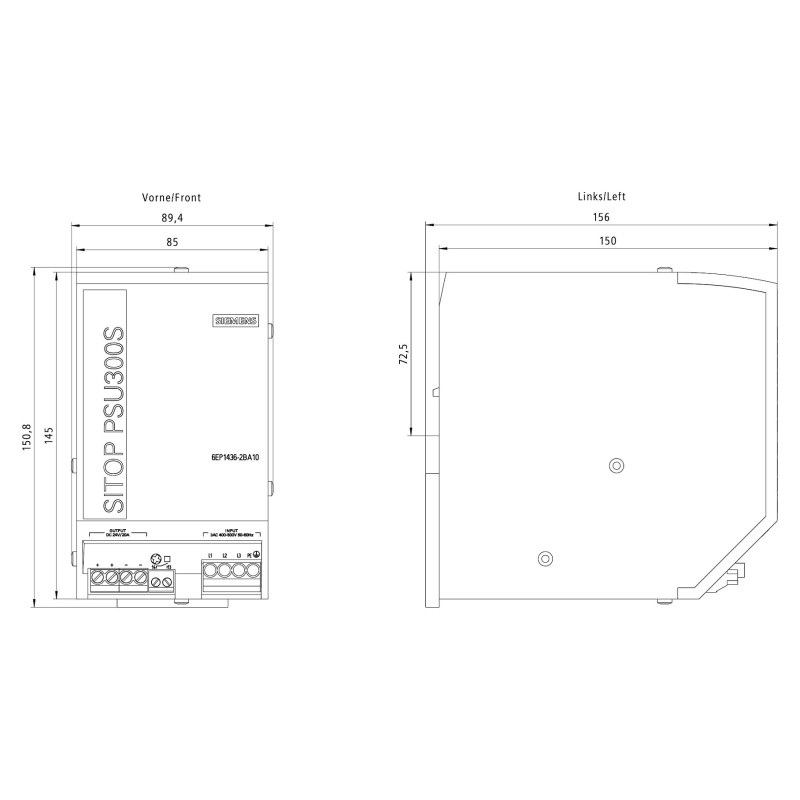

Weight & dimensions

Width: 90 mm
Height: 145 mm
Weight: 1.6 kg

Packaging data

Package width: 170 mm
Package depth: 105 mm
Package height: 202 mm

Packaging content

Feature: Quick installation guide

Technical details

Power: 480 W
Feature: Stabilized

Logistics data

Country of origin: Austria

Other features

Feature: Short circuit protection
