Siemens 6AV2124-0MC01-0AX0 touch control panel

Siemens SIMATIC HMI TP1200 Comfort. Display diagonal: 30.7 cm (12.1"), Display resolution: 800 x 1280 pixels, Display technology: LCD. Width: 330 mm, Height: 241 mm. Package weight: 3.46 kg, Package depth: 509 mm, Package width: 362 mm. Compliance certificates: CE, RoHS, REACH

SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12 widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 The Comfort Panels are designed for implementing high-performance visualization tasks at machine-level.

Display

Display diagonal: 30.7 cm (12.1")
Display technology: LCD
Panel type: TFT
Display resolution: 800 x 1280 pixels
Touchscreen technology: Resistive

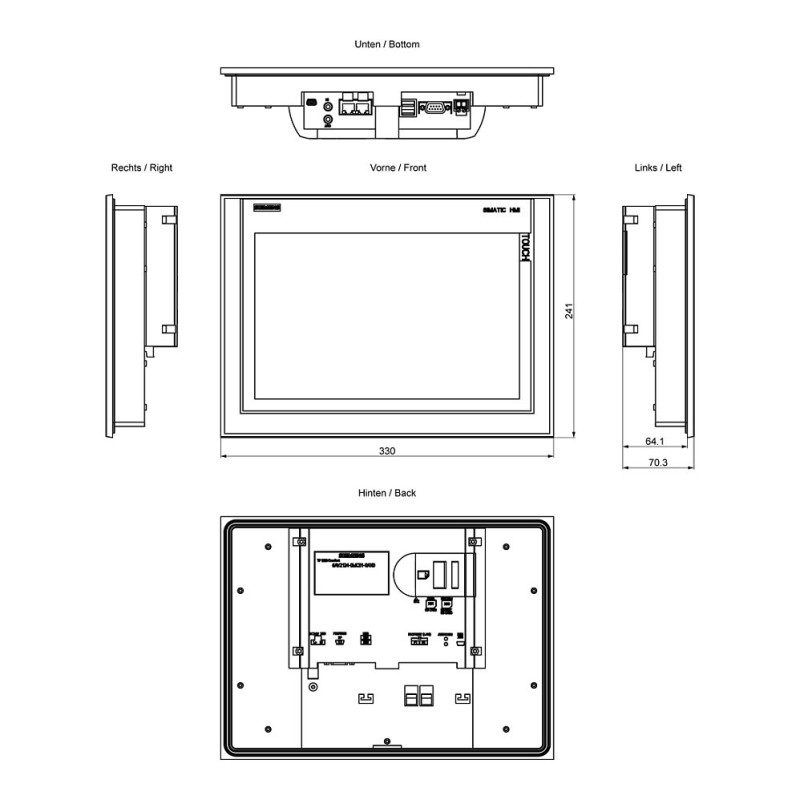

Weight & dimensions

Width: 330 mm
Height: 241 mm

Packaging data

Package weight: 3.46 kg
Package depth: 509 mm
Package width: 362 mm
Package height: 126 mm

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Other features

Compliance certificates: CE, RoHS, REACH

Technical details

International Protection (IP) code: IP65
Feature: Colour display
Display number of colours: 16.7 million colours
Number of languages supported: 32
Feature: Numeric keypad
User memory: 12 MB
Mounting depth: 6.4 cm
Feature: Alphanumeric keyboard
Feature: Printer output
Feature: Message indication
Feature: TCP/IP protocol support
Feature: Modbus protocol
Feature: EtherNet/IP protocol support
Number of Industrial Ethernet interfaces: 1
Number of USB interfaces: 2
Number of RS-485 interfaces: 1
Number of PROFINET interfaces: 1
Supply voltage type: DC
Supply voltage (DC): 19.2 - 28.8 V
Feature: Other bus system protocol support
Feature: Message system (incl. buffer and confirmation)
Feature: Recipes
Feature: PROFIBUS protocol support
Feature: Process value representation (output) possible
Feature: Process default value (input) possible
Feature: PROFINET IO protocol support
Feature: Additional software components, loadable
Number of password levels: 50
