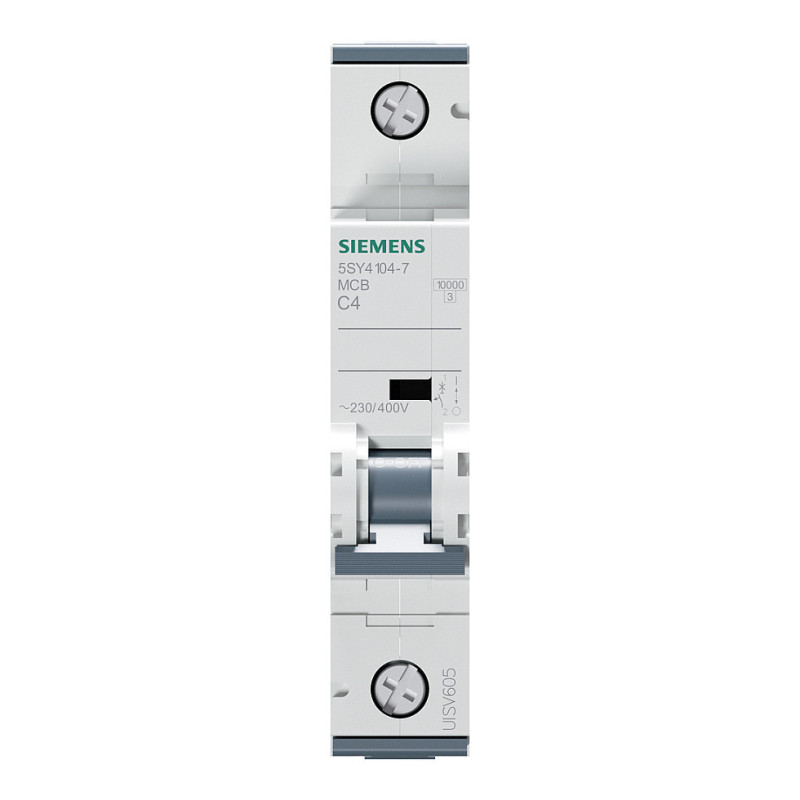

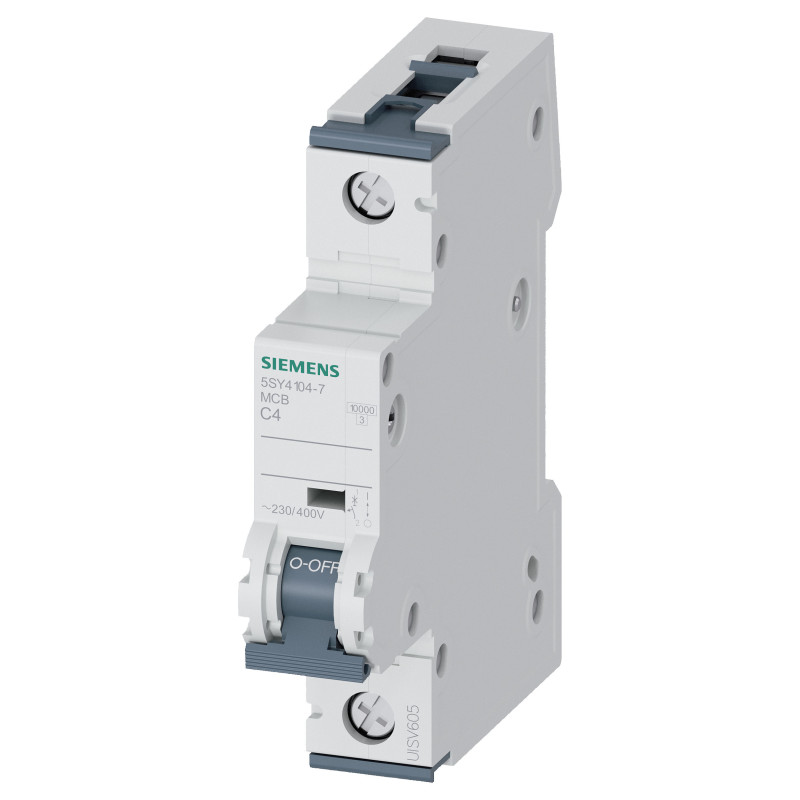

Siemens 5SY4104-7 circuit breaker

Siemens CIRCUIT BREAKER 10KA 1POL C4. Rated current: 4 A, Input frequency: 50 Hz, Rated voltage: 400 V. International Protection (IP) code: IP20. Package width: 21 mm, Package depth: 93 mm, Package height: 83 mm. Minimum order quantity: 1 pc(s)

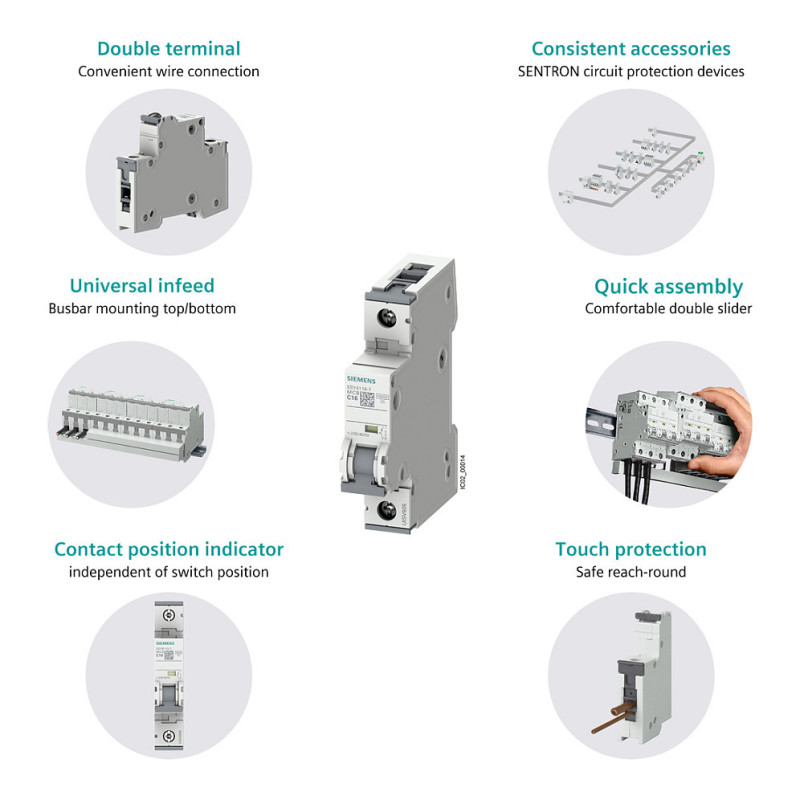

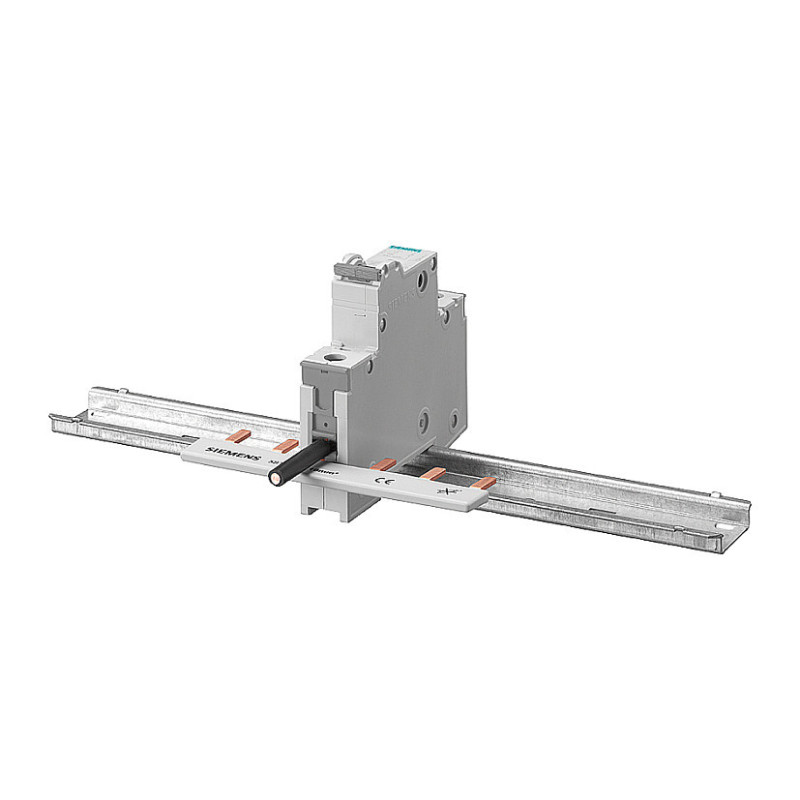

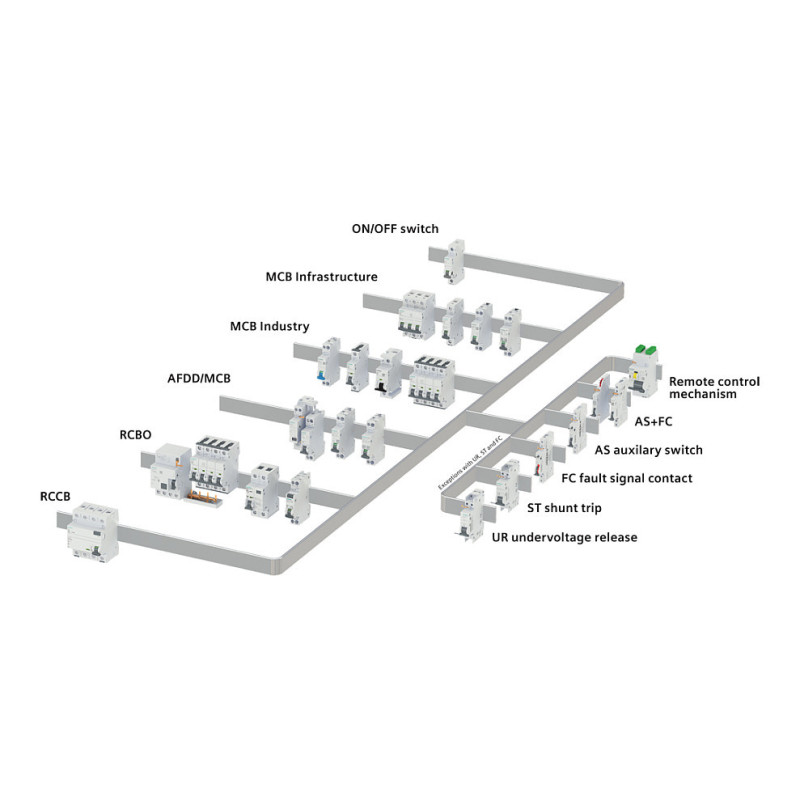

Miniature circuit breaker 230/400 V 10kA, 1-pole, C, 4A, D=70 mm Miniature circuit breaker SENTRON 5SY4 for fail-safe short-circuit and overload protection for residential and non-residential buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used asstandard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.

Power

Input frequency: 50 Hz
Rated current: 4 A
Rated voltage: 400 V
Total power loss: 1.3 W

Features

Number of poles: 1
International Protection (IP) code: IP20
Pollution degree: 3

Packaging data

Package width: 21 mm
Package depth: 93 mm
Package height: 83 mm
Package weight: 152.5 g

Technical details

Compliance certificates: CE, RoHS, REACH
Number of modular spacings: 1
Voltage type: AC

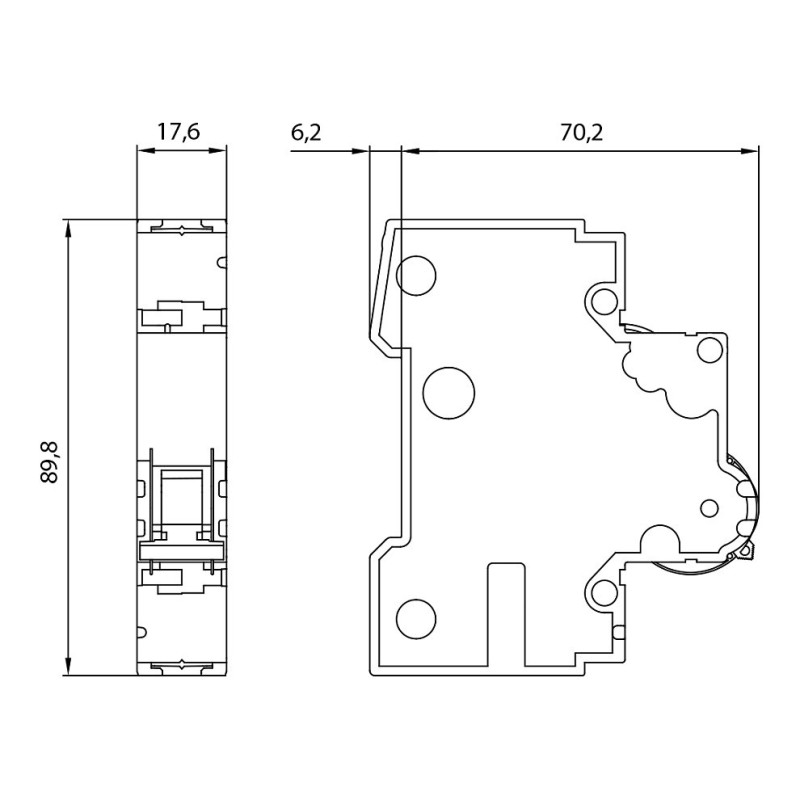

Mounting depth: 7 cm
Ambient temperature range: -40 - 70 °C
Release characteristic: C
Connectable solid conductor cross-section: 0.75 - 35 mm²
Connectable stranded conductor cross-section: 0.75 - 35 mm²
Overvoltage category: CAT III
Rated insulation voltage (Ui): 440 V
Rated short-circuit breaking capacity (Icn, EN 60898, 230V): 10 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V): 10 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 400V): 35 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 230V): 35 kA
Number of protected poles: 1
Current limiting class: Class 3
Rated impulse withstand voltage (Uimp): 4 kV
Feature: Additional equipment

Logistics data

Minimum order quantity: 1 pc(s)
