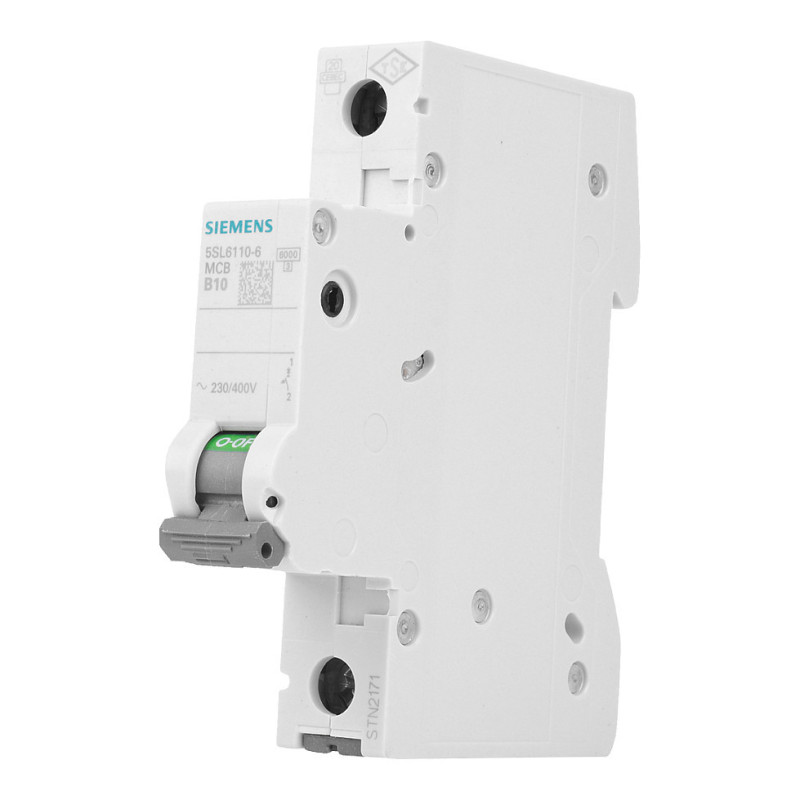

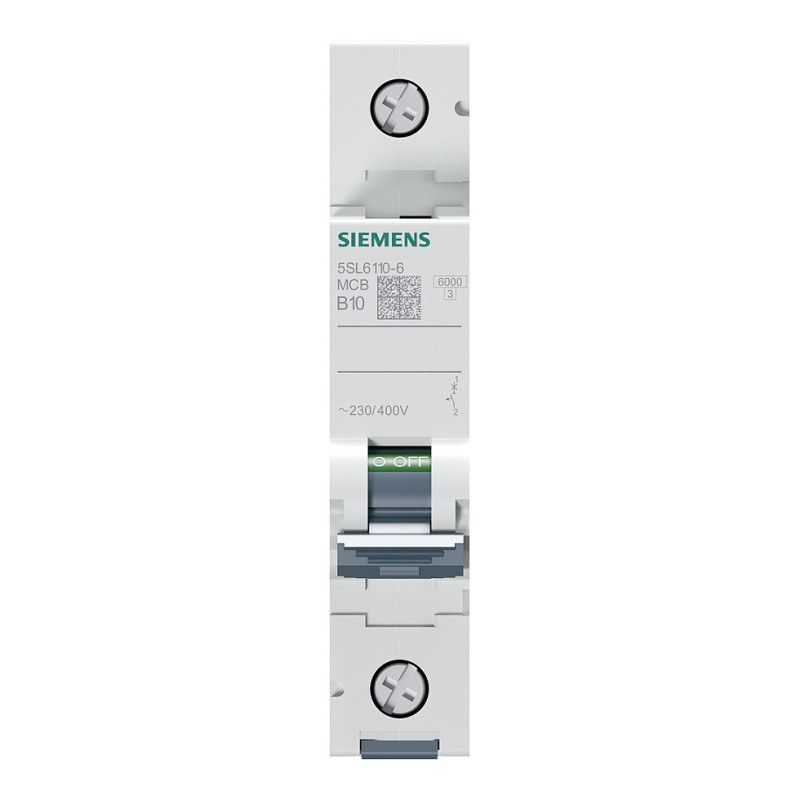

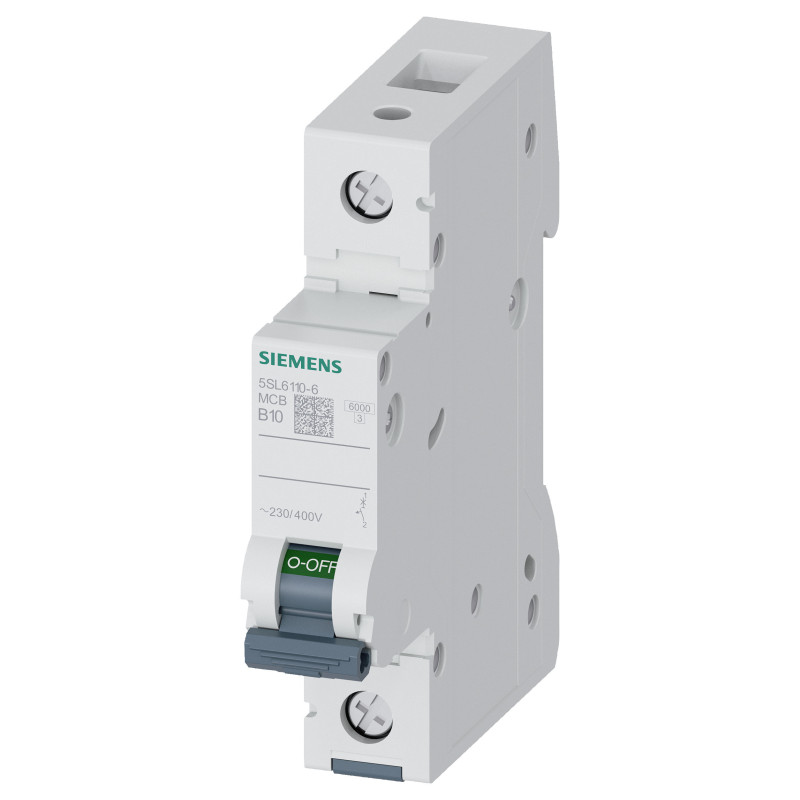

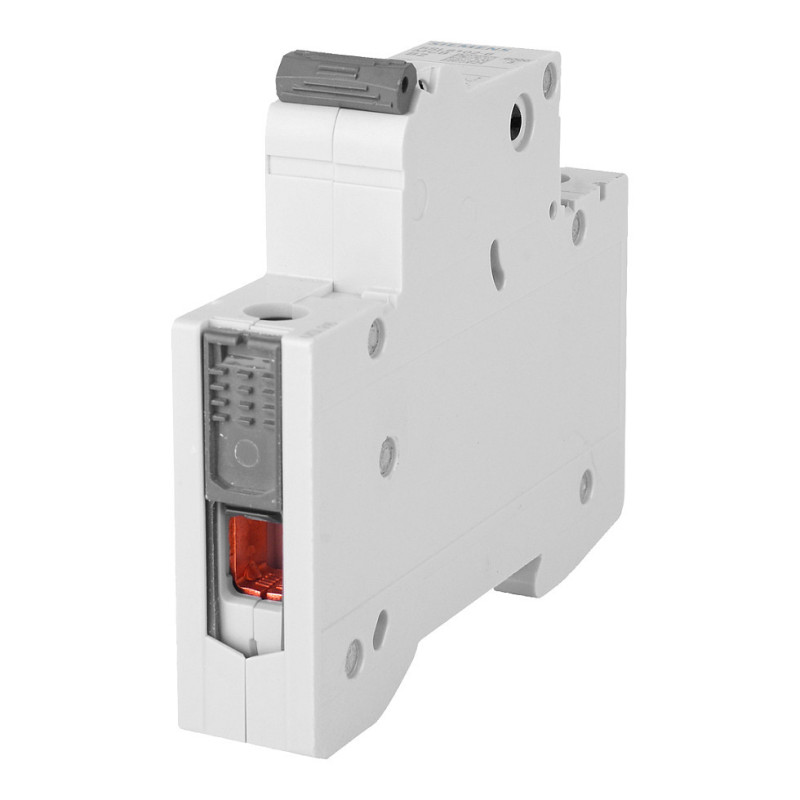

Siemens 5SL6110-6 circuit breaker

Siemens CIRCUIT BREAKER 6KA 1POL B10. Rated current: 10 A, Input frequency: 50 Hz, Rated voltage: 400 V. International Protection (IP) code: IP20. Package width: 22 mm, Package depth: 92 mm, Package height: 83 mm. Minimum order quantity: 1 pc(s)

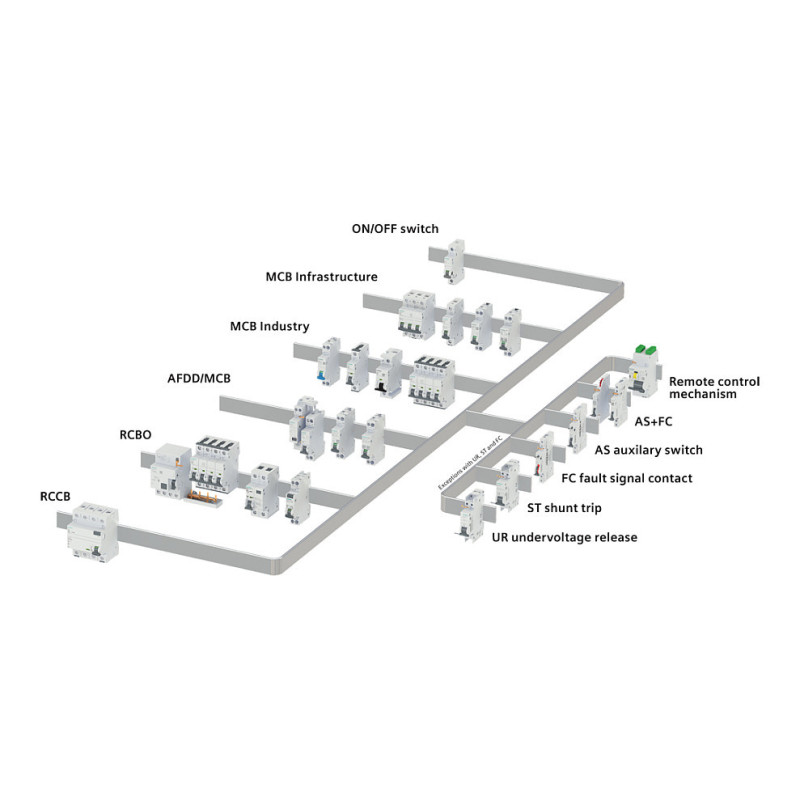

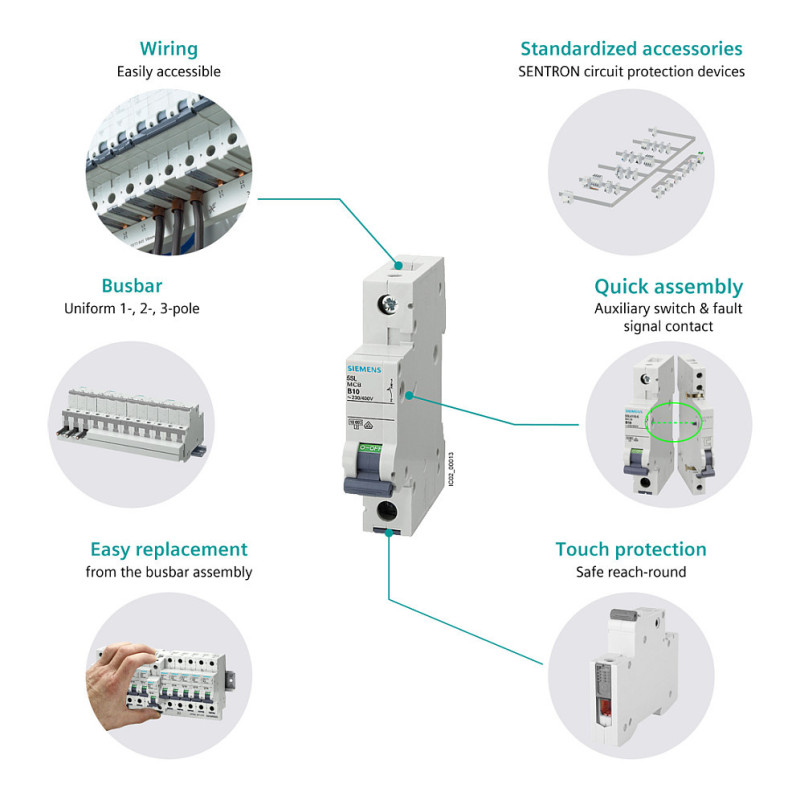

Miniature circuit breaker 230/400 V 6kA, 1-pole, B, 10 A Miniature circuit breaker SENTRON 5SL6 for fail-safe short-circuit and overload protection for standard applications in residential and non-residential buildings. Assembly and disassembly of the device without tools. Simple wiring of the infeed through the rear busbar. The 5SL miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions and in further special types. The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide varietyof ways. Simply safe with the protection devices from SENTRON.

Power

Input frequency: 50 Hz
Rated current: 10 A
Rated voltage: 400 V
Total power loss: 1.6 W

Features

Number of poles: 1
International Protection (IP) code: IP20
Pollution degree: 2

Packaging data

Package width: 22 mm
Package depth: 92 mm
Package height: 83 mm
Package weight: 130 g

Technical details

Compliance certificates: CE, RoHS
Number of modular spacings: 1
Voltage type: AC
Mounting depth: 7 cm
Ambient temperature range: -25 - 45 °C
Release characteristic: B
Connectable solid conductor cross-section: 0.75 - 25 mm²
Connectable stranded conductor cross-section: 0.75 - 25 mm²
Overvoltage category: CAT III
Rated short-circuit breaking capacity (Icn, EN 60898, 230V): 6 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V): 6 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 400V): 6 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 230V): 6 kA
Current limiting class: Class 3
Feature: Additional equipment

Logistics data

Minimum order quantity: 1 pc(s)
