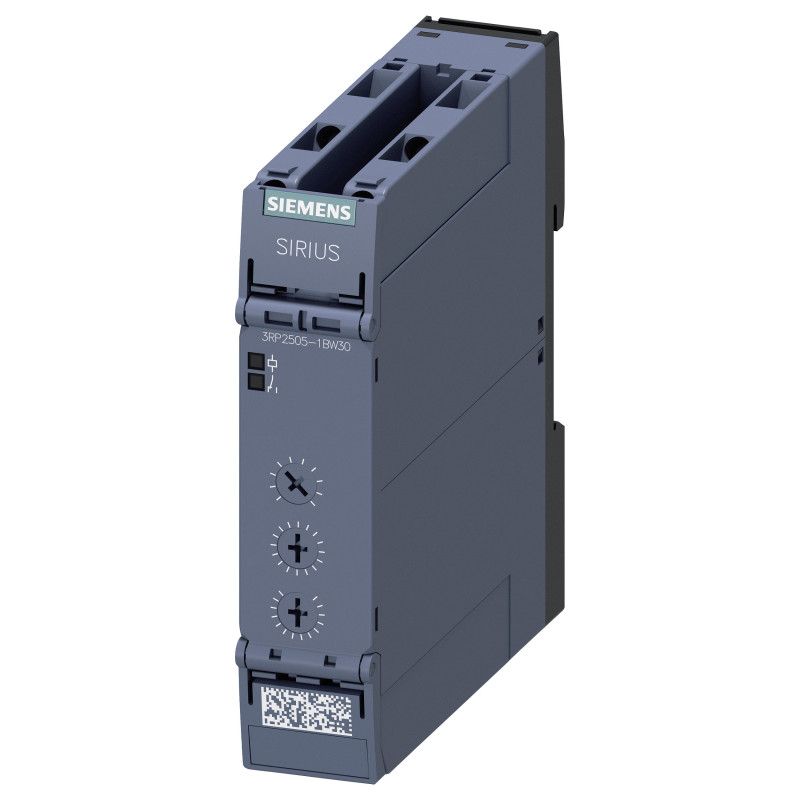

Siemens 3RP2505-1BW30 electrical relay

Siemens T-REL. MULTI-F. 2CO CONT. 12-240V AC/DC. Product colour: Black. AC input voltage: 12 - 240 V, AC input frequency: 50 - 60 Hz. Weight: 180 g, Package width: 36 mm, Package depth: 109 mm. Country of origin: Germany

Features

Product colour: Black

Power

AC input voltage: 12 - 240 V
AC input frequency: 50 - 60 Hz

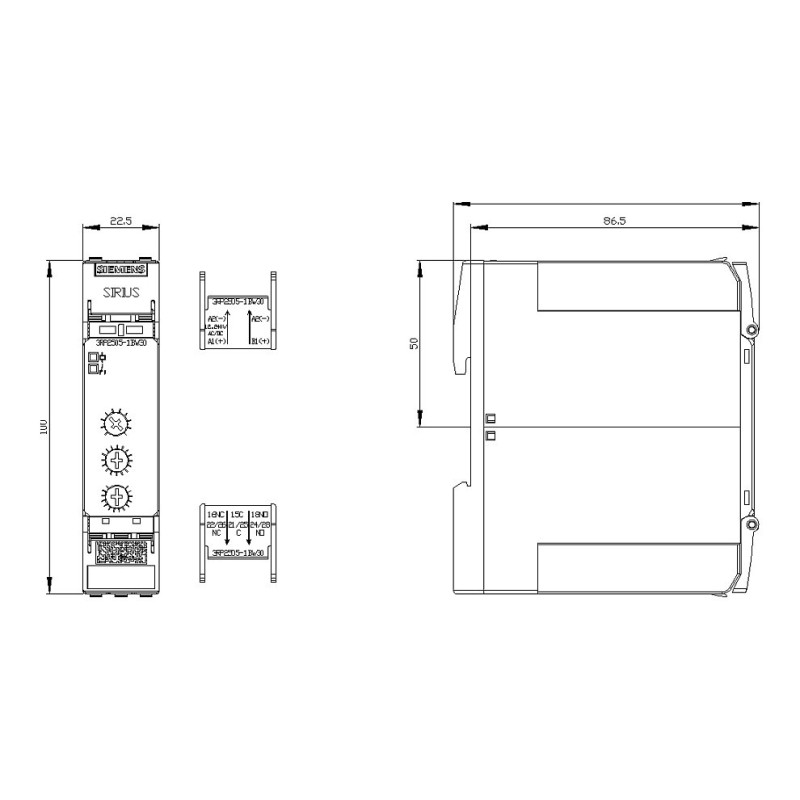

Weight & dimensions

Weight: 180 g
Package width: 36 mm
Package depth: 109 mm
Package height: 126 mm
Package weight: 171 g

Technical details

Compliance certificates: CE, RoHS, REACH
Feature: Function star-delta
Feature: Function delay-on energization
Timer duration (minimum): 0.05 s
Timer duration (maximum): 100 s
Actuating voltage type: AC/DC
Electrical connection type: Screw connection
Rated control supply voltage (DC): 12 - 240 V
Rated control supply voltage (AC 50Hz): 12 - 240 V
Rated control supply voltage (AC 60Hz): 12 - 240 V

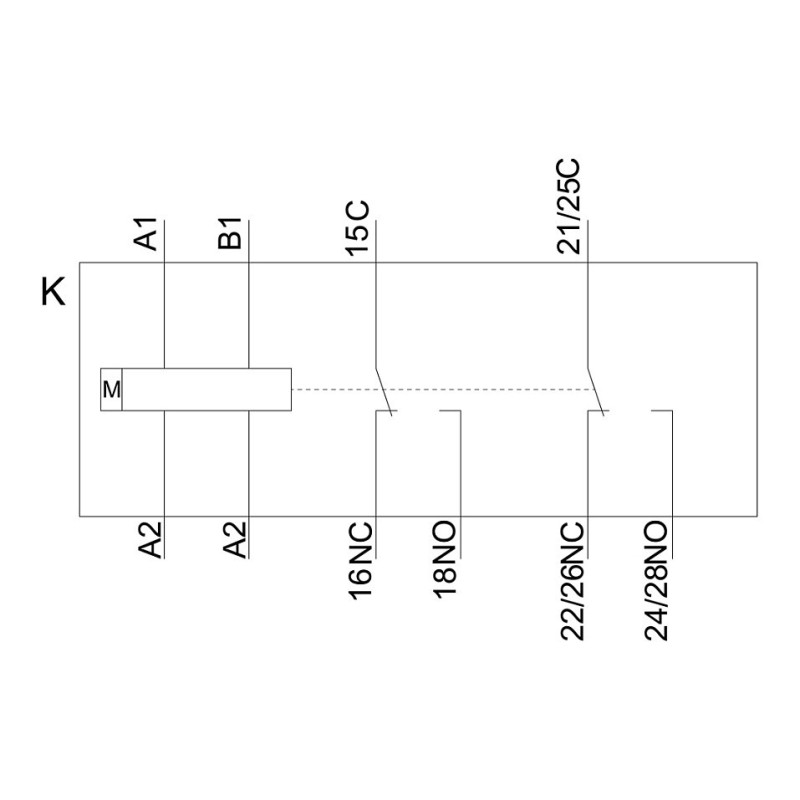

Number of outputs (delayed, change-over contact): 2
Feature: Function floating contact on energization
Feature: Function floating contact on de-energization
Feature: Function pulse shaping
Feature: Function flashing (starting with pause, fixed time)
Feature: Function flashing (starting with pulse, fixed time)
Feature: Outputs (reversible delayed/undelayed)

Logistics data

Country of origin: Germany
