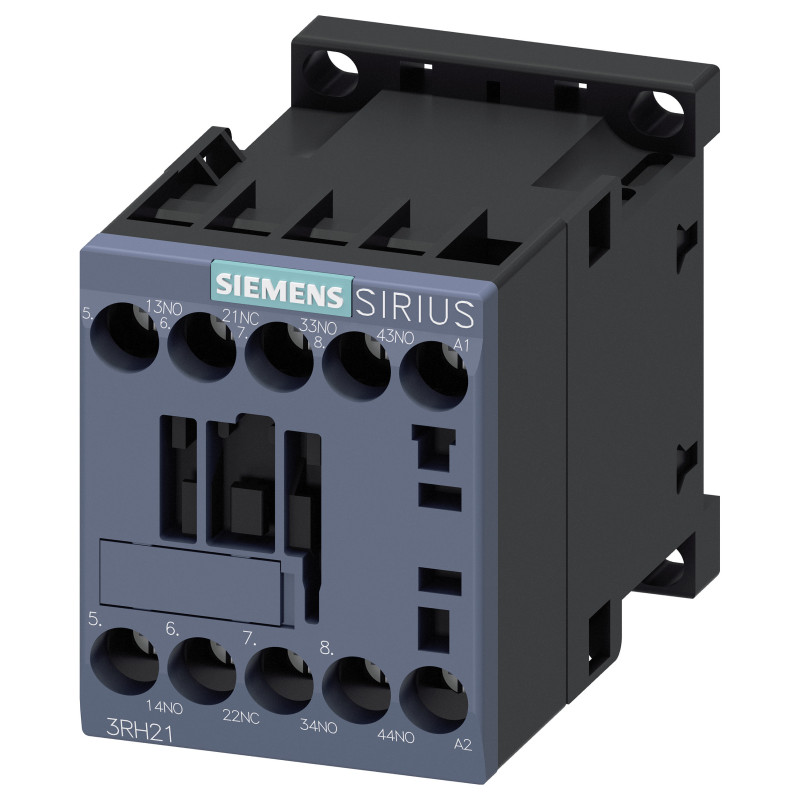

Siemens 3RH2131-1AP00 electrical relay

Siemens CONT.RELAY,3NO+1NC,AC230V 50/60HZ. Package width: 50 mm, Package depth: 61.5 mm, Package height: 77.5 mm

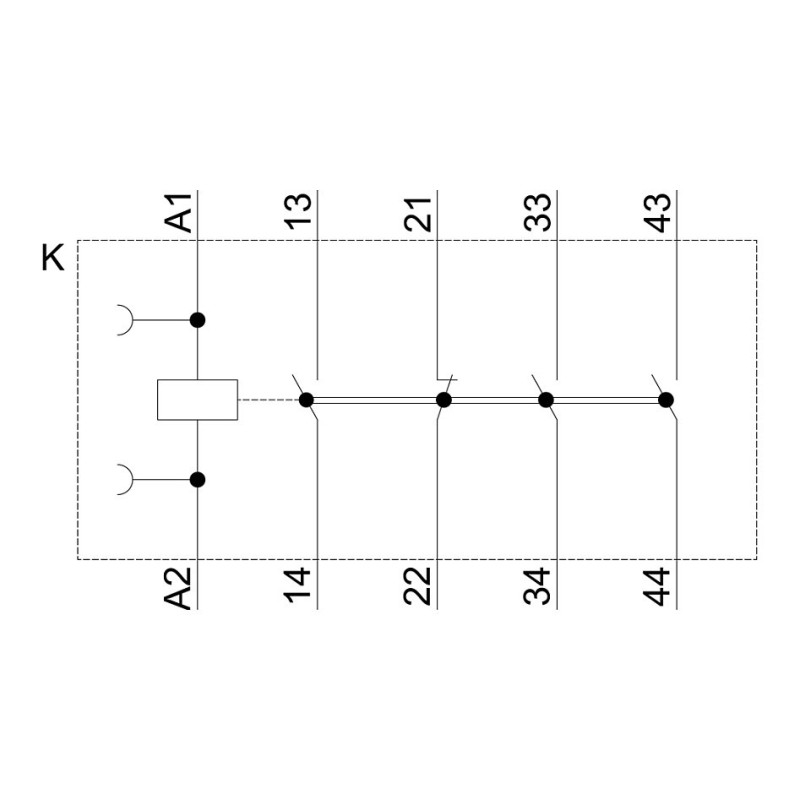

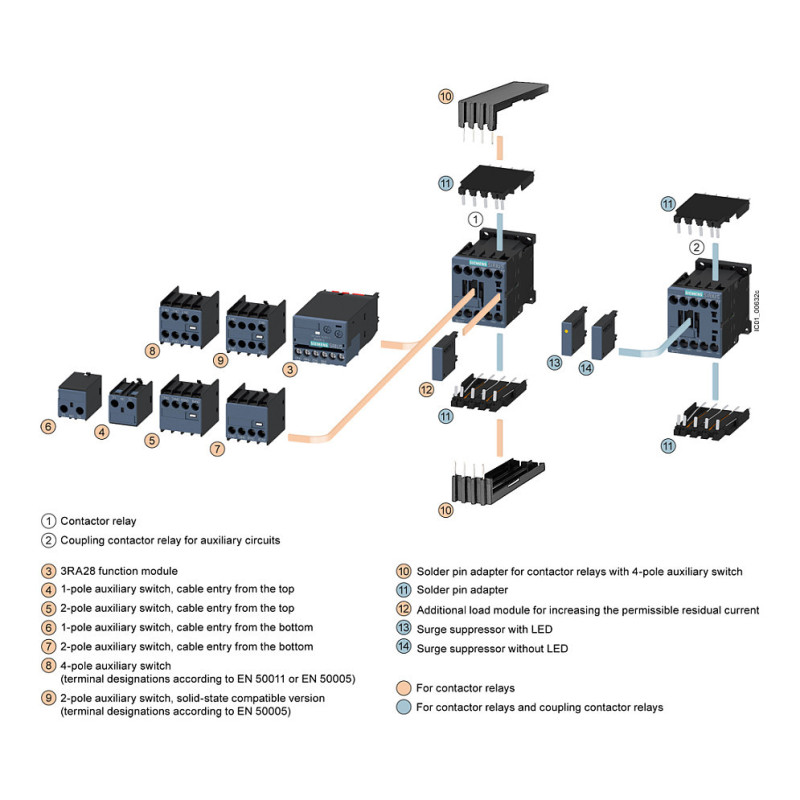

contactor relay, 3 NO + 1 NC, 230 V AC, 50/60 Hz, screw terminal, frame size S00 Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit. The SIRIUS 3RH2 contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. All contacts are available with positively driven operation for safety applications as well as SUVA versions. The contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). They are available with AC or DC operation and with screw or spring-loaded terminals. The basic version of the contactor relays is a 4-pole design which can be extended up to 8 poles by means of snap-on auxiliary switches. The extensive range of accessories for the 3RT2 contactors in sizes S00 to S3 can also be used for the 3RH2 contactor relays. The 3RH2 contactor relays replace the well-proven 3RH1 series.Simple, efficient and always up to date - SIRIUS modular system.

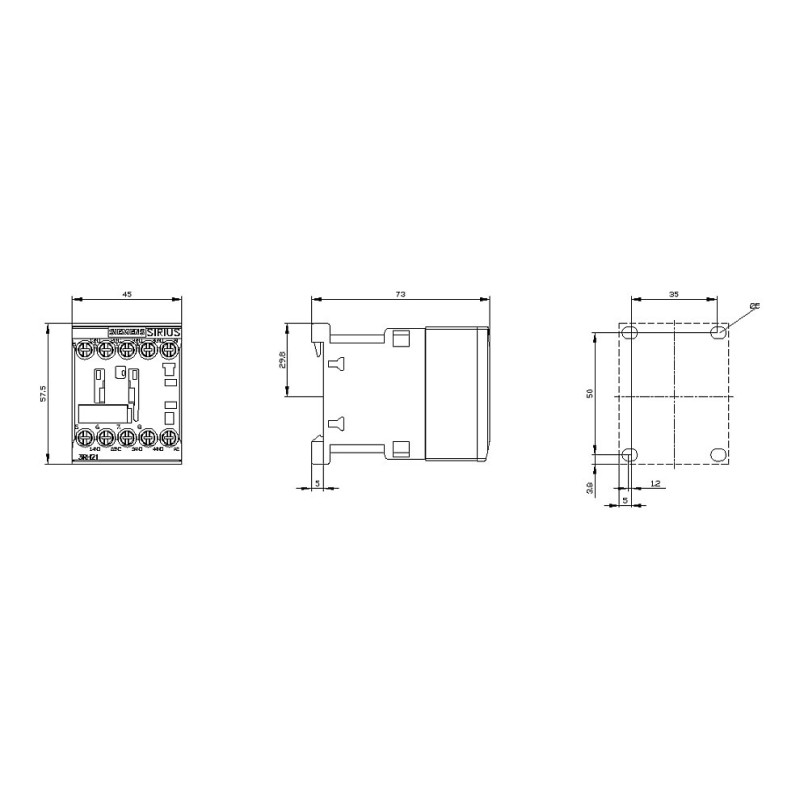

Weight & dimensions

Package width: 50 mm
Package depth: 61.5 mm
Package height: 77.5 mm
Package weight: 232 g

Technical details

Compliance certificates: CE, RoHS
Number of auxiliary NC contacts: 1
Number of auxiliary NO contacts: 3
Actuating voltage type: AC
Rated operational current (Ie, 400V): 3 A
Mounting method: Screw mounted
