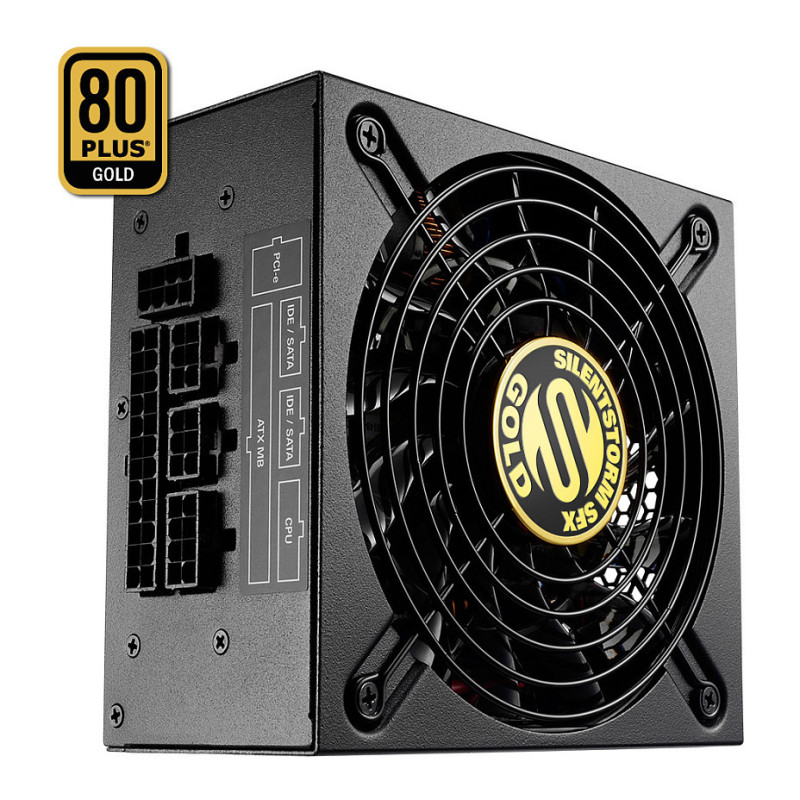

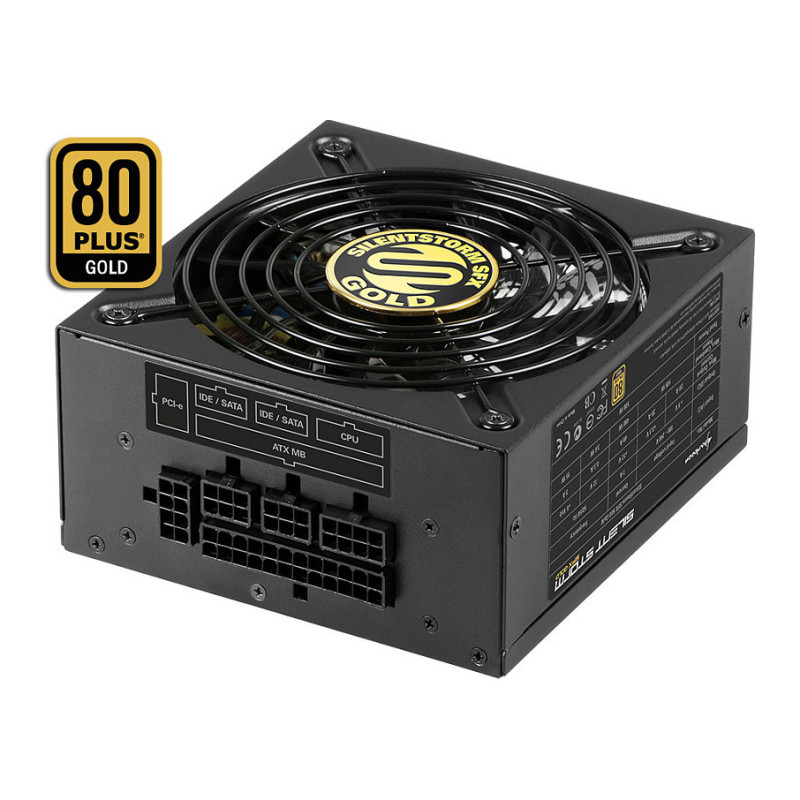

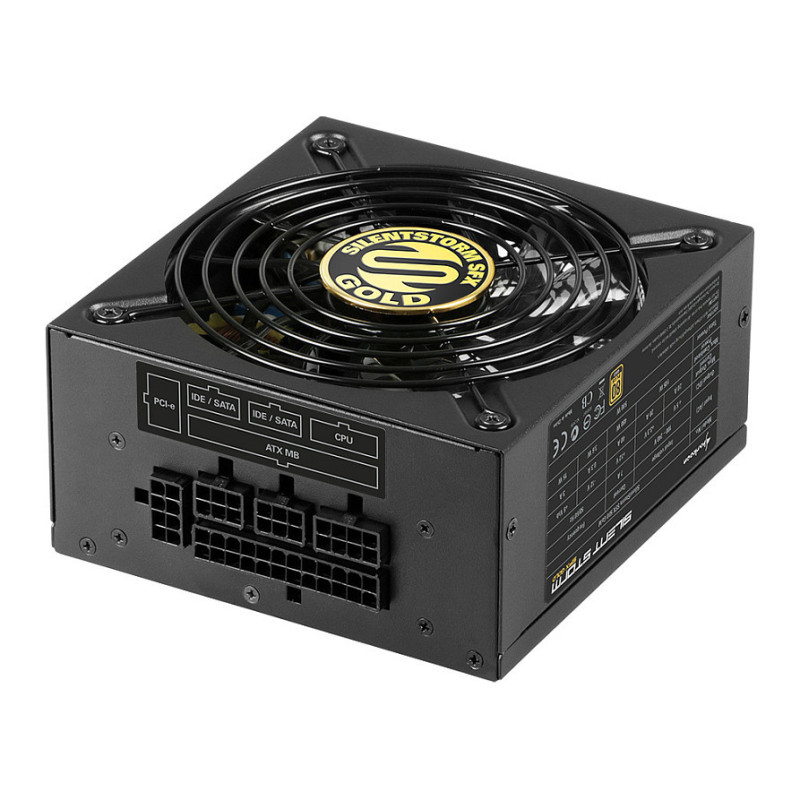

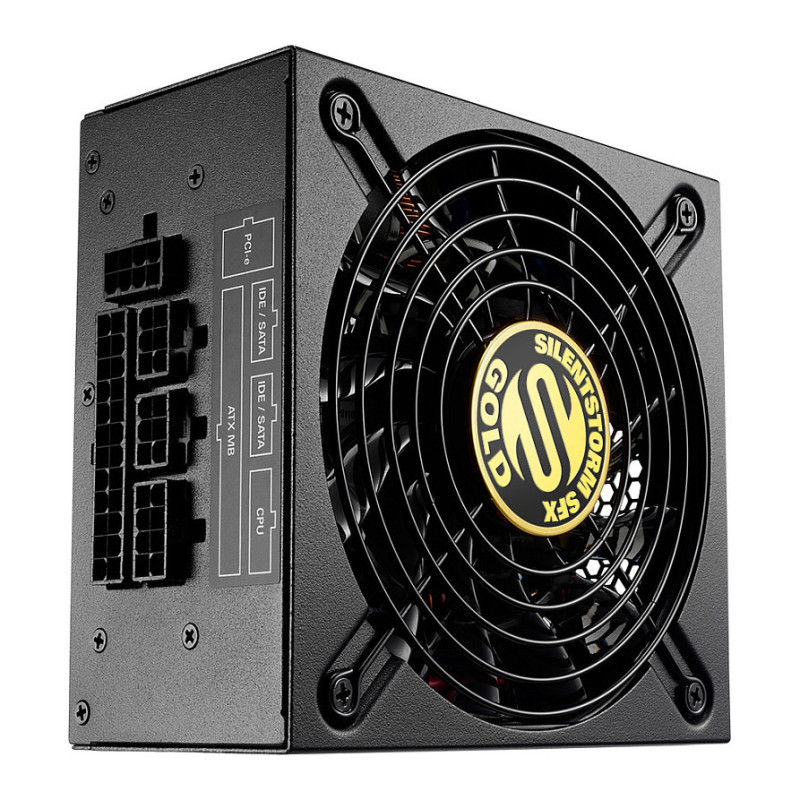

Sharkoon SilentStorm SFX Gold power supply unit

Sharkoon SilentStorm SFX Gold. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 125 mm, Depth: 130 mm, Height: 63 mm

SFX Power Supply with "80 PLUS Gold" Certification

The SilentStorm SFX Gold 500W is an "80 PLUS Gold" certified SFX power supply for high demands. It offers outstanding efficiency of over 90 percent by 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative "PLUG LOAD SOLUTIONS". The compact dimensions total to only 130 x 125 x 63 mm. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.

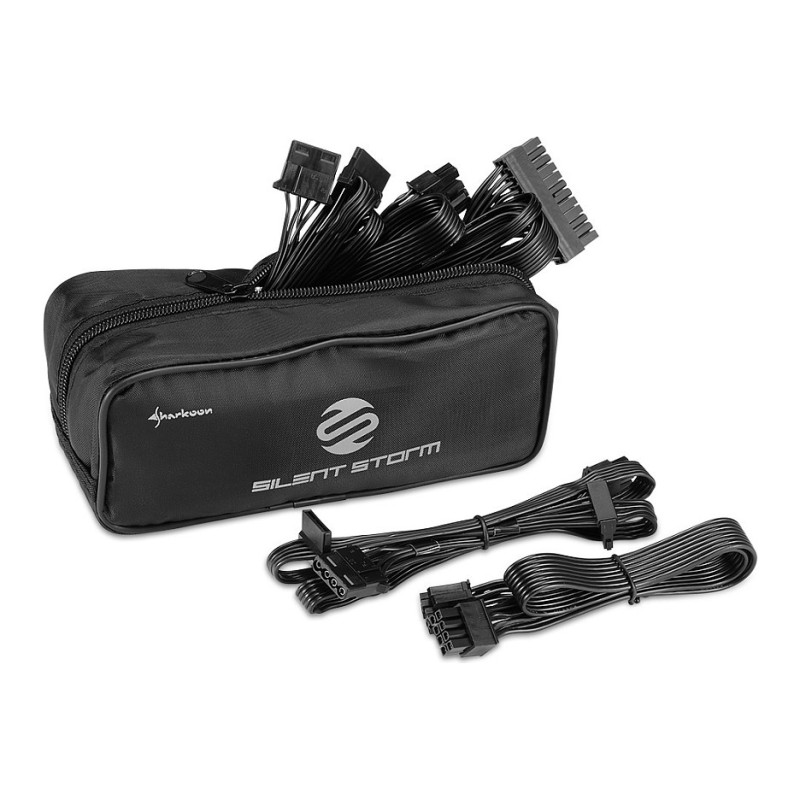

Great Connectivity

Thanks to the modular cable system the only cables used are those needed in the PC. For the setup of modern systems there is a 500 Watt power supply with two 6+2 pin PCIe power connectors for high-performance graphics cards. In addition to the CPU and mainboard standard connectors the SFX power supply offers four SATA, two IDE and a floppy power connector. It is compatible with Intel HASWELL CPUs.

Effective and Quiet Cooling

The operating noise of the power supply is effectively reduced by means of a quiet 120 mm fan and is especially suitable for lovers of Silent PCs that do not want to miss out on a powerful PSU.

Guaranteed Protection

The SilentStorm SFX Gold 500W features an overcurrent, overtemperature, overload, overvoltage, undervoltage and short circuit protection. The warranty period is three years. The SilentStorm SFX Gold 500W is also certified to current energy and environmental standards.

High Energy Efficiency
This power supply is "80 PLUS Gold" certified and meets all requirements with an efficiency of at least 90 % under 50 % load and 87 % under both 20 % and 100 % load.

Power

Total power: 500 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 7 A
Maximum input current (@110V): +12V,+3.3V,+5V,+5Vsb,-12V
Combined power (+3.3V): 105 W
Combined power (+12V): 480 W
Combined power (+5V): 105 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 40 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: Floppy disk drive connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

Weight & dimensions

Width: 125 mm
Depth: 130 mm
Height: 63 mm

Packaging data

Feature: Manual
Package width: 230 mm
Package depth: 190 mm
Package height: 80 mm
Package weight: 1.8 kg

Logistics data

Harmonized System (HS) code: 84733020

Other features

Case colour: Black
Housing colour: Black
