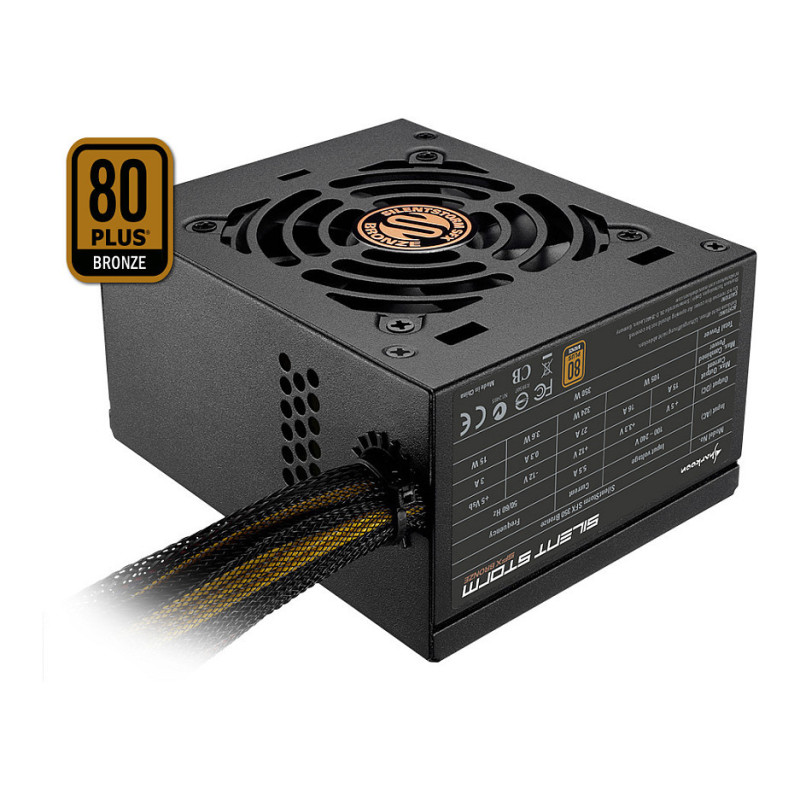

Sharkoon SilentStorm SFX Bronze power supply unit

Sharkoon SilentStorm SFX Bronze. Total power: 450 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Width: 100 mm, Depth: 125 mm, Height: 63 mm

SFX Power Supply with "80 PLUS Bronze" Certification

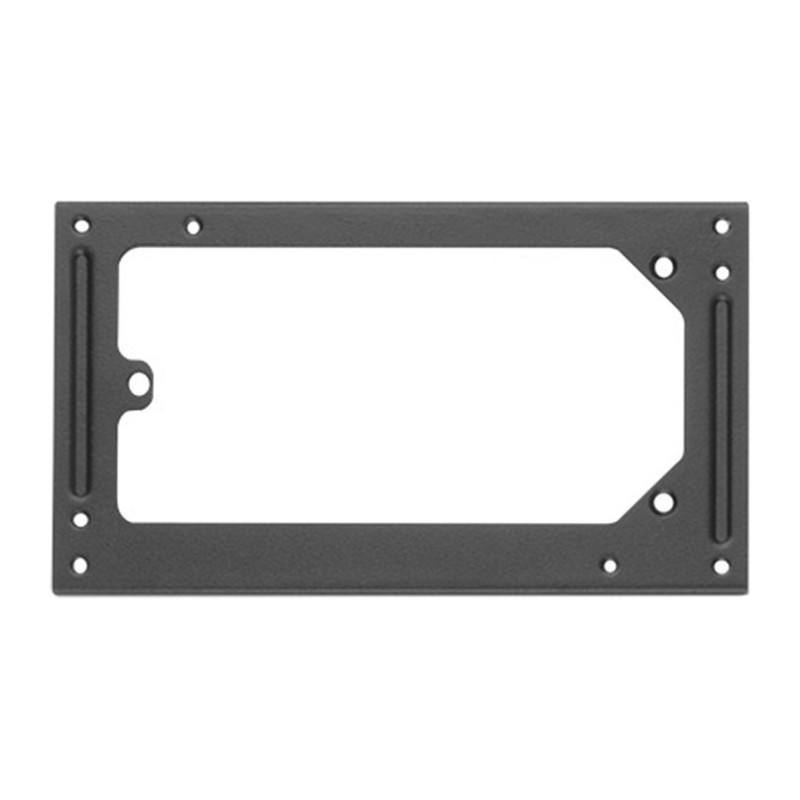

The SilentStorm SFX Bronze series is an "80 PLUS Bronze" certified SFX power supply series for users looking for the best price-performance. It offers outstanding efficiency of over 85 percent under 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative "PLUG LOAD SOLUTIONS" for the Bronze certificate. The compact dimensions total to only 125 x 100 x 63 mm. The power supplies are available in 450 Watt or 350 Watt. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.

Sufficient Connection Options

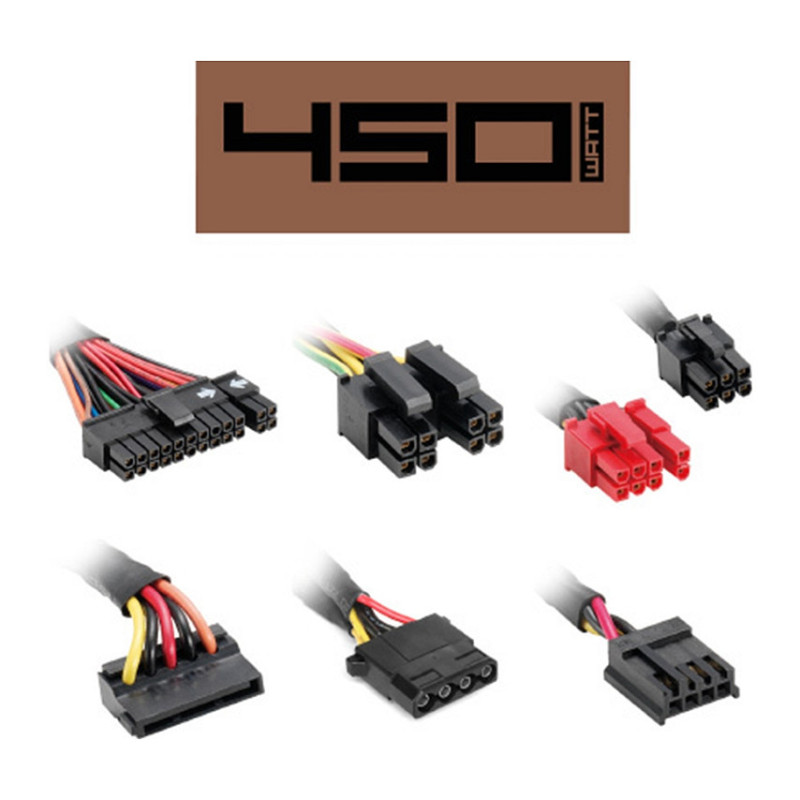

The Intel HASWELL compatible power supply series in the 350 Watt version provides, in addition to the standard CPU and mainboard connectors, a 6-pin PCIe connector, two SATA, two IDE and a Floppy connector. The SilentStorm SFX Bronze 450 Watt also offers an additional SATA connector as well as a 6+2-pin PCIe connector.

Effective Cooling

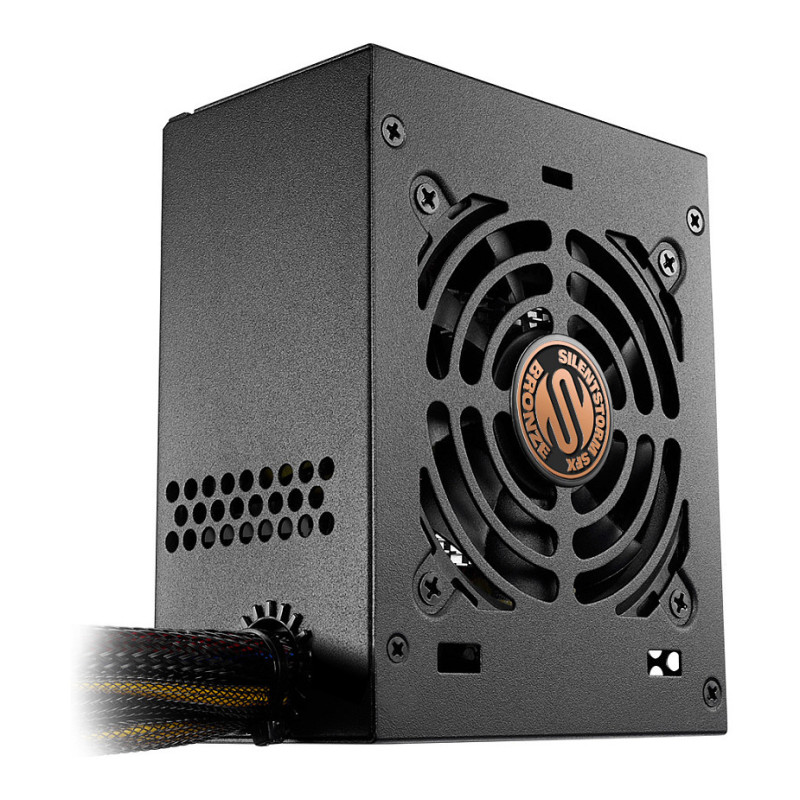

The internal power supply components of the SilentStorm SFX Bronze series are cooled by an effective 80 mm fan.

Suitable Protective Circuit with Three Year Guarantee

The SilentStorm SFX Bronze power supply series features an overload, overvoltage, undervoltage as well as short circuit protection and are certified with current energy and environmental standards. The guarantee period is three years.

High Energy Efficiency
This power supply is "80 PLUS Bronze" certified and meets all requirements with an efficiency of at least 85 % under 50 % load and 82 % under both 20 % and 100 % load.

Power

Total power: 450 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 7 A
Maximum input current (@110V): +12V,+3.3V,+5V,+5Vsb,-12V
Combined power (+3.3V): 120 W
Combined power (+12V): 432 W
Combined power (+5V): 120 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 21 A
Max output current (+12V): 36 A
Max output current (+5V): 22 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Power protection features: Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6-pin): 1
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
Feature: Floppy disk drive connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: SFX

Design

Product colour: Black
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Weight & dimensions

Width: 100 mm
Depth: 125 mm
Height: 63 mm

Packaging data

Feature: Manual
Package width: 230 mm
Package depth: 190 mm
Package height: 80 mm
Package weight: 1.5 kg

Logistics data

Harmonized System (HS) code: 84733020

Other features

Housing colour: Black
