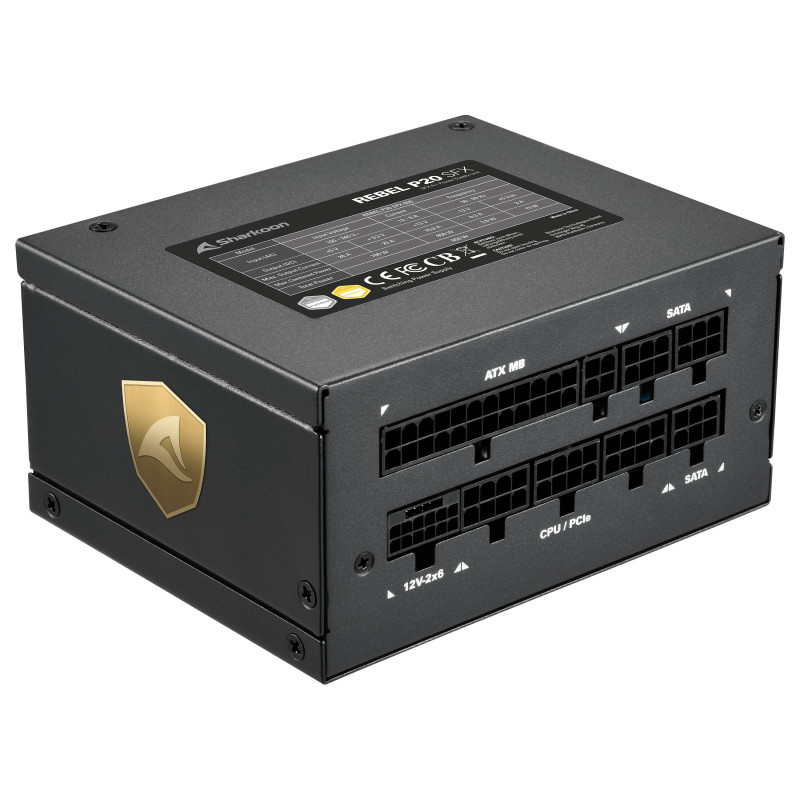

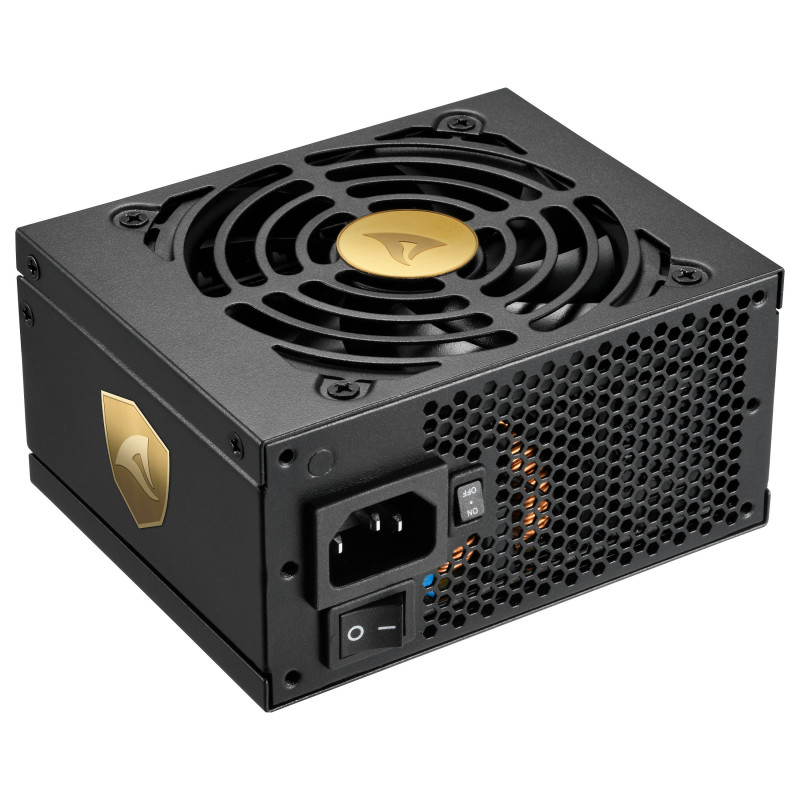

Sharkoon Rebel P20 SFX power supply unit

Sharkoon Rebel P20 SFX. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 30 cm, PCI Express power cable length: 57 cm. Purpose: PC, Power supply unit (PSU) form factor: SFX, Bearing technology: FDB. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: AC

Even though it has a compact SFX form factor, the Rebel P20 SFX provides reliable performance for hardware systems that also have modern graphics cards thanks to its integrated 12V-2x6 connector. The Cybenetics Platinum-certified PSU is equipped with a quiet 92 mm fan with Zero RPM mode and can be installed exactly as needed thanks to its fully modular cable kit.

Platinum-Cerified Energy Efficiency
The Rebel P20 SFX has been awarded the Platinum certificate by the independent Cybenetics laboratory with an overall efficiency of at least 89 % at 115 V and 91 % at 230 V, as well as a 5 VSB efficiency of 76 %.

Compact Size with High Performance
With its integrated 12V-2x6 connector, the Rebel P20 SFX provides reliable performance for hardware systems that also have modern, high-end graphics cards, despite its compact SFX form factor.

Certified Low Noise

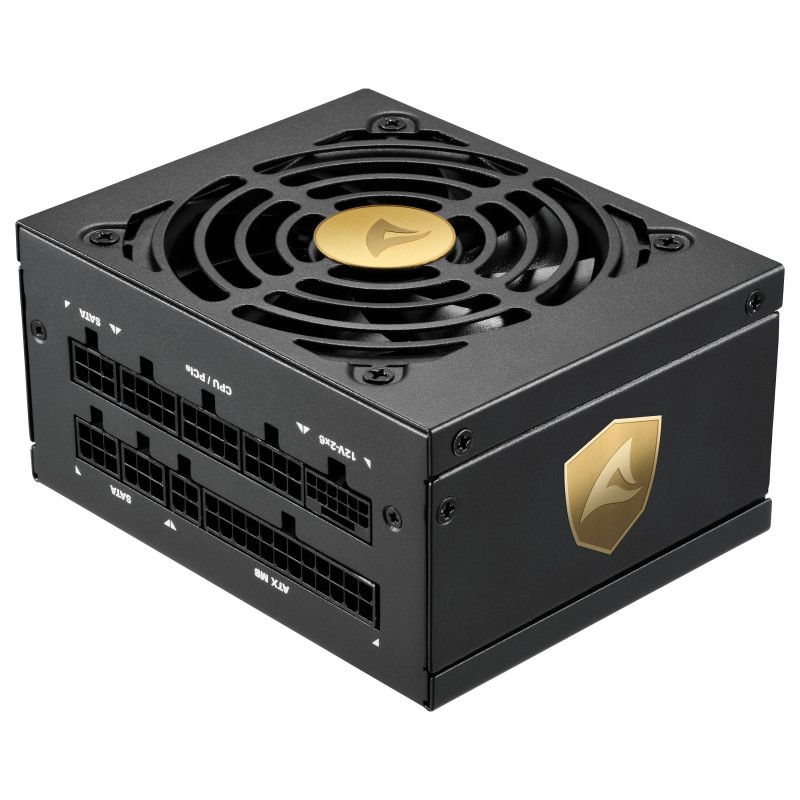

The Rebel P20 SFX is equipped with a 92 mm fan that offers a certified low-noise operation. Thanks to the Zero RPM mode, the fan rotation is switched off completely for an almost silent operation at low to moderate loads. For hardware-friendly cooling, the fan delay mode allows the fan to continue running for up to 60 seconds after the PC system has been shut down.

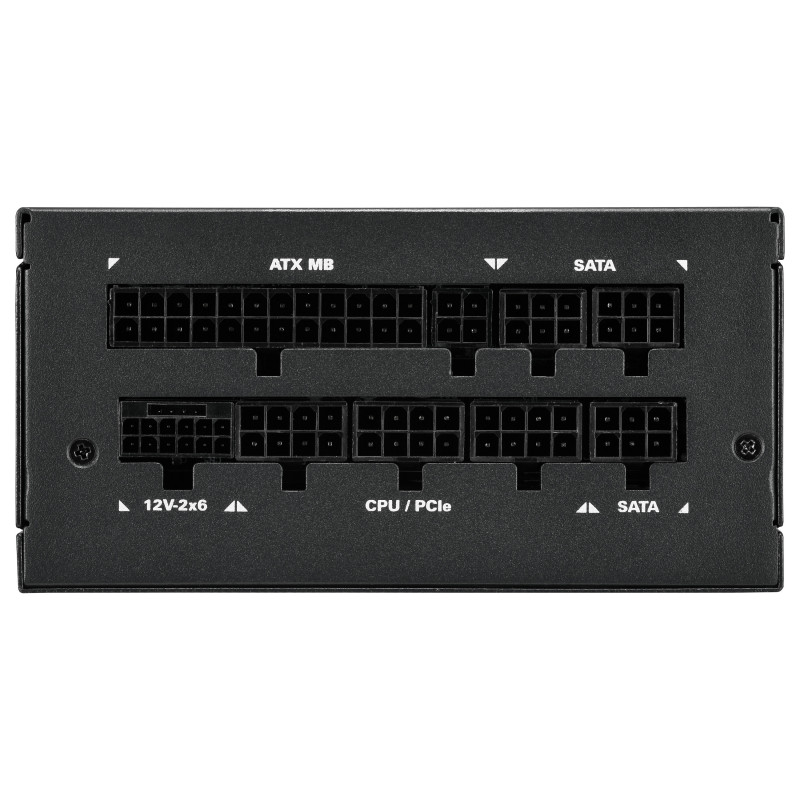

Modular Cabling

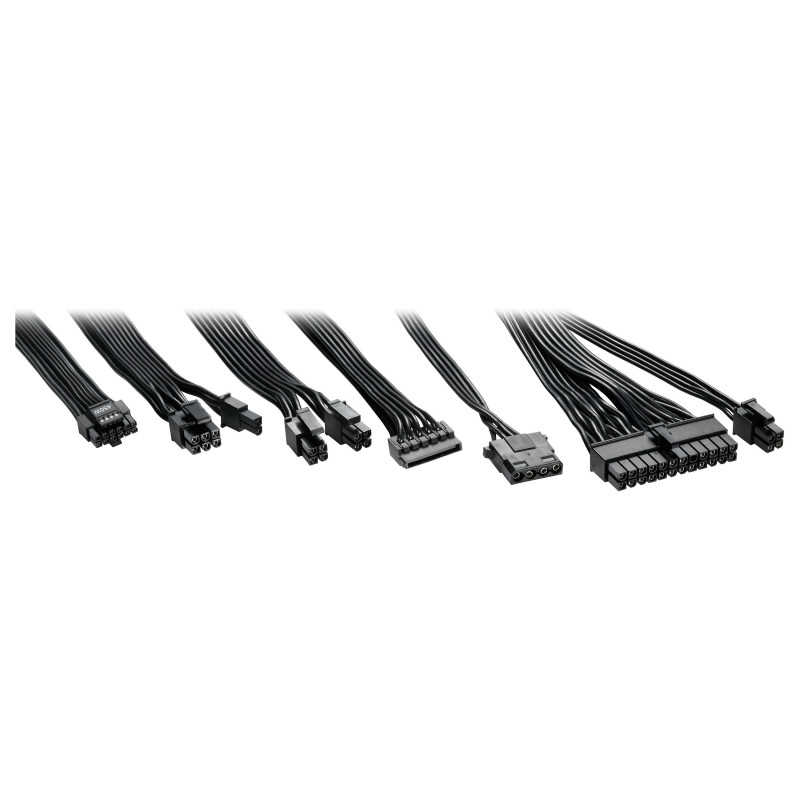

The cable set supplied with the PSU is fully modular, and therefore only those cables are used that are really needed. Unused cables can be simply stored in the practical cable bag.

Reliable and Flawless Operation
To ensure a flawless operation, the Rebel P20 SFX is equipped with all-Japanese capacitors, stable LLC resonant converters and DC/DC technology.

All Protection on Board
Whether its over-current protection or over-power protection: The Rebel P20 SFX is equipped with all protective functions for a continuously safe operation.

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12 / 6 A
Combined power (+3.3V): 100 W
Combined power (+12V): 850 W
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 30 cm
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 1
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 57 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 42 cm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: No
Purpose: PC
Power supply unit (PSU) form factor: SFX
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top

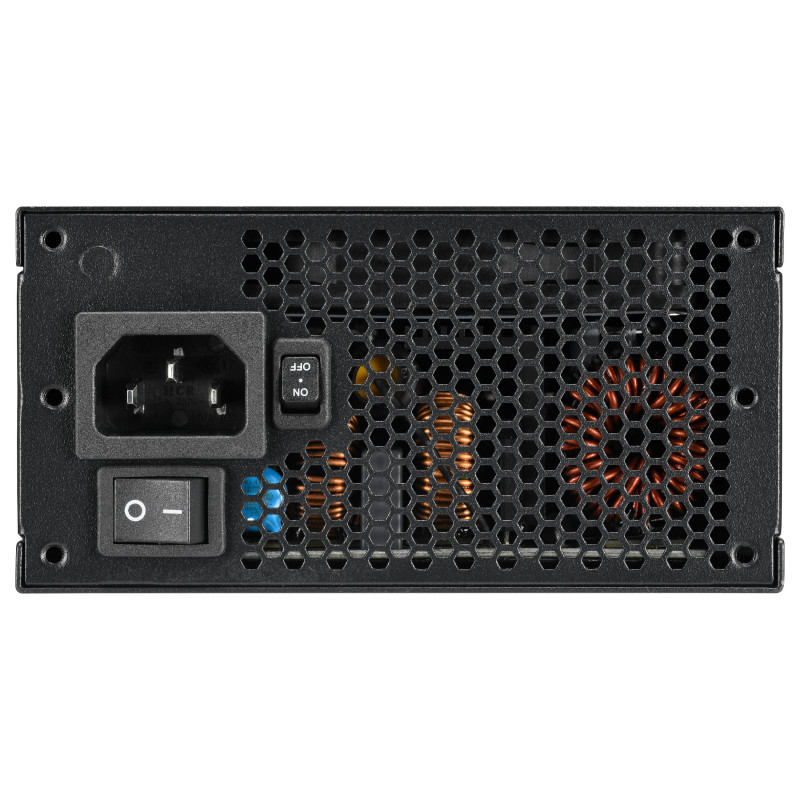

Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

Cables included: AC

Certificates

Compliance certificates: CB, CE, Federal Communications Commission (FCC)

Weight & dimensions

Width: 125 mm
Depth: 100 mm
Height: 63.5 mm
Weight: 1 kg

Technical details

Sustainability certificates: ErP
