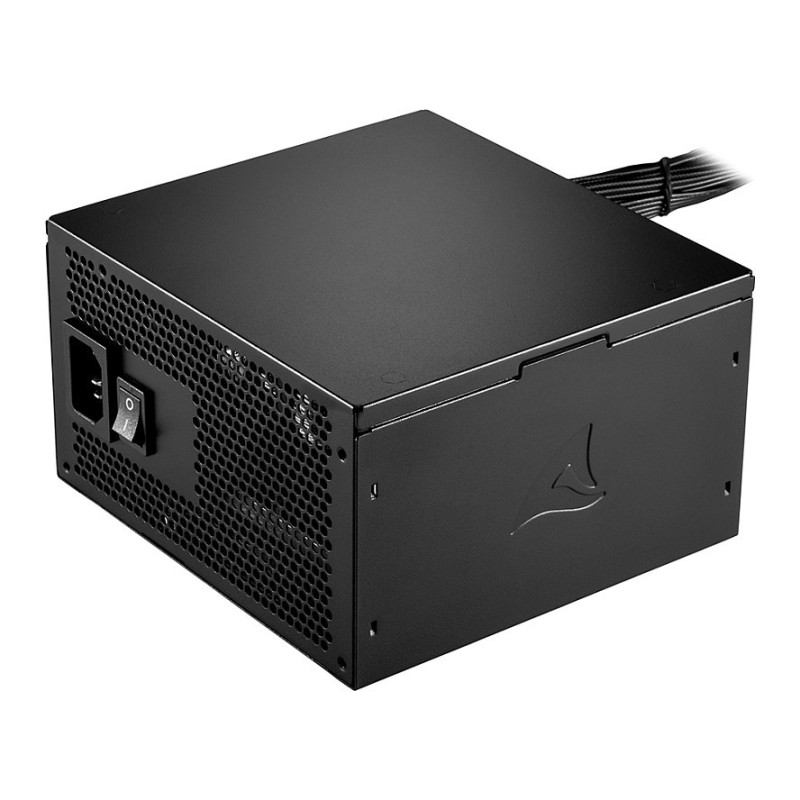

Sharkoon Rebel P10 power supply unit

Sharkoon Rebel P10. Total power: 550 W, AC input voltage: 100 - 230 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, Peripheral (Molex) power cable length: 480 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Bearing technology: Sleeve. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

If you are looking for reliable and efficient performance for your PC, then the Rebel P10 is the right choice. This Cybenetics-certified power supply unit supports the new ATX 3.1 standard and has a 120 mm fan with a quiet sleeve bearing and flat cables for improved airflow. The PSU is thus optimally equipped for intensive gaming sessions and everything beyond.

Certified by Cybenetics
The Rebel P10 has been tested by the independent laboratory and certified with an overall efficiency from 82% to 85% (115 V) and 87% (230 V) and with a 5 VSB efficiency of more than 73%. The 550-, 750- and 850-watt models all achieved the Silver certification. The 650-watt PSU achieved Bronze (115 V) and Silver (230 V).

Compatible with the Latest Graphics Cards
Thanks to its compatibility with ATX 3.1, the Rebel P10 supports the latest generation of graphics cards.

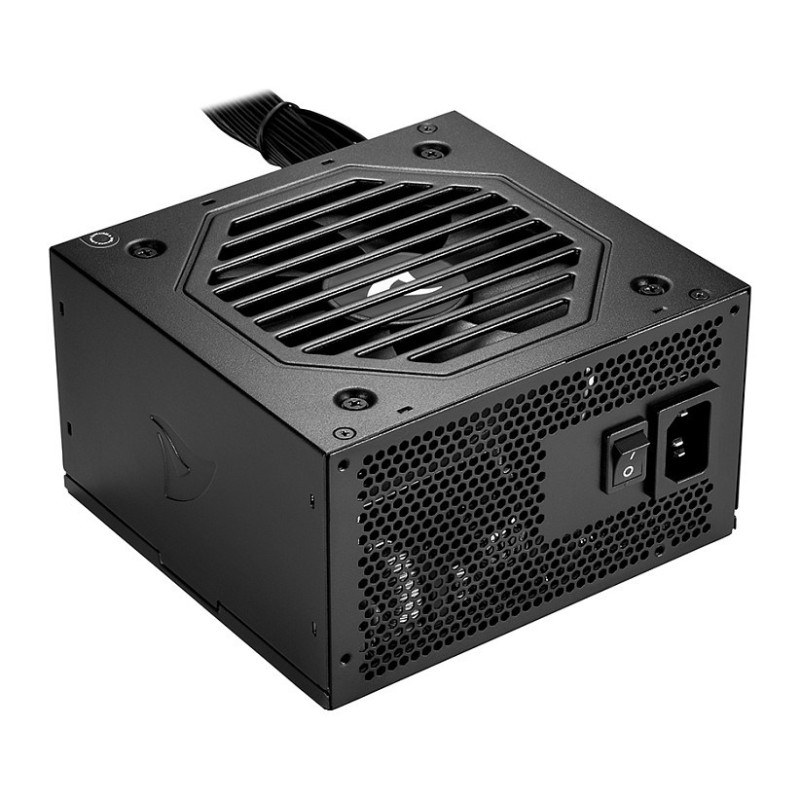

Certified Fan with Quiet Sleeve Bearing
The Rebel P10 is fitted with a 120 mm fan which, thanks to its sleeve bearing, complies with at least the Noise Standard + from Cybenetics, even at higher wattages.

Flat Cables for Improved Airflow

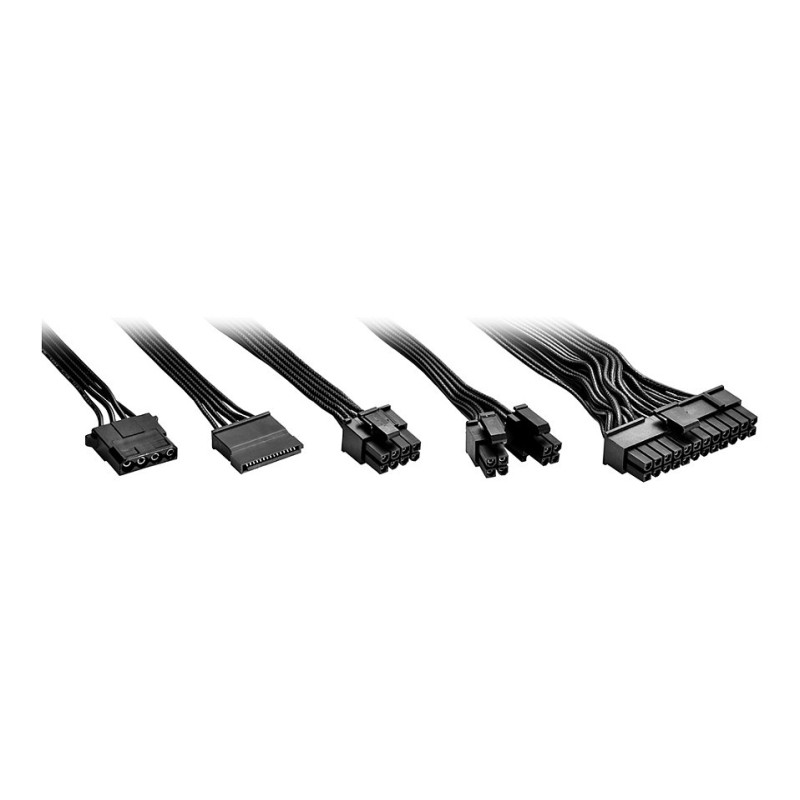

When it comes to connections, the permanently fixed cables of the Rebel P10 leave nothing to be desired. The cables are also kept extra flat for improved airflow in the PC case.

Optimum Voltage Regulation
Thanks to DC/DC technology, the Rebel P10 offers particularly precise voltage regulation for a flawless operation.

Full Protection
Whether its over-current protection or over-power protection: The Rebel P10 is equipped with all protective functions to ensure a continuously safe operation within the hardware system.

Power

Total power: 550 W
AC input voltage: 100 - 230 V
AC input frequency: 50/60 Hz
Input current: 8 / 4 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 549.6 W
Combined power (+5V): 100 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 45.8 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 5
Peripheral (Molex) power cable length: 480 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 56 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 62 cm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: No
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Sleeve
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

Cables included: AC

Certificates

Certification: CE, FCC, CB

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.47 kg

Technical details

Sustainability certificates: ErP
