Seasonic SSR-750FA power supply unit

Seasonic SSR-750FA. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 20 cm, SATA power cable length: 230,210,470 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active. Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

The development of the Seasonic CONNECT is the result of continued interest from our users and partners during the past few years. While fully modular power supplies helped to alleviate the need to plug in cables that were not necessary for some builds, our engineers have continuously been searching for a better and cleaner way of power supply cable management. Eventually, they came up with another possibility to improve the overall functionality and look of PC systems. This is how the SCMD, introduced at Computex 2018, was born, which ultimately has further evolved to become the upcoming Seasonic CONNECT.

The exact time to market depends on your location. Please contact your local Seasonic Representative to obtain more information.

80 PLUS® GOLD
The PRIME Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

INTRODUCING SEASONIC CONNECT

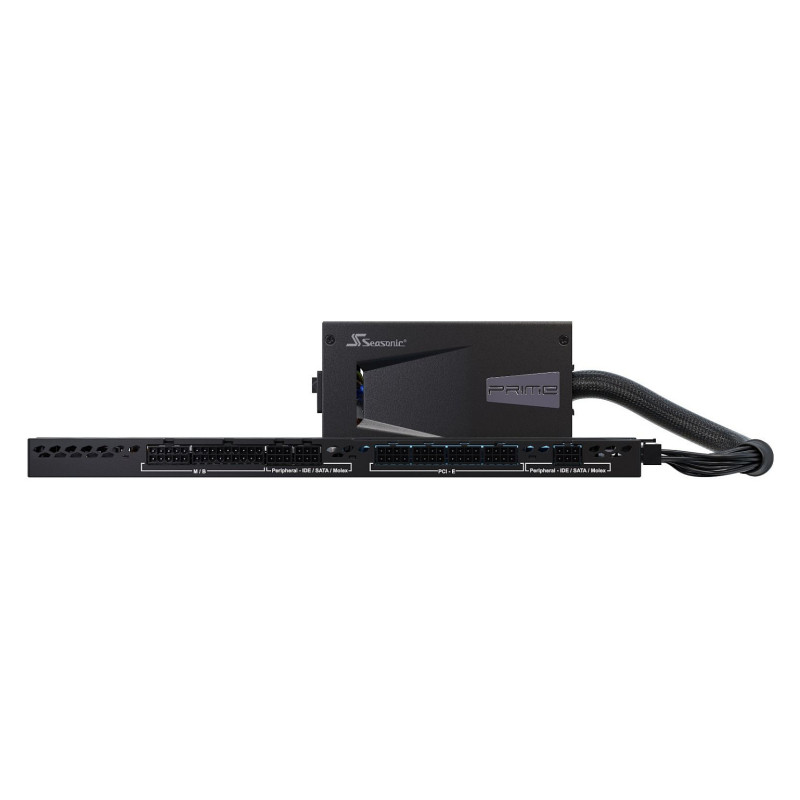

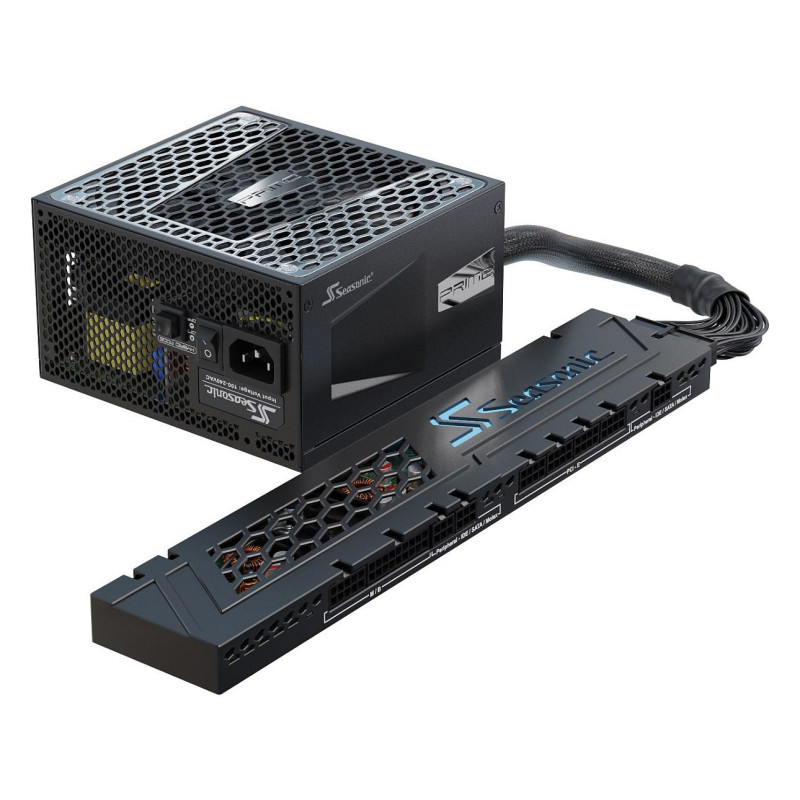

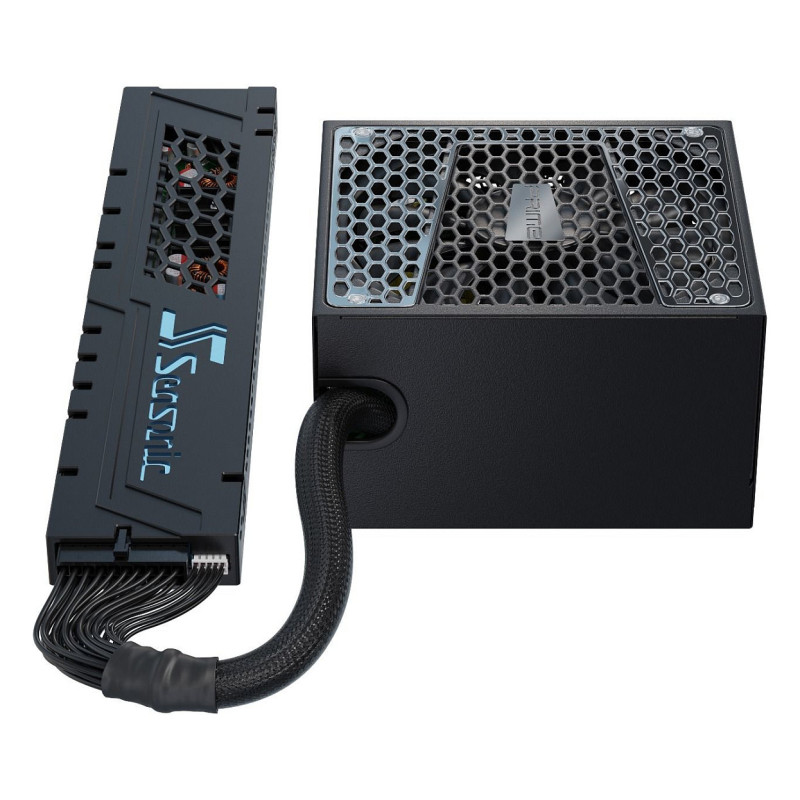

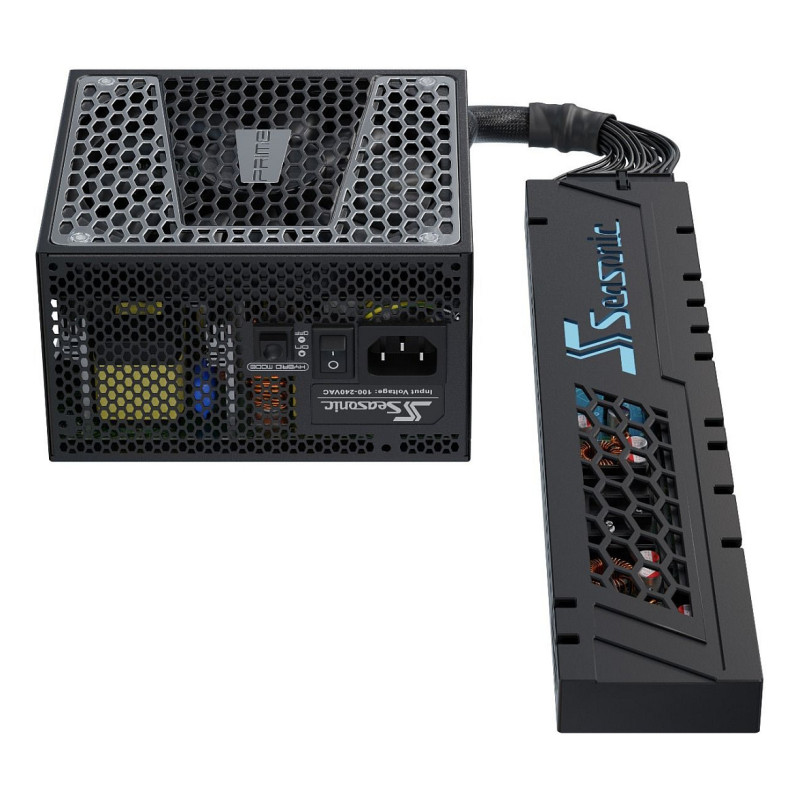

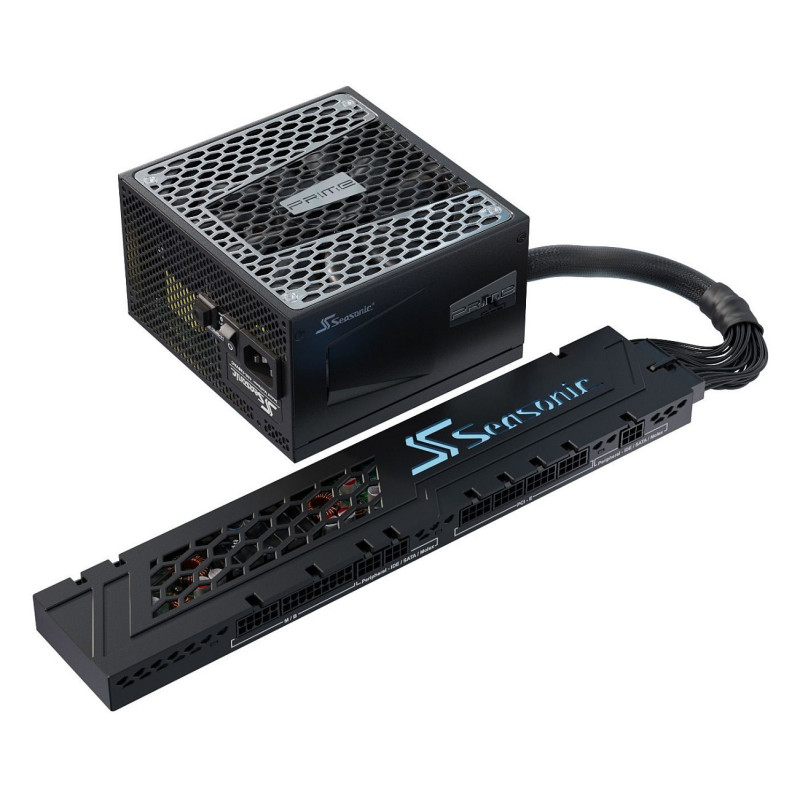

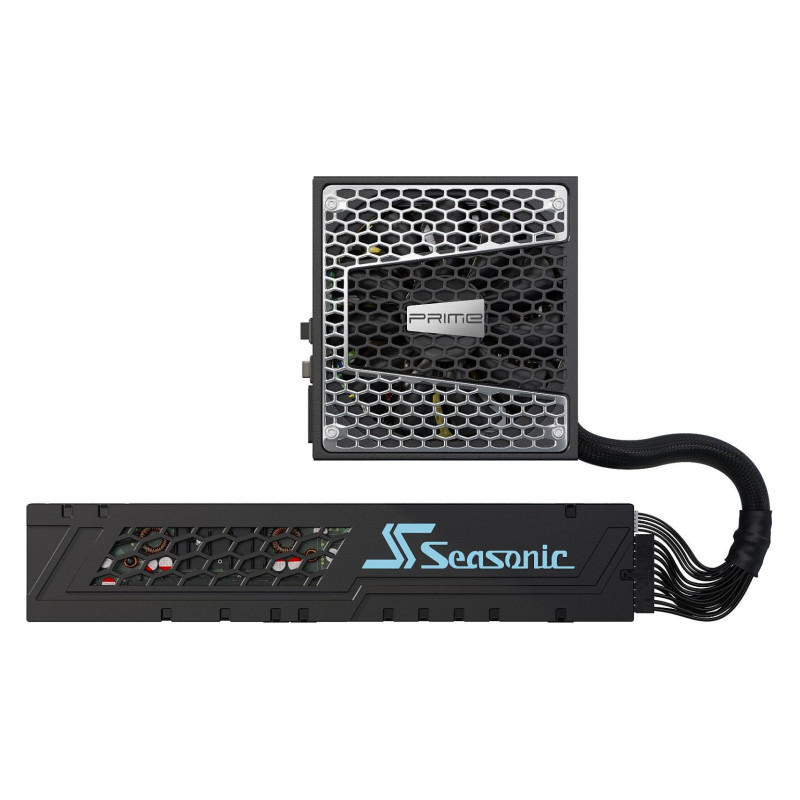

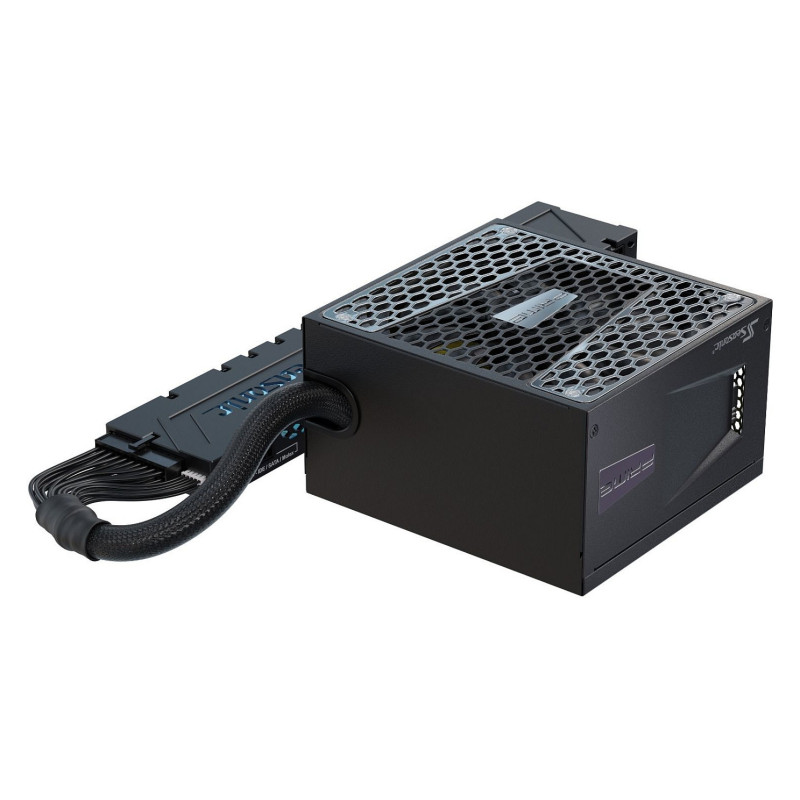

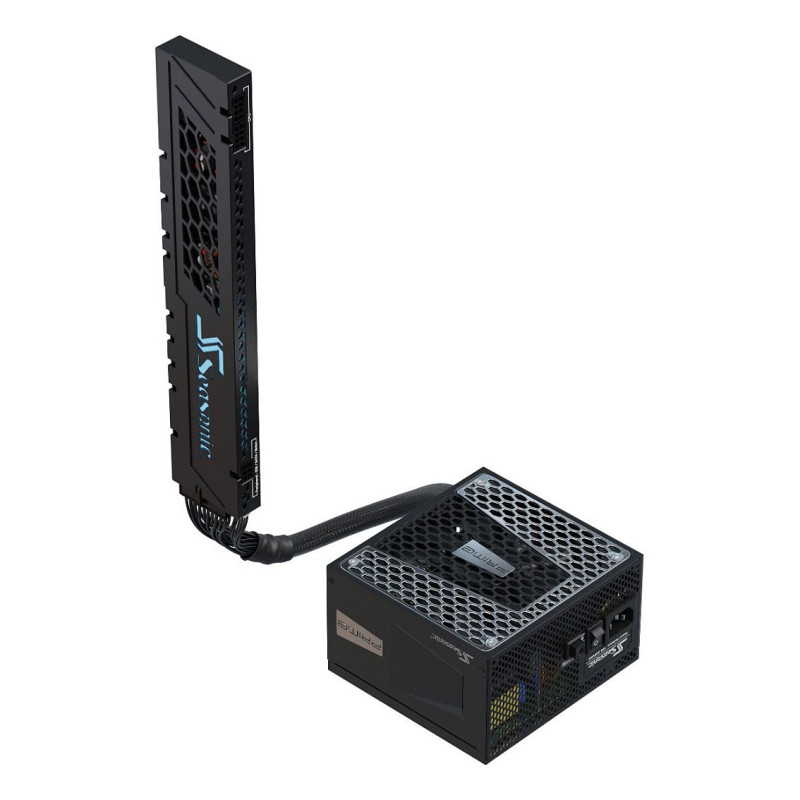

The Seasonic CONNECT is comprised of two linked products. One is the Seasonic PRIME 750 W 80 PLUS® Gold certified power supply, with our S3FC technology for efficient cooling and quiet operation. The other component is the CONNECT device, which is essentially a backplane that is mounted on the PC case with magnets to provide for the connections to all the components. During installation we only need to use two cables from the power supply to power the CONNECT. While the power supply itself supports the +12 V, -12 V and +5 Vsb rails, the CONNECT converts this power to provide the +3.3 V and +5 V outputs from the +12 V rail.

ONE CLEAN SOLUTION
The Seasonic CONNECT is an aesthetic upgrade to everyone's system and it will also feature a Seasonic LED display. The Seasonic CONNECT will ship with a dedicated cable set that will be long enough to reach any part of your computer to make your CONNECT, a One Clean Solution.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 5 - 10 A
Combined power (+3.3V): 100 W
Combined power (+12V): 744 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 20 cm
Number of SATA power connectors: 3
SATA power cable length: 230,210,470 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (8-pin): 4
PCI Express power cable length: 28 cm
CPU power cable length: 23 cm
CPU power connectors (8-pin): 2
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: FDB
Mean time between failures (MTBF): 150000 h

Design

Product colour: Black
Cooling type: Active
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 15 - 65%

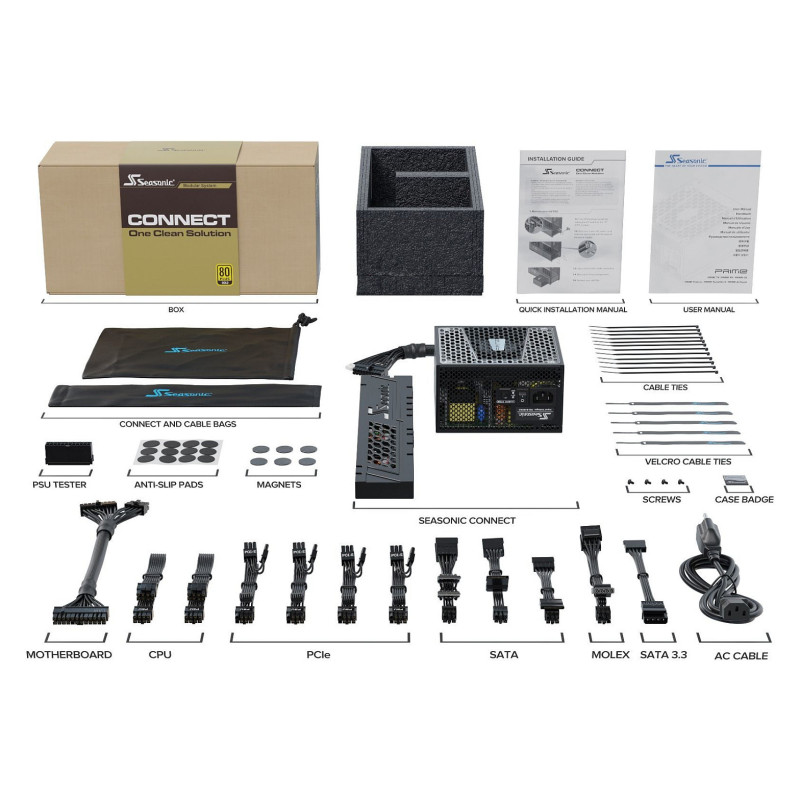

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

Certificates

Compliance certificates: RoHS
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Packaging data

Feature: Manual
Package type: Box

Technical details

Sustainability certificates: ENERGY STAR

Logistics data

Harmonized System (HS) code: 84733020

Other features

Feature: Screws included
Number of screws: 4
