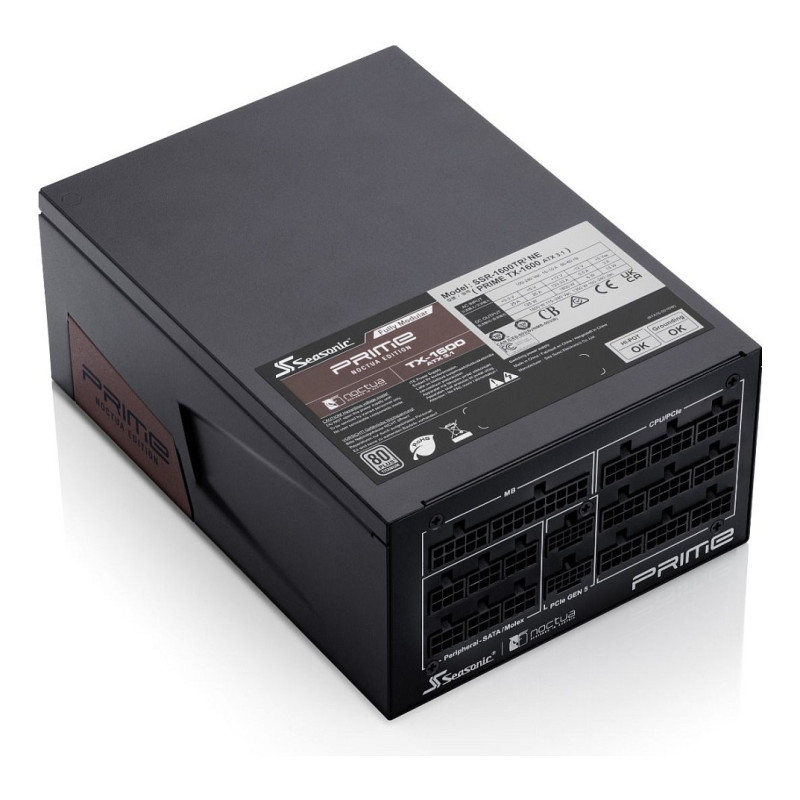

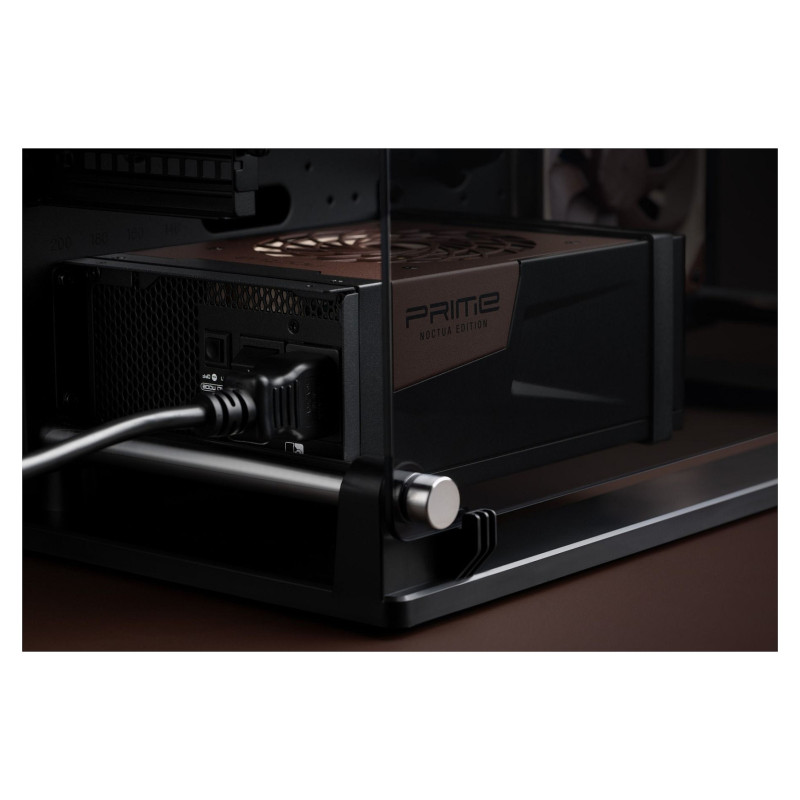

Seasonic Prime TX-1600 Noctua Edition power supply unit

Seasonic Prime TX-1600 Noctua Edition. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: REACH, RoHS, WEEE, Certification: REACH, RoHS, Energy Star, ErP Lot 6, WEEE

Power

Total power: 1600 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 A
Combined power (+3.3V): 125 W
Combined power (+12V): 1600 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 133.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A

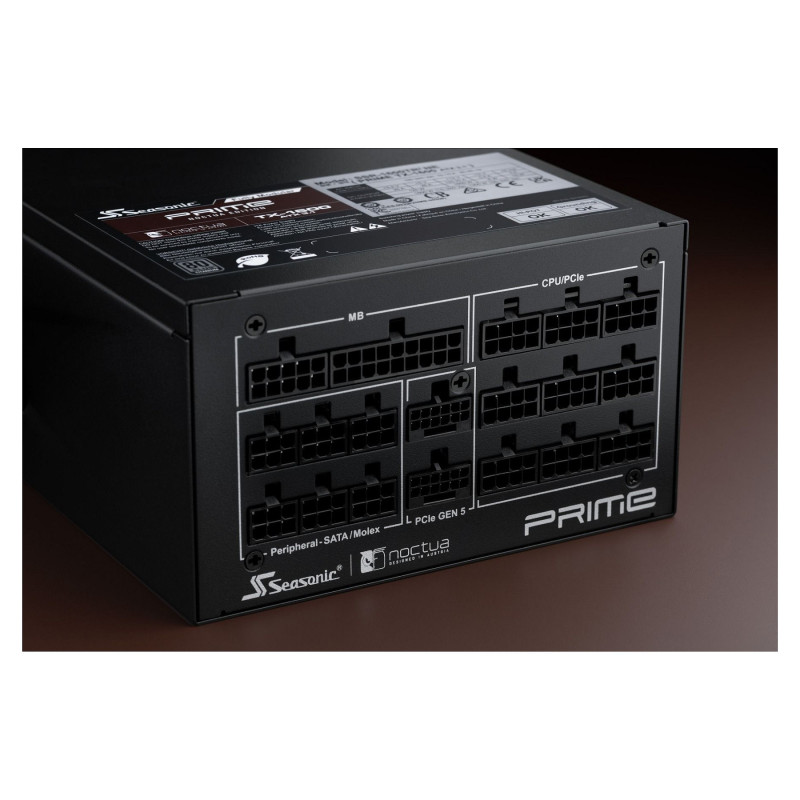

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 4
SATA power cable length: 950 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (8-pin): 1
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (12+4 pin)

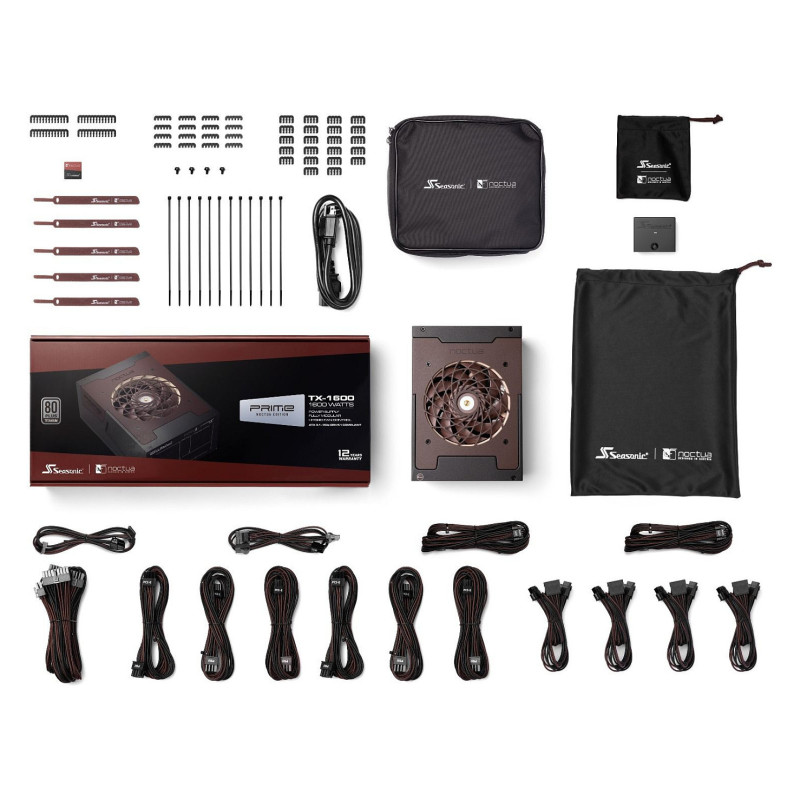

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Noise level: 10 dB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black

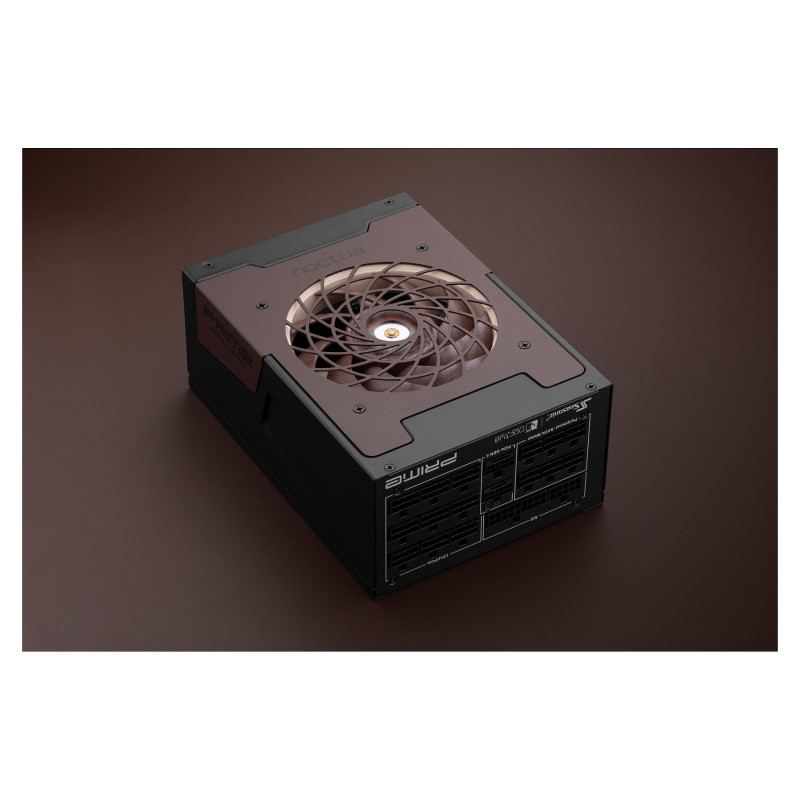

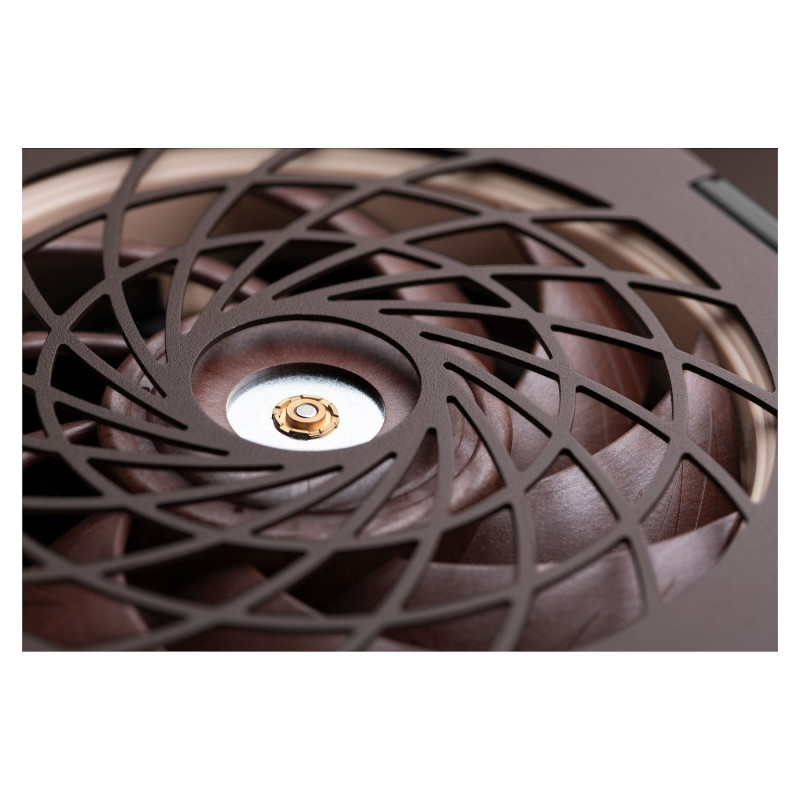

Fan diameter: 12 cm

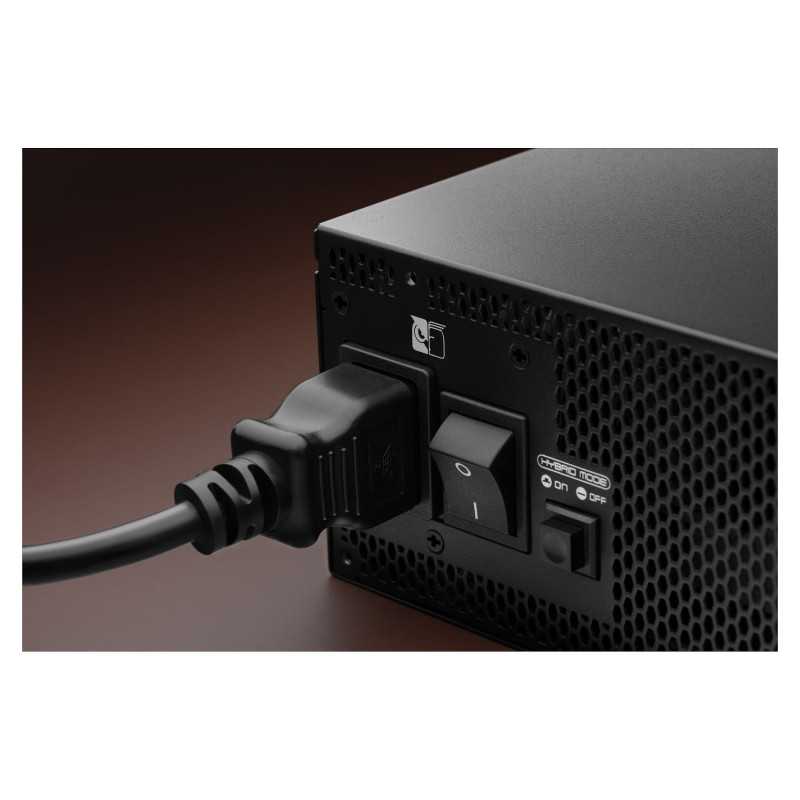

Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Compliance certificates: REACH, RoHS, WEEE
Certification: REACH, RoHS, Energy Star, ErP Lot 6, WEEE

Weight & dimensions

Width: 210 mm
Depth: 150 mm
Height: 86 mm
