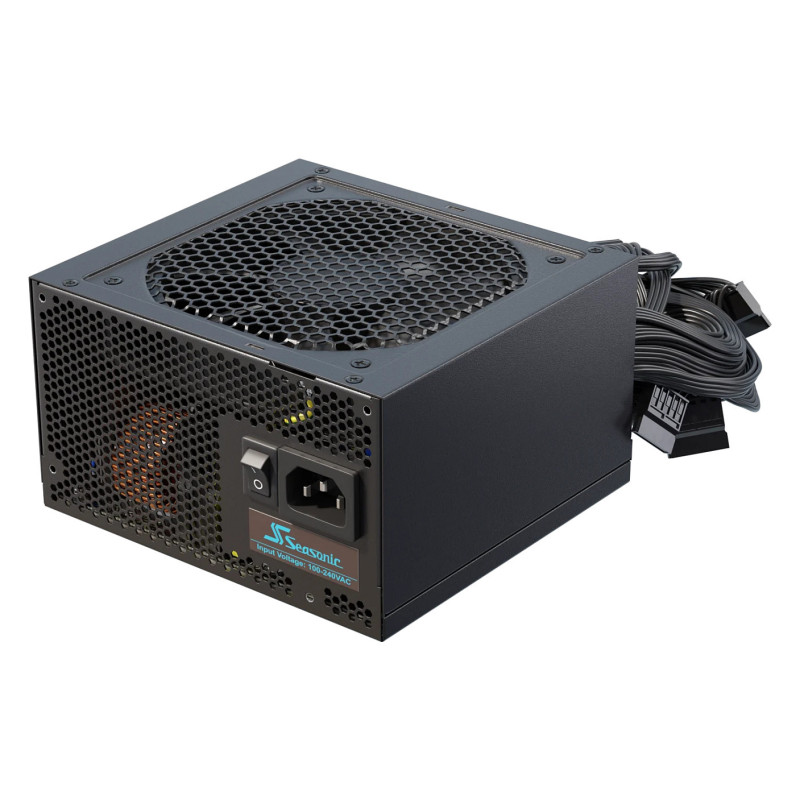

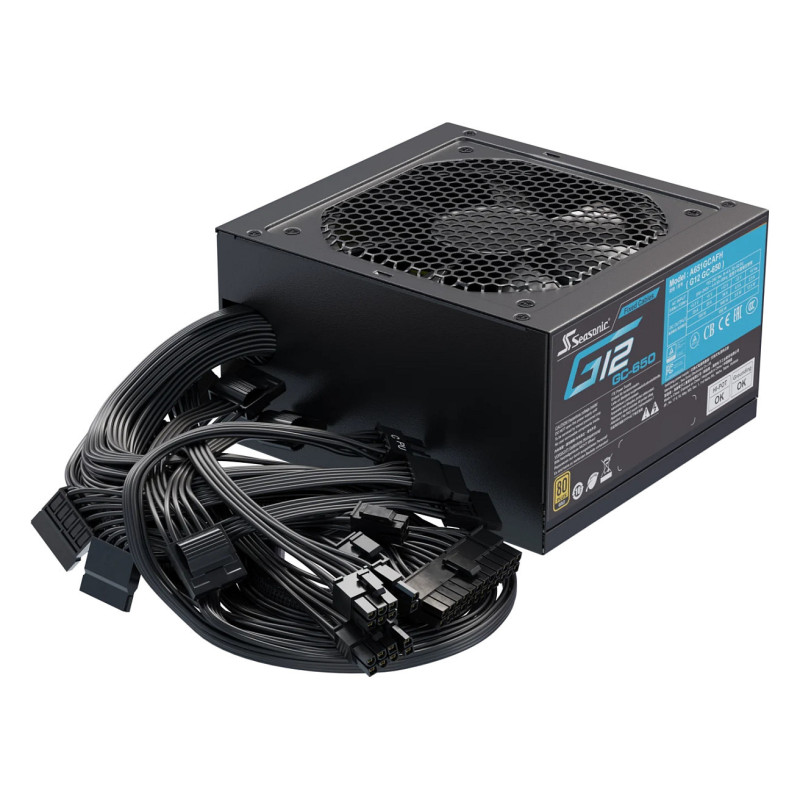

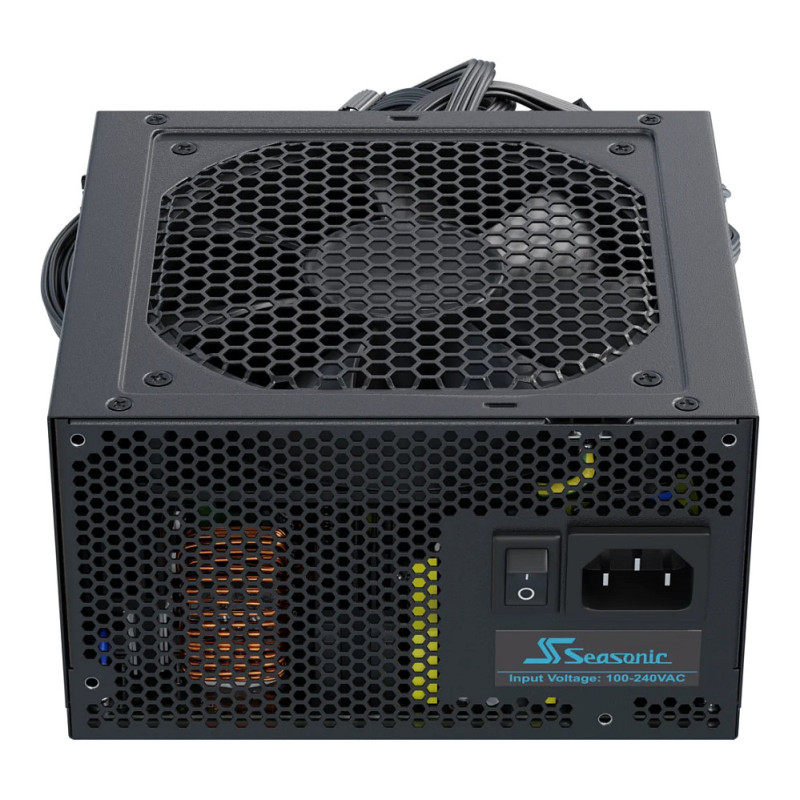

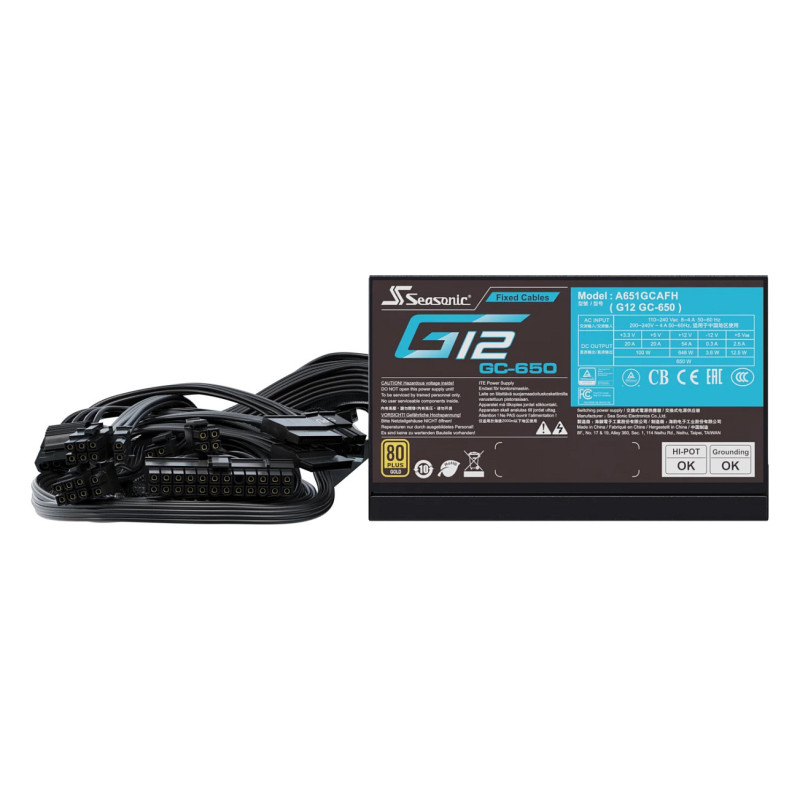

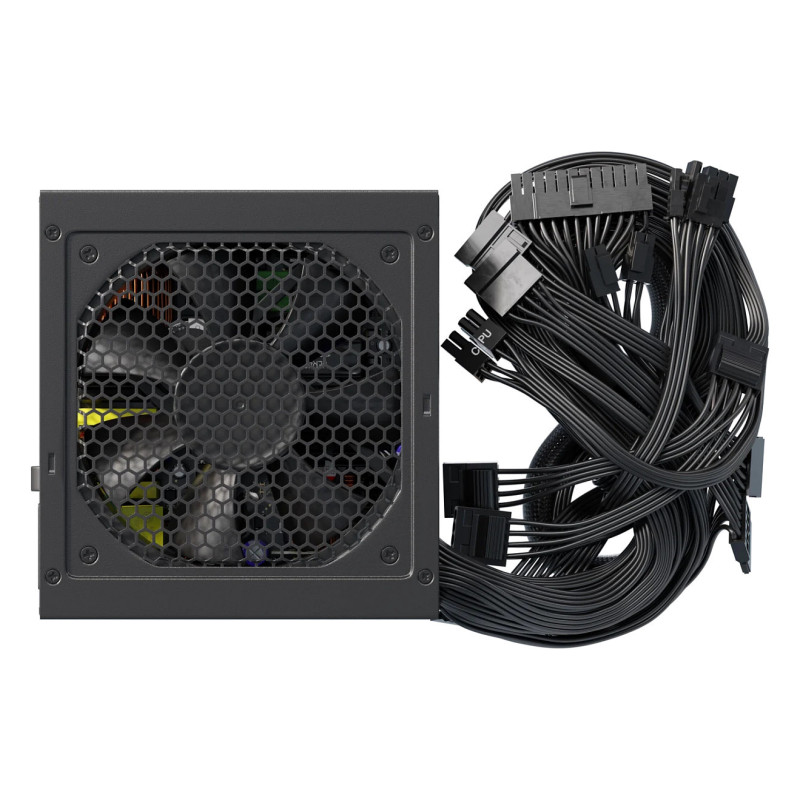

Seasonic Netzteil 650W G12 GC-650 80+Gold power supply unit

Seasonic Netzteil 650W G12 GC-650 80+Gold. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, SATA

The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry's leading Smart and Silent Fan Control (S2FC).

Power

Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 8 A
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over current, Over power, Under voltage, Over total voltage, Over voltage, Short circuit

Ports & interfaces

Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Packaging content

Cables included: AC, CPU, PCIe, SATA

Certificates

Compliance certificates: REACH, RoHS, WEEE
Certification: cTUVus, TUV, CB, CCC, BSMI, CE, FCC

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Packaging data

Package type: Box
